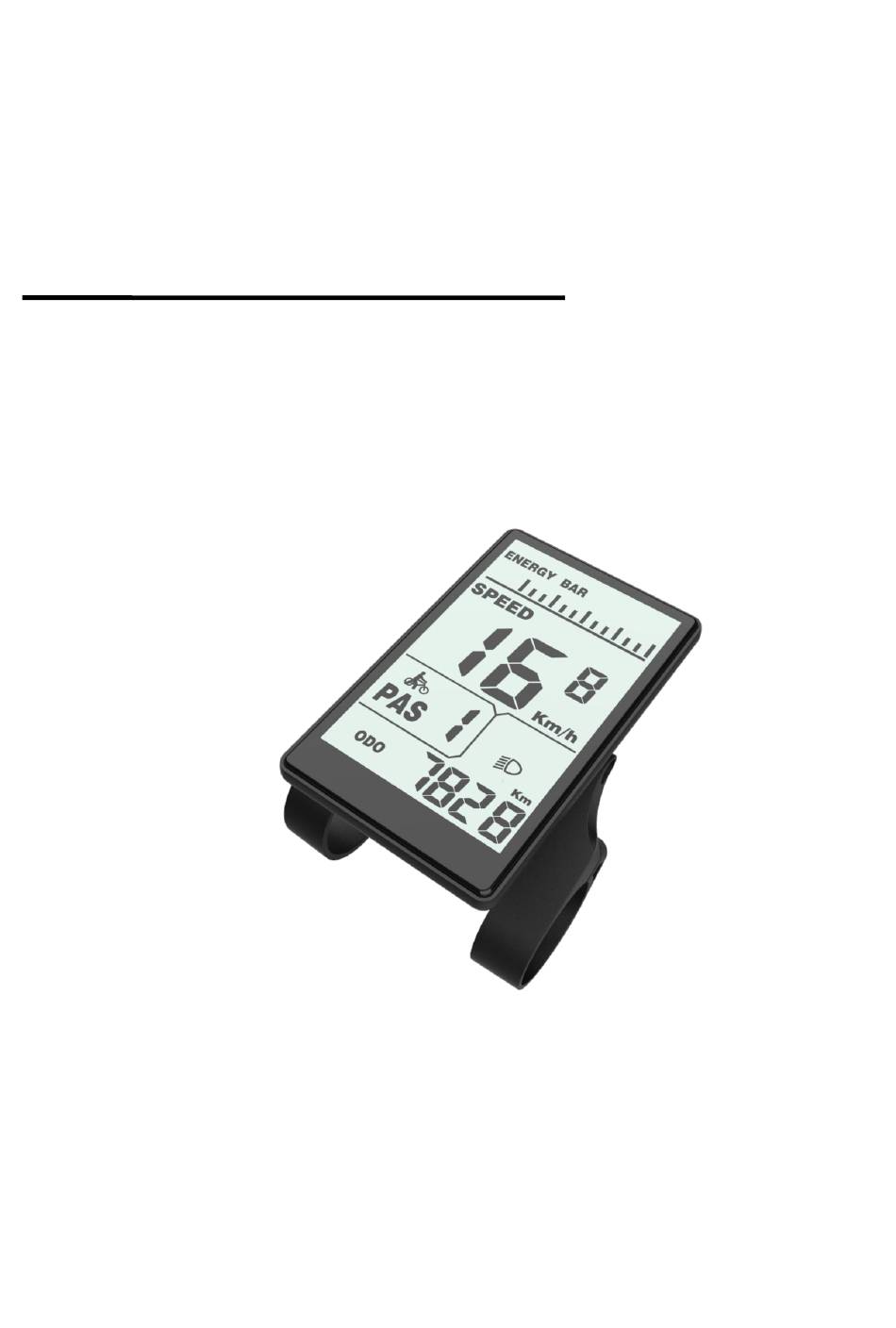

USERS GUIDE
K5304- LCD
1

Advertisement

Table of Contents
loading

Summary of Contents for VARUN K5304-LCD

  • Page 1 USERS GUIDE K5304- LCD...

  • Page 2: Table Of Contents

    Content Introduction ..............................3 1.Dimensions ............................4 1.1 Material and color ........................4 2 Function and button definition ......................5 2.1 Function description ........................5 2.2 Display area ..........................5 2.3 Button defination ........................6 3.User reminder ............................6 4.Instalation instructions ........................7 5. Operation introduction ........................7 5.1 Power on/off ..........................
  • Page 3 7.3.9 Exit Setting ........................23 8.FAQ and Answers ..........................23 9.Quality Warranty And Coverage .....................23 10.Version ..............................24 Appendix 1：Error Code ........................24...

  • Page 4: Introduction

    Introduction Dear users, in order to better operate your e-bike, please carefully read the manual of K5304 LCD display before use. We will tell you every detail of display in the simplest language, including the installation and setting of hardware and the normal use of the display. At the same time, it helps you solve the possible confusion and obstacles.

  • Page 5: Dimensions

    1.Dimensions 1.1 Material and color K5304 product housing is made of white and black PC materials. The material of the housing is allowed to be used normally at the temperature of - 20 ℃ to 60 ℃ , and good mechanical properties can be guaranteed.

  • Page 6: Function And Button Definition

    2 Function and button definition 2.1 Function description K5304 provides you with a variety of functions and displays to meet your riding needs. K5304 displays: ◆ Battery capacity ◆ Speed (including real-time speed display, maximum speed display and average speed display), ◆...

  • Page 7: Button Defination

    2.3 Button defination The main body of the button is made of PC material, and the button part is made of soft silicone material, all in black. There are three buttons on the K5304 display. Including power on/mode button , plus button and minus button .

  • Page 8: Instalation Instructions

    4.Instalation instructions Fix the display on the handlebar and adjust the appropriate angle of view. When the e-bike is powered off, the display can be completed by inserting the connector of the display and the connector corresponding to the controller. 5.

  • Page 9: Speed

    5.3 Speed Long press the [mode] button and the [UP] button to enter the speed switching interface, and speed (real-time speed), AVG (average speed) and max (maximum speed) are displayed respectively, as shown in the figure: Real time speed Average speed Max speed 5.4 Trip/ODO Press the [mode] key to switch the mileage information, and the indicate is: TRIP A(single trip) →...
  • Page 10 5.5 Walk Assist Mode When the display is turn on, hold the [DOWN] button for 3 seconds, the e-bike will enter the state of walk assist mode. The e-bike travels at a constant speed of 6km/h. The screen will flash “WALK”. Walk interface The walk assist mode function can only be used when the user pushes the e-bike.
  • Page 11 Headlight on interface 5.7 Battery indicator When the battery power is displayed as shown in the picture on the right, it indicates that the battery is under voltage. Please charge it in time! 5.8 Trip resetting When the display is turned on and e-bike is not running, hold the [mode] and [down] buttons for 2 seconds at the same time, and the Trip(single mileage) of the display will be cleared.

  • Page 12: Error Code

    6 Error code When the e-bike electronic control system fails, the display will automatically display ERROR code. For the definition of the detailed error code, see Schedule 1. Error code interface Only when the fault is eliminated, can exit the fault display interface, the e-bike will not continue to run after the fault occurs.

  • Page 13: Speed Limit Setting

    Metric/Imperial conversion setting interface 7.2.2 Speed limit setting Short press 【UP】 / 【DOWN】 button to set the maximum speed limit, the setting range is 20-40Km/h. Short press [MODE] to confirm and enter the wheel diameter setting interface. The default maximum speed of the meter is 25Km/h.

  • Page 14: Exit Settings

    Wheel size setting interface 7.2.4 Exit settings In the setting state, long press 【MODE】button(more than 2 seconds) to confirm to save the current setting and exit the current setting state. If no operation is performed within one minute, the display will automatically exit the setting state.

  • Page 15: Battery Power Volt Setting

    Password input interface Press“UP/DOWN”button to select, and press “MODE”button to enter the corresponding setting page. 7.3.2 Battery Power Volt Setting “VOL” means battery power volt setting. Each number represents a voltage value. 5 voltage values MUST BE entered one by one. Press 【UP】/【DOWN】 button to change the value. Short press 【MODE】...

  • Page 16: Pas Level Setting

    Battery power voltage setting interface 7.3.3 PAS level setting PAS level select interface In Pedal Assistant Level Settings, there are 8 modes selectable: 0-3, 1-3, 0-5, 1-5, 0-7, 1-7, 0-9, 1- 9. Press “UP/DOWN” button to select the mode, and press “MODE” button to confirm, then enter to the ratio of each PAS level settings.

  • Page 17: Current Limit Setting

    The speed of each level can be adjusted by setting the assist proportion value to meet the different requirements for riders. Take the 1 level for example, “30-50%” is the range value, and "40%" is the default value of the first level, which can be set.

  • Page 18: Pas Sensor Setting

    Current limit setting interface 7.3.5 PAS sensor setting The Direction Setting of PAS Sensor “PAS” means Pedal Assistant System sensor. “run-F” means forward direction, while “run-b” means backward direction. Press “UP/DOWN” button to select F or b, and press “MODE” button to confirm and turn to PAS sensitivity setting.
  • Page 19 PAS sensor sensitivity setting The display shows SCN, indicating the sensitivity of the PAS sensor. The setting range is 2-9. 2 indicate the highest sensitivity and 9 indicate the lowest sensitivity. Increase/decrease setting values by UP/DOWN. Press MODE to confirm and enter the PAS sensor proportion parameter setting interface. The factory default value is 2.

  • Page 20: 6Speed Sensor Setting

    7.3.6Speed Sensor Setting SPS indicates the speed sensor setting. It can be set according to the number of magnet heads mounted on the wheel of the e-bike, and the setting range is 1-9. Modify it by pressing UP/DOWN. Hold MODE to confirm and return to the personalized parameter setting interface. The factory default value is 1.
  • Page 21 HL indicates the throttle’s walk assist function. HL: N means that the throttle does not has this function, and HL: Y means that throttle has this function, that is, when turning the throttle, the display enters the walk assist mode. Y/N can be switched by UP/DOWN. If you select N, press MODE shortly to confirm and enter the throttle level enable setting interface, otherwise there is no response.

  • Page 22: System Setting

    7.3.8 System Setting 7.3.8.1 Battery Delay Time Setting DL represents the battery delay time. The battery delay time 3/6/12s can be selected by UP/DOWN. Press MODE to confirm and enter the maximum speed limit setting interface. Battery delay time setting 7.3.8.2 Max Speed Limit Setting MAX SPEED indicates the maximum speed limit.

  • Page 23: Walk Assist Speed Setting

    Button walk assist enable setting 7.3.8.4 Walk Assist Speed Setting PU indicates the button walk assist speed setting. By setting the walk assist speed value, you can adjust the pushing speed to meet the needs of different riders. Adjusted by UP/DOWN, the adjustable range is “20-35”.
  • Page 24 Slow start up setting 7.3.9 Exit Setting In the personalized parameter setting state: press MODE to confirm the input to enter the next setting; hold MODE to confirm the current setting and exit the current setting state; hold DOWN to cancel the current operation, exit without saving the current set data.
  • Page 25 II. The following conditions are not covered by the warranty: 1. The casing is opened 2. Connector is broken 3. The display leaves the factory, the casing is scratched or the casing is damaged. 4. Scratch or break of the display lead wire 5.
