Summary of Contents for Craft'A'Camper DIESEL HEATER

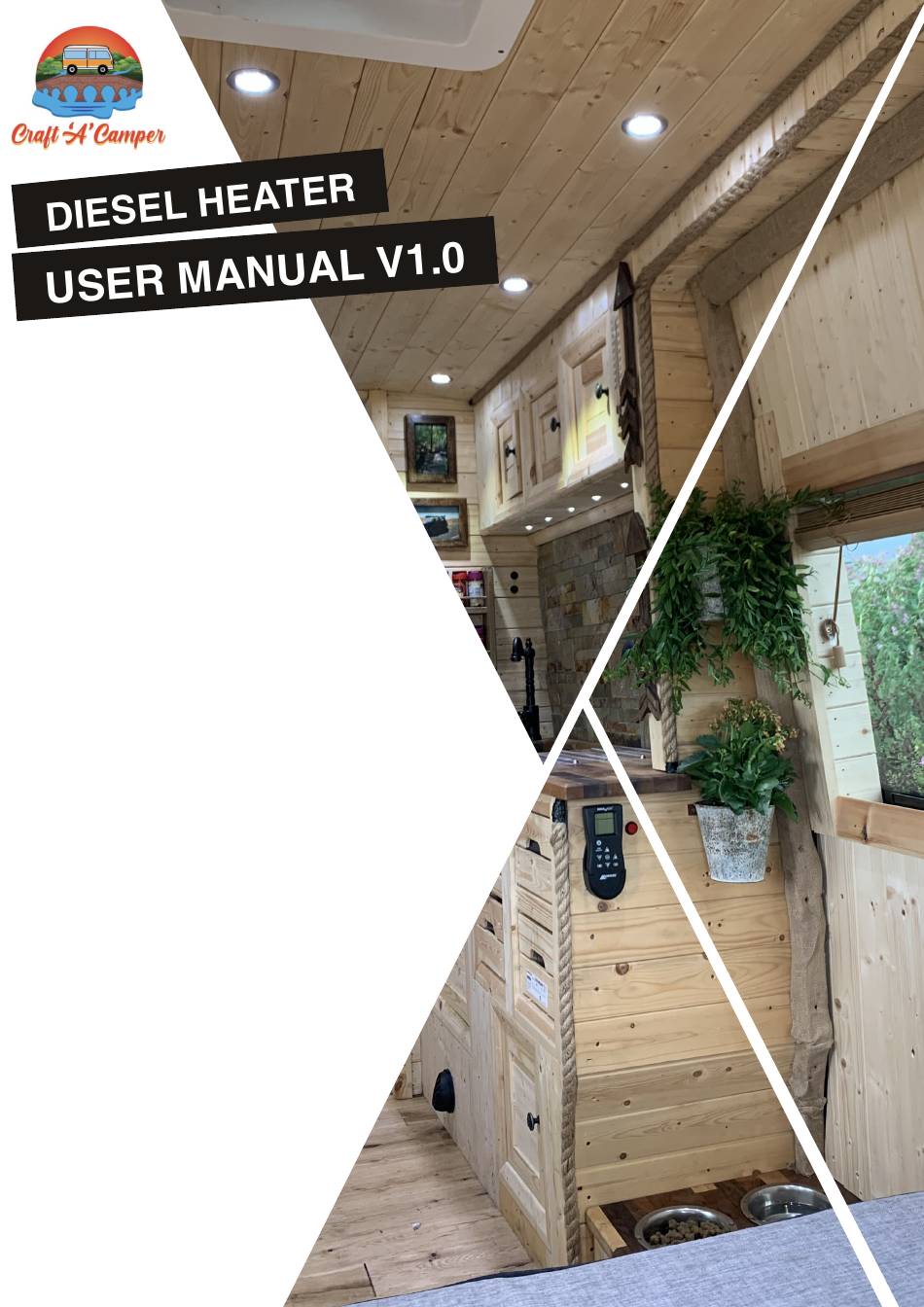

- Page 1 Page 1: The Basics Page 2: Dos & Don’ts Page 3: Using the Heater Page 4: Heater Modes 4:1: Fan Mode 4:2 Thermostat Mode Page 5: Timer Functions 5:1 Setting an “ON” timer 6:1 Setting an “OFF” timer. Page 7:1: Alpine Mode Page 7:2: Controller Switch Page 8: Fuel Pump &...
- Page 2 (depending on vehicle) but the pumps will be heard most if the heaters running on a low setting. The diesel heater is very efficient on fuel, you could leave it running all night and will notice little movement on the fuel tank needle. The heaters should pick up fuel all the way into the red but will always run out of fuel before the vans engine.
- Page 3 2:1 Monitor Start Up Procedure: After every drive of the vehicle, you must monitor the heater for at least 15 minuets on its first startup. Due to conditions out of our control things might become damaged or loose under the vehicle which could cause various problems on startup.
- Page 4 Step 1: Turning the heater on - Hold the Step 2: The heater will now begin a start up procedure. This may take 5 mins to generate power button circled in red above for 3 any noticeable heat and you may notice a seconds.
- Page 5 HEATER MODES: 4:1 FAN OPERATION The default setting on your heater will be a fan speed operation. Once you turn the heater on it’ll display “H (1-6)” in the middle. Use the arrows (circled in red) to turn the heater up and down. The system will run from 1-6, with the higher number being a faster speed.
-
Page 6: Timer Function
TIMER FUNCTION: 5:1 Setting A Turn On Timer: The timer function on these heaters can be tricky to understand. It might not be valuable for everyone but perfect for customers who use their vans regularly and want the vehicle to be warm before you wake up in the morning without the need to run the heater overnight. - Page 7 TIMER FUNCTION: 6:1 Setting A Turn Off Timer: The timer function on these heaters can be tricky to understand. It might not be valuable for everyone but perfect for customers who use their vans regularly and want to leave their heaters running to turn off automatically after a preset time.
- Page 8 7:1 ALPINE MODE: 7:1 What does alpine mode do? Alpine mode is designed for use at high altitude. Nowhere in the UK or even Europe will require you to use this mode. It can severely damage the unit if used incorrectly. What it does is reduce the amount of fuel sent to the unit to compensate for the thinner air.
- Page 9 FUEL PUMP INFORMATION: The fuel pump is a little cylindrical silver/gold component under the vehicle. The heater communicates to the pump to provide the correct amount of fuel for the setting you’re currently running on. You may hear a ticking noise from this, this is a normal function but may be heard more when the heaters running on a low setting.
- Page 10 9:1 DISPLAY LABELS: 1. Up Arrow 7. Ambient Temperature 2. Power Button 8. Timer Symbol 3. Down Arrow 9. Alpine Mode 4. Settings Button 10. Fault Active 5. OK Button 11. Display Option 6. Heater Mode 12. Running Part Graphics Normal Heater Off Screen Running On Thermostat Running On Fan Speed...
- Page 11 10:1 ERROR CODES: CODE ERROR MESSAGE POSSIBLE FIX This usually means the battery being over charged either by a faulty solar charge controller Over Voltage or wrongly configured split charge system. Your battery is likely too low to safely run the heater. Try again with the engine running if Under Voltage you have a split charger or charge/replace the battery by other means.
- Page 12 JOSH@CRAFTACAMPER.COM Vist website for full t&c’s, updates, FAQs and our lastest work. www.craftacamper.com...
