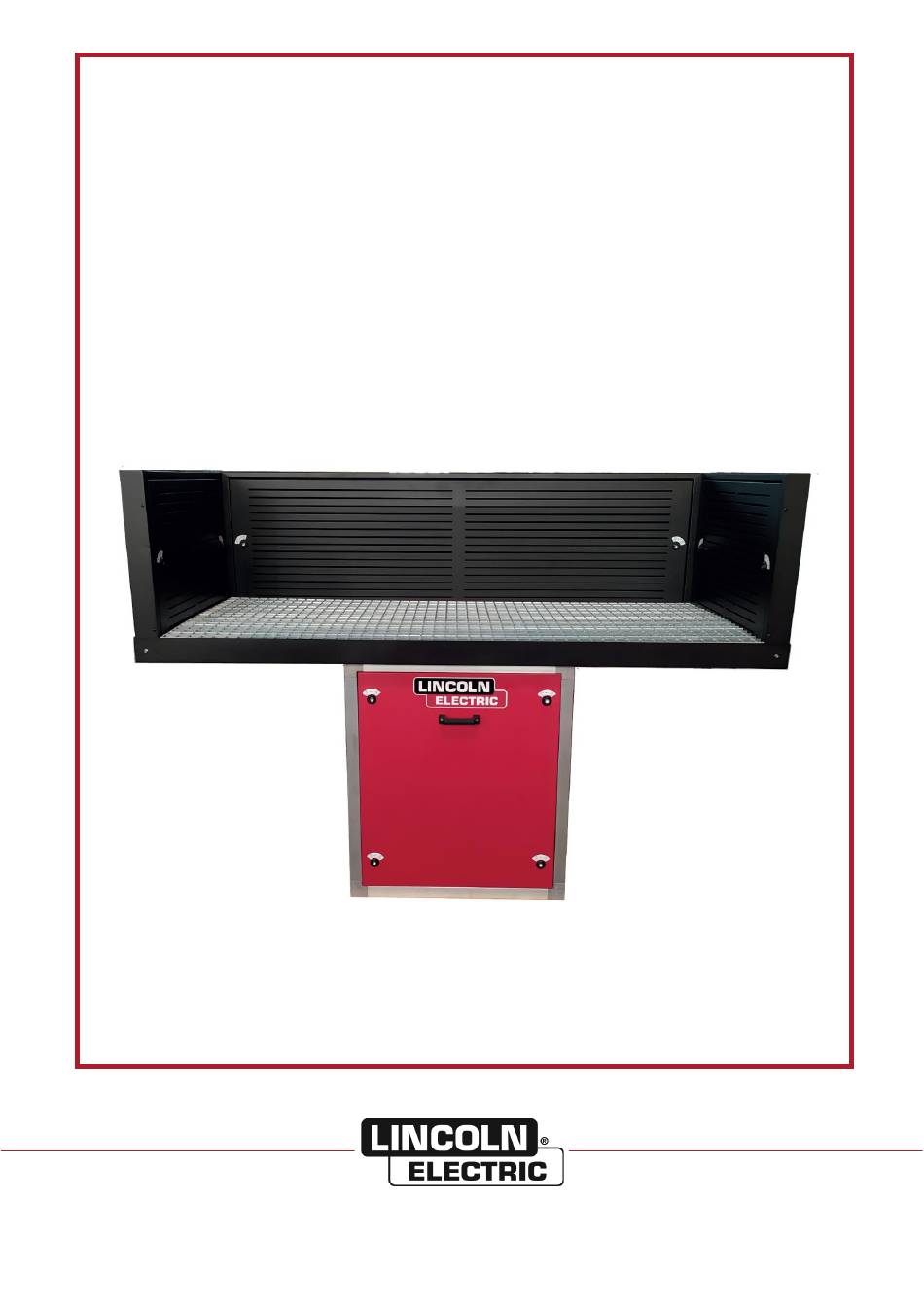

- Page 1 DOWN-DRAFT TABLE DOWN-DRAFT TABLE SAFETY INSTRUCTIONS FOR USE AND MAINTENANCE No W000342583 - W000342584 8695 8011 EDITION : EN Instructions for use REF : REVISION : A DATE : 09-2021 Original instructions...
- Page 2 Thank for the trust you have expressed by purchasing this equipment, which will give you full satisfaction if you follow its instructions for use and maintenance. Its design, component specifications and workmanship comply with applicable European directives. Please refer to the enclosed CE declaration to identify the directives applicable to it.
-
Page 3: Table Of Contents
8695 8011 CONTENTS A - INTRODUCTION .......................... 1 USING THE MANUAL ......................1 MACHINE GUARANTEE ......................1 ASSISTANCE ........................... 1 DESCRIPTION OF PICTOGRAMS ..................1 B - GENERAL SAFETY INSTRUCTIONS ..................2 ELECTRICAL SAFETY ......................2 PERSONAL PROTECTION ..................... 3 FILTRATION OF FUMES AND DUST .................. - Page 4 8695 8011 DOWN-DRAFT TABLE...
-
Page 5: A - Introduction
Before the filter is used by a new user, make sure that they have read this manual and understood all the explanations provided. For any further information, please feel free to contact the technical departments of LINCOLN ELECTRIC. MACHINE GUARANTEE This machine is guaranteed for 12 months from the date of purchase. -
Page 6: B - General Safety Instructions
8695 8011 / A B - GENERAL SAFETY INSTRUCTIONS ELECTRICAL SAFETY The ASM table does not include any electrical component or fan. However, an external connection is required for the use of this down- draft table. The section below describes the safety rules to apply. Connection to the mains Before you connect your machine, please make sure that: —... -
Page 7: Personal Protection
8695 8011 / A PERSONAL PROTECTION Risks of external injury relating to welding operations Whole body — The operator must be clothed and protected to suit the requirements of the job. — Make sure that no part of the bodies of operators and helpers can come in contact with metal pieces or parts that are live or are liable to become live accidentally. - Page 8 8695 8011 / A Specific case of chlorine solvents in welding: (used for cleaning or degreasing). — The fumes from these solvents can be changed into toxic gases when subjected to arc radiation, including from a distance. — Such solvents may therefore not be used in locations where electric arcs occur, if the solvents are not in a sealed enclosure.
-
Page 9: Filtration Of Fumes And Dust
— Not obstruct the air outlet of the machine. — Not introduce external elements into the filter (paper, cloths, cigarette butts etc.) — Replace the filter medium with new original LINCOLN ELECTRIC medium, which alone can guarantee the filtration characteristics. -
Page 10: C - Overall Description
8695 8011 / A C - OVERALL DESCRIPTION For your safety and optimum performance, please read this manual carefully before using the filter. ASM down-draft tables for welding and grinding are designed to extract fumes from all welding processes and occasional grinding work. -
Page 11: D - Technical Description
8695 8011 / A D - TECHNICAL DESCRIPTION ASM TABLE COMPOSITION The table is made up of the following : Work surface - 1060 x 730mm for the 1200 x 800mm version - 1860 x 730mm for the 2000 x 800mm version ... -
Page 12: Asm Table Dimensions
8695 8011 / A ASM TABLE DIMENSIONS ASM 1200 x 800 mm table ASM 2000 x 800 mm table DOWN-DRAFT TABLE... - Page 13 8695 8011 / A OPERATING PRINCIPLE As the table is integrated into a centralised extraction system with outdoor discharge or a filtration system, extraction starts up as soon as said extraction system is started up, either manually or automatically by means of a motorised damper coupled with a box Damper Box (see section on option).
-
Page 14: E - Installing The Asm Table
8695 8011 / A E - INSTALLING THE ASM TABLE ASSEMBLY Move the table with a lift truck to its location, then remove the packaging and transport protection material. Connect the table to the air extraction duct using 250mm, towards the outdoor environment or a duct system possibly connected to a filtration system DOWN-DRAFT TABLE... -
Page 15: F - Maintenance
The performance of operations that may not be carried out or are contrary to the standards and procedures of the “General instructions” section would release LINCOLN ELECTRIC from liability for any damage caused and would void the guarantee if it is still valid. -
Page 16: Pre-Filter
8695 8011 / A PRE-FILTER For pre-filter maintenance, always use protective glasses and a respiratory mask in order to prevent all risks of contact with or inhalation of the particles collected. The power supply must always be switched off using the disconnector or via the fuses. If the table has a power connector, it must be separated from its socket on the wall Pre-filter cleaning frequency ? Maintenance depends on use. -
Page 17: Spare Parts
8695 8011 / A SPARE PARTS Description Reference Quantity Lateral or rear vertical table outlet, 250mm W000342588 Metal pre-filter, 610 x 610 x 24mm W000379636 CONNECTION OPTIONS Description Reference Quantity Damper Box Essential box W000370749 Motorised shutter, diameter 250mm W000380489 Clamp-on current sensor W000379696 Fan 3.0 - 230/400V for table 1200 x 800... -
Page 18: Personal Notes
8695 8011 / A PERSONAL NOTES Lincoln Electric France S.A.S. Avenue Franklin Roosevelt 76120 Le Grand Quevilly 76121 Le Grand Quevilly cedex www.lincolnelectriceurope.com DOWN-DRAFT TABLE...
