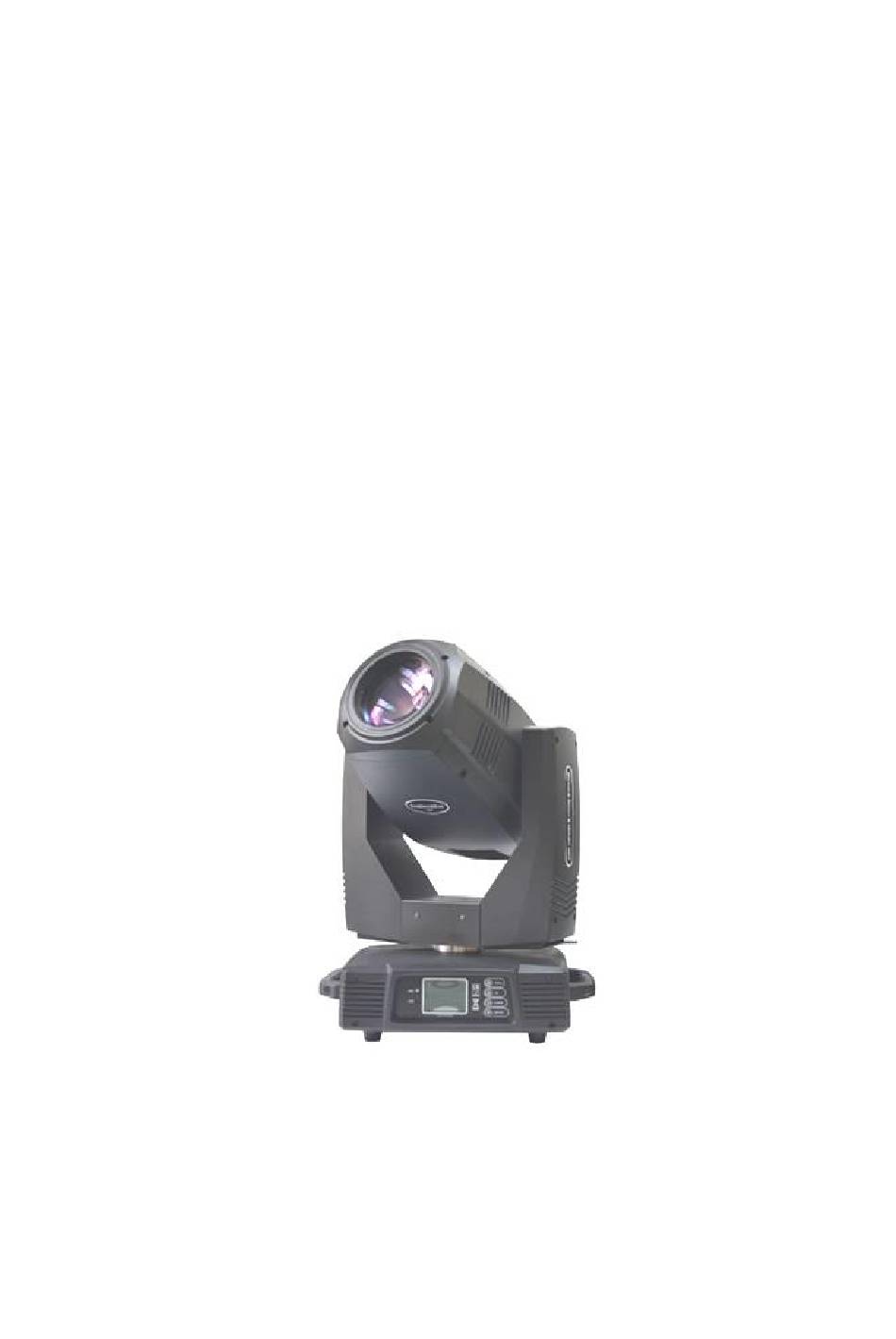

SHARPY 20R Instruction Manual

350w beam pattern lamp three in one shaking head lamp, color display, touch operation

Advertisement

Quick Links

1 Please read the manual carefully before use. 350W beam pattern
lamp three in one shaking head lamp
an instruction manual
(color display, touch operation)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20R and is the answer not in the manual?

Questions and answers

Summary of Contents for SHARPY 20R

  • Page 1 1 Please read the manual carefully before use. 350W beam pattern lamp three in one shaking head lamp an instruction manual (color display, touch operation)
  • Page 3: Table Of Contents

    catalogue Chapter 1 precautions and installation.......... 1 1. Maintenance..........1 2. Declaration......... 1 3. Precautions for products.......... 1 4. Product introduction........1 5. Signal line connection (DMX)........... 2 6. Installation of lamps........2 Chapter 2 panel operation........3 1. General......... 3 2.
  • Page 4: Chapter 1 Precautions And Installation

    Chapter 1 precautions and installation 1. Maintenance1. Maintenance  The lamp shall be kept dry to avoid working in humid environment.  Intermittent use will effectively prolong the service life of the lamp.  In order to obtain good ventilation effect and lighting effect, pay attention to regularly cleaning the fan, fan net and lens.
  • Page 5: Signal Line Connection (Dmx)

     Effect wheel: a rotatable 8 prism and a 6-sided array of mirrors;  Dimming: 0-100% electronic dimming;  Large adjustable range of beam angle;  Stroboscopic: support mechanical stroboscopic and adjustable speed stroboscopic effects, and support stroboscopic macro functions; ...
  • Page 6 6. Lamp installation6. Lamp installation Lamps can be placed horizontally, hung obliquely and upside down. Pay attention to the installation method when hanging obliquely and upside down As shown in Figure 2, before positioning the lamp, ensure the stability of the installation site.
  • Page 7: Chapter 2 Panel Operation

    Chapter 2 panel operation 1. General1. General The schematic diagram of the lamp panel is shown in Figure 3 (this diagram is a 4-key key). The TFT display screen on the left supports touch operation, and the 4-key or 5-key keys or encoder knob on the right can directly operate the lamp or set system parameters.
  • Page 8: Set Boolean Parameters

    chart4 Value setting page  Set value:You can directly pull the slider to quickly set the required value, or you can click the "up" or "down" button on the right to accurately set the required value Or rotate the "rotary encoder" on the right to set it; ...
  • Page 9: Function Operation And Parameter Setting

     Test: it is mainly used to test lamps and simulate the values of corresponding DMX channels. Refer to the channel menu for the corresponding functions of channel values;  Advance: set the operating parameters of lamps;  Status: view the current status of lamps. chart6 Page graph 3.
  • Page 10 chart7 Address code setting page 2. Set the lamp working mode2. Set the lamp working mode The operation mode, control light gun and channel mode of the lamp can be set through the page shown in Figure 8. The lamp supports three operation modes (DMX mode, self-propelled mode and voice control mode).
  • Page 11: Test Lamps

    chart8 Operation mode setting page 3. Set panel display settings3. Set panel display settings The lamp supports bilingual Chinese and English, inverted lamp display, etc. enter the corresponding parameter setting as shown in Figure 9:  Language:Select Chinese or English to display, and the selection will take effect immediately.
  • Page 12 correspond to the value of DMX channel. The data of corresponding parameter items can be changed to control the operation of the lamp:  X-axis motor (Pan): value (0 ~ 255);  Y-axis motor (tilt): value (0 ~ 255);  Focus motor: value (0 ~ 255); ...
  • Page 13: Check The Current Status Of Lamps

    6. Check the current status of lamps6. Check the current status of lamps Enter the page shown in Figure 12:  In this interface, you can view the operation status of the current lamp and the version information of the lamp; ...
  • Page 14: Chapter 3 Channel Description

    Chapter 3 channel description 1. Channel table1. Channel table Watch1 Channel description (v1.10) numerical Channel 1 Channel 2 name describe value X axis 0-255 0-540degree X-axis trim 0-255 0-2degree Y axis 0-255 0-270degree Y-axis trim 0-255 0-1degree XY speed 0-255 From fast to slow 30-50 3Full power after seconds...
  • Page 15 16-21 Pattern 3 22-27 Pattern 4 28-33 Pattern 5 34-39 Pattern 6 40-45 Pattern 7 46-51 Pattern 8 52-57 Pattern 9 58-63 Pattern 10 64-69 Pattern 11 70-75 Pattern 12 76-81 Pattern 13 82-87 Pattern 14 Shake pattern 1 from slow 88-95 to fast Shake pattern 2 from slow...
  • Page 16 pattern Pattern 1 9-12 Pattern 2 13-16 Pattern 3 17-20 Pattern 4 21-24 Pattern 5 25-28 Pattern 6 29-32 Pattern 7 33-36 Pattern 8 37-40 Pattern 9 Shake pattern 1 from slow 41-48 to fast Shake pattern 2 from slow 49-56 to fast Shake pattern 3 from slow...
  • Page 17 64-255 Insert prism 2 0-127 0-400degree From fast to slow forward 128-190 Prism 1 flow CH14 CH10 rotation 191-192 stop it Reverse flow from slow to 193-255 fast 0-63 Remove the prism Prism 1 CH15 CH11 64-255 Insert prism 2 0-127 0-400degree From fast to slow forward...
  • Page 18: Common Fault Handling

    Chapter 4 common faults and precautions 1. Common fault handling1. Common fault handling The lamp contains professional components such as microcomputer circuit board and high-voltage power supply. For your safety and product life, non professionals are not allowed to disassemble the lamp and related accessories without authorization.
  • Page 19: Precautions For Use

     Check whether the bulb has reached its service life and replace it with a new one. The lamps will not be controlled by the console after normal reset Possible causes: signal line failure or abnormal lamp parameter setting, the treatment is as follows: ...
  • Page 20  The closing time of the on-off valve shall not exceed 5 minutes. If it is necessary to close the light for a long time, the control console (lamp control channel) shall be used to close the lamp;  In order to ensure that multiple lamps can better comply with the scene effect, the lamps should not be in the current scene without completing the current scene, that is, start the next scene action.
