Summary of Contents for ROYAL SAUNAS TR170

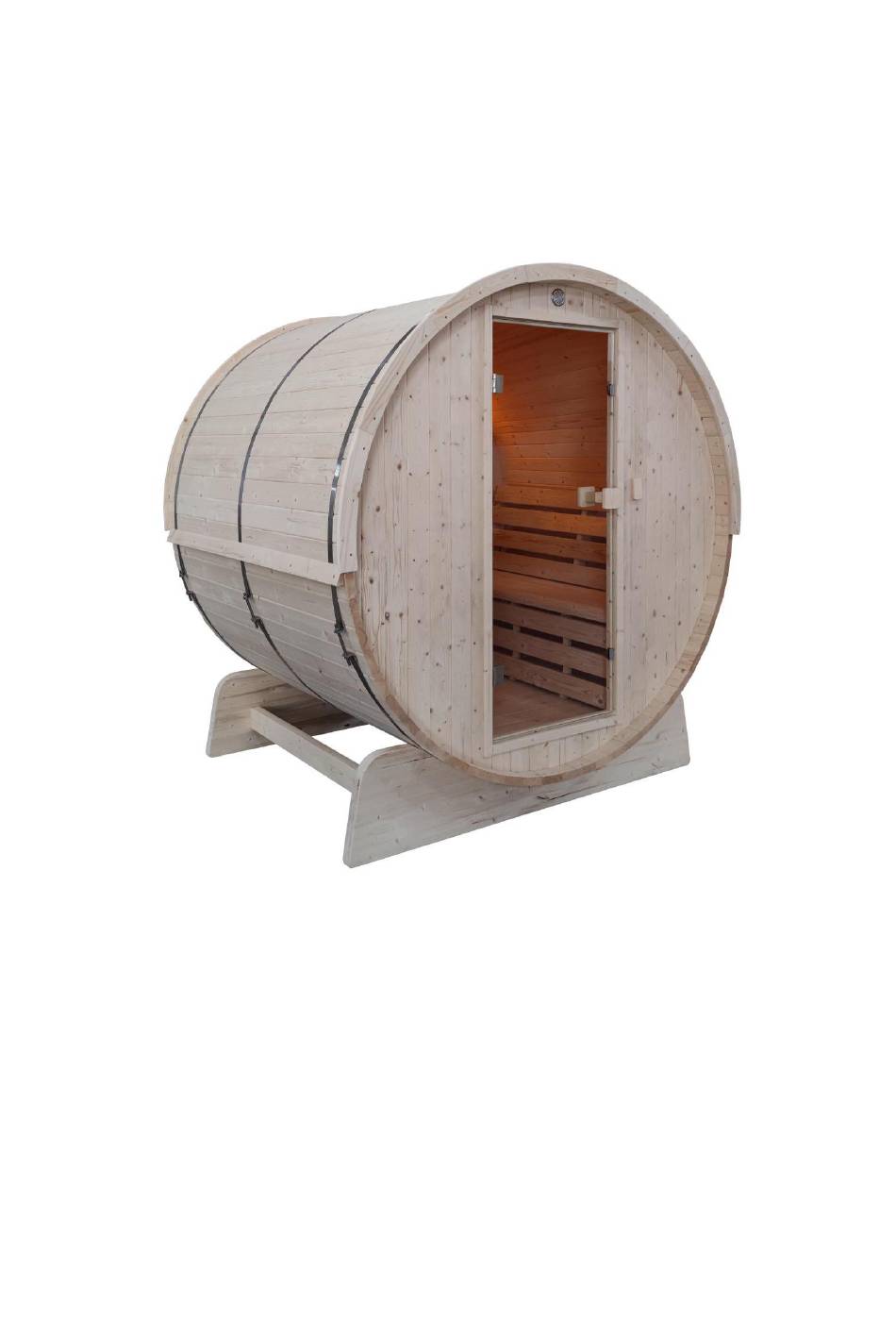

- Page 1 Installation user manual...
-
Page 2: Instructions Before Use
Instructions before use 1. A member of the high blood pressure, heart disease, high blood pressure do not sauna. 2. Who has a cold should not be sauna because the sauna room hidden cryptococcus bacteria can enter human body through respiratory tract, such as easy to cause pneumonia, etc. 3. -
Page 3: Parts List
Parts list 1. Regular Staves: 64pcs (32pcs for the right side, 32pcs for the left side). 2. Top stave: 3pcs (different sizes. only 1pc needed) 3. Bottom stave: 1pc (with 2 holes) 4. Front panel part: 3pcs 5. Back panel part: 3pcs 6. - Page 4 1. Base installation: The screws list. 1). The thread screw sets for two ends of the base. A Screw 2). The thread sets for middle base B screw Instruction. 1) 1）Screw the thread of A screw into the base (Two ends base) 2) Connect the support beam with the base.
- Page 5 4) Same for the other side of the bases. Finally, use the black plastic cover the screw holes. 2. Match the 2pcs wooden dowel with the 2 holes on the bottom stave and place the bottom stave in the middle of the base. 3.
- Page 6 4. Front + Back panel assembly with screws provided + metal piece provided. 5. Install glass door, door handle, door magnet. 6. Place the front panel & back panel. 7. Place additional 14pcs staves on each side of the barrel. Use 56pcs 3*30mm screws to fix the 28pcs staves to the front &...
- Page 7 8. Install the rest of 14pcs staves on each side forwards the top BUT DO NOT WITH SCREWS!!!!!. Use rubber hammer to make sure all the staves are installed tightly. 9. Top piece provided with 2 sizes. Choose the one that fits. After the top piece is well installed, fix all the staves with screws.
- Page 8 10. Steel strip assembly --- Caution! Sharp Edge! Protective gloves needed. Pls refer to Steel strip assembly manual. Each of the steel strip assemblies are made of the following components: (1) stainless steel bands with brackets (2) nuts (3) threaded rod Place stainless steel bands with pre-assembled brackets around sauna, spaced evenly apart.
- Page 9 13. Place the backrest & heater frame. 14. Heater Fence Assembly: 4pcs 6*35mm flathead screws needed. 15. After heater installation, pls fix the heater fence to the wall with 4pcs 4*40mm sharpen head screws. 16. Install the front cover (3*30mm screws). The center of the cover must match the center of the barrel.
- Page 10 18. Install bitumen roof ( Pls refer to the Bitumen roof installation manual) Bitumen roof installation Install the triangle wood piece to the barrel with 3*30mm screws at both sides.
- Page 11 Pls install the shingles from bottom to the top, from both sides at the same time. 3*14mm screws needed On the left Side:...
