Thermo-Regulator
user manual
The HomeBiogas Thermo-Regulator ensures that the system remains in optimum
conditions, in the most energy-efficient manner. Temperature is one of the most critical
parameters for biogas production - the Thermo-Regulator stabilizes the system's
temperature, creating a more resilient, productive, and durable HomeBiogas system.

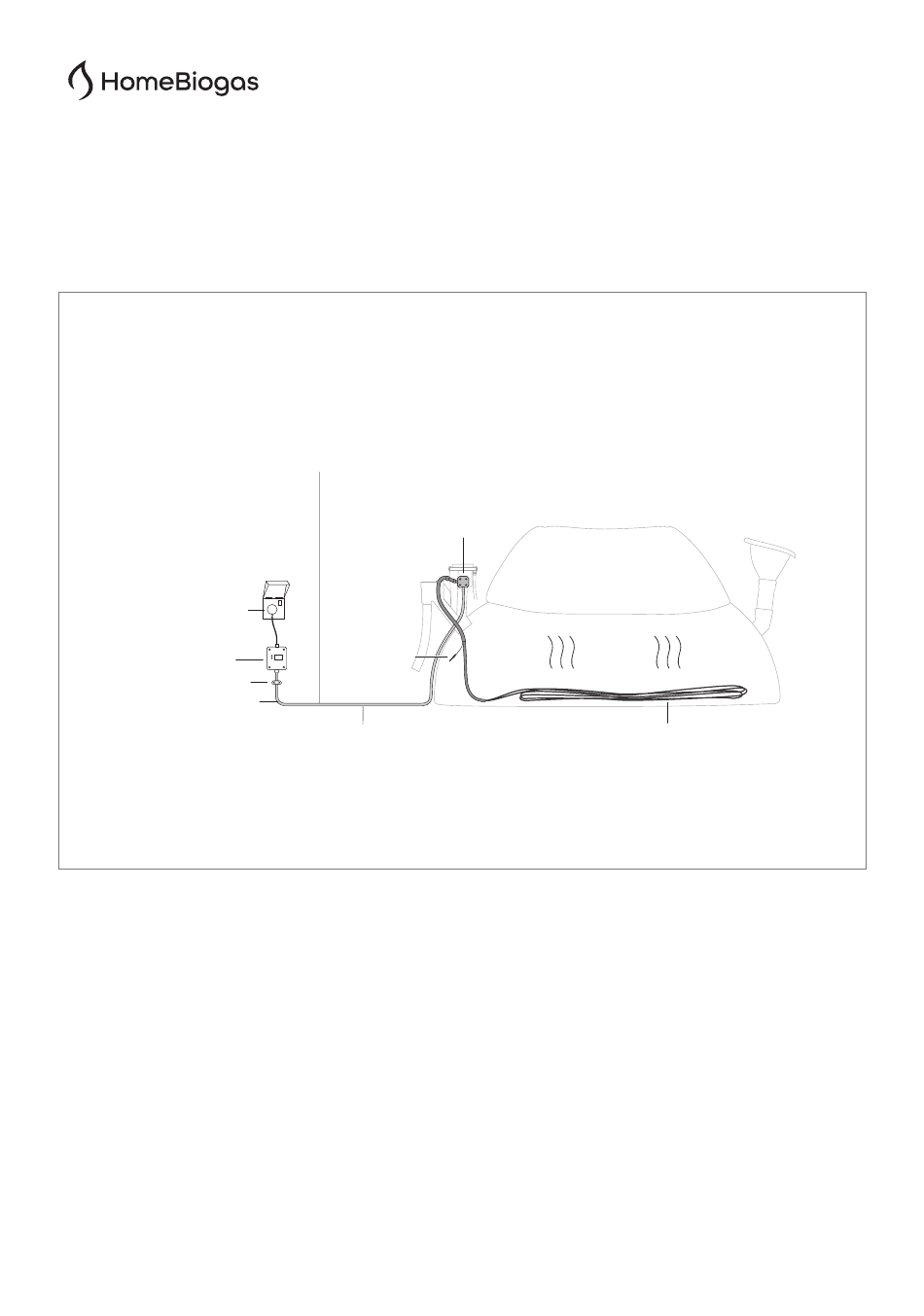

A/C plug + inlet cable
control box
saddle band to wall
electrical cable + sensor cable
The Thermo-Regulator consists of a submersible heater that is connected to a controller
with a temperature sensor. The controller is installed inside an outdoor electrical box with
indicator lights showing the current operating state of the heater.
Safety Instructions
This section contains important safety and operating instructions. Read and keep this user manual for future reference.
1.
High Voltage! Do not touch wires while connected to the outlet – heating section included.
2.
Do not use the Thermo-Regulator for any purpose other than its intended use.
3.
Do not use the appliance in temperatures below -5°C/23°F. Do not store the appliance in temperatures below -20°C/-4°F.
4.
Ensure the input voltage of your Thermo-Regulator model matches your local power supply.
5.
Do not use the Thermo-Regulator if it has a damaged cord or plug, or if it is malfunctioning or damaged in any manner.
6.
Do not pull on the cable to remove the plug from the socket - pull on the plug carefully to disconnect it.
7.
8.
Do not disassemble the product. Attempting to service the Thermo-Regulator by yourself may result in a risk of electrical shock or fire.
9.
Unplug the Thermo-Regulator from the electrical outlet when not in use or before any type of maintenance or cleaning.
10.
A G.F.C.I (Ground fault circuit interrupter) & Residual Current Device (RCD) is mandatory.
11.
Do not attempt to repair the Thermo-Regulator.
12.
If you are unsure about your electrical infrastructure, consult a qualified electrician.
13.
Ensure the conduit pipe is protected all along its routing.
© 2023 HOMEBIOGAS
strain relief
temperature sensor
mechanical shield for cables
heating section
HBG/WKH0523
