MACALLY MBTBUDS - Bluetooth 4.1 Wireless Headphones Manual

Introduction

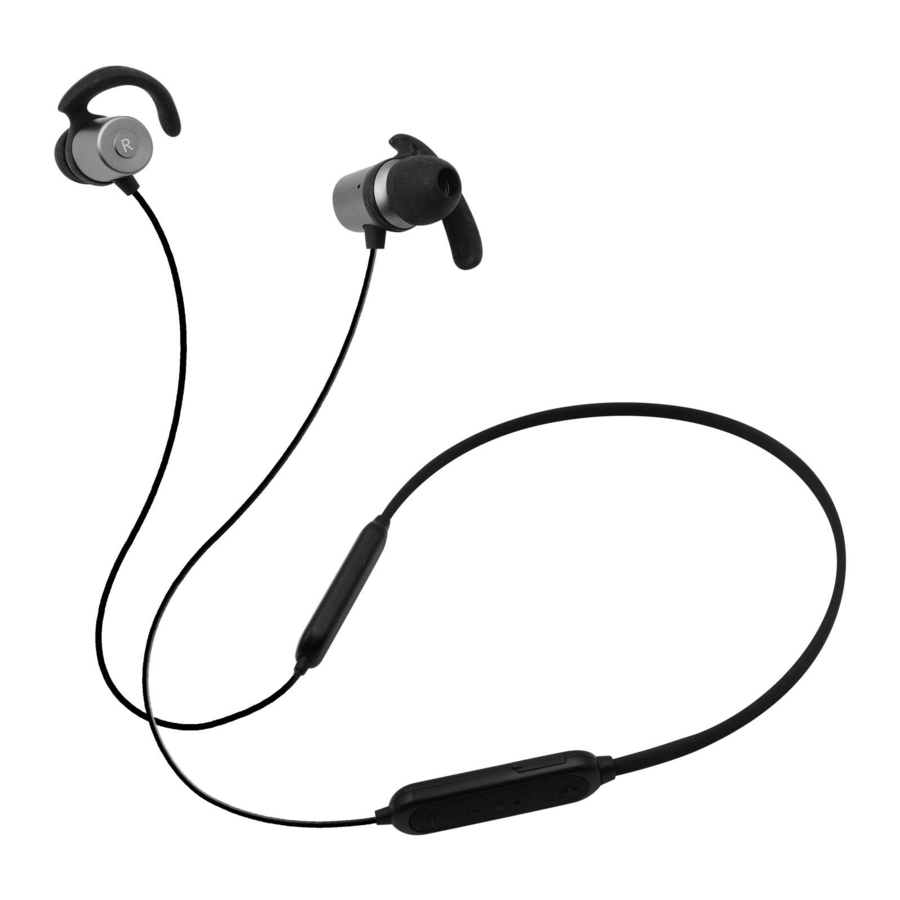

Thank you for purchasing the Macally MBTBUDS. The MBTBUDS is a Bluetooth 4.1 wireless headset, made of the finest materials, that allows you to enjoy your favourite music and make hands-free calls at the best audio quality and the most stable wireless connection up to a distance of 30ft/10 m. This headset supports aptX audio technology for high-quality wireless audio and Cvc 6.0 noise cancelling for a crisp and clean microphone sound. The built-in 120 mAh rechargeable battery lasts up to 6 hours of music play time (varies according to audio format, volume level and other conditions), 8 hours of talk time and 150 hours of standby time. It only needs 1-2 hours of charging time.

A very cool feature of this headset is that the earbuds are magnetic. It allows you to magnetically turn on/off your headset. Simply detach the earbuds to turn the headset on and attach them to turn it off to save battery life. Besides, when you magnetically attach them you can keep the headset conveniently around your neck or store it easily in a bag or pocket

The headset has an extremely lightweight (approx. 21 g), behind-the-neck and in-ear design (3 sets of eardbud sizes included) for maximum comfort. Resistant to water splashes, sweat and the occasional unexpected downpouring of rain (IPX4 waterproof), the Macally MBTBUD is ideal to listen to music during any activity.

Package contents

• Wireless Bluetooth headphones
• USB charging cable
• 3 pairs of earbuds (S, M and L)
• 3 pairs of in-ear supports (S, M and L)
• Storage pouch
• User guide

Hardware basics

Bluetooth sync LED (red/white flashing)
Battery status LED (red when charging)
Battery status LED (red when charging, white when fully charged, flashing red when low)

Magnetic on/off switch
Separated: On
Magnetized: Off

How to charge the device

1. Open the cover on the headphones to expose the micro USB charging port.
2. Connect the Micro USB end of the USB charging cable to the micro USB charging port.
3. Connect the USB-A end of the USB charging cable to a USB charger (not included).
4. While charging the battery status LED will stay solid red.
5. When fully charged the battery status LED will turn white.
6. Unplug the USB charging cable and close the micro USB charging port cover to protect against dust/water.

Notes
* The headphones will automatically turn off while charging.
** When the headphones have not been used for a longer period of time, the battery level may decrease and it will take longer time to charge. In order to avoid this, we recommend to fully charge the headphones every 6 months

How to pair the unit

1. Open Bluetooth preferences on your smartphone, tablet or computer. Make sure Bluetooth is On.
2. Separate the earbuds to turn on the headphones.

3. Press and hold the Bluetooth sync button for three to five seconds until it flashes red/white.
4. "MACALLY MBTBUDS" will show up in the list of Bluetooth devices (this may take up to a minute).
5. Click on "MACALLY MBTBUDS". Once "MACALLY MBTBUDS" shows "Connected" you're ready to go!

Note
Once paired, the headphones will automatically turn on/connect each time the ear buds are separated.

How to use the device

Swap ear buds and in-ear supports

The headphones include 3 sets of different size ear buds and in-ear supports (S, M, L). To swap them out, simply pull off the existing set and attach a different size set as needed. When re-attaching the in-ear support, make sure it sits up on the opposite side of the cable as shown in the images below.

Turn On/Off

To turn turn on the headphones simply separate the ear buds and place them in your ears. To turn them off magnetically attach the ear buds.

Music Playback

" + " button
Volume Up: Press and release to increase the volume
Next Song button: Press and hold to skip to the next song

" " Play/Pause button
Press and release to play/pause your music as needed

" – " button
Volume Down: Press and release to decrease the volume
Previous Song button: Press and hold to skip back to the previous song

Phone Calls

" + " button
Volume Up: Press and release to increase the volume

" * " Play/Pause button
Press once to answer/end an incoming call.

" – " button
Press and release to decrease the volume

Note
*When you receive a call, music will pause automatically. Music will resume playback when the call has ended.
**Keep the ear buds clean. To clean them, either use a soft dry cloth or remove them from the headphones to clean with a mild detergent. Then, dry them and put them back on the headphones.

How to check the battery life

When the battery level is low, the battery status LED will flash red.

When the headphones are connected to an iPhone/iPod touch with iOS 5.0 (supports Hands-Free Profile), you will see a headphones/battery icon on the right top of the screen to indicate headphones connection and battery level status.

Technical support

For technical support in Europe, Middle East and Africa, please call to +31 24 373 14 10 or email to techsupport@macally-europe.com. Technical support hours in Europe, Middle East and Africa are from 9h00 to 17h00 (CET), from Monday to Friday. In USA, please call to +1 909 230 6888 or email to techsupport@macally.com. Technical support hours in USA, Canada and South America are from 8:30 AM to 5:30 PM (PT), from Monday to Friday.

Safety intructions

Please read the following carefully before using this Macally product. Incorrect use of this product may result in reduced performance, permanent damage and void warranty:

1. Do not place this product near a heat source or in a place subject to direct sunlight.
2. Operating temperature of 5°C to 40°C. Storage temperature of 0°C to 60°C.
3. Do not place this product near moisture, liquids or in a place subject to steam or dust.
4. Operate and store at humidity of 5% to 90% (non-condensing)
5. Do not place heavy objects on this product.
6. Do not drop this product or expose to excessive shock.
7. Do not dispose this product in the garbage. Take it to your local recycling centre.
8. Using the Bluetooth device may not function on mobile phones, depending on radio wave conditions and location where the equipment is being used.
9. Do not listen to music at high volume levels as this may lead to hearing problems.
10. Do not use this product while driving a car, bicycle or any vehicle or while doing any activity in a place where it's important to hear ambient sound, like intersections, railroad crossings, etc.
11. Keep out of reach of children as parts included with this product can be a choking hazard.
