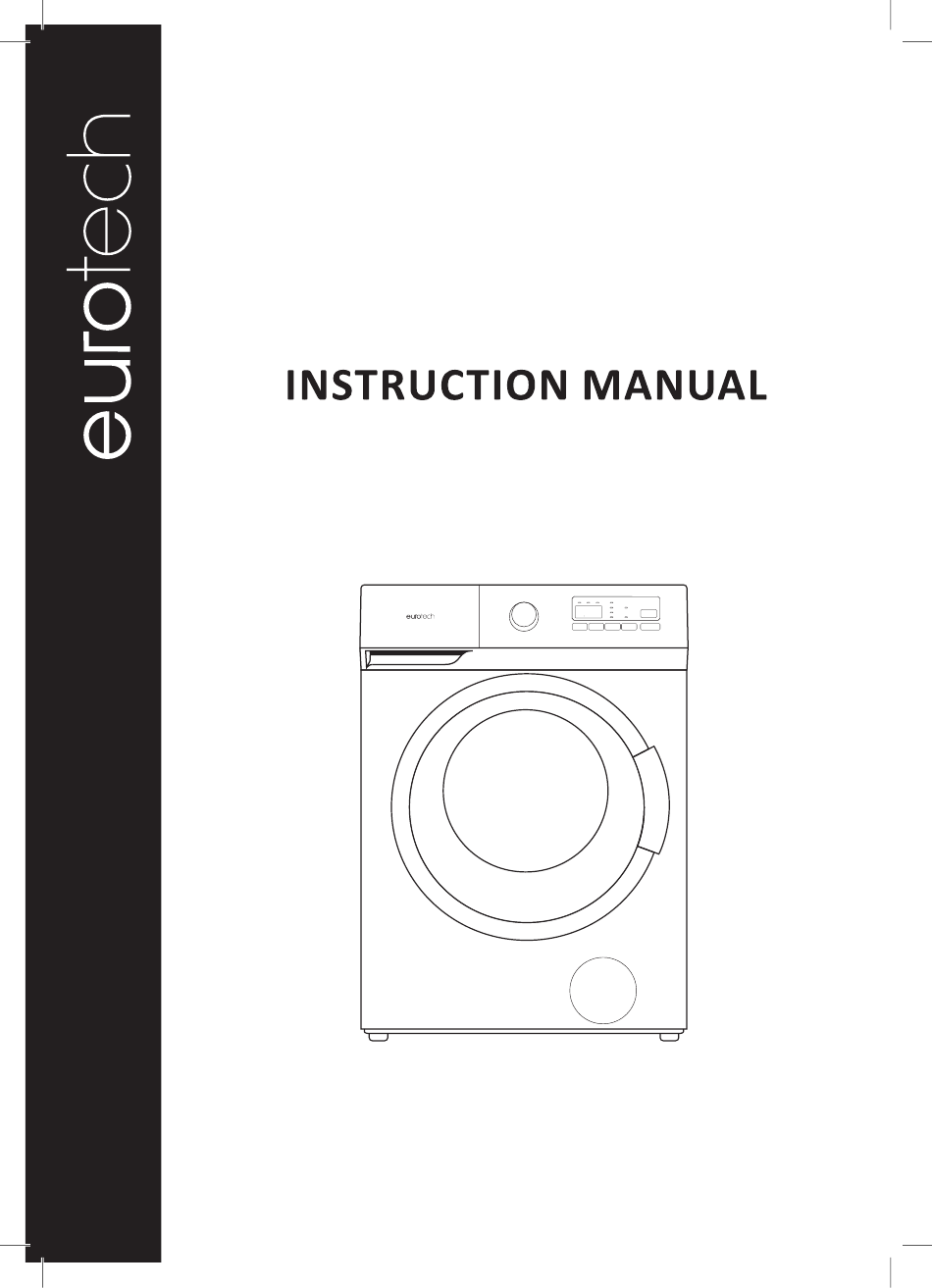

- Page 1 7kg Washer Dryer ED-WDC74WH ED-WDC74WH Instruction Manual Cover.indd 1 22/ 6/20 2:07 PM...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATION Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Programmes............Option..............Other Functions ............MAINTENANCE Cleaning and Care ..........Trouble Shooting ............ Technical Specifications ......... Product Fiche ............ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty. Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in... - Page 4 SAFETY INSTRUCTIONS RISK TO CHILDREN! •This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack ofexperience and knowledge, unless they have been given supervision or instruction concerning use ofthe appliance by a person responsible for their safety.
-
Page 5: Installation
SAFETY INSTRUCTIONS •Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see „Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost. - Page 6 SAFETY INSTRUCTIONS ELECTRICAL CONNECTION •Make sure the supply cable is not trapped by the machine, it can get damaged. •Connect the product to a grounded outlet protected by a fuse complying with the values in the “ Technical specifications“ table. The grounding installation has to be made by a qualified electrician.
- Page 7 SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE Warning! •Never stop the washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat can dissipate. •The washer dryer is not to be used if industrial chemicals have been used for cleaning.
- Page 8 SAFETY INSTRUCTIONS •If it is unavoidable that fabrics that containvegetable or cooking oil or have been contaminated by hair care products be placed in atumble dryer they should first be washed in hot water with extra detergent - thiswill reduce, but not eliminate, the hazard. •Never try to open the door forcefully.
- Page 9 SAFETY INSTRUCTIONS INTENDED USE • The maximum mass of dry cloth in kilograms: 8.0kg. • The maximum mass of dry textile material in kilograms 4.0kg. • The product is intended only for home use and for textiles in household amounts suitable for machine washing and drying. This appliance is for indoor use only and not intended for built in use.
-
Page 10: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service flap Drain hose Note! • The product picture is for illustration only, please refer to real product as reference. Accessories 4 x Cover caps 1 x Owner’s manual 1 x Supply hose cold water... -
Page 11: Installation
INSTALLATION Installation Installation area Warning! • Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. W> 20mm • Make sure to maintain the minimum distances from the walls as shown in the picture Before installing the machine, the location characterized as follows shall be selected:... - Page 12 INSTALLATION Remove transport bolts Warning! • You must remove the transport bolts from the backside before using the product. Loosen the 4 transport Remove the bolts Close the holes using the bolts with a spanner. including the rubber parts cover caps. and keep them for future use.
- Page 13 INSTALLATION Drain Hose Warning! • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough.
-
Page 14: Operation
OPERATION Quick Start Caution! • Before washing, please make sure the washer dryer is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use. -
Page 15: Before Each Washing
OPERATION Before Each Washing • The ambient temperature of the washer dryer should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use. -
Page 16: Detergent Dispenser
OPERATION Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser Caution! • Detergent only need to be added in "compartment I “after selecting pre-wash function. Programme Programme *Dry Only Sport Wear *Synthetic Quick 15’ *Mix Jeans Delicate *1Hour W/D... -
Page 17: Control Panel
OPERATION Control Panel On/Off Start/Pause Turn the appliance on and off. Start or pause your programme. Option Programmes Available according to the laundry type. This allows you to select additional functions and will light when selected. Display The display shows settings, estimated remaining time, options and status messages. Display Wash Time Delay Time... -
Page 18: Programmes
OPERATION Programmes Programme Load(kg) Display Time 7kg Wash/Dry Intensive 3:48 Sport Wear 0:45 Quick 15’ 0:15 Jeans 1:32 Delicate 0:49 20℃ 1:01 Cotton ECO 0:59 Spin Only 0:12 Rinse & Spin 0:20 Dry Only 4:14 Synthetic 3.5/3.5 1:28 7.0/4.0 0:58 5:24 Wash and Dry 0:58... - Page 19 OPERATION Programmes Programmes are available according to thelaundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton or Cotton linen. Wash synthetic articles, for example: shirts, coats, blending. Synthetic While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
- Page 20 OPERATIONS Programmes Dry Only Select it to dry clothes, the temperature is different .The drying time according to the load . 1Hour W/D For small synthetic clothes or shirts, load limitation is 1 kg (about 4 shirts). When you have an urgent appointment but no more clean shirt left in your cupboard, this program will help you.Time duration is only 1 hour including wash and dry.
- Page 21 OPERATION Options Default Default spin speed in rpm Temp.(℃) 1400 Intensive Sport Wear Quick 15’ Cold Jeans Delicate 1000 ℃ 1000 Cotton Spin Only 1000 Rinse & Spin 1000 Dry Only 1400 Synthetic 1000 Wash and Dry 1400 1Hour W/D Cold Cotton 1000...
- Page 22 OPERATION Temp. When needed, the washing temperature can be adjusted by pressing the temperature button in the following steps: Cold - 20°C- 40°C - 60°C - 90°C. Spin Speed Speed When needed, the spinning speed can be adjusted pressing the Speed button in the following steps: 1400: 0-400-600-800-1000-1200-1400 Delay 1.
-
Page 23: Other Functions
OPERATION Dry Level Press the Dry button continuously to choose the dry level: Soft DryExtra Dry/ Normal Dry/ Timer Dry. Soft Dry: Only to dry slightly and then is just ok; Extra Dry:Need to wear clothes immediately ,we can choose this function Normal Dry:The normal dry procedure Timer Dry: We can choose this function to dry clothes for a specific time. - Page 24 OPERATION Child Lock This function is meant to keep children from misusing the controls. Press [ Temp. ] and [ ] simultaneously for 3 sec Temp. until the buzzer beep. The child lock indicator switches on. Caution! When the Child Lock is activated, the display will alternately show “CL” and the remaining time.
-
Page 25: Maintenance
MAINTENANCE Cleaning and Care Warning! • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 26 MAINTENANCE Cleaning the Inlet Filter Note! • Diminishing water flow is a sign that the filter need to be cleaned. 1. Close the tap and remove the water supply hose from it. 2. Clean the filter with a brush. 3. Unscrew the water supply hose from the backside of the machine.
- Page 27 MAINTENANCE Cleaning the Drain Pump Filter Warning! • Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. • Be careful of hot water. Allow the water to cool down. Risk of scalding! •...
-
Page 28: Trouble Shooting
MAINTENANCE Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible cause Solution Appliance does Door is not closed properly. Close the door properly and not start Clothes are stuck. -
Page 29: Technical Specifications
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle. Technical Specifications Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Model ED-WDC74WH Washing Capacity 7.0kg Drying Capacity 4.0kg Dimension(W*D*H) 595*565*850 Weight 74kg... -
Page 30: Product Fiche
MAINTENANCES Testing methods Model:ED-WDC74WH ADDITIONAL INFORMATION FOR Standard performance TESTING: (AS/NZS 2040.1:2005+Amdt1-2007+Amdt2-2009) 1. Water connections:Cold & hot water connection 2. Water supply pressure: 320 kPa 3. Warm wash Program: Cotton Eco, 60°C, Speed 1400rpm, Display: 6:04 Cold wash program: Cotton Cold( no temperature display is cold wash) 4.
