Beyerdynamic SPACE MAX - Wireless Bluetooth Speakerphone Manual

SCOPE OF DELIVERY

• beyerdynamic SPACE MAX Speakerphone
• USB-C to USB-C cable
• USB-C to USB-A adapter
• Drawstring storage bag
• Quick Start Guide

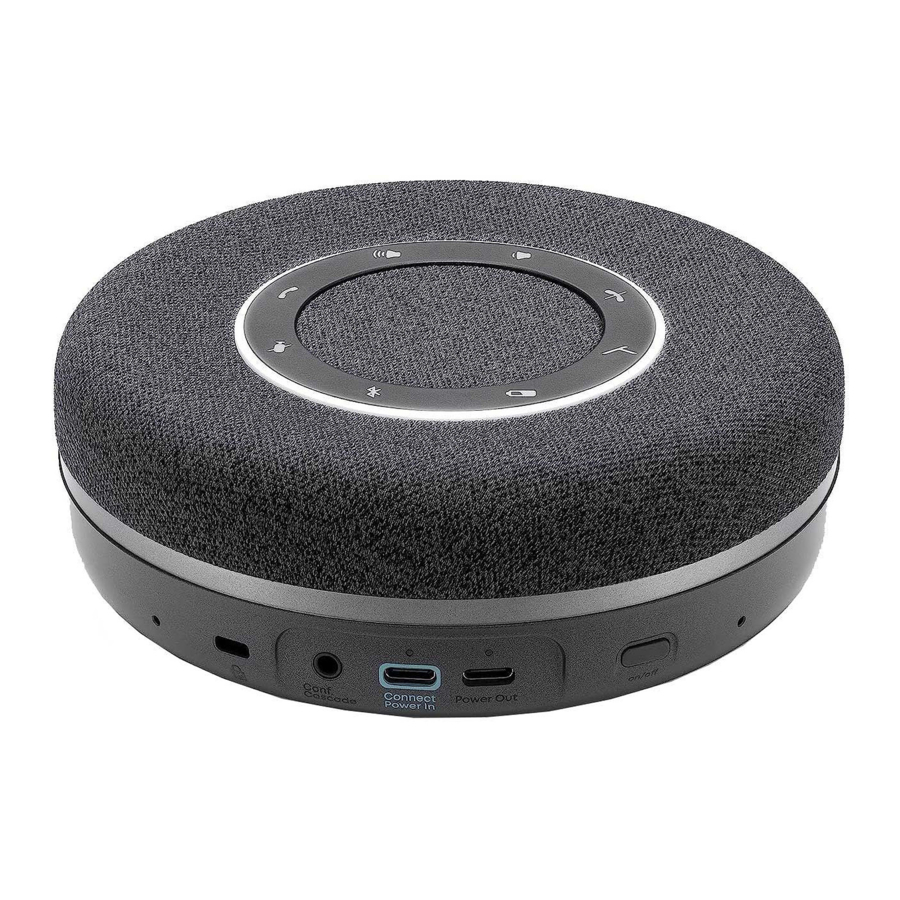

PRODUCT OVERVIEW

1. On/off button
2. Secondary USB-C port with status LED display for charging external devices (power bank function)
3. Primary USB-C port with status LED display for:
   • connecting to PC or laptop
   • charging the speaker phone
4. Jack socket, 3.5 mm, for conference cascade connection
5. Kensington lock
6. Illuminated control ring with operating and display elements:

	Multifunction button
	Mute button (red LED display)
	Increase volume (white LED display)
	Decrease volume (white LED display)
	Hang up (red LED display)
	Pick up (green LED display)
	Segmented battery status (green/yellow/red LED display)
	Bluetooth (blue LED display)

FIRST STEPS

Removing from packaging and storing

• When not in use and for transport, store the beyerdynamic SPACE MAX Speakerphone and accessories in the carrying case.

This provides the best protection and prevents damage.

Securing your Device

The Speakerphone has a 1/4" threaded hole in the centre of its underside, which can be used to screw it onto a tripod, for example.

Charging the battery

We recommend you use only the supplied USB cable to charge the battery.

1. Use the cable supplied to connect the beyerdynamic SPACE MAX Speakerphone to any standard-compliant live USB-C socket (e.g. USB power adapter) via the USB-C port. If necessary, use a USB adapter (see „Scope of delivery").
2. Remove the USB cable after charging.

Quick charge

The speaker phone can be charged quickly via USB-PD (USB Power Delivery) using the primary USB-C connector.
To quickly charge the device's battery, the power consumption must be up to 30 W depending on the charger's performance according to the PPS (programmable power supply protocol) of the USB-PD 3.0 standard.

Remarks on the life of Li-ion batteries

• When fully charged, disconnect the USB cable from the charging unit and the beyerdynamic SPACE MAX Speakerphone.
•
  High temperatures, especially with a high charge level, can cause irreversible damage.
• If the battery is not used or is stored for extended periods of time, it is recommended to charge it to approx. 50% and store it at no more than 20°C.
• Switch off the battery-powered product after use.

Power bank function

The beyerdynamic SPACE MAX Speakerphone can also be used to charge other devices (e.g. smartphones).

• Connect the device to be charged (e.g. smartphone) to the beyerdynamic SPACE MAX Speakerphone with the secondary USB-C port using the USB cable.
  Charging starts automatically. An LED next to the USB-C port indicates that an external device is being charged. The LED lights up red.

Displaying the battery charge level

• Briefly press the button once.
  The charge level is displayed via the LED ring.

Using the product with a USB cable connection

You can operate the beyerdynamic SPACE MAX Speakerphone with a PC or laptop using a USB cable connection.

1. Switch on the laptop/PC.
2. Connect the beyerdynamic SPACE MAX Speakerphone with the desired computer using the enclosed USB cable and the USB port.
   If necessary, use a USB adapter (USB-C to USB-A, see „Scope of delivery").
3. If the speakerphone has not come on automatically, switch it on with the on/off switch.

LED display of charge level:
Red*:	Battery 0–25% full
Yellow:	Battery 25–62.5% full
Green:	Battery 62.5–100% full

*) The LED flashes when the charge level is close to zero

Using the product with Bluetooth connection

You can operate the beyerdynamic SPACE MAX Speakerphone via Bluetooth with a smartphone or PC. For this, the Bluetooth function must be active, and the speakerphone must be paired with the output device. You can find instructions on how to operate the product under „Operation".

SOFTWARE UPDATE

Firmware updates are carried out via USB-HID using the beyerdynamic Update Hub. The software for updating the product can be downloaded here: https://byr.li/firmwareupdate
The device has a firmware update function (DFU) via USB connection to a PC (Windows and Mac OS).
During the update process, the LED ring flashes magenta.

COMPATIBILITY WITH PLAYBACK DEVICES

The beyerdynamic SPACE MAX Speakerphone is compatible with Bluetooth playback devices that support the following profiles:

• A2DP (for audio transmission)
• HFP (for phone operation)

All associated functions are only available if they are supported by the playback device.

SUPPORTED AUDIO CODECS

The beyerdynamic SPACE MAX Speakerphone supports the audio codec SBC.

Please note that only the Codecs available in the playback device can be used for audio transmission.

The playback device and the beyerdynamic SPACE MAX Speakerphone device automatically select the best mutually available Codec: In this case SBC.

OPERATION

Switching on and off

To switch on:

• Press the on/off button for 1 to 3 sec.

To switch off:

• Press the on/off button again for 1 to 3 sec.

Activating and deactivating the Bluetooth function

Activate:

• Press the button twice, holding it down the second time.
  The LED lights up white: Bluetooth function is activated

Deactivate:

• Press the button twice, holding it down the second time.
  The LED is not lit: Bluetooth function is deactivated.

Pairing with a device via Bluetooth

Before you can use the beyerdynamic SPACE MAX Speakerphone, you must pair it with your mobile phone or another Bluetooth-enabled device. The connection process may differ depending on the device.

• Please refer to the relevant operating instructions of the device with which you wish to pair the Speakerphone.

To establish a connection:
Ensure the beyerdynamic SPACE MAX Speakerphone is switched on.

1. Press and hold the button for 1 to 3 sec.
   The Bluetooth connection mode will start.
   The LED display flashes alternately blue and red.
2. Activate the Bluetooth function on the playback device and search for new devices if necessary.
3. In the Bluetooth menu of the playback device, select "SPACE MAX" from the available devices and connect both devices.
   After a successful connection, the LED lights up blue. Each time the device is switched on again, the devices will connect as soon as they are within range of each other.

Connecting with Google Fast Pair:
Android devices from Android 6.0+ enable a fast connection via Google Fast Pair.

1. Start the connection to your beyerdynamic SPACE MAX Speakerphone as described above.
   "beyerdynamic SPACE MAX Speakerphone" is displayed on the connected device.
2. Select "beyerdynamic SPACE MAX Speakerphone". The two devices are connected.

If the Bluetooth connection has been lost, the LED briefly flashes blue every 2.5 sec.

Deleting the list of already connected devices:

• Press the button for longer than 10 sec.
  The list of already connected Bluetooth devices (maximum eight) is deleted and a connection to the active Bluetooth device is established. A double signal tone confirms success.

Bluetooth connection with a USB Bluetooth adapter

A USB Bluetooth adapter is required to enable a wireless Bluetooth connection to a laptop or desktop PC while ensuring compatibility and synchronisation of the corresponding commands from related communication platforms such as Microsoft Teams or Zoom. The standard Bluetooth protocols of laptops and desktop PCs do not support these commands.

The USB WL Adapter (available as an option) has a pairing button to allow it to be connected to a beyerdynamic SPACE MAX Speakerphone. It can be stored on the underside of the beyerdynamic SPACE MAX Speakerphone.

For more information, please refer to the operating instructions of your USB Bluetooth adapter.

Connection displays

LED display of the connection status:
Bluetooth: Pairing/recognition possible	Flashes blue and red alternately
Bluetooth: Connected	Steady blue
Bluetooth: Connectable / connection lost	Flashes blue
Connected to USB	Entire LED ring lights up white

Connecting two speakerphones to form a stereo pair (for music playback)

Establish a connection

1. Press the button and the button simultaneously for 1 to 3 sec on the first SPACE MAX device.

2. Press the button and the button simultaneously for 1 to 3 sec on the second SPACE MAX device.


The two SPACE MAX devices connect via True Wireless.
When the two devices are successfully paired, you will hear "cascade successful"

Disconnect

Check that both SPACE MAX devices are connected.

• Briefly press the button and the button simultaneously on both SPACE MAX devices.
  The Bluetooth connection between the two devices (cascading) is deleted.

Conference cascade connection

The connection is intended for connecting two beyerdynamic SPACE MAX devices in conference cascade mode. For this, two speaker phones are connected via the jack socket with a beyerdynamic cascading cable (to be ordered). Pairing with the output device is done via one of the two speaker phones connected with the cable.

Multi-point operation

The beyerdynamic SPACE MAX Speakerphone can be paired with several Bluetooth-enabled devices.
In normal mode, up to eight devices can be paired. In business mode, only one device can be paired.
Active connections are possible with up to two devices at a time. However, playback of music and phone operation is only possible with one device at a time. Phone operation has priority over playback of music, i.e. playback of music is interrupted during phone calls.

Priority list when using the playback devices (PD):

PRI.	Profile	Playback devices (PD)
1	HFP (phone operation)	PD 1 (device used first)
2	HFP (phone operation)	PD 2 (device used second)
3	A2DP (playback of music)	PD 1 (device used first)
4	A2DP (playback of music)	PD 2 (device used second)

Setting up multi point

1. Connect the Speakerphone to the first device (see „Pairing with a device via Bluetooth").
2. Deactivate the Bluetooth connection on the first device.
3. Connect the Speakerphone to the second device (see „Pairing with a device via Bluetooth").
4. Reactivate the Bluetooth connection of the first device that automatically connects to the product.
   Once both devices are paired with the Speakerphone, the speakerphone connects to both devices each time it is switched on.

Using multi point:

If you have connected the speakerphone with two devices and have just activated media playback:

• Briefly press the button once to accept an incoming call.

If you have connected the speakerphone to two devices and have just ended a call:

• Briefly press the button once to start the media playback that was last played.

Adjusting the volume

To increase/decrease the volume:

• In stages: Briefly press the button.
• Continuously: Hold down the button.
  A signal tone sounds when the maximum/minimum volume is reached.

LED display for volume control:
White:	zero*–full volume**

*) At a volume close to zero LEDs except one (lit 50%) are off.
**) At full volume, all LEDs are on (ring illuminated white).

Using the mute function

To switch mute on/off:

• Briefly press the button.
  Icon is a steady red when mute.

• Briefly press the button again.
  Mute is cancelled.

Playing media

The functions described depend on the playback device and playback device software and may not be available.

To start / pause playback:

• Briefly press the button once.

To play the next / previous track:

• Briefly press the button twice / three times.

Calling up the personal assistant

To call up the personal assistant of your smartphone or tablet:

• Press the button for 1 to 3 sec.

Using Sound-Activated Lighting Mode

When Sound-Activated Lighting Mode is activated, the LED ring lights up in time with the audio signals.

To switch on the function:

• Press the button and button simultaneously for 1 to 3 sec.

To switch off the function:

• Press the button and button simultaneously for 1 to 3 sec.

Using Business Mode

In Business Mode, a maximum of one device can be paired with the beyerdynamic SPACE MAX Speakerphone. The pairing list is automatically deleted when the speakerphone is disconnected or switched off.

To call up Business Mode:

• Press the button and button simultaneously for 1 to 3 sec.

To deactivate Business Mode:

• Press the button and button simultaneously for 1 to 3 sec.

Using Stealth Mode

In Stealth Mode, the illumination of the LED ring on the beyerdynamic Speakerphone can be switched off without switching off the speakerphone.
Operating in Stealth Mode increases battery life during operation.

To activate Stealth Mode:

• Press the button and button simultaneously for 1 to 3 sec.
  The lighting on the LED ring goes out.

To deactivate Stealth Mode:

• Press the button and button simultaneously for 1 to 3 sec.
  The lighting on the LED ring comes on.

Stealth Mode is also deactivated when the speakerphone is switched off and on again.

Controlling calls

To accept a call:

• Briefly press the button.

To end a call:

• Briefly press the button.

To reject a call:

• Briefly press the button.

To switch a call or accept a second call:

• Briefly press the button.

LED display for calls:
Incoming call	flashes green flashes red
Call in progress	steady green steady red
Call on hold	flashes green steady red

Using voice messages

To activate voice messages:

• Press the button and button simultaneously for 1 to 3 sec.

To deactivate voice messages:

• Press the button and button simultaneously for 1 to 3 sec.

Resetting to factory settings

All personal data is deleted if the device is reset to the factory settings!

To reset to factory settings:

• Press the button and button simultaneously for 3 to 4 sec.

Settings for best sound

To achieve the best possible sound with your beyerdynamic SPACE MAX Speakerphone via Bluetooth, please observe the following practical tips:

1. Set the volume to minimum on your beyerdynamic SPACE MAX Speakerphone and to maximum on the playback device.
2. Then adjust the volume only on your beyerdynamic SPACE MAX Speakerphone and not on the playback device.

This applies only to playback devices that do not automatically synchronise the volume. On playback devices that automatically synchronise the volume (e.g. iPhone, iPad, various Android smartphones), the volume on the speakerphone is always identical to the volume of the playback device.

3. Deactivate any audio effects that may be present in the software of the playback device.

Attaching a Kensington lock

To attach and lock the lock

1. Loop the lock cable around a secure anchor and insert the lock head into the Kensington socket of your Speakerphone.
2. Lock the lock with the enclosed key.

To open and remove the lock

1. Open the lock with the enclosed key.
2. Pull the lock head out of the Kensington socket and remove the lock with the lock cable.

Overview of operating functions

Function		Operation
To switch on and off		Press the on/off button for 1 to 3 sec.
To start/stop playback		Press briefly
Next track		Briefly press twice
Previous track		Briefly press three times
To call up the personal assistant		Press for 1 to 3 sec
To mute/unmute		Press briefly
To increase volume		Tap to increase in stages Hold to increase continuously
To decrease volume		Tap to decrease in stages Hold to decrease continuously
To end a call		Press briefly
To reject a call		Press briefly
To answer a call		Press briefly
To switch calls		Briefly press twice
To display the battery status		Press briefly
Activate/deactivate Bluetooth		twice, holding it down the second time
To pair		Press for 1 to 3 sec
To delete pairing and pairing list		Press and hold for at least 10 sec
To switch on Sound-Activated Lighting Mode	+	Press simultaneously for 1 to 3 sec
To to switch off on Sound-Activated Lighting Mode	+	Press simultaneously for 1 to 3 sec
To switch on Business Mode	+	Press simultaneously for 1 to 3 sec
To switch off Business Mode	+	Press simultaneously for 1 to 3 sec
To activate/deactivate Stealth Mode	+	Press simultaneously for 1 to 3 sec
To switch on voice messages	+	Press simultaneously for 1 to 3 sec
To switch off voice messages	+	Press simultaneously for 1 to 3 sec
To reset to factory settings	+	Press simultaneously for 3 to 5 sec
To activate/deactivate cascading1)	+	Press simultaneously for 1 to 3 sec

¹⁾ Can only be used if the second device is detected within 5 m range and indicated by the Bluetooth-LEDs.

HELP WITH PROBLEMS / FAQ

The unit will not switch on
Battery is empty or almost empty.	Charge the battery.
No audio output
There is no Bluetooth connection.	Connect beyerdynamic SPACE MAX Speakerphone with the playback device.
The beyerdynamic SPACE MAX Speakerphone does not appear among the available Bluetooth devices in the playback device.
The beyerdynamic SPACE MAX Speakerphone is switched off.	Switch on the beyerdynamic SPACE MAX Speakerphone.
The beyerdynamic SPACE MAX Speakerphone is not in connection mode.	Set the beyerdynamic SPACE MAX Speakerphone to connection mode.
There is already a Bluetooth connection to another playback device.	Disconnect the Bluetooth connection to the other playback device and connect the beyerdynamic SPACE MAX Speakerphone to the desired device.
The sound reproduction is too low, even though set to maximum on the beyerdynamic SPACE MAX Speakerphone
The audio signal being played back is too quiet.	Set playback volume on the playback device to maximum.
The wireless range is too low, or the connection is disrupted
There is interference with other devices.	Keep your distance from WLAN routers and microwave ovens. Do not stand between the playback device and the beyerdynamic SPACE MAX Speakerphone.

BATTERY LIFE

• Disconnect the USB connecting cable from the charging unit and speakerphone.
• High temperatures, especially with a high charge level, can cause irreversible damage.
• If the battery is not used or is stored for extended periods of time, it is recommended to charge it to approx. 50% and store it at no more than 20°C.
• Switch off the battery-powered product after use.

CLEANING AND MAINTENANCE

• Use a soft cloth moistened with alcohol cleaner to clean all parts of the beyerdynamic SPACE MAX Speakerphone. Make sure that no liquid enters the housing or the transducer.
• Do not use cleaners containing solvents, as these can damage the surface.

TECHNICAL SPECIFICATIONS

Bluetooth frequency range	2.400 to 2.4835 GHz
Transmitting power	up to 4 dBm
Maximum loudspeaker output	10 W (mid-bass) + 5 W (tweeter)
Sound pressure level	SPLmax=89 dB@1 kHz
Microphone type	4 x MEMS
Microphone frequency range	100 Hz–10 kHz
Loudspeaker frequency range	80 Hz–15 KHz (-10 dB)
Supported profiles	HFP, A2DP
Connection	Bluetooth and USB-C
Bluetooth version	5.0
Battery technology	Lithium ion
Battery life	Typ. 25.5 hours with communication
Charging connection	USB-C
Time of charge	2 hours 5 minutes
Power bank output (secondary USB-C port)	3 A at 5 V
Firmware update possible	Yes
Length x width x height (mm)	149.5 x 149.5 x 52.5
Weight	680 g

• You can find more detailed information about the technical specifications online at: www.beyerdynamic.com/SPACE.html

SAFETY INSTRUCTIONS

• Please read these instructions carefully and completely before using the product.
• Please observe all instructions given, especially those concerning the safe use of the product.
• Do not use the product if it is defective.
• The company beyerdynamic GmbH & Co. KG accepts no liability for damage to the product or injury to persons caused by careless, improper or incorrect use of the product, or by use for purposes not specified by the manufacturer.

Intended use

Only use the product as described in this product manual. beyerdynamic accepts no liability for damage to the product or injury to persons caused by careless, improper or incorrect use of the product, or by use for purposes not specified by the manufacturer.
beyerdynamic is not liable for damage to USB devices that do not comply with the USB specifications.
beyerdynamic is not liable for damage resulting from connection interruptions due to batteries being empty or too old, or due to exceeding the Bluetooth transmission range.
Please also observe the relevant country-specific regulations before using the product.

Risk of swallowing

• Keep small parts, such as product, packaging and accessories, away from children and pets. They constitute a choking hazard if swallowed.

Power and connecting cable

Use only the cable we supply to connect the device for both charging and connecting to a laptop.

Using the batteries

Danger from heat, water and mechanical stress
Excessive heat, water and mechanical stress may cause explosion, heat, fire, smoke or fumes. Injuries and irreversible damage to the battery may result.

• Do not expose the battery (battery pack or integrated battery) to excessive heat, direct sunlight or fire.
• Do not open the housing or disassemble the battery.
• Do not use the battery if there is a risk it has come into contact with water.

Storing the battery

• If the battery is not going to be used for an extended period, set the charge level to approximately 50% of the maximum capacity and store it at temperatures up to max. 30°C.

Environmental conditions

• Do not expose the product to rain, snow, liquids or moisture.

Documents / Resources

References

• Space: Wireless Bluetooth® Speakerphone | beyerdynamic

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Beyerdynamic SPACE MAX - Wireless Bluetooth Speakerphone Manual
