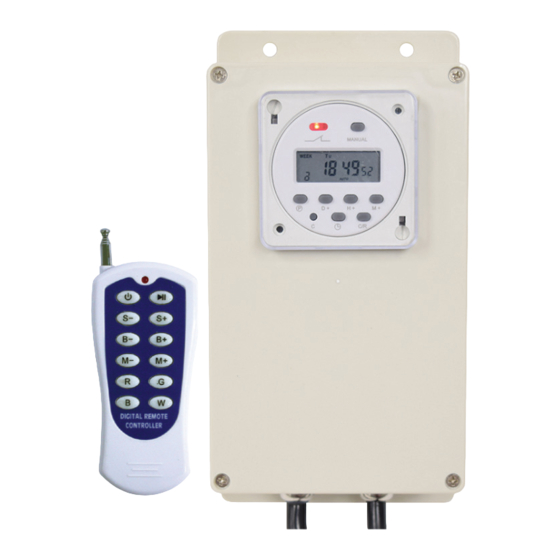

RGBC2 • RGBC4• RGBC6
for RGBW Color Changing Lights
with Digital Timer and Remote Control
Instructions for Operation
Thank you for purchasing the controller
for RGBW color changing lights from
EasyPro. These controllers will power
up to 2, 4 or 6 color changing LED lights
Controller Features and Includes
•
Weatherproof with mounting holes
•
Built in digital timer
•
Remote control with 1000' range
•
Built in voltage regulator for adequate voltage for lights up to 300' away
•
115 volt input with 24v DC output
•
Pigtail with 5 pin receptacle and quick connect end.
Safety and Electrical Connections
1.
Always disconnect the electrical supply before handling, maintaining,
repairing or installing any pond equipment.
2. Do not open the controller. There are no serviceable parts inside the
controller.
3. Connect the 110 volt plug of the RGBW controller/transformer to a 110 volt
receptacle that is protected by a Ground Fault Circuit Interrupter.
4. Do not modify wiring in any way, quick plug ends must stay intact to
function and should not be replaced with any other connections.
5. Do not use with swimming pools or spas.
6. Only connect to matching 5 pin RGBW cords, splitters and RGBW lighting
fixtures.
7. All electrical work must be performed by a qualified technician. Always follow
the National Electrical Code (NEC) or the Canadian Electrical Code as well as
all local, state and provincial codes. Failure to follow manufacturer's installation
instructions may result in electrical shock, fire hazard, personal injury or
death, damaged equipment, provide unsatisfactory performance and will void
manufacturer's warranty.
Controller
Safety • Warranty
depending on the model.
Advertisement
Table of Contents
Related Manuals for EasyPro RGBC2
Summary of Contents for EasyPro RGBC2
- Page 1 RGBC2 • RGBC4• RGBC6 Controller for RGBW Color Changing Lights with Digital Timer and Remote Control Instructions for Operation Safety • Warranty Thank you for purchasing the controller for RGBW color changing lights from EasyPro. These controllers will power up to 2, 4 or 6 color changing LED lights depending on the model.
- Page 2 Setting the Timer Mount the weatherproof controller box in a secure location near a power supply and plug into 110 volt outlet. The controller is weatherproof and does not need to be protected from the weather. Example Program Functions PROGRAM Example Manual Functions AUTO...
- Page 3 Operation Instructions for Manual Function 1. Be sure the controller is plugged into 110 volt GFCI protected outlet. 2. Remove clear plastic cover from timer. Keep cover safe and replace when finished. 3. Unlock the timer by pressing the “C/R” button four times. This removes the “a” character in lower left corner of the display screen.
- Page 4 EasyPro shall not be held liable for any loss of fish, plants or any other livestock as a result of any failure or defect of this Product. This warranty gives you specific legal rights, and you may also have other rights that vary from State to State.
