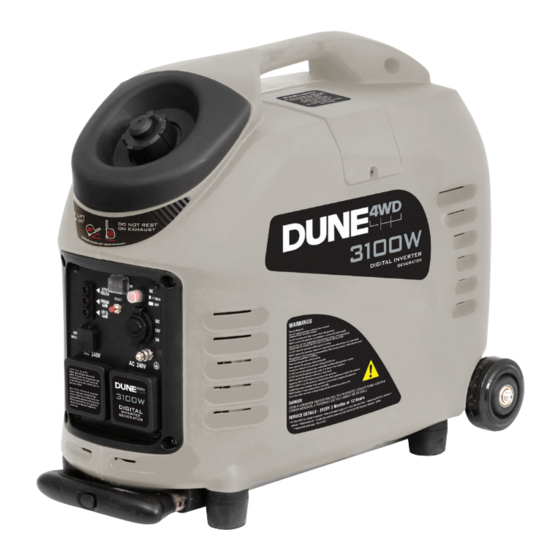

Summary of Contents for Dune 4WD D3100INVS
- Page 1 3100W DIGITAL INVERTER GENERATOR INSTRUCTION MANUAL MODEL NO. D3100INVS For service, spare parts or product information, please contact Smart Marketing Group Pty. Ltd. AUST. 1300 660 475 | N.Z. 0800 474 876 04475 06/23...
-
Page 2: Table Of Contents
SUGGESTED APPLICATIONS CONTENTS These are some suggestions of appliances which could be powered by this generator. These suggestions cannot Section Page all be run at the same time, please read page 13 for full details: What’s in the Box • Laptop computers up to 700W Suggested Applications •... -
Page 3: Introduction
INTRODUCTION What is covered Dear Customer, • Manufacturing fault or defect. Thank you for purchasing this generator which has passed How to claim under this warranty through our extensive quality assurance processes. Every • Call customer service, phone number to the left. care has been taken to ensure that it reaches you in perfect •... - Page 4 COMPLETE WARRANTY STATEMENT – GENERATORS As soon as you have purchased the generator, we charged to the owner. recommend that you check to make sure it is intact and Blockages caused by spider webs, insects, dirt, or that you read the operating instructions carefully before accumulated dust and incorrect oil are not covered by using it.
-
Page 5: General Safety Instructions
LUBRICATION OF ENGINE PROTECT POWER LEADS FROM DAMAGE Your engine comes with NO oil in the sump. You will need Always disconnect power cords from a power supply to add engine oil, refer to pages 8 and 10 for complete socket by pulling the plug. - Page 6 EXTENSION CORDS & REELS Ear Protection The use of ear protection is highly recommended when Inspect extension cords periodically and replace if using generators. The continual noise may damage damaged. Never use damaged extension cord as these your ears. may cause injury. Always unwind any extension cords fully before plugging into mains power supply.
-
Page 7: Specific Safety Instructions
SPECIFIC SAFETY INSTRUCTIONS • Never operate the generator in damp, wet or flooded conditions. Warning! Do not use the generator in areas where there • Before plugging appliances into the generator allow is a risk of explosion or fire from combustible materials. it to run up to full speed. -
Page 8: Electrical Information
IMPORTANT ELECTRICAL DATA This generator is fitted with a sealed electrical connection socket that is compatible with the generator. If the electrical connection socket becomes damaged it must be replaced with a complete assembly that is identical to the original, and this must be replaced by an authorised service agent. Never connect to an external power supply. If in doubt always consult a qualified electrician. -
Page 9: Components & Controls
PIC. 1 14 15 COMPONENTS AND CONTROLS PIC. 1 1. Handle 12. Overload indicator (red) 2. Fuel cap 13. Output indicator (green) 3. Fuel cap vent 14. Economy switch 4. Oil container 15. AC restart button 5. Spark plug socket 16. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS PIC. 2 UNPACKING Carefully unpack your generator. This generator is heavy (28kg) and may require two (2) people to lift. Dispose of all packing material in an environmentally responsible manner. Open carton, gently lift the generator clear of the carton and packaging, this may require 2 people. - Page 11 FILLING THE FUEL TANK PIC. 5 UNLEADED 91 PETROL - NO ETHANOL Fuel tank capacity – 4 litres (4 L) Use of incorrect fuel and/or oil may damage the generator and will not be covered under warranty. Do not use E10 or any type of ethanol fuel as this will damage the generator and will not be covered under warranty.
- Page 12 STARTING YOUR GENERATOR PIC. 9 WARNING! Never start your generator without “earth” stake attached or with electrical appliances or power leads attached. 1. Ensure the ”Earth” stake and wire are attached, Pic. 8. 2. Turn the fuel cap breather lever clockwise to ON, Pic. 6. NOTE: If fuel cap breather is not on the generator will not operate correctly.
- Page 13 USING YOUR GENERATOR PIC. 14 AC OUTLET Your generator is equipped with a 240V AC power socket. This will run a range of devices providing they are with in the limits of the generators output. NOTE: The peak (surge) power requirements of some devices e.g.
- Page 14 ECONOMY SWITCH (PIC.15) PIC. 15 When this switch is turned on your generator will use less fuel, however only switch on when loads of less than 1100W are attached. If a load is higher than 1100W switch to OFF. USING THE AC OUTLET 1.
- Page 15 SAFETY DEVICES PIC. 16 AC OUTLET CIRCUIT BREAKER (Pic. 16) Your generator is equipped with an output indicator light, see above. When this light goes out, and the red light glows, then the generator will produce NO POWER, but the engine will keep running.
- Page 16 GENERAL MAINTENANCE PIC. 18 Keep the generator in a clean and dry environment where it is not exposed to dust, dirt, moisture, or corrosive vapours. Do not allow the cooling air slots in the generator to become clogged with foreign material such as leaves, snow, etc.
-
Page 17: Maintenance
CHECKING/CLEANING THE AIR FILTER PIC. 20 For proper performance and long life, keep air filters clean. 1. Remove the access panel for more details, refer page 10. 2. Loosen the 5pcs air filter screw and remove the air filter panel Pic. 20. 3. -
Page 18: Maintenance Chart
MAINTENANCE CHART Item Remark Pre-operation Initial 1 month or Every 3 month Every 6 month or Every 12 month check (daily) 6 hours or 12 hours 24 hours or 48 hours Check condition Spark plug Adjust gap and clean Replace if required Check oil level Engine oil Replace... - Page 19 STORAGE PIC. 22 If the generator is not to be used or is to be stored for more than one month the following storage procedure should be carried out. Drain all the fuel from the fuel tank (refer to page 19) and the carburettor (see below), ensure that all the fuel has been drained.
-
Page 20: Fault Chart
FAULT CHART ACTION Fill sump with No oil/ Low oil level correct oil, See page 8 Loose spark plug Tighten plug Insufficient Loose cylinder Tighten bolt compression head bolt Damaged gasket Replace gasket FUEL SYSTEM PROBLEMS Insufficient pulling Pull recoil quickly speed for starting Foreign matter in Clean tank... - Page 21 FAULT CHART CONTINUED ACTION Trippedcircuit breaker Reset, refer page 15 Poor connection or faulty lead Check and replace Indicator light ON. No AC output Broken receptacle Faulty circuit breaker Consult Service Agent Indicator light OFF. Generator problem No AC output Output power too Engine RPM set too Consult Service Agent...
-
Page 22: Service Log
SERVICE LOG This Service is to be complete within 6 hours or 1 This Service is to be complete within 24 hours or 6 months of purchase as well as again within 12 hours or months of purchase, which ever comes first. 3 months, which ever comes first. -
Page 23: Specification
SPECIFICATIONS Inverter generator.........................D3100INVS Engine type..................Single cylinder, 4 stroke 149.8cc Engine speed.......................3300-5000 r/min Oil tank capacity..........................750 mL Oil type:..4 Stroke semi synthetic or fully synthetic motor oil, SAE 15W-40 (API SN Category) Fuel tank capacity..........................6L Fuel type.....................Unleaded 91 Petrol - no ethanol Spark plug.............................A7RTC... - Page 24 Manufactured in China for Anaconda. 111 Cecil Street, South Melbourne, VIC 3205 Australia If you have any questions relating to this product please call Customer Service Australia 1300 660 475...
