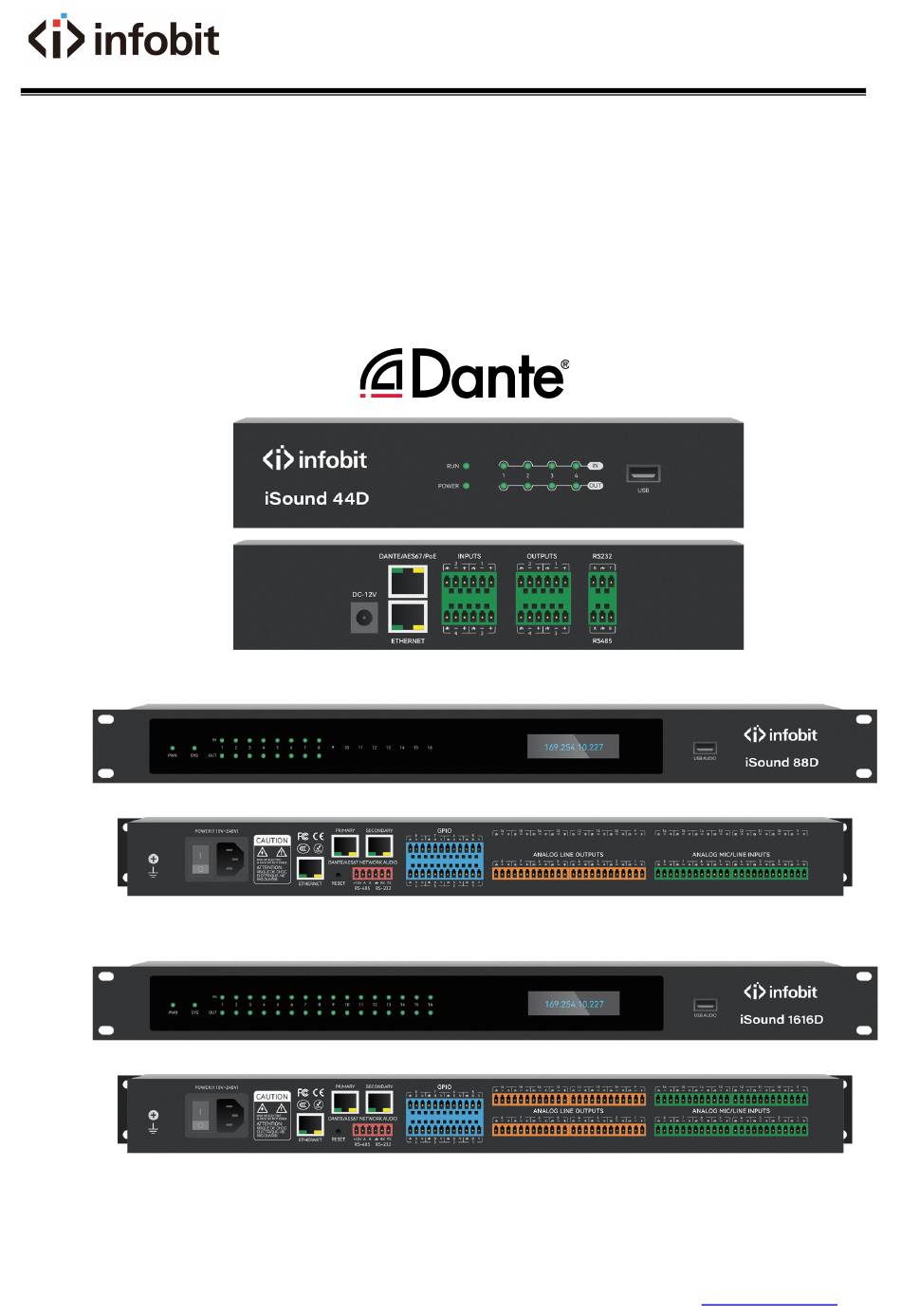

- Page 1 44D/88D/1616D 4x4, 8x8 and 16x16 Digital Sound Processor w/ Dante User Manual V2.0 INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 2: Table Of Contents
3.4 Audio Module Parameters ......................20 3.4.1 Input Source ..........................21 3.4.2 Expander ..........................22 3.4.3 Compressor & Limiter ......................23 3.4.4 Auto Gain Control ........................25 3.4.5 Equalizers ..........................26 3.4.6 Figure Balancer ........................27 INFOBIT AV www.infobitav.com info@infobitav.com... - Page 3 4. Dante Audio ................57 4.1 Dante Overview ..........................57 4.2 Dante Requirements ........................58 4.3 Dante Network Design ........................58 4.4 Dante Modes ..........................60 4.5 Dante Controller ..........................61 4.6 Dante Virtual Soundcard ....................... 61 INFOBIT AV www.infobitav.com info@infobitav.com...
- Page 4 5.4.17 Restore factory settings control .................... 69 5.4.18 Scene Reset Control ......................69 5.4.19 Get the name of the scene that is set arbitrarily ..............69 5.4.20 Module name:input,output|mixer ..................69 5.4.21 Format the instruction: ......................70 INFOBIT AV www.infobitav.com info@infobitav.com...
- Page 5 5.4.22 Get the instruction format ....................70 6. FAQs ................... 70 1. How to restore factory setting? ....................... 70 Appendix A: Module ID Distribution ....................71 Appendix B: Module Parameter Types (1) ................... 72 Appendix B: Module Parameter Types (2) ................... 73 INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 6: Technology
The analog input section supports microphone or line-level signals whose nominal levels are 0dBu, 10dBu, 20dBu, 30dBu, 40dBu and 43dBu. +48VDC phantom power can be adopted for each input. Preamp gain and phantom power can be conveniently controlled via DSP Controller. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 7: Audio Output Section
12dB (2 bits) headroom is created, a 24-bit system only has 22 bits. Floating-Point Processing In the contrary, by taking advantage of floating-point processing, no matter what the signal level is, all available bits are uniformly distributed to the signals. Basically, the floating points use some bits as INFOBIT AV www.infobitav.com info@infobitav.com... - Page 8 By using the fixed-point system, you must search each processing module to find the clipping source. INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 9: Audio Flow
1.5 Audio Flow INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 10: Hardware
For example, the power cord gets damaged, the liquid will spill over or the object falls into the device; the device is exposed to the rainwater or moisture; the operations are not correct, or the device falls off. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 11: Audio Wiring Reference
Note: For one XLR interface, the female connects to the output device and the male connects to the input device. Unbalanced Connection RCA interface and 1/4-inch TS interface are unbalanced interfaces. A multi-stand shielding conductor may be installed on both ends of unbalanced connection. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 12: Specifications
DC12V ( iSound 44D) PoE: 48V Maximum Power Consumption <40W Dimensions (Width x Depth x Height) 215 x 162x 44.5mm (iSound 44D) 480 x 260 x 44.5mm (iSound 88D/1616D) Shipping Weight 2kg (iSound 44D); 4kg (iSound 88D/1616D) INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 13: Mechanical Data
Please do not cover the thermoset of the device with newspapers, tablecloth, curtain and other objects. Shipping Weight: • iSound 44D: 2kg • iSound 88D/1616D: 8.8 lbs. (4 kg) 2.5 Front Panel 2.5.1 iSound 44D Front Panel Model: iSound 44D INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 14: Isound 88D/1616D Front Panel
2 SYS: The operation system status indicator of the device. 3 Channels: The Input/ output channels indicators. 4 LCD screen: Showing IP address and more information. 5 USB AUDIO: USB soundcard (1-in-1-out), which can be used to achieve recording function. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 15: Rear Panel
4 INPUT: 4x input channels. Can connect microphone, DVD and other devices. 5 OUTPUT: 4x output channels. Can be connected to power amplifiers, active speakers, and other equipment. 6 RS232+RS485: connect to the control terminal or central control equipment. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 16: Isound 88D/1616D Rear Panel
4. GPIO: 8x definable input/output logic level control ports, driven by the control module in the device design. It can be set in the software to meet the output level (0V or 5V) after internal conditions trigger; Or input level triggering (0V or 5V) to control corresponding internal functions. INFOBIT AV www.infobitav.com info@infobitav.com... - Page 17 5. OUTPUT: can be connected to power amplifiers, active speakers, and other equipment. 6. INPUT: can connect microphone, DVD and other devices. 7. Dante: Dante Primary and Secondary, support 8x8 or 16x16 I/O channels. INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 18: Software
The factory default IP address of the device is: 169.254.10.227 Subnet mask: 255.255.0.0, please add the address of this network segment in the PC first, so that the device can access normally. After the device is started, enter "http:/ /169.254.10.227/". INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 19: Using The Software
3.3 Custom edit processing module Click on the edit button, input or output channel processor module right-click selection, edit dialog box, can replace the current processing module, can delete, copy and other operations, edit good click upload to the host. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 20: Audio Module Parameters
There are two regulation modes for module parameters: firstly, directly click the input or output channel modules, and enter the parameter interface of the module; secondly, right click the module and the configuration interface will pop out. The first regulation mode is adopted for the following module parameters. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 21: Input Source
It decreases with a speed of 3dB/Oct in the middle and low frequency bands. At this time, frequency regulation will fail, and the level can be used. In addition, you may also find the following menu by right clicking each fader on the main menu. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 22: Expander
When an expansion ratio 1:20 is adopted. The expander seems to be a noise gate in terms of the transmission features. In fact, a noise gate is an expander with great expansion ratio. Fig.3.2 Expander INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 23: Compressor & Limiter
The compressor is used to reduce the dynamic range of the signal higher than the threshold set by the users, and to maintain the dynamic range of the signal lower than the threshold. The compressor has the following control parameters: INFOBIT AV www.infobitav.com info@infobitav.com... - Page 24 If the input signal and threshold are set as -6dB and - 30dB, respectively, and the ratio is 2:1, then the compression amount is 12dB; G.R. level meter indicates around -12dB and output indicates around -18dB. Limiter INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 25: Auto Gain Control
Threshold: When the signal level is lower than the threshold, the input-to-output ratio is 1:1. When the signal level is higher than the threshold, the input-to-output ratio changes with the ratio control settings. The threshold is set as the background noise just higher than the level of input signal. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 26: Equalizers
Among them, high pass filter allows the frequencies above the cut-off frequency to pass and filter the frequencies below the cut-off frequency. To the contrary, low pass filter allows the frequencies below the cut-off frequency to pass and filter the frequencies above the cut-off frequency. INFOBIT AV www.infobitav.com info@infobitav.com... - Page 27 The bandwidth of the filter remains unchanged regardless of the frequency raised or attenuated. The common professional graphic equalizer is to divide 20 Hz~20 kHz signals into 10,15,27,31 to adjust. The graphical balance currently has 10,15 and 31 options INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 28: Feedback Inhibition
If the feedback inhibition module needs to be enabled, click to enable the button, and automatically detect the feedback point, and use a narrow-band filter for elimination. Each feedback inhibition module has 8 narrow-band filters. INFOBIT AV www.infobitav.com info@infobitav.com... - Page 29 Notching Filter's Auto Mode: Auto mode is set for the notching filter. After eight filters are used up, a new feedback is detected, and the module will check "auto" filter and use it to inhibit new feedback. INFOBIT AV www.infobitav.com...
-
Page 30: Noise Gate
Threshold: greater than pass, less than attenuation Depth: attenuation, which determines how much the signal below the threshold is attenuated. Start time: start time refers to the speed at which the noise door opens. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 31: Ducker
Recovery time: after the reference signal is below the threshold, the evasive signal returns to the original signal size. Hold time: hold time refers to how long the dodging on the dodging channel remains after the control signal is below the threshold. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 32: Spl
Gain sensing ratio: the ratio of lifting or attenuation. Speed: the speed of lifting or attenuation. Trim: gain. Noise threshold: greater than the starting gain, less than the reduction. Distance: distance between reference and local signals INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 33: Automixer
100ms. If it is set at several seconds, then there will be a longer hold time of the response time of automixer, previous active channel will be saved at open status in several seconds. INFOBIT AV www.infobitav.com info@infobitav.com... - Page 34 It will get worse if the slope is higher. If the issue happened during installation and commissioning, users may consider installing a noise gate or expander between automixers at the INFOBIT AV www.infobitav.com info@infobitav.com...
- Page 35 By the same token, the number of microphones turned on doubles, and the output attenuation increases by 3 dB. NOM Limit: set the maximum number of open microphones. Noise threshold: greater than this value open, less than this value attenuation INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 36: Acoustic Echo Cancellation
There is only an echo cancellation module in DSP Controller. Multichannel mixers are preset to realize multichannel participating noise cancellation as shown in the figure. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 37: Matrix
Slope: It refers to attenuation values of transition zone of filters. There are totally 8 attenuation values including 6, 12, 18, 24, 30, 36, 42 and 48dB/Oct. For example, 24dB/Oct indicates that the attenuation range is 24dB for each octave difference existed in frequency in transition zone. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 38: Delay
Millisecond: Set delay time of delayer. The value ranges from 1 to 1, 200 milliseconds. Both meter and feet are alternate units for millisecond. 3.4.17 Output INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 39: Camera Tracking
Default Mike: when all Macs are not input, turn the camera to the default MIC set position reaction time: the maximum intermittent time of the valid signal. If the microphone is used to speak, the INFOBIT AV www.infobitav.com info@infobitav.com... - Page 40 Then the "enable microphone setting" option is used to determine whether the microphone setting is a camera debugging interface when tracking is enabled. Finally, the parameters of this part will be saved on the camera. INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 41: Usb Soundcard
As shown in the figure, click at the bottom of the playlist to open file folder and select songs to be played, to clear the playlist and to enter the interface of soundcard setting. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 42: Setting Menu
In offline mode, click the pop up file dialog and open an existed default document with suffix *.uma, or right click on the default document to open DSP.exe. “Save as” refers to saving presets on the application to local hard risk to realize easy copy and store. 3.5.2 Device Setting INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 43: Gpio Setting
Open the software interface of GPIO settings. The device has total 8 GPIOs that allow independent input or output configuration. Input GPIOs have preset, router, gain, mute, command, analog-to digital gain for selection. Output GPIOs have preset, level, mute and command for selection. Input GPIO Setting INFOBIT AV www.infobitav.com info@infobitav.com... - Page 44 Trigger types: same as above Mute/Cancel Mute Channels: select input or output channel Trigger types: same as above Command Command: The command code will be sent through RS232 when the trigger condition is satisfied INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 45: Group Setting
A channel can only participate in one group. Under the same group, their channel volume adjustment and mute adjustment are synchronized. The biggest difference from the Link function is that other module parameters are not synchronized. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 46: Panel Setting
Panel setting include two panel types which are button and OLED panels. Use cables to connect multiple physical panels with the iSound DSP device via panel setting, and then achieve the aim of panel controlling the iSound DSP device by setting panel easily. INFOBIT AV www.infobitav.com info@infobitav.com... - Page 47 OLED screen consists of a 1.3” OLED screen and a knob. OLED screen display strategy is classified according to menu. There are totally three types of menus including menu, buttons, and presets. Double click an OLED screen in design area of the screen to enter its detailed setting as shown below. INFOBIT AV www.infobitav.com info@infobitav.com...
- Page 48 Drag an item in function area to appointed key to finish programming of the key. Similarly, after finishing all programming, users may use the emulation button to check whether the configuration is correct. INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 49: User Interface
User Interface, which allows engineers to create custom interfaces that can be edited by an integrator and operated by field technicians or end users who understand the technology. Advanced security features can only be accessed by end users within the scope allowed by engineering or system designers. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 50: Mobile Device
3.5.7 Mobile Device Online template selection. When the software is installed on the mobile terminal, please DO NOT let the screen closed. In addition, the mobile terminal and PC must be the same LAN. INFOBIT AV www.infobitav.com info@infobitav.com... - Page 51 Click “Apply” Edit the interface. Drag the upper control to change the corresponding properties. INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 52: Dante Setting
Dante network. If it is needed to set up a device lock or to check the signal indicators of Ultimo, virtual soundcard and other devices, please use DanteController. On this software interface, you can only check the signal indicator of Brooklyn. INFOBIT AV www.infobitav.com info@infobitav.com... - Page 53 Warning Subscription is not processed normally because sending device is invisible on network Error Send error, for example, no enough bandwidth on the network Coming soon The device is processing subscription of other channels. In most INFOBIT AV www.infobitav.com info@infobitav.com...
- Page 54 • Any characters can be used for naming sending channel labels, except '=', '.’and '@'. • Sending channel labels must be unique in the device. • Receiving channel naming has the same rules with sending channels. INFOBIT AV www.infobitav.com info@infobitav.com...
- Page 55 Unicast streams are given to single receiving devices while multicast streams are given to multiple receiving devices. Multicast streams may be created or configured manually through the interface, but it uses network bandwidth INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 56: Help Menu
Device upgrade can be carried out through UDP. Connect the device, click setting-help-device upgrade. A file choice box will be popped up at this point, and then choose processor upgrade file (*.bin). (3) About Display version number, tech support contact information and copyright info., etc. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 57: Dante Audio
Dante technology can be used for hardware and software to be installed and APIs referring to design and development. For more details, please visit Audinate website www.audinate.com. Features: • Based on current IP-based network technologies including IEEE 802.3 and UDP/IP. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 58: Dante Requirements
For systems configured maximum 10 non-redundant units, please connect your pc to Ethernet port, connect remaining Ethernet ports with daisy chains, and then connect Dante ports with same daisy chains without specially using Dante switch or configuration. All units shall run under switched port mode. INFOBIT AV www.infobitav.com info@infobitav.com... - Page 59 If these two units are connected with daisy chain or single gigabit switch, then the delay of 0.25mS is normally safe. Otherwise, the delay of 0.5 or 1.0mS can be selected according to your network topology. INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 60: Dante Modes
• Connect Dante network to new modes depending on the circumstances. If switching to redundancy mode, then users now may connect main socket and secondary socket between two devices or single switch. • Turn on system power • Complete mode changes. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 61: Dante Controller
Note: Users must install Dante Controller on pcs or Macs in Dante network to control audios and sending them by routing. It can be installed on the same computer with Dante Virtual Soundcard. Please visit Audinate website to download Dante Virtual Soundcard or get help. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 62: Control
None Similarly, they can be set in “Device Setting”. The interval between messages shall keep more than 100mS for RS232 sending. If central control needs reply, please turn on central control reply switch in “Device Setting”. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 63: 0X21: Parameter Control
The format is the same as the 0x21 (parameter control), no need to input parameters. The obtained parameters will be filled out there. 5.1.3 0x13: Switch presets • byte5: write preset ID (0-15) • byte6-8: write 0 5.1.4 0x74: Other control INFOBIT AV www.infobitav.com info@infobitav.com... - Page 64 Length erved erved • Byte5 controlling type is 4. • The data length of byte6 is 1. • When byte9 is 1, it means turning on central control replies switch; and 0 means turning off replies. INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 65: Dante Routing (0X6E)
Application scenario: The function can be applied in scenarios when many central control hosts have no network port. As shown in the figure, central control hosts transalate network commands through serial ports to control any network device. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 66: Ascii Control Commands
5.4.1 Input volume control and acquisition set:input#gain#0-3#1 (Setting: Enter #Gain #Channel Number # to 1dB) get:input#gain#0-3 --> get:input#gain#0-3#1#1#1#1 (Get: Input #Gain#Channel Number) Return Information Example: get:input#gain#0- 3#1#1#1#1#1(Input 1-4 channel volume is 1/1/1/1 in turn) 5.4.2 Output volume control and acquisition set:output#gain#0-3#1 INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 67: Phantom Power Supply Control And Acquisition
(set input 1 to 4 to output 1 route open) set:mixer#gain#0-3#0#1 (set input 1 to 4 to output 1 route gain 1db) get:mixer#switch#0-3#0(0-3:input,0:output) -> get:mixer#switch#0-3#0#1#0#1#1 5.4.8 Invocation and Saving of Scenarios scene: toggle #3 (scene call, pc is displayed as scene 4) scene:save#3 (save scene) INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 68: Input Level Acquisition
5.4.13 Input and output inverting control and acquisition set:input#phase#0-3#1 set:output#phase#0-3#1 get:input#phase#0-3 -> get:input#phase#0-3#1#1#1#1 get:output#phase#0-3 -> get:output#phase#0-3#1#1#1#1 5.4.14 Input and output step control and acquisition set:input#step#0-3#10 set:output#step#0-3#10 5.4.15 Input and output link control and acquisition set:input#link#0-3#1 set:output#link#0-3#1 INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 69: Control And Acquisition Of Signal Generators
5.4.19 Get the name of the scene that is set arbitrarily set:scene#name#0-3#pre1 (PC only supports UTF-8 encoding, Chinese ANSII code will become garbled) get:scene#name#0-3 (scene number: 0-15) -> get:scene#name#0-3#pre1#pre1#pre1#pre1#pre1 5.4.20 Module name:input,output|mixer item: (input)mute,gain,sens,phant,type,freq,name,phase,step,link,level (output)mute,gain,name,step,link,level (mixer)switch,gain (scene)toggle,save,name (sysctl)mute (rescene) (refactory) INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 70: Format The Instruction
All 16 presets of DSP devices restore to default values. del all: delete all sections except the program. Note: There may be no echo after the installation of some SecureCRTs. Please check ”Local echo” by going to Options->Session Options, as shown in the figure. INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 71: Appendix A: Module Id Distribution
Delayer Input Channel 1-32 Auto 65~95 Output Channel 1-32 263~294 Gain Limiter Input Channel 1-32 Equalizer 97~128 Input Channel 1-32 Feedback 129~160 Inhibition AutoMixer Echo Canceller Echo Cancellation Noise Suppressor Noise Suppression Mixer Output System Control INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 72: Appendix B: Module Parameter Types (1)
Bypass Switch Threshold Millisecond Ratio Microsecond Setup Time Equalizer Total Equalizer Switch Release Time Child Segment Switch Compressor 0x1 Compressor Switch Frequency Compressor Threshold Gain Compressor Ratio Q Value Setup Time Type Recovery Time Gain Compensation INFOBIT AV www.infobitav.com info@infobitav.com... -
Page 73: Appendix B: Module Parameter Types (2)
Echo Echo Cancellation Cancellation Switch Slope Echo Cancellation Mode Response Time Noise Noise Suppression Suppression Switch Channel Auto Switch Noise Suppression Mode Channel Mute System System Mute Channel Gain Control System Gain Priority Auto Mix Switch INFOBIT AV www.infobitav.com info@infobitav.com...
