Page 28
Dear User, Thank you for choosing our products. We are sure you will find your new appliance please to use. Before using this appliance, we highly recommend you read through this operation instruction carefully and retain for future reference. Design and specifcation may change due to product development, no prior notice will be given.
Page 29
Safety Instructions Safety mark Please read all instructions carefully before using this product. When using the appliances, should always follow this instruction to reduce the risk of fire, electric shock, and injury to person. Please keep this manual. This mark indicates This mark indicates Prohibit t h e b e h a v i o r s i s...
Page 30
· Do not attempt to repair, dismantle or modify the unit. This may cause electric shock or fire. Please contact Whirlpool customer service centre. Do not unplug the power cord without power “OFF” the appliance as it could injury ·...
Page 31
Safety Instructions CAUTION · Check that the room where the unit is to operate is not too small. When its compressor overheats, it cuts out automatically to prevent accidents. Should this happen, unplug the appliance, rectify the problem, wait for about 45 minutes and then restart the unit.
Page 32
Safety Instructions CAUTION During Usage · This unit sho uld always keep in an upright position. To avoid damage, this unit should be located on a flat and stable surface. · Always have plenty of room around the main unit(Recommended space: Upper 50cm;...
Page 33
Product Features This product comes with independent dehumidifying and purifying functions, suitable for usage in all seasons. 6th Sense mode – It detects the ambient humidity changes through it’s intelligent humidity sensors, and reacts to make a prompt adjustments on the Fan speed.
Page 34

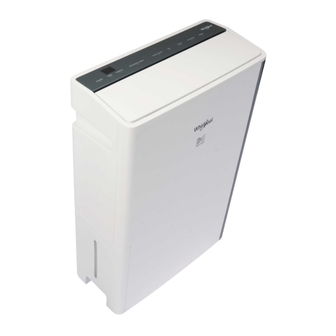

Product Overview Product outlook (Front view ) 1. Louver 6. Water tank handle 7. Water tank 2. Control panel 3. Horizontal louver slider 8. Water level indicator y t i 4. Recess handle 5. Water tank lid...
Page 35
Product Overview Product outlook ( view ) 1. Outlet of continuous drainage 5. Back cover with Pre-filter and water plug 2. Power cable stand 6. Humidity sensor 3. Power plug 7. Air quality sensor 4. Multi-protection filter...
Page 36
Product Overview Function Referring page Power key On / Off the unit P.38 Set the duration for operating hour P.38 Timer key Set your desire humidity level P.38 Humidity key Select 4 different operation mode includes MODE P.38 - P.40 ·...
Page 37
Product Overview Function Referring page Ion Key Activate ionizer function P.42 · Child lock is activated when the light is on. Child Lock / · After cleaning the filter, reset is necessary P.42 Reset key when the light is on . P.38 &...
Page 38
Before Use Unpacking Unpack all the packaging materials , including carton box,foams,plastic bag,stickers,etc.. Remove the plastic bag of filter before operating the unit. Keep children away from the packaging since the folded packing and plastic bag may cause WARNING suffocation. Please check the accessories inside the package according to packing list.
Page 39
Before Use Check Water Tank · Water tank must be properly installed otherwise the unit will not operate. residual water left in the water tank from the product inspection CAUTION: There may be some in factory. This is not a malfunction. Placement ·...
Page 40
Before Use Dehumidfying Mode 1. Press “POWER” key to turn on the dehumidifer, lights up 2. LED displays the ambient humidity 3. In the first time, the mode will base on current humidity to change the fan speed automatically. And set the swing angel as the maximum lights up.
Page 41
Using your Dehumidifer 6th Sense Mode 1. Press “POWER” key to turn on the dehumidifer, lights up 2. Press 6th sense “ MODE” key until lights up. 3. In the first time, the fan speed will set as Low in 5 seconds, after that, it will base on current humidity to adjust the fan speed automatically.
Page 42
Using your Dehumidifer Night Mode 1. Press “POWER” key to turn on the dehumidifer, lights up. 2. Press “ DEHUMIDITY MODE ” key until lights up. 3. Under Night mode, fan speed operates at low speed . Louver will set at front-up. After 1 minute operation, the Air Quality Indicator will turn off,...
Page 43
Using your Dehumidifier Air Purifying (Manual) Mode The Fan speed can be adjusted under Air Purifying (Manual) mode. 1. Press “PURIFY MODE” key until lights up. 2. Press “FAN SPEED” key to select fan speed. High Medium 2. Under Air purifying (Auto) mode , compressor will be stopped and no dehumidify function. 3.
Page 44
Using your Dehumidifer Ionizer •Press “ION” key until lights up •This function can be operated independently. • It is suggested to turn on the ionizer at the same time under Dehumidifying, 6th Sense, Laundry, Air Purifying ( Auto / Manual )and Night mode. •...
Page 45
Using your i f i Louver Setting 1.Press “SWING” key to select the vertical louver swing angle. 2.Press “SWING” until the light is off, the louver will stop at the angle as is. Vertical Vertical Vertical z i r louver swing louver swing louver swing can be operated manually...
Page 46
Air Purifying System Air Purification system is used to remove contaminants and odors in the air. This unit also Air Purification includes air purify system as follows 1. Nano Silver ion pre-filter 2. All-in-one Multi-Protection filter 3. Ionize 4. Air Quality LED. Filter This dehumidifier comes with following filtration functions: 1.
Page 47
Air Purifying System Multi-Protection Filter Pre-filter and Nano silver coating (on back cover) Ionizer Uses high voltage to ionize (electric charge) air molecules, such that the air molecules become positive or negative c harges. Ionizer is used to remove particles in the air. For Ionizer operation, please refer to P.42.
Page 48
Care and Maintenance Clean the pre-filter and Multi-protection filter 1. When “ ” light up, it is necessary to clean the pre-filter and Multi- p rotection filter. 2. Take off the back cover of main unit , pre-filter is integrated into the back cover. 3.
Page 49
Care and Maintenance Inter nal Drying 1. When power off , the fan will continue to operate for 10 seconds at high fan speed to dry out the internal moisture for anti-mildew purpose . At this moment , the light"DEFORST" will light up. That's mean the internal drying function is in progress. Back Cover (Pre-filter) 1.
Page 50
Trouble shooting Please check the below phenomenon to find out the solution before contact customer services. If the problem still cannot be solved, please do not dismantle the machine. You should stop using the machine and contact customer services to solve the problem. Problem Possible Cause &...
Page 51
Trouble shooting Problem Possible Cause & Solution • The sound is generated due to the air flow especially in high fan speed. The sound level varied with the environment but the efficiency is not affected. • S ound will be generated when starts up. It is due to the operation of compressor.
Page 52
Specifcation DS242HEHK DS242HEHK Model DS242HGHK a i l j i F Selling region Singapore Power Supply 220V/50Hz 220-240V/50Hz 220-240V/50Hz Capacity (L/day) 12.6L 12.6L 12.6L ( Temp: 26.7℃; RH 60% ) Capacity (L/day) ( Temp: 30℃; RH 80% ) Power Consumption ( kWh/day ) Net Weight (kg) 14.l...
