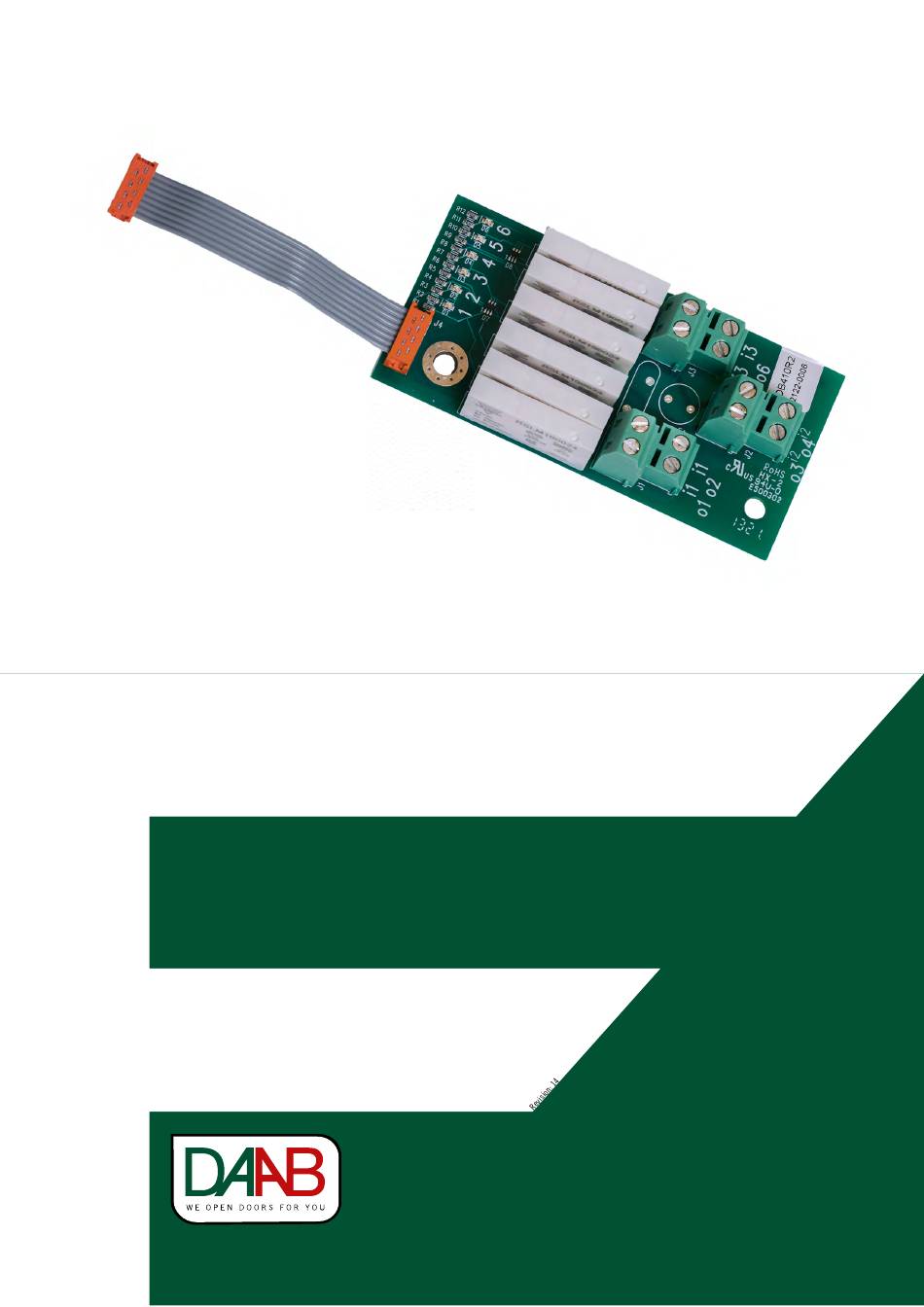

- Page 1 INSTRUCTION MANUAL DAAB OUTPUT CARD DB410 For DAAB automatic control units EP104 version 4.07 or higher EP105 FAAC Nordic AB BOX 125, SE-284 22 PERSTORP SWEDEN, +46 435 77 95 00, support@faac.se www.faac.se...
-
Page 2: Safety Instructions
1. Discharge any static charge in your body by touching an earthed connection before starting installation. 2. Disconnect power to the automatic control unit. 3. Screw the DB410 card into place on the spacers on the automatic control unit using two M4x6 screws. 4. Connect cable to “OUTPUT” contact. - Page 3 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Connection If extra low voltage is used together with low voltage, cables connected to groups i1, o1, o2 and i2, o3, o4 and i3, o5, o6 must be secured with cable ties as close to the terminal as possible.
- Page 4 Functions using add-in card DB410 With DB410 installed there is access to six programmable relay outputs. These outputs are grouped into three groups with two common positions. Note that the positions located closest to the printed circuit board on each terminal are the common positions.
- Page 5 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL • Deactivation of fence alarm or other alarm equipment. Outputs o1 or 2 are available for fence alarms. Note that i1+i1 are two common inputs for o1 and o2. If there is a voltage drop, these outputs are open, NO. Remember that the outputs must be connected so that the fence alarm is activated if a cable is detached, there is a break in a cable or the automatic control unit loses its power supply.
- Page 6 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL • Channel list, o-channels Programmable output 1 Note that the display of the o-channels is determined by the setting in C707 and C710 for EP105 Name Range Factory Setting o100 Function of output 1...
-
Page 7: Factory Setting
DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Name Range Factory Setting o130 Alarm delay. Alarm in channels o131 – o142 must be active 000.0-600.0 seconds 000.0 in this time to produce output signal. o131 Alarm if pressed safety edge. 0 - 1... - Page 8 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Name Range Factory Setting o191 Function when LOOP2, LOOP2 or PHOTO is activated 01 - 14 Presence detection. Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection. Signal when LOOP2 is activated, remains until LOOP2 is clear.
- Page 9 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Programmable output 2 Note that the display of the o-channels is determined by the setting in C707 and C710 for EP105 Name Range Factory Setting o200 Function of output 2 0 - 4 Disabled Position indication/Movement/Warning.
- Page 10 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Name Range Factory Setting o230 Alarm delay. Alarm in channels o231 – o242 must be 000.0-600.0 seconds 000.0 active in this time to produce output signal. o231 Alarm if pressed safety edge. 0 - 1...
- Page 11 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Name Range Factory Setting o291 Function when LOOP2, LOOP2 or PHOTO is activated 01 - 14 Presence detection. Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection. Signal when LOOP2 is activated, remains until LOOP2 is clear.
- Page 12 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Programmable output 3 Note that the display of the o-channels is determined by the setting in C707 and C710 for EP105 Name Range Factory Setting o300 Function of output 3 0 - 4 Disabled Position indication/Movement/Warning.
- Page 13 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Name Range Factory Setting o330 Alarm delay. Alarm in channels o331 – o242 must be active 000.0-600.0 seconds 000.0 in this time to produce output signal. o331 Alarm if pressed safety edge. 0 - 1...
- Page 14 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Name Range Factory Setting o391 Function when LOOP2, LOOP2 or PHOTO is activated 01 - 14 Presence detection. Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection. Signal when LOOP2 is activated, remains until LOOP2 is clear.
- Page 15 Flashing signal before automatic closing, invalid selection for DB410 Flashing signal before park and automatic closing, invalid selection for DB410 Flashing signal before close signal, park and automatic closing, invalid selection for DB410 Flashing signal before all signals, invalid selection for DB410 * WARNING! This setting is possible, but NOT permitted! Selecting it means that the relay output will cease to function.
- Page 16 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Name Range Factory Setting o422 Function during warning time 1 - 2 Output signal disabled during warning in other output Output signal as configured in o410-o413 o423 Flashing frequency 0.1-2.0 seconds o430 Alarm delay. Alarm in channels o431 – o442 must be 000.0-600.0 seconds...
- Page 17 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Name Range Factory Setting o491 Function when LOOP2, LOOP2 or PHOTO is activated 01 - 14 Presence detection. Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection. Signal when LOOP2 is activated, remains until LOOP2 is clear.
- Page 18 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Programmable output 5 Note that the display of the o-channels is determined by the setting in C707 and C710 for EP105 Name Range Factory Setting o500 Function of output 1 0 - 4 Disabled Position indication/Movement/Warning.
- Page 19 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Name Range Factory Setting o530 Alarm delay. Alarm in channels o531 – o542 must be active 000.0-600.0 seconds 000.0 in this time to produce output signal. o531 Alarm if pressed safety edge. 0 - 1...
- Page 20 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Name Range Factory Setting o591 Function when LOOP2, LOOP2 or PHOTO is activated 01 - 14 Presence detection. Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection. Signal when LOOP2 is activated, remains until LOOP2 is clear.
- Page 21 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Programmable output 6 Note that the display of the o-channels is determined by the setting in C707 and C710 for EP105 Name Range Factory Setting o600 Function of output 1 0 - 4 Disabled Position indication/Movement/Warning.
- Page 22 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Name Range Factory Setting o630 Alarm delay. Alarm in channels o631 – o642 must be 000.0-600.0 seconds 000.0 active in this time to produce output signal. o631 Alarm if pressed safety edge. 0 - 1...
- Page 23 DAAB OUTPUT CARD DB410 INSTRUCTION MANUAL Name Range Factory Setting o691 Function when LOOP2, LOOP2 or PHOTO activated 01 - 14 Presence detection. Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection. Signal when LOOP2 is activated, remains until LOOP2 is clear.
