Summary of Contents for ROSSO LI4-40

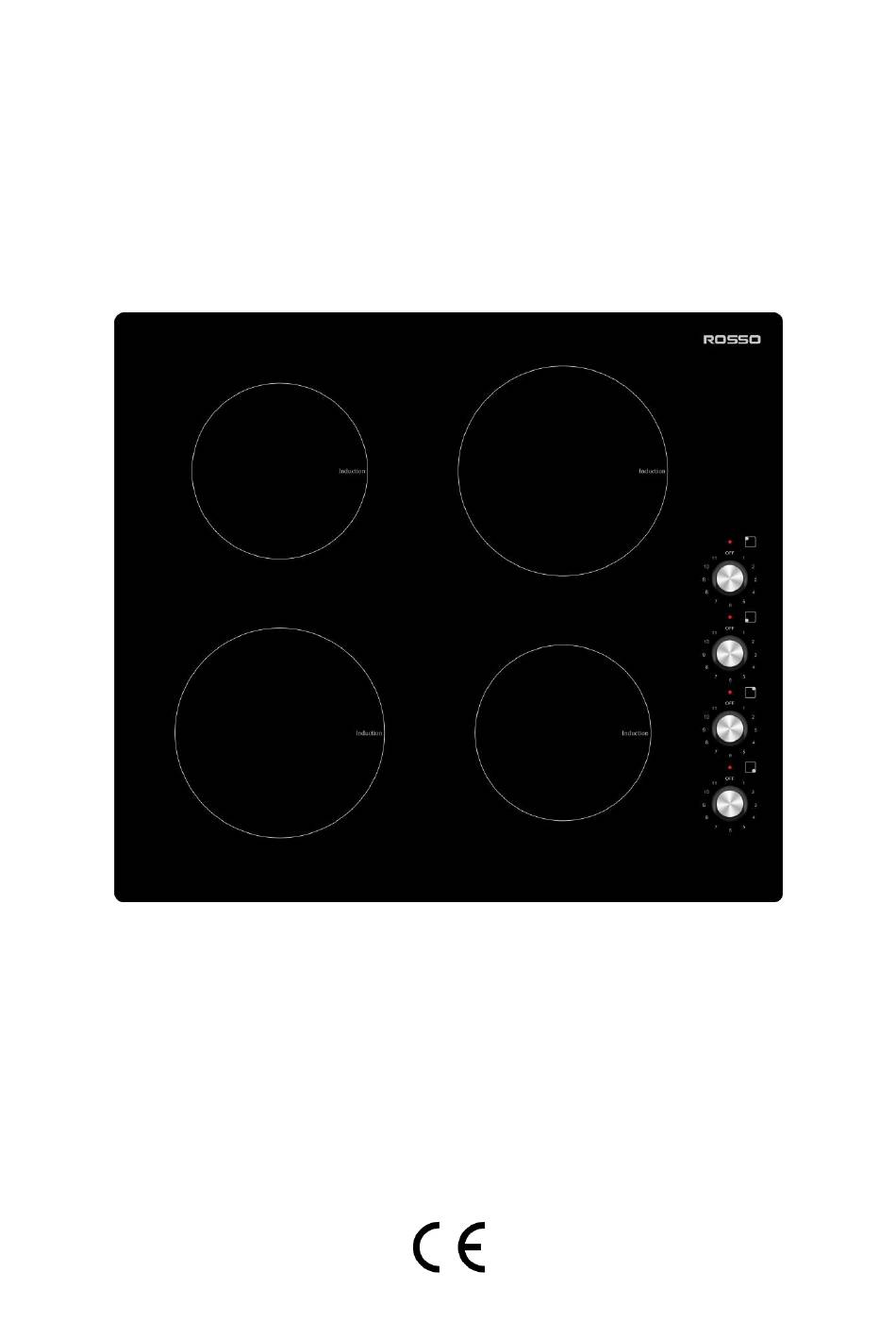

- Page 1 User Instruction Manual 4 Zone Induction Hob Model number: LI4-40 Product size: 590*520mm Built-in size: 560*490mm...
- Page 2 CONTENTS BEFORE USE ................................... 2 SAFETY INSTRUCTIONS ..............................2 INSTALLATION ................................. 3 ELECTRICAL CONNECTION ............................4 INSTRUCTION FOR USE ..............................5 TECHNICAL INFORMATION ............................7 CLEANING ..................................7 TROUBLESHOOTING GUIDE ............................7 NOISES MADE BY THE HOB ............................8 AFTER-SALES SERVICE ..............................8 ENERGY SAVING ................................
- Page 3 the following: The appliance must be disconnected from the power supply before carrying out any installation operation. Installation and maintenance must be carried out by a specialized technician, in compliance with the manufacturer’s instructions and the local safety regulations in force. Do not repair or replace any part of the appliance unless specifically stated in the user manual.
- Page 4 or the After-Sales Service. For built-in dimensions and installation instruction, see in below figures The distance between the underside of the appliance and the separator panel must respect the dimensions given in the figure (min. 50mm). In order to ensure the correct operation of the product, do not obstruct the minimum required clearance (min.
- Page 5 The power cable must be long enough to allow the hob to be removed from the worktop. Make sure the voltage specified on the rating label located on the bottom of the appliance is the same as that of the home. INSTRUCTION FOR USE GENERAL OVERVIEW To avoid permanently damaging the glass-ceramic top, do not use:...
- Page 6 Operating the device Place suitable cookware onto the cooker plate, and connect the hob to suitable socket. Switching the hob On/Off To switch the hob on, rotary switch from OFF to any one power level ( 1-11 any one is OK) and press one time the knob, the cooking zone displays light up.
- Page 7 Auto switch off The hob will automatically switch off when you did not set cooking time, forgot to switch off the hob, and did not operate the hob at all. CONTROL PANEL WARNINGS Residual heat indicator The hob is fitted with a residual heat indicator for each cooking zone. These indicators alert the user when cooking zones are still hot.
- Page 8 Error code Possible Cause Remedy E0-1 Beep No Pan or did not detect the pan Put on the pan E2- 2 Beep NTC short or open Contact the after-sales service and specify the error code E3-3 Beep High voltage Contact the after-sales service and specify the error code E4-4 Beep Low voltage...
