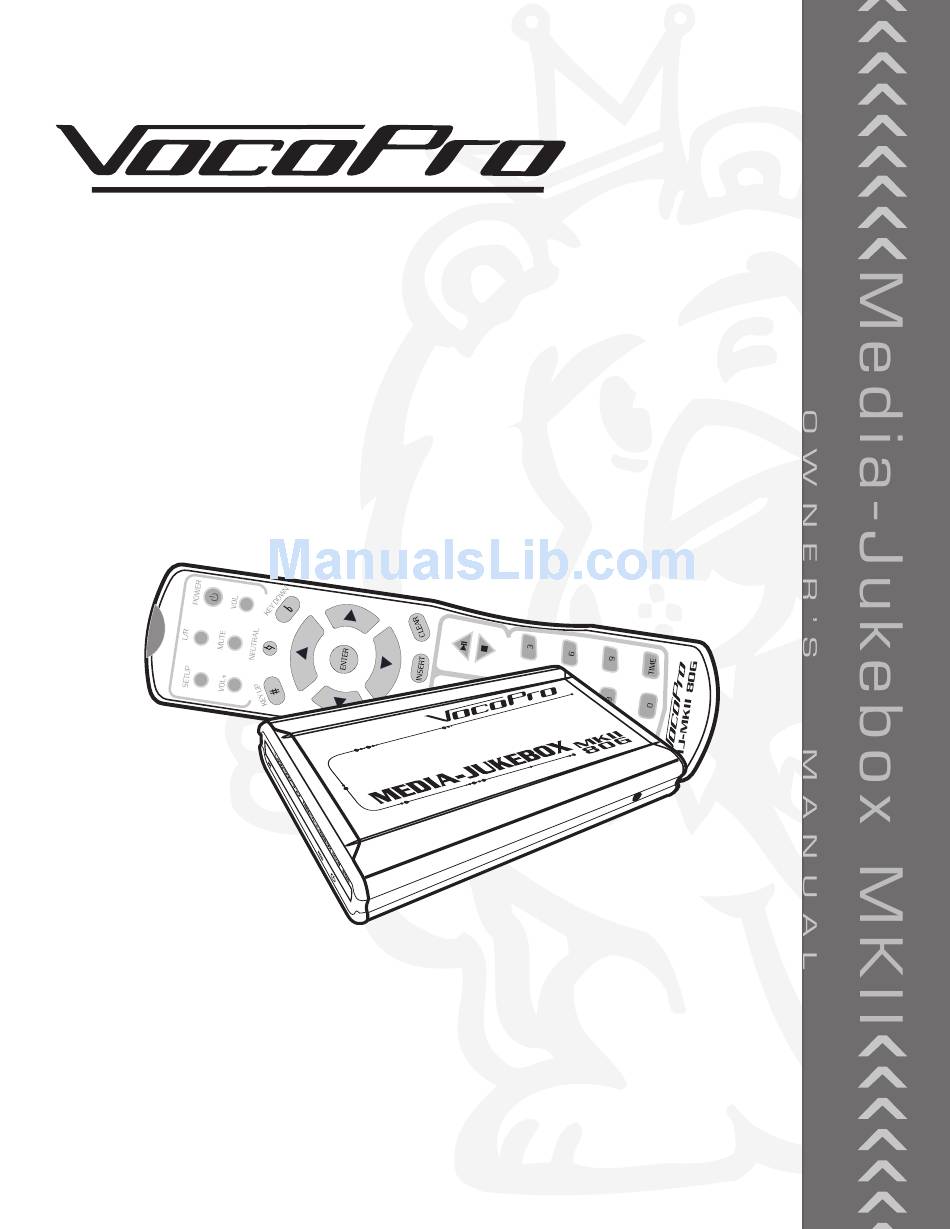

  • Page 1 THE SINGER'S ULTIMATE CHOICE Media-Jukebox MKII 80 GB Hard Drive Media Player with Key Control...
  • Page 2: Table Of Contents

    Table of Contents Safety Instructions ... 1 FCC Information... 2 Welcome... 3 Listening for a Lifetime ... 4 Features and Specifications ... 5 Before Getting Started ... 6 Getting Connected Connecting to a Windows PC ... 7 Connecting the Power ... 8 Connecting to an External A/V System ...
  • Page 3: Safety Instructions

    Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger.
  • Page 4: Fcc Information

    UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.
  • Page 5: Welcome

    Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit.
  • Page 6: Listening For A Lifetime

    Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.
  • Page 7: Features And Specifications

    Features and Specifications Features • Supports DivX, DVD, DivX-encoded CD+G files*, VCD, MP3, WMA and Photo CD for playback to any system • USB 2.0 connection for ultra fast file transfer • Built-in Digital Key Controller for professional-level karaoke • 80 GB hard drive stores a huge library of A/V files •...
  • Page 8: Before Getting Started

    Note: The included high-capacity USB 2.0 cable is designed specifically to fit the Media-Jukebox MKII. If you misplace your USB 2.0 cable it is recommended that you order a replacement directly from VocoPro as other USB 2.0 cables may not be compatible Optional Accessories (Sold Separately) •...
  • Page 9: Getting Connected

    Safely Remove Hardware function. Properly Disconnecting the USB cable 1. Locate the “Safely Remove Hardware” icon at the bottom taskbar and click on it. “USB Mass Storage Device” should be highlighted. 2. Click “Stop” and “Stop Hardware Device” will appear.
  • Page 10: Connecting The Power

    Getting Connected Connecting the power What you will need: • AC Power adapter (included) • Surge protector, power strip or power outlet NOTE: A surge protector is recommended to prevent any damage to the Media-Jukebox MKII caused by a power surge. 1.
  • Page 11 Getting Connected Audio Only using the Digital Coaxial Output What you will need: • 1/8” to Coaxial patch cable (included) • Digital mixer/receiver with a digital coaxial input 1. Connect the 1/8” end to the DIGITAL OUT jack on the Media-Jukebox MKII 2.
  • Page 12: Connecting S-Video

    Getting Connected (optional accessories) Video Only using the S-Video Output What you will need: • 1/8” to S-Video patch cable (Optional accessory sold separately) • TV, video monitor or other video device with S-Video input 1. Connect the 1/8” end to the S-Video jack on the Media-Jukebox MKII 2.
  • Page 13: Descriptions And Functions

    Descriptions and Functions Front Panel 1. Remote Sensor - Receives the infrared signal from the remote NOTE: For added flexibility, connect the external infrared sensor. This will allow you to operate the Media-Jukebox MKII from wider angles and further distance. 2.
  • Page 14: Remote Control

    Descriptions and Functions Remote Control 1. SETUP - Accesses the on-screen System Setup menu. Use the arrow buttons on the remote control to navigate through this menu and use the ENTER button to make selections. 2. L/R (Left / Right) - Toggles between five audio output modes: LEFT VOCAL, RIGHT VOCAL, MONO LEFT, MONO RIGHT, and STEREO.
  • Page 15: Computer Operations

    Computer Operations (Windows PC) Accessing the Media-Jukebox MKII on your Windows PC 1. Make sure the Media-Jukebox MKII is connected to your computer’s USB 2.0 port and that the AC power adapter is NOT connected to the Media-Jukebox MKII. NOTE: A window may come up titled LOCAL DISK that asks you “What do you want Windows to do?” If you see this window follow step 2A otherwise go to step 2B.
  • Page 16 Computer Operations (Windows PC) Changing the Drive Letter The first time you connect the Media-Jukebox MKII to a computer, the computer will automatically assign it a drive letter. If this drive letter is already taken by another drive, the Media-Jukebox MKII will not show up in the MY COMPUTER folder.
  • Page 17: Operations

    Operations Playing Files Before playing: All of your file names must be in 5-digit number form. ie. “00001”. In order to keep track of your file order, it is recommended that you make a song list that you can refer to when selecting files for play- back.
  • Page 18 Operations Muting the Music 1. Press the MUTE button on the remote control while a song is playing. NOTE: MUTE will appear for a few seconds in the lower left-hand corner of the screen when the music is muted. 2. Press MUTE again to turn mute off. NOTE: MUTE OFF will appear for a few seconds in the lower left-hand corner of the screen when mute is turned off.
  • Page 19 Operations Setting up a Multiple Track List To create the following order: 1. Track 32 (00032) 2. Track 5 (00005) 3. Track 13 (00013) 4. Track 126 (00126) 5. Track 6 (00006) NOTE: You must be in the “Please Select Track Number” Using the remote control: 1.
  • Page 20 Operations Using Digital Key Control ± Digital Key Control allows you to change the musical key to fit any singer’s vocal range at 7 (½) steps. • Press the “b” button to lower the musical key a ½ step • Press the “#” button to raise the musical key a ½ step •...
  • Page 21: System Setup (On-Screen Display)

    System Setup (on-screen display) The System Setup menu can be accessed by pressing the SETUP button on the remote. NOTE: The Media-Jukebox MKII must be connected to a TV or video monitor in order to view the Sys- tem Setup menu. •...
  • Page 22 System Setup (on-screen display) Speaker Setup page 1. DOWNMIX LT/RT: Use when connected to a Dolby Pro Logic Decoder amp STEREO: Use when connected to a stereo sound system Audio Setup page 1. SPDIF OUTPUT OFF: When using the analog L/R RCA output SPDIF/RAW: When using the Digital Coaxial output and connecting to an Dolby Digital/DTS amp with digital decoder SPDIF/PCW: When using the Digital Coaxial output and connecting to a 2-channel amp with digi-...
  • Page 23 System Setup (on-screen display) 4. PRO LOGIC When using the Digital Coaxial audio output and a surround sound speaker system, PRO LOGIC must be set to ON or AUTO. ON: Surround sound decoder is on. OFF: Surround sound is off AUTO: Automatically detects when surround sound format is present on a disc.
  • Page 24 System Setup (on-screen display) 2. TV Type MULTI. SYSTEM: Automatically detects the correct system NTSC: For North American TV systems PAL: For European TV systems 3. VIDEO OUTPUT CVBS: When using the RCA A/V output YCBCR: When using the RGB video output S-VIDEO: When using the S-VIDEO video output 4.
  • Page 25: Troubleshooting

    Troubleshooting The Media-jukebox Mkii Is Not Showing Up On My Computer • Make sure the AC power adapter is NOT connected to the Media-Jukebox MKII while it is connected to a computer. • If there is only one USB 2.0 end connected to the computer, make sure it is the correct one. See the ‘Connecting to a Computer’...
  • Page 26 © Vocopro 2006 MEDIA-JUKEBOX MKII V 1.1 WWW.VOCOPRO.COM...
