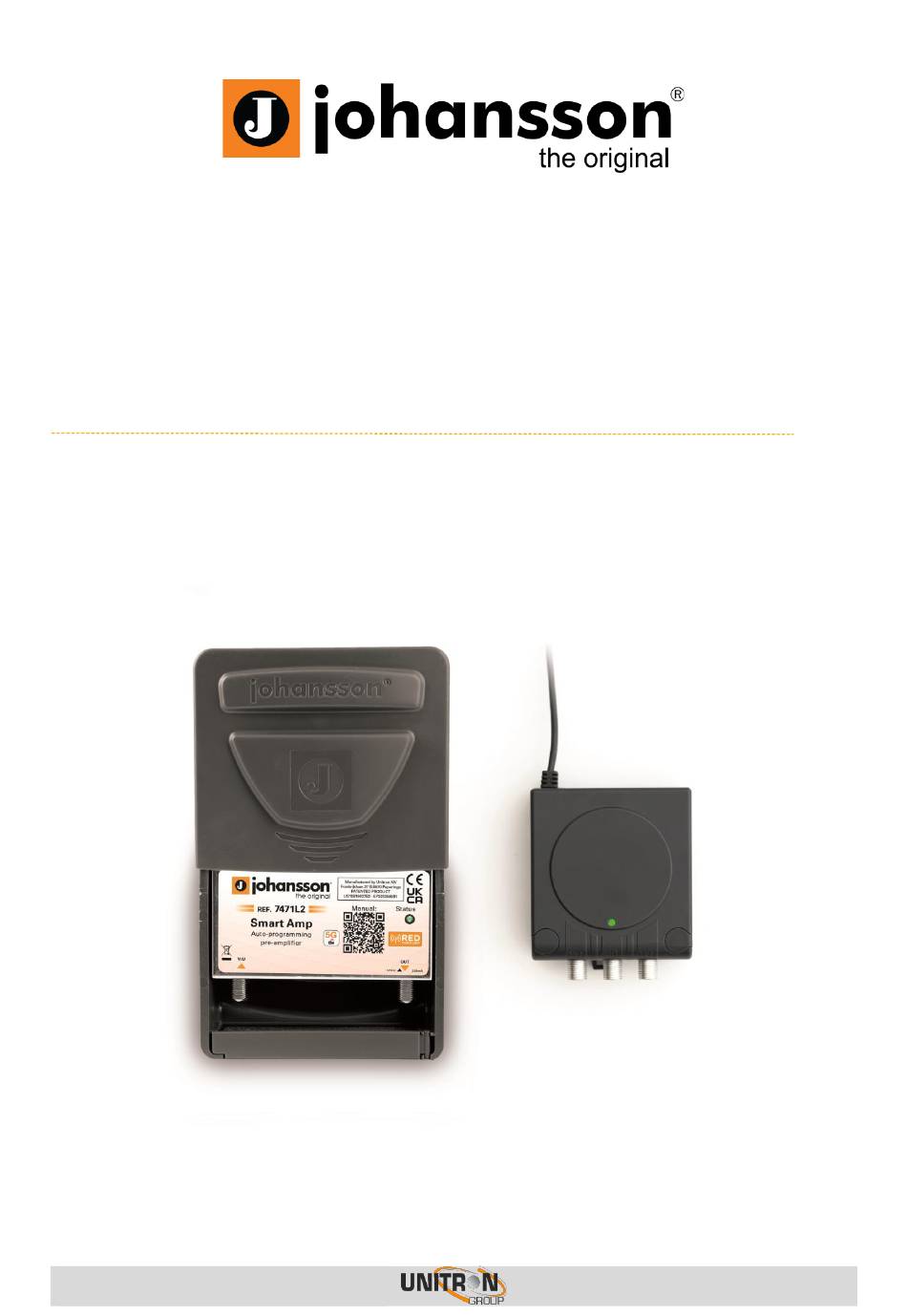

- Page 1 User Manual Smart Amp Ref. KIT7471L2 PATENTED TECHNOLOGY SW Version 1.0...
-
Page 2: Table Of Contents
No part of this manual may be copied, reproduced, transmitted, transcribed or translated into any language without permission. Unitron reserves the right to change the specifications of the hardware and software described in these manuals at any time. Unitron cannot be held liable for any damages resulting from the use of this product. Specifications are subject to change without notice. -
Page 3: Introduction
SMART AMP (REF. 7471L2) 1. I NTRODUCTION 1.1. Product description • Scans all channels, amplifies the weak signals while keeping the strong channels • All output channels have an equal and stable output power • Treats even the most difficult situations with adjacent channels •... -
Page 4: Technical Specifications
SMART AMP (REF. 7471L2) 2. T ECHNICAL PECIFICATIONS 7471L2 Inputs Outputs 5G (> CH48) Frequency range VHF BIII + UHF Automatic channel plan selection LTE band rejection >40 Output Output Power dBµV Frequency Range 174 - 862 Adjacent channel isolation >35 Input sensitivity dBµV... -
Page 5: Hardware Installation
SMART AMP (REF. 7471L2) 3. H ARDWARE INSTALLATION Installing the Smart Amp • Connect your Terrestrial antenna to the Smart Amp* • Connect the Smart Amp output to the Power Supply • Connect your TVs to the Power Supply Important: Mount the module vertically to a wall in a well-ventilated room and leave a minimum space of 15 cm around the product to guarantee a maximum ventilation of the product * The Smart Amp does not allow p... - Page 6 SMART AMP (REF. 7471L2) • When a power outage causes missing channels on your TV, a reset is needed • Reset: pull out the power supply and put it back in within 6 seconds • The status LED will blink when re-scanning •...
-
Page 7: Safety Instructions
SMART AMP (REF. 7471L2) 4. S AFETY NSTRUCTIONS Read these instructions carefully before connecting the unit To prevent fire, short circuit or shock hazard: • Do not expose the unit to rain or moisture. • Install the unit in a dry location without infiltration or condensation of water. •... -
Page 8: Conditions Of Warranty
If during this period of warranty the product proves defective, under normal use, due to defective materials or workmanship, Unitron N.V, at its sole option, will repair or replace the product. Return the product to your local dealer for reparation.
