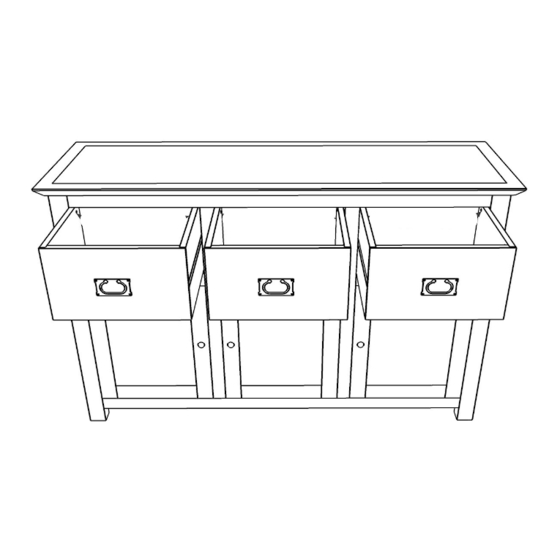

BT733
Thank you for choosing this furniture.
BEFORE YOU START ASSEMBLY please store the carton for 48 hours or more so the contents can acclimatise.
PLEASE RETAIN ALL PACKING UNTIL YOU HAVE COMPLETED ASSEMBLY.
Information about your furniture.
Our furniture ranges have been carefully crafted from solid wood and natural wood veneers. Each piece of furniture has unique
characteristics such as knots, variances and graniing. These are part of the natural character of the furniture itself.
Caring for your furniture.
Extreme temperature can cause slight movements in the wood itself so please avoid placing your furniture close to radiators or other direct
sources of heat. Humidity should also be avoided. Please avoid exposing your furniture to continued bright sunlight as it can affect the colour.
Any fluid should be removed as quickly as possible. Always lift your furniture when moving, as dragging can cause damage to your furniture or
flooring. Extreme changes in temperature & humidity during transit may result in a powder residue forming so silica gel bags have been included
to alleviate this natural occurrence. This residue is harmless and can easily be removed before assembly with a damp cloth and mild detergent.
After care.
Wipe the surfaces with a dry cloth and an occasional use of normal household polish. We also recommend you use household spray
polish occasionally on the drawer grooves and runners as this will aid use. Please do not use detergents or chemicals on your furniture.
BEFORE YOU START ASSEMBLY
Please check that you have all the correct parts and fittings as detailed on the assembly instructions.
FOR DAMAGED/REPLACEMENT PARTS
Please visit www.coreproducts.co.uk/parts
Batch Number:
PLEASE RETAIN THIS LEAFLET ALONG WITH YOUR DELIVERY NOTE/RECEIPT FOR FUTURE REFERENCE
PARTS LIST
Q = x6
18mm Bolt
2022 Specification
90 min
A = x52
Dowel
B = x29
40mm Screw
C = x34
30mm Screw
D = x40
Nail
E = x3
Mag. Catch
F = x24
15mm screw
H = x3
30mm Bolt
P = x3
G = x3
Handle
Knob
Advertisement
Table of Contents
Related Manuals for Core Products BT733
Summary of Contents for Core Products BT733
- Page 1 BT733 90 min Thank you for choosing this furniture. BEFORE YOU START ASSEMBLY please store the carton for 48 hours or more so the contents can acclimatise. PLEASE RETAIN ALL PACKING UNTIL YOU HAVE COMPLETED ASSEMBLY. Information about your furniture.
- Page 2 A = x4 Dowel B = x2 40mm Screw Tip: during assembly place unit onto a work C = x2 surface with a clean cover 30mm Screw Tip: Bar 4 has two countersunk holes to insert screws and attach it to the top at later stage A = x24 B = x6...
- Page 3 Tip: during assembly place unit onto a work surface with a clean cover A = x4 Dowel B = x11 40mm Screw Tip: Place top of unit over the edge of the work surface to ensure the top does not mark during assembly D = x40 Nail...
- Page 4 H = x3 G = x3 F = x24 E = x3 30mm Bolt Knob 15mm Screw Mag. Catch Q = x6 18mm Bolt P = x3 Handle C = x24 30mm Screw...
- Page 5 Tip: insert dowels from the inside of the drawers, pushing through so they sit level with the inside of the drawer side. Repeat for all drawers A = x6 Dowel WARNING! TIPPING HAZARD – Unanchored furniture can tip over WARNING: CHECK FOR HIDDEN PIPES AND CABLES BEFORE DRILLING. IMPORTANT: IF YOUR WALLS ARE NOT SOLID LIKE BRICK OR STONE, YOU WILL REQUIRE SPECIALIST FITTINGS (NOT SUPPLIED) - Place fixing strip against the wall and mark position for drilling hole.
