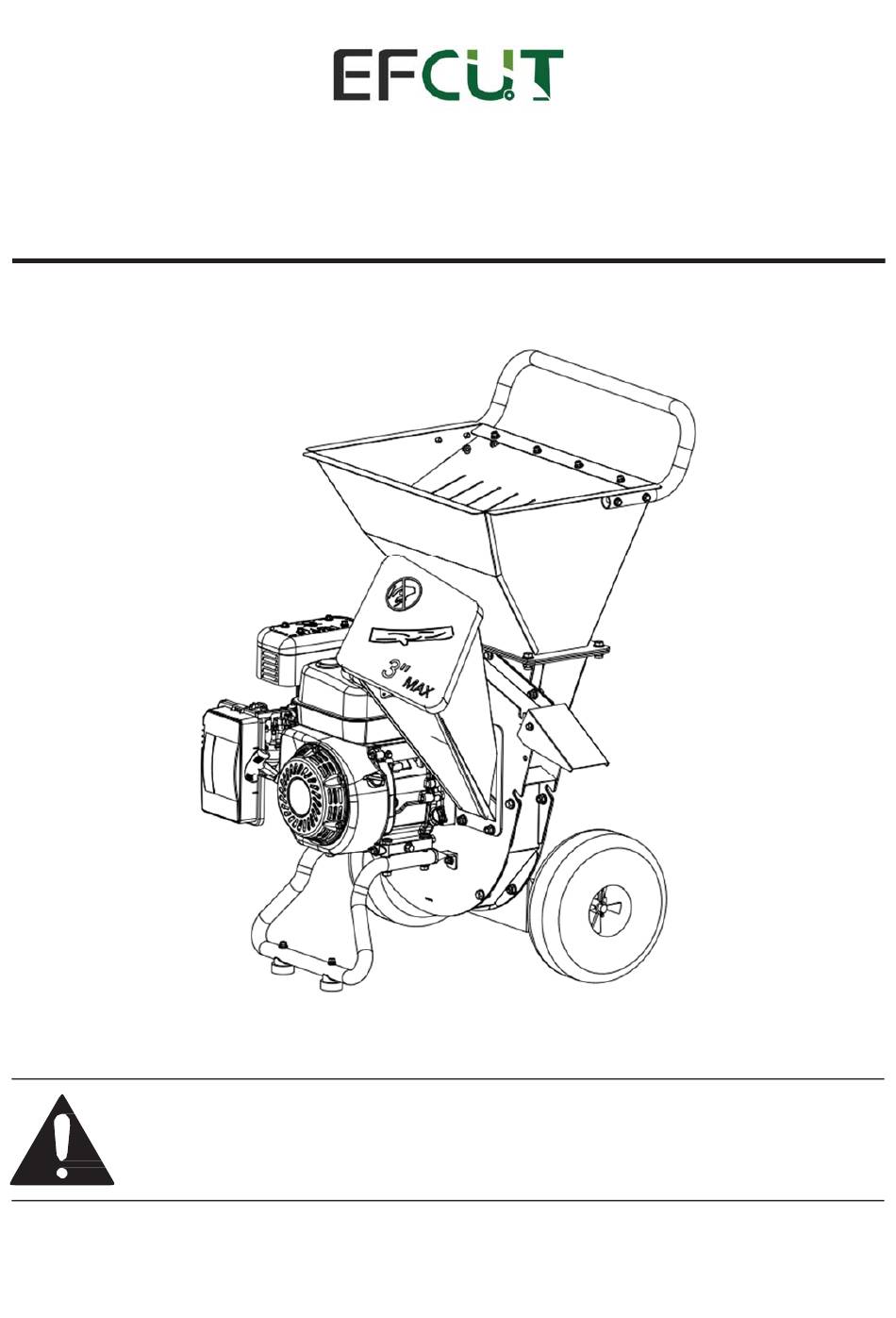

MF30 Chipper Shredder

Instruction Manual

WARNING:

Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules

and other basic safety precautions may result in serious personal injury.

Save these instructions in a safe place and on hand so that they can be read when required. Keep

these instructions to assist in future servicing.

Rev.1.1

Table of Contents

Need help?

Do you have a question about the MF30 and is the answer not in the manual?

Questions and answers

Summary of Contents for EFCUT MF30

Page 1 MF30 Chipper Shredder Instruction Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.
Page 2 WARNING SYMBOL WARNING: This is the warning symbol to get your high attention for the instruction notice, which should be followed to avoid the potential serious personal injury. Anyone to use this equipment should read all the instructions of this manual. Keep this instruction manual for future reference.
Page 3: Table Of Contents
Shredder Hopper Handle Rotor Housing Engine Discharge Vacuum Chute Chipper Inlet Cone Wheel Stand SPECIFICATIONS MF30 Item No. Engine Specifications Chipping Capacity Max. 3” 1/2” Engine Brand Rato Shredder Capacity Engine Type Chipping Knives Shredder Hammer 4 Y-hammers Power 15:1...
Page 4: Safety
GENERAL OPERATING SAFETY 1. Read, understand, and follow all instructions in the manual and on the unit before starting 2. Locate the Chipper/Shredder on a flat, level, sturdy surface capable of supporting the weight of the Chipper / Shredder and any additional tools and equipment. 3.
Page 5 8. Never attempt to reposition or move the chipper shredder unit while it is running. Doing so could cause the machine to tip over, and reaching to steady the unit could result in accidental insertion of your hands into the chipper cone or shredder hopper areas.
Page 6 Gasoline Fires and Handling Fuel Safely Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive. 1. When storing extra fuel be sure that it is in an appropriate container and away from any fire hazards. 2.
Page 7: Assembly
ASSEMBLY Install the Wheels (See Figure 2) Install Wheel Rack (See Figure 1) 1. Put the wheel (A) onto the axle (B), Make sure the 1. Position the wheel rack (A) underneath the wheel disc flat side face to machine. housing (B) 2.
Page 8 Install the Chipper Cone (See Figure 6) Install the Hopper (See Figure 5) Set chipper cone (B) to the three outstanding bolts 1. Set damper plate (B) and U shape plate (C) onto (D) on housing housing (D) by aligning through the aligned holes Tight three flange nuts (C) to secure shipper cone 2.
Page 9: Operation
DANGER 1. The exhaust from this product contains carbon monoxide gas. Carbon monoxide is a colorless, odorless and tasteless gas that can cause dizziness, nausea, unconsciousness or even brain damage and death if inhaled for prolonged periods. 2. Operate the unit outdoors in a well ventilated location only. Keep children, pets and bystanders away. 3.
Page 10: Maintenance
3. Always use the hopper handle and built-in wheels to move the chipper shredder. Never lift the unit using the fuel tank for support. If the unit must be lifted , always use at least two people, and always grip the unit securely using the front leg and hopper handle.
Page 11 Check Safety Labels 1. Service Interval: Every spring and fall. 2. Check that the safety labels are in place and undamaged. 3. Sample illustrations and part numbers of the decals can be found on page 6. Replace any damaged or missing decals.
Page 12: Trouble Shooting
IMPORTANT: Engine is shipped from factory without oil. You must add engine oil before starting engine. CAUTION 1. For the safety of the user, and to maximize the life of the engine, it is crucial to take time to check the condition of the engine.
Page 13: Repair
REPAIR Shredding Hammer Rotation and Replacement The cutting edges of the shredding hammers may eventually wear out requiring rotation of the hammer or replacement if all cutting edges have been dulled. To rotate the shredding hammers: 1. Turn the engine off and wait for all moving parts to stop. 2.
Page 14: Parts Breakdown
PARTS BREAKDOWN Ref. # Part # Description Q’ty Ref.# Part # Description Q’ty 902‐13A‐01 Cover of housing 902‐13A‐08 Damper plate 1 1 18 1 902‐13A‐01‐4 Removable cover of 802‐018 Dual disc self‐lock 2 1 19 1 housing washer M10 902‐13A‐02 Back cover of housing 801‐071 3/8‐24 UNF ‐30 bolt 3 1 20 1 902‐13A‐03 Rotor assembly ...
Page 15 Parts Breakdown – Engine and Rotor Group Ref.# Description Q’ty Engine Plate of housing Spring washer 8 Hex bolt 5/16-24 Key parallel pin Bearing sleeve Rotor assembly kit Spring washer 10 Hex bolt 3/8-24 Parts Breakdown – Rotor Group Ref.# Description Q’ty Hex bolt M10x55...
Page 16: Warranty
PARTS BREAKDOWN - CHIPPER HOUSING GROUP Ref.# Description Q’ty Plate of housing Rotor assembly kit Adjustable discharge guard Cover of housing Chipper back cover Flange bolt M8x16 Vacuum inlet cover Flange bolt M8x20 Wheel rack Nut M8 WARRANTY Limited 3 Years Warranty 1.
Page 17: Optional Accessory
Vacuum Kit Optional Accessory for MF30 Wood Chipper Shredder Item# MF30-VK1 Specification: 4"x10' extension hose with vacuum nozzle Type of waste permitted: Light, loose, dry waste such as leaves, grass clippings, or sawdust. NOTES: The vacuum is engineered for small, loose waste and for cleaning around decorative landscaping and flower beds.
Page 18 TROUBLE SHOOTING: PROBLEM POSSIBLE CAUSE SOLUTIONS 1. Hopper gate not closed. 1. Slide gate to closed position. 2. Cone cover not installed. 2. Install the cone cover. Vacuum not working 3. Clear blockage or replace. 3. Hose not attached properly. 4.
