LumenRadio WIRELESS SOLUTION W-DMX ORB Quick Start Manual

FIRMWARE UPDATE
Firmware can be updated using the CRMX Toolbox
LumenRadio. The app is available for both iOS and Android and
can be downloaded from App Store or Google Play.
1. Press and hold the link switch for more than 10 seconds,
until the unit indicates that it is in update mode.
2. Within 60 seconds, connect to the device using the app.
3. After connecting, select the "Update" option in the app.
Note: The device will automatically leave update mode after 60
seconds if no connection has been made.
RIGGING
Whenever you are going to rig your Orb unit in a truss or other-
wise place it more than 2m above ground, the supplied truss
mounting bracket must be used.
Fasten the bracket in a suitable truss clamp using an M10 or
3/8" bolt. The truss mounting bracket also allows for a safety
wire to be used whenever necessary.

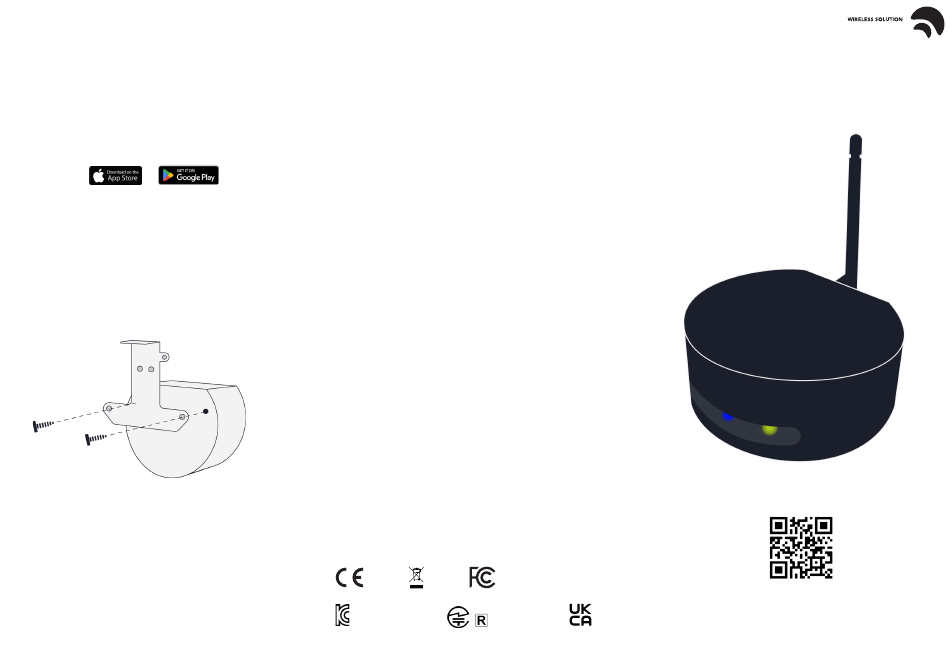

The truss mounting bracket shall be mounted according to the
picture below.
WARRANTY AND SUPPORT
All warranty claims or support topics for this product shall be
directed to the local distributor/reseller. To find your local distri-
butor, visit www.wirelessdmx.com
Warranty is deemed void if:
(1) The product is modified, repaired or otherwise altered unless
it has been directed by LumenRadio AB; or
(2) The serial number on the product (the QR code) has been
compromised.
SPECIFICATIONS
app from Power supply AC :
2 1
Power supply DC:
Max. power consumption:
Self-healing fuse:
IP rating:
Dimensions (W x H x D):
Weight:
Antenna connector:
Operating temp. range:
Storage temp. range:
Humidity:
Frequency range:
Max. RF output power:
Supported protocols:
Supported RF protocols (TX): W-DMX G3
Supported RF protocols (RX): CRMX, CRMX2 , W-DMX G3, G4,
1 With external power supply only
LEGAL
CRMX is a trademark of LumenRadio AB, W-DMX is a trade-
mark of Wireless Solution Sweden AB.
Wireless Solution Sweden AB is a fully-owned subsidiary of
LumenRadio AB.
DMX-512A refers to ANSI national standard developed and
maintained by ESTA, Entertainment Services and Technology
Association.
This product makes use of US patents 9,208,680; EU patents
EP 2415317, EP 2803248, China patents CN 102369774, CN
104041189B and others.
Version of this quick start guide: Version 1 (2023-11-01)
MANUFACTURER
LumenRadio AB
Johan Willins gata 6
416 64 Gothenburg
Sweden
R-R-xrs-200-2019
100-240 VAC +/- 10% 50/60 Hz
5 VDC +/- 10%
1W
Yes
IP 20
99 x 97 x 43 [mm]
190 g
RP-SMA
-20 to +55 °C
-30 to +80 °C
0 – 90% non-condensing
2402 – 2480 MHz (ISM band)
35 mW
DMX-512A
G4S & G5
LumenRadio
Alfred-Herrhausen-Allee 3-5
DE-65760 Eschborn
Germany
FCC ID: XRSTIMOMWA201
IC ID: 8879A-TIMOMWA201
017-200015
by LumenRadio
W-DMX ORB
Scan for additional
information
