M-system R7F4DC-DA16B-C Instruction Manual page 4

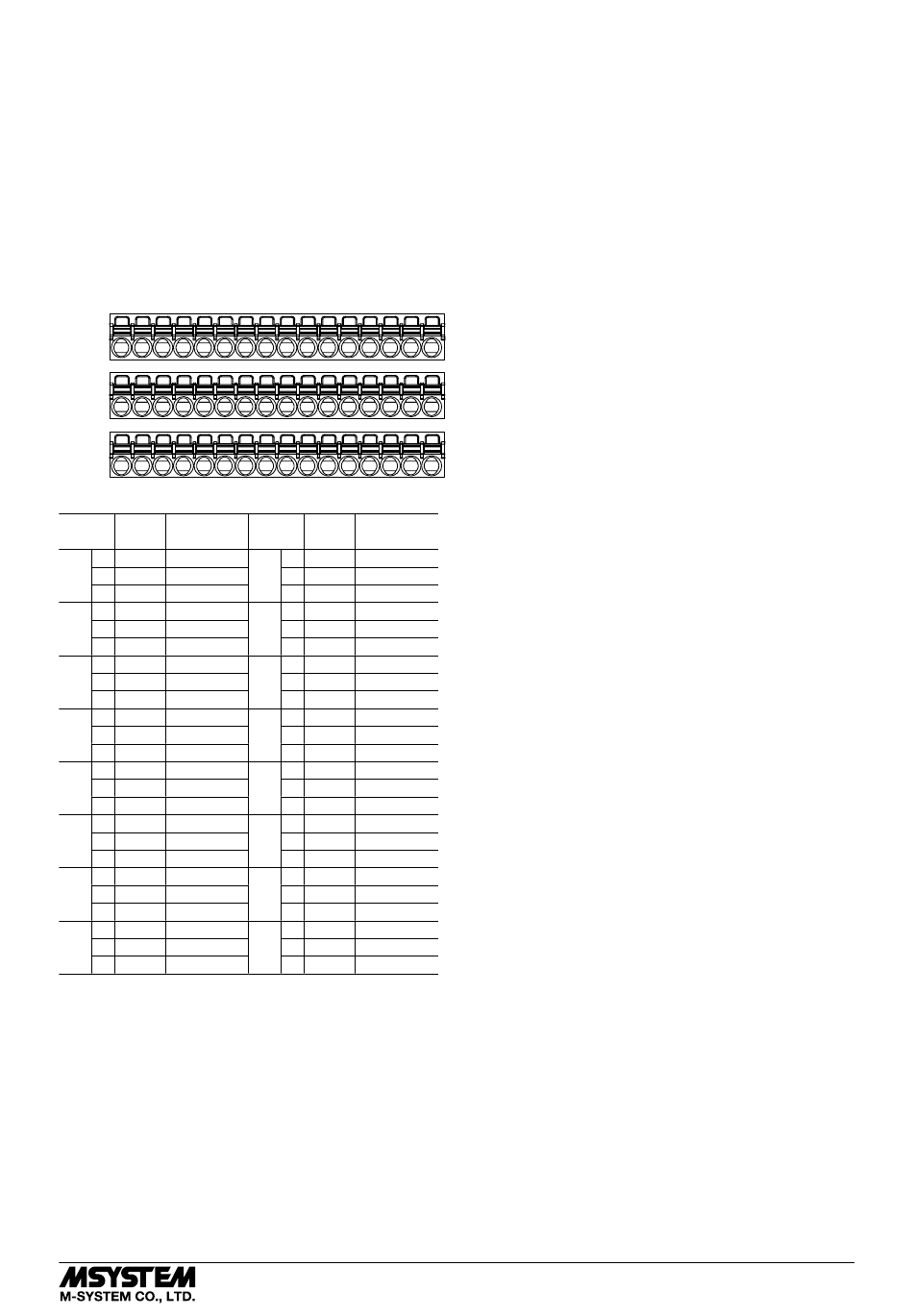

• Input Terminal Assignment
Unit side connector: MCV1,5/16-G-3,5 (Phoenix contact)
Cable side connector: FMC1,5/16-ST-3,5 (Phoenix contact)
Applicable wire size: 0.2 - 1.5mm
Stripped length: 10mm
Recommended Solderless Termianal:
AI0,25-10YE 0.25mm (Phoenix contact)
2
AI0,34-10TQ 0.34mm (Phoenix contact)
2
AI0,5-10WH 0.5mm (Phoenix contact)
2
AI0,75-10GY 0.75mm (Phoenix contact)
2
AI1-10 1.0mm 2 (Phoenix contact)
AI1,5-10 1.5mm (Phoenix contact)
2
X0 X1 X2 X3 X4 X5
+24V
GND
PIN
ID FUNCTION
NO.
X0 1 X0 Input 0
2 +24V 24V DC
3 GND 0V
X1 1 X1 Input 1
2 +24V 24V DC
3 GND 0V
X2 1 X2 Input 2
2 +24V 24V DC
3 GND 0V
X3 1 X3 Input 3
2 +24V 24V DC
3 GND 0V
X4 1 X4 Input 4
2 +24V 24V DC
3 GND 0V
X5 1 X5 Input 5
2 +24V 24V DC
3 GND 0V
X6 1 X6 Input 6
2 +24V 24V DC
3 GND 0V
X7 1 X7 Input 7
2 +24V 24V DC
3 GND 0V
2
X6 X7 X8 X9 XA XB XC XD XE
PIN
ID FUNCTION
NO.
X8 1 X8 Input 8
2 +24V 24V DC
3 GND 0V
X9 1 X9 Input 9
2 +24V 24V DC
3 GND 0V
XA 1 XA Input 10
2 +24V 24V DC
3 GND 0V
XB 1 XB Input 11
2 +24V 24V DC
3 GND 0V
XC 1 XC Input 12
2 +24V 24V DC
3 GND 0V
XD 1 XD Input 13
2 +24V 24V DC
3 GND 0V
XE 1 XE Input 14
2 +24V 24V DC
3 GND 0V
XF 1 XF Input 15
2 +24V 24V DC
3 GND 0V
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
XF
+24V
GND
R7F4DC-DA16B-C
EM-7767-E P. 4 / 7
