Summary of Contents for AddLife ROPOX FlexiPlus

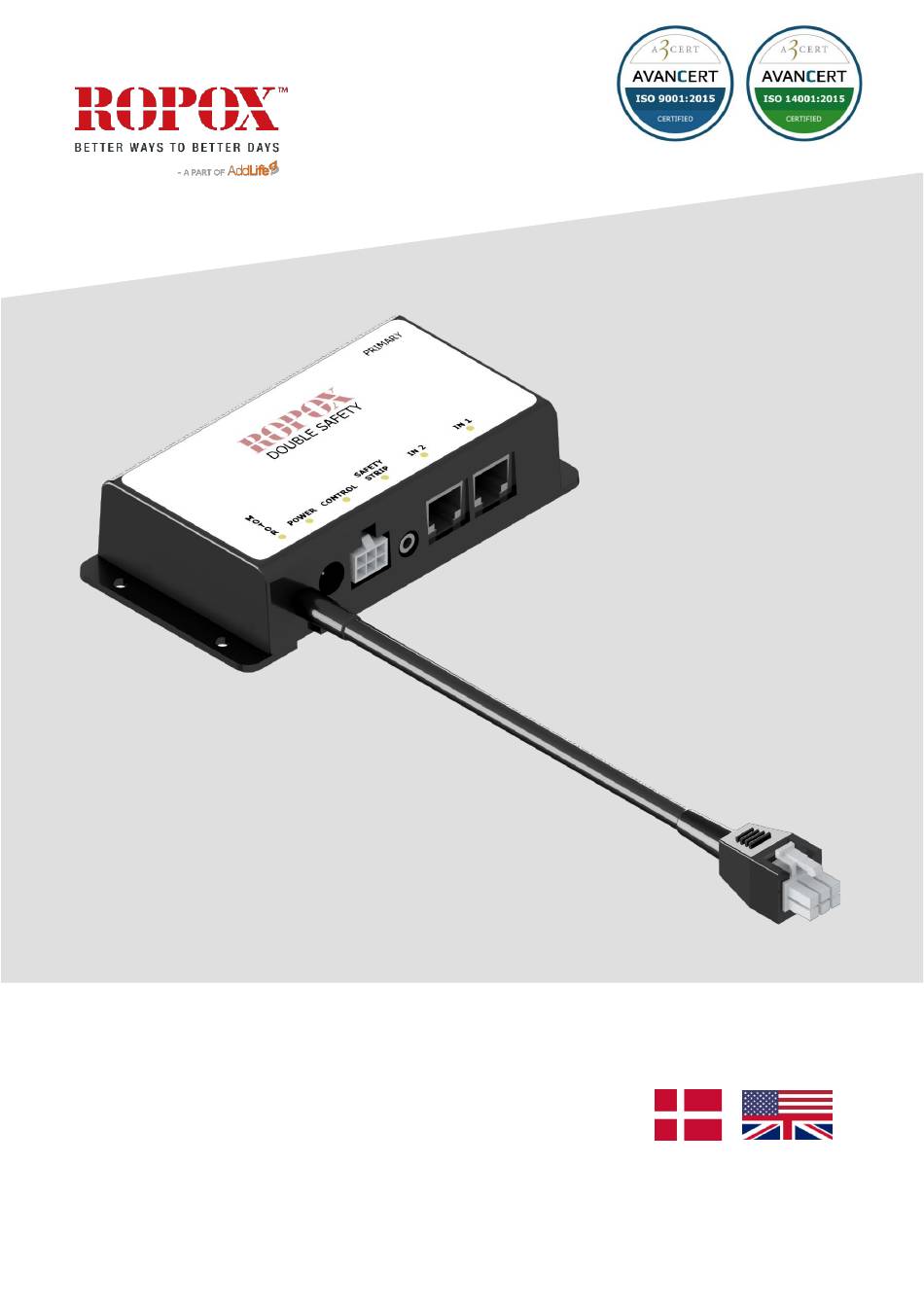

- Page 1 Dobbeltvirkende klemsikkerhed for FlexiPlus / Double safety for FlexiPlus Brugermanual / User Guide 30-90580 Side 2 Page 10 TF 200.0055 / Rev 02 / 04-12-2023...
-
Page 2: Table Of Contents
Indhold Anvendelse ................................ 3 Funktion ................................. 3 Komponentliste ..............................4 Forklaring ................................5 Ledningsdiagram ............................... 6 Montageanvisning .............................. 7 Funktionsafprøvning ............................9 Fejlfinding ................................9 TF 200.0055 / Rev 2... -
Page 3: Anvendelse
Anvendelse Til produktet Ropox FlexiPlus kan der i tilfælde af to sidestillede borde anvendes en dobbeltvirkende klemsikkerhed, som minimerer klemrisikoen mellem de to borde. Den dobbeltvirkende klemsikkerhed er et intelligent system, da klemlisterne mellem bordene kommunikerer med hinanden, således det ene bord stopper kørsel, hvis der kommer noget i klemme på... -
Page 4: Komponentliste
Komponentliste 1x Box Primær 93000217 1x Box Sekundær 93000218 1x Strømforsyning 93000216 1x RJ45 Spiralkabel 93000215 2x Klemliste kabel 97000257 2x Klemliste 30*69000-010 2x Endemodstand 30*69000-014 6x Plasthjørne 97701-624 1x Hobbykniv 97004020 2x VHB Surface Cleaner Klud 97002939 8x Spånpladeskruer M3.5x12 95123512 7x Klæbesokkel 96000155... -
Page 5: Forklaring
Forklaring Jack-stik Molex-stik RJ45-stik Tilslutning af strøm (kun primær) Tilslutning af kontrolboks i 6-pol Tilslutning af spiralkabel hun Molex-stik med motor kabel RJ45-stik i primær boks Tilslutning af motor kabel i Tilslutning af klemliste Tilslutning af spiralkabel 6-pol hun Molex-stik i motor med jack-stik RJ45-stik i sekundær boks Bemærk! -
Page 6: Ledningsdiagram
Ledningsdiagram System 1 (Primær) Kontrolboks 1 Strøm Motor Klemliste Endestop Klemliste kabel Spiralkabel System 2 (Sekundær) Kontrolboks 2 Motor Klemliste Endestop Klemliste kabel TF 200.0055 / Rev 2... -
Page 7: Montageanvisning
Montageanvisning Når dobbelt klemsikkerheden til FlexiPlus monteres, anbefales det at følge ledningsdiagrammet. Bemærk, at det ikke har nogen betydning, hvilket FlexiPlus stel, som kobles til den primære eller sekundære boks. Hver stel skal have hver sin boks. a) Start med den primære boks. Indsæt det motor kabel, som går fra boksen i MOTOR, i motor benet. - Page 8 Afgør hvor boksene skal monteres. Det anbefales at montere dem under bordpladen med de vedlagte skruer, tæt på kontrolboksen og det ”yderste” motor ben. k) Til styring af kablerne anbefales det at anvende de vedlagte klæbesokler og strips. Monter resten af kablerne som anvist i FlexiPlus manualen, og tilslut strømmen. Vigtigt! Montage skal udføres af kvalificeret personale, og testes inden anvendelse! TF 200.0055 / Rev 2...
-
Page 9: Funktionsafprøvning
Funktionsafprøvning Det er vigtigt at teste funktionen af FlexiPlus stellet, samt den dobbelte klemsikkerhed, efter afsluttet montage. Herudover er det vigtigt at lave opfølgende tests én gang om året, for at sikre at skruer og kabler er monteret korrekt. Proceduren starter med en kontrol: 1. - Page 10 Table of Content Application ............................... 11 Function ............................... 11 List of Components ............................12 Description ............................... 13 Wire diagram ..............................14 Mounting instructions ............................15 Performance test ............................17 Fault finding ..............................17 TF 200.0055 / Rev 2...
-
Page 11: Application
Application For the product FlexiPlus, when having two frames placed next to each other, it’s possible to increase their inherent safety by using the double safety, thereby reducing the risk of squeezing and entrapment. The double safety is an intelligent system, as it detects both of the safety strips, and allows each frame to register when the safety strip is activated on the other. -
Page 12: List Of Components
List of Components 1x Box Primary 93000217 1x Box Secondary 93000218 1x Power supply 93000216 1x RJ45 Spiral cable 93000215 2x Safety Strip cable 97000257 2x Safety Strip 30*69000-010 2x End resistance 30*69000-014 6x Corner tap 97701-624 1x Boxcutter 97004020 2x VHB Surface Cleaner Cloth 97002939 8x Chipboard Screw M3.5x12... -
Page 13: Description
Description Jack plug Molex plug RJ45 plug Connect power (only primary) Connect spiral cable in RJ45 Connect control box in 6-pole slot in the primary box Molex slot with motor cable Connect motor cable in 6-pole Connect safety strip with Connect spiral cable in RJ45 Molex slot in motor jack plug... -
Page 14: Wire Diagram
Wire diagram System 1 (Primary) Control box 1 Power supply Motor Safety strip End resistance Spiral cable Safety strip cable System 2 (Secondary) Control box 2 Motor Safety strip Safety strip cable End resistance TF 200.0055 / Rev 2... -
Page 15: Mounting Instructions
Mounting instructions When the double safety for FlexiPlus is being mounted, it’s recommended to follow the wire diagram. Do note, that it is not important which FlexiPlus frame is mounted with the primary or secondary box. Each frame needs its own separate box. a) Start with the primary box. - Page 16 After the cables have been inserted, the boxes must be mounted. It’s recommended to mount them near the control box and the outer legs. Use the supplied screws to mount them on the underside of the tabletops. Alternatively, if a hard tabletop has been mounted (e.g.
-
Page 17: Performance Test
Performance test It’s important to test the functions of the frame, as well as the double safety before putting it into use. It’s important to follow up on these tests once a year, to make sure screws and cables are mounted correctly. The procedure starts with a control: 1.
