Summary of Contents for Halfords Essentials Nyala R129

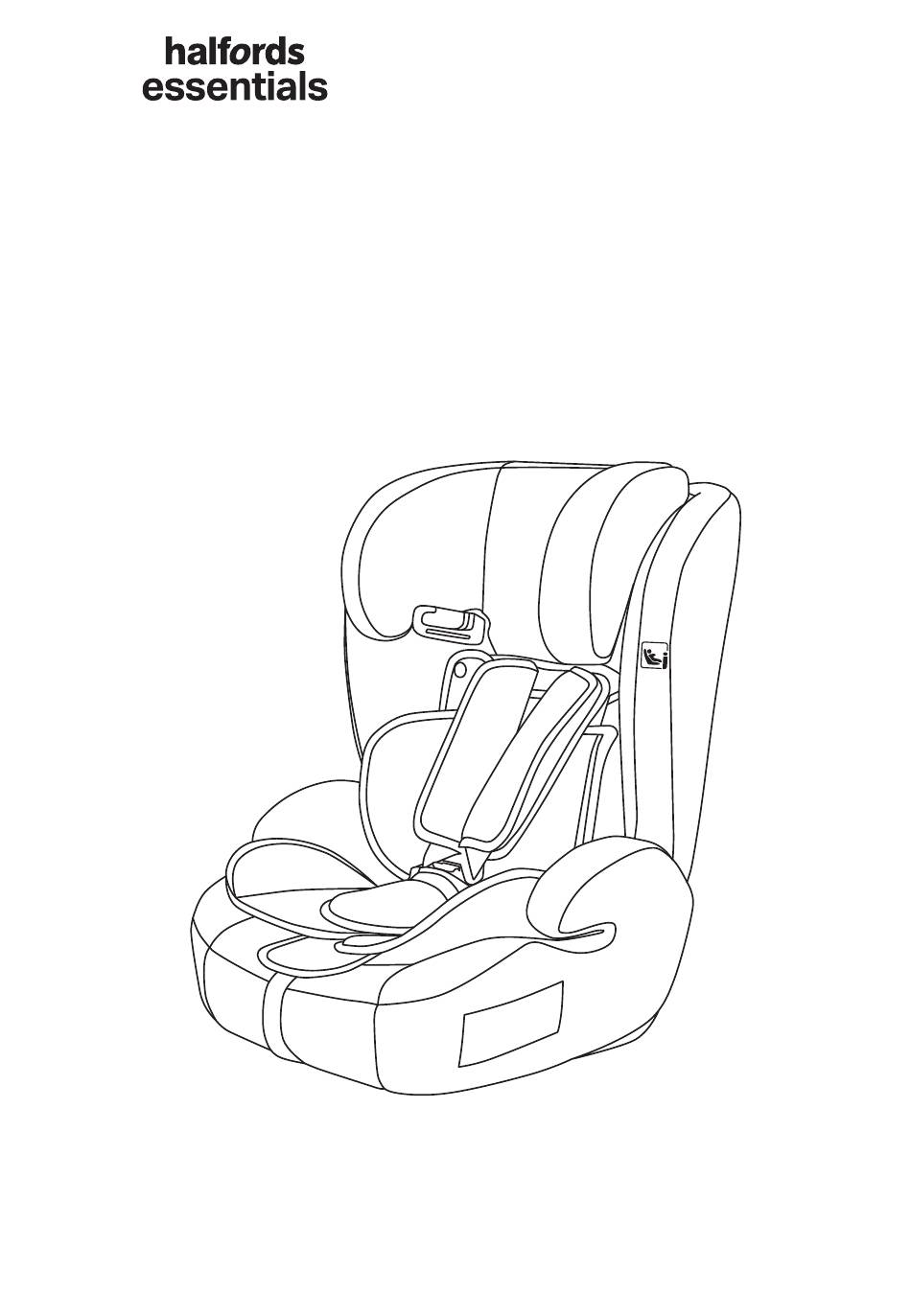

- Page 1 User Instructions Nyala R129 Child Car Seat Universal belted / 76-105cm ≤18kg i-Size booster seat / 100-150cm Item Code: 819222...
-
Page 2: Table Of Contents
CONTENTS 1. Safety warnings 2. Structure name 3. Installation position 4. Seat assembly 5. Installation with adult safety belt (76-105cm) 6. Instructions for storing the 5-point safety harness 7. Installation with adult safety belt (100-150cm) 8. Remove/install the cover 9. Maintenance... - Page 3 WARNING For height range 76-105cm This is a universal belted enhanced child restraint system. It is approved according to UN Regulation No.129/03, for use primarily in “universal seating positions” as indicated by vehicle manufacturers in the vehicle user’s manual. If in doubt, consult either the enhanced child restraint system manufacturer or the retailer.
-
Page 4: Safety Warnings
1. SAFETY WARNINGS Thank you for purchasing our child seat. Please ensure you fully read and follow the instructions provided. Please retain instructions for future use. If you have any further questions please contact your local store. • Before using, please read the instruction manual carefully. The product is a safety product and is only safe when used in accordance with the instruction manual. -
Page 5: Structure Name
2. STRUCTURE NAME Belt guiding hook (2) Belt guiding Headrest hook (1) Shoulder pads Inner cushion Manual Storage Harness buckle Buckle pad Shoulder strap adjustment button Seat base Harness adjustment strap Important: The inner cushion is suitable use for a child with a height range of 76-105cm... - Page 6 Headrest adjusting handle Shoulder strap hole Shoulder straps Backrest Metal yoke Rotate bar Take care of all parts. If any parts are missing please contact the retailer or manufacturer. The seat should not be used if any parts are damaged.
-
Page 7: Installation Position
3. INSTALLATION POSITION Car Safety Belt: Diagonal Belt Car Safety Belt: Lap Belt ISOFIX Attachments This car seat is suitable for conventional use in cars equipped with 3-point seat belts that are fitted in accordance with European Standard (ECE - 16 or equivalent standard). It Is not suitable for cars only equipped with 2-point seat belts. -
Page 8: Seat Assembly
4. SEAT ASSEMBLY Seat assembly: Lay the seat flat as shown. Hook the backrest into the base and pull it forward until it is secured in an upright position. Secure the buckle on the 5-point safety harness, do this by combining the two buckle pieces together. -
Page 9: Installation With Adult Safety Belt (76-105Cm)
5. INSTALLATION WITH ADULT SAFETY BELT (76-105CM). Forward Facing: Child height 76cm-105cm Child weight ≤18kg Whilst pressing the harness adjustment button, pull forwards on the 2 shoulder pads of the 5-point harness. Press the red button to Remove the inner cushion. disengage the buckle. - Page 10 The adult seat belt must be routed as Once the adult seatbelt is routed shown above. Note the diagonal belt will correctly, ensure the headrest sit behind the headrest cover flap. Ensure cover flap is over the top of the the diagonal belt is routed through the seat belt, then refasten the 3 snap shoulders strap guide.
- Page 11 Click Combine the two buckle pieces A "click" sound is heard to indicate together as shown above. Insert the buckle is correctly engaged. the buckle ends into the 5-point harness buckle as shown above. To tighten the harness straps, pull When tightening the harness the harness adjustment strap at tighten until the straps are sitting...
- Page 12 Headrest Adjustment In order to adjust the headrest height Squeeze and pull the handle up to lift there is an adjustment handle on the the headrest up, or squeeze and push back of the headrest. the handle down to lower the headrest. When adjusting the headrest ensure it is locked in position after adjustment, you will hear it click.
-
Page 13: Instructions For Storing The 5-Point Safety Harness
6. INSTRUCTIONS FOR STORING THE 5-POINT SAFETY HARNESS WHEN NOT REQUIRED. (SUITABLE FOR CHILD HEIGHT 100CM-150CM) Press the red button to disengage Remove the inner cushion as well as the buckle. the padding around the 5-point harness buckle. Store these safely for any future use. - Page 14 Flap back the cover on the backrest The buckle itself will be stored in the seat cover, refasten the 3 snap fasteners base. In the centre of the seat base cover on the left hand side of this cover. there is a slot, lift this slot as well as the foam padding underneath the cover.
-
Page 15: Installation With Adult Safety Belt (100-150Cm)
7. INSTALLATION WITH ADULT SAFETY BELT (100-150CM). Forward Facing: Child height 100cm-150cm i-Size Booster seat Place the child safety seat in the car seat. Extend the car seat belt fully. In order to adjust the headrest Squeeze and pull the handle up to lift height there is an adjustment the headrest up, or squeeze and push handle on the back of the... - Page 16 Place your child in the seat. Adjust Take the adult seat belt, feed the the headrest to a suitable height. diagonal belt through the shoulder belt guide as shown above. Pull the belt across the child as shown and then take both the diagonal and lap belts and pull under the armrest.
-
Page 17: Remove/Install The Cover
8. REMOVE/INSTALL THE COVER Remove the buckle pad and inner cushion. (see page 8) Open the 3 snap fasteners, these Open the 2 snap fasteners on are on the left-hand side of the back each shoulder strap pad. rest cover. Once opened, flap the cover to the right. -
Page 18: Maintenance
9. MAINTENANCE How to remove the seat cover for cleaning First please disassemble the seat. To remove the backrest cover, pull To remove the headrest cover, the cover off the seat, starting from unfasten the snap fasteners and pull the bottom and lifting upwards. the cover over and off... - Page 20 CONTACT US UK: Halfords Ltd, B98 0DE www.halfords.com ROI: Halfords c/o DWF, Dublin 1 www.halfords.ie Item Code: 819222...
Need help?
Do you have a question about the Nyala R129 and is the answer not in the manual?
Questions and answers
does this seat come with restraining straps for child? Are they available separately
The Halfords Essentials Nyala R129 seat comes with a no-rethread 5-point harness system, which includes restraining straps for a child. There is no information indicating that these straps are available separately.
This answer is automatically generated

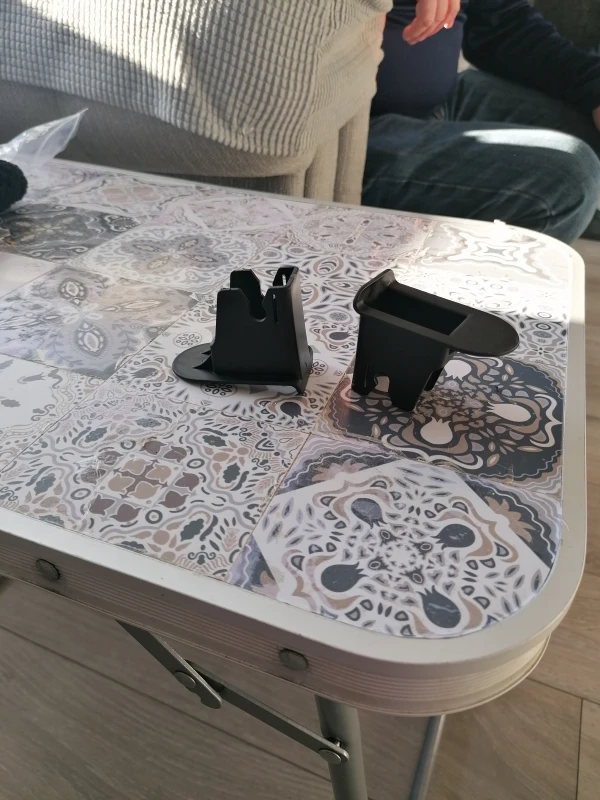

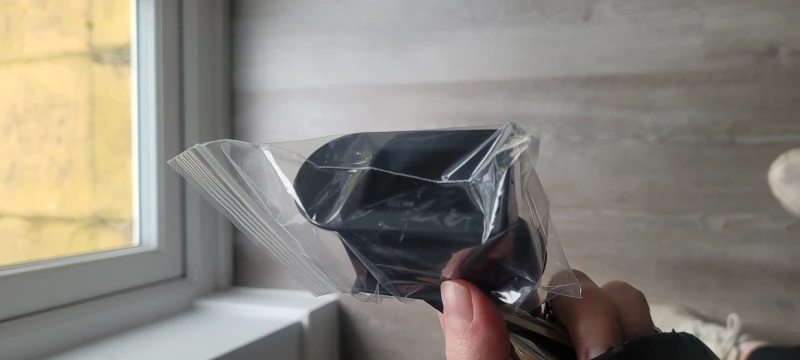

What is the black plastic adapter in the packaging?
@Elena Abarkina
