Summary of Contents for UGEE Q6

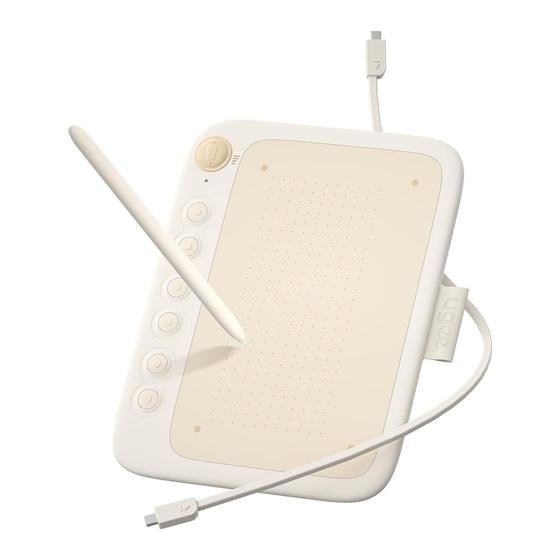

- Page 1 Q6 Drawing Tablet User Manual Catalogue 01 Product Overview 1.1 Product Introduction 1.2 Product Overview 1.3 How to Connect Your Phone for Use 1.4 How to connect to a computer for use 02 Driver Introduction...
- Page 2 01 Product Overview 1.1 Introduction Thank you for choosing the ugee Q6 painting board. In order to help you better understand and use this product, please read this manual carefully. This manual only shows how to use it in Windows systems, but unless otherwise specified, the relevant introduction is also applicable to Apple system users.
- Page 3 Product Overview ①Mode switch button , Supports switch between 4 modes ------- Suitable for full screen phones （20：9） ----- Suitable for non full screen phones （16 ：9） ---- Suitable for tablets（16：10） Other special devices with landscape displays （9：16） Attention: 1）This button switches up and down, please do not rotate left or right! 2）The device types corresponding to the four gears are recommended, and you can choose the corresponding gear based on the ratio of your phone/tablet screen.
- Page 4 Take out the USB cable on the back of the drawing tablet, connect one end to the drawing tablet (the USB-C port is on the top of the drawing tablet), and connect another end to the phone/tablet. The phone/tablet and the drawing tablet should be placed vertically.
- Page 5 Photoshop or Sai to test line pressure.） Step 4: Start your creative journey! 02 Driver Introduction 2.1 Driver Download Go to the ugee website (www.ugee.com) and download the driver for the appropriate operating system based on the product model you have purchased. Notes: ...
- Page 6 tablets/monitors before the installation. For optimal experience, restart your computer after the installation is completed. For the best performance for your device, we recommend you install the latest driver. Drive Installation 2.2.1 Windows Note: This driver is compatible with Windows 7 and above versions. After decompression, run the 'exe' file with administrator privileges and follow the prompts to complete the installation.
- Page 7 2.2.2 Mac OS Note: This driver is compatible with Mac OS X 10.12 and above. After decompressing and downloading the installation package, run the ". dmg" file in Mac OS and complete the installation according to the following diagram.
- Page 9 2.2.3 Linux Deb: Enter command sudo dpkg -i. Drag installation file to window and execute command. Rpm: Enter command sudo rpm -i. Drag installation file to the window and execute command. Tag.gz: Unzip file. Enter command sudo. Drag install.sh to the window and execute command.
- Page 10 Mac program path: Application→UgeePenTablet→ugeeTablet If the device is not connected or the connection fails, you will see the following prompt. In this case, restart your computer or the driver to connect it again or contact our service staff for support. If the device is connected successfully, its product model will be displayed on the bottom right corner of the display, for example, M708 as shown in the image.
-
Page 11: Pen Settings
2.3.2 Pen Settings Pen Shortcut Key 2.3.2.1 Mouse mode: When you remove your pen, the cursor will stay where you left, which is like operating a mouse. Select the mode and you can adjust the speed of the cursor on your device. If you do not select the mode, the pen mode applies by default. - Page 12 in Microsoft Office/Whiteboard or other software, please do not turn it off. Pen Pressure Settings 2.3.2.2 The sensitivity of the pressure sensor can be adjusted by manually adjusting the curve or moving the Progress bar, and the synchronization can be experienced in the pressure sensor test area on the right to adjust to the appropriate pressure sensor output.
- Page 13 Select the Work Area to set the correspondence between the movement of the stylus on the drawing tablet and the cursor's movement on the monitor screen. If you are using multiple monitors with the setting of copy mode, the working area of device will be mapped to all the display. When the pen moves on the device, the cursor on all the monitors will move at the same...
- Page 14 You can set the available area of the current device, following method to set Work Area: 1、 Drag corners: moves the cursor to the middle or edge of the four sides, then click and drag. 2、 Select Work Area: click "Advanced Settings", and then select "Select Handwriting Area".
- Page 15 2.3.3.1.3 Advanced settings Select the monitor As shown in the figure, when the computer access the extension screen, you can select the target screen where the device needs to be mapped through the drop-down. Screen identification...
- Page 16 All connecting displays are identified, and the digital identifier is displayed in the lower left corner of each display. Select the screen area You can manually select the working area of the screen according to the prompts. For details, see "Select screen area" in 2.3.3.1.1. Rotating angle settings You can set the device to 0°, 90°, 180°, 270°.
- Page 17 2.3.3.2 Shortcut Keys Settings Select a key, click on the drop-down menu and customize key function. You can select seven types of shortcut keys: Keyboard, Mouse Control, Device, Run Application, System Function, Multimedia, and Disable. Keyboard: Set keyboard shortcut, for example, set it as Alt+A in 3D MAX, so the...
- Page 18 alignment tool can be used. Clear: Clear all combination keys in the input box Delete: Delete the last combination key Windows+: Click and continue to enter other keys. For example, if you need to set Windows+Shift+S ， you can click Windows+ and then manually press Shift+S.
- Page 19 Device: Execute selected function. Precision mode: It limits the Work Area to a small area. This function allows you to draw more precisely in the area. Run Application: Run the selected application. For example, if you choose to run the Photoshop and press the button, the computer will open and run the...
- Page 20 Photoshop. System Functions: Execute the selected system function. For example, select "shutdown" and press the button, the computer will shut down automatically. Multimedia: Execute the selected multimedia function. For example, select "Previous" and press the button to play the previous music.
- Page 21 Disable: After setting to no effect, press the button without any effect.
-
Page 22: Driver Settings
2.3.4 Driver Settings Entrance: Click on the settings icon in the upper right corner to enter. Tips: When the switch is turned off, when using the device and pen buttons, the key state will not be displayed at the bottom of the screen. Open the shortcut key: When the switch is turned off, the function of all keys of the device is turned off. - Page 23 Export configure: Export saved settings in a configuration file. A pop-up window will appear to notify you when the configuration file is exported successfully. Diagnostic tool: If you encounter any issues while using the driver, please use the...
- Page 24 diagnostic tool check hardware/environmental data troubleshooting. Should you approach our customer/technical support, this data will also be helpful to our staff helping you. Reset Settings: Form the values of the shortcut keys, working areas, display screen settings, etc. to the default value. Viewing tutorial: Open the computer's browser and jump to the "Watch Tutorial"...
-
Page 25: Applications Settings
FAQ: Open the computer's browser to jump to the link to the official website "FAQ" page. 2.3.5 Applications Settings 2.3.5.1 Add Applications Click the "+" icon on the upper right corner to add application. Select the application from the list of installed applications or click "Browse"... - Page 26 Next, click OK to add selected application.
-
Page 27: Driver Uninstallation
2.3.5.2 Delete Application Click on the drop-down menu and select the application. Then click on "x" on the top right corner to delete the application. 2.4. Driver Uninstallation 2.4.1 Windows Go to Start -> Settings -> Apps -> Apps & Features, find "ugeeTablet" and then left-click "Uninstall"... - Page 28 2.4.3 Linux Deb: Enter command sudo dpkg -r ugee-pentablet and execute the command. Rpm: Enter command sudo rpm -e ugee-pentablet and execute the command. Tag.gz: Unzip file. Enter command sudo. Drag uninstall.sh to the window and execute command. Specification parameters...
- Page 29 1. The stylus has no pressure, but the cursor can move. Please confirm if the drawing software supports pen pressure; Please download the latest driver from the ugee official website and test whether the pen pressure is normal; Please close all Antivirus software software and graphics software before driver installation;...
- Page 30 If you need to switch back, long press the K6 shortcut key again for 5 seconds. If you need any further assistance, please contact us at: Website: www.ugee.com Email: service@ugee.com...
