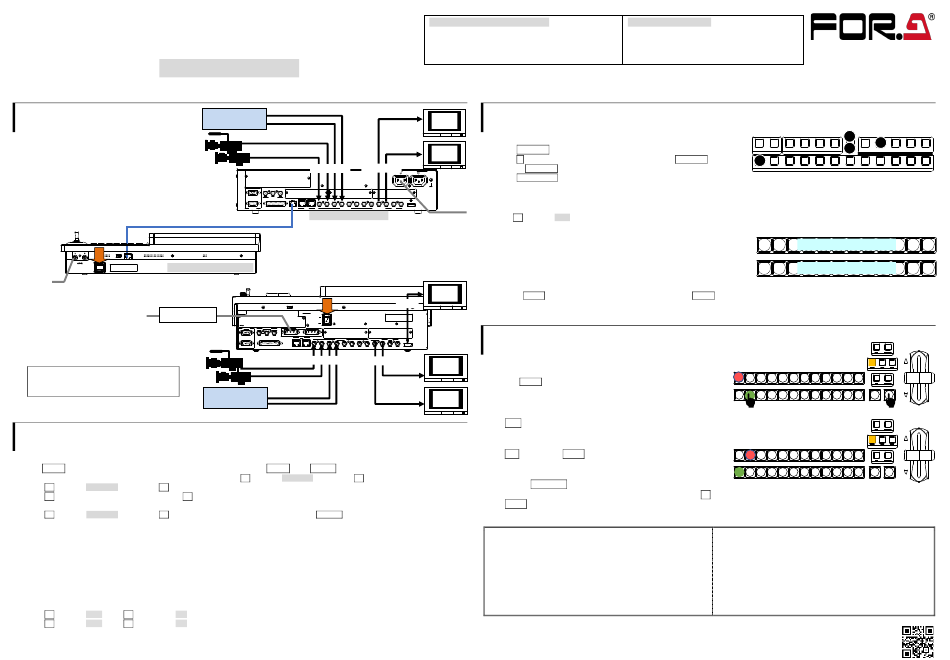

Fora HVS-190S Quick Setup Manual

HVS-190S/190OU
HVS-190I
Quick Setup Guide
1. Connection
HVS-190S/190OU
(1) Connect SDI video signal inputs.
(2) Connect SDI video signal outputs.
(3) Connect HVS-190S and 190OU using
the supplied cable with 190OU.
(4) Supply power to HVS-190S using the supplied AC cable.
(5) Supply power to HVS-190OU using the supplied AC adapter.
(6) Turn on power switches on the HVS-190S
front panel and the 190OU rear panel.
Supplied MU/OU Connection cable
PW OER MOD E SW TO MU
1 DC1 2V IN 2
HVS-190OU rear panel
RATING LABEL
To AC
adapter
AC adapter
To AC power
HVS-190I
(1) Connect SDI video signal inputs.
(2) Connect SDI video signal outputs.
(3) Connect the AC adapter to the switcher.
(4) Supply AC power to the AC adapter.
Supply AC power after the AC adapter is
connected to the switcher. Otherwise the
switcher internal parts may be damaged.
(5) Turn on the power switch on the rear panel.
2. Setup
Select the System Signal Format
(1) The MENU button on the control panel should blink at power ON. Press MENU, then SETUP.
(2) The [SETUP] menu top page appears in the menu display. Turn F1 to select SYSTEM, then press F1 to display the submenu.
(3) Turn F1 to select FORMAT, then press F1 to display the submenu.
(4) Turn F1 to select the signal format, then press F1. Change the aspect ratio and switch timing, as necessary.
(5) Press the page up button to return to the [SETUP > SYSTEM] menu.
(6) Turn F1 to select REBOOT, then press F1. A confirmation message will appear. Press ENTER in the SELECT/KEYPAD block to
reboot the switcher.
 See Sec. 2-2. "Selecting the Video Format (System Mode)" in the User Manual for more details.
Set Date, Time and Time Zone
Open the [SETUP > SYSTEM > TIME] menu to set date, time and time zone.
 See Sec. 17-1-2. "Date and Time Settings" in the User Manual for more details.
Set the Frame Synchronizer Function to ON if using an internal lock
(1) Open the [SETUP > INPUT > SIGNAL] menu.
(2) Turn F1 to select IN01. Turn F4 to set FS to ON.
(3) Turn F1 to select IN02. Turn F4 to set FS to ON. Set FS to ON for other inputs.
 See Sec. 7-2. "Frame Synchronizer" in the User Manual for more details.
HVS190-SETUPGUIDE-E-1.DOCX
Video server
VDR, etc.
3G/HD SDI 3G/HD SDI
1
OPT ION SL OT A OPTION SLOT B
1
RE F IN REF OUT
GEN LOCK
H VS E XT
2
1 2 3 4 5 6 7 8 1 2
RS-422 GPI IN/TA LLY OUT TO OU LAN SDI I NPUT PROGRAM AUX
HVS-190S rear panel
RATING LABEL
3G/HD SDI
3G/HD SDI
Video server,
VDR, etc.
HVS-190S / 190OU Packing List
HVS-190S, HVS-190OU
MU/OU Connection Cable, AC cord. AC Adapter,
Quick Setup Guide (This guide)
3. Select Output Video
PGM
video
To Output PVW (Preview) Video from AUX1
AUX1 (1) Press AUX SEL to turn on the button light.
video
(2) Press 1 (AUX1) in the bottom row while holding down AUX SEL .
(3) Release AUX SEL.
AC 100-24 0V 5 0/60H z IN
2
(4) Press PVW/KOUT to display the PVW video on AUX1 output.
OPT ION SL OT C
To Output MV (Multi-view) Video from HDMI
3
(1) Open the [SETUP > OUTPUT > HDMI] menu.
HDM I OUT
(2) Turn F1 to select MV1. (Refer to Sec. 2-4-2 "Viewing the Multi-view Video on the HDMI OUT" in the User Manual for more details.)
To AC power
To Select the PGM (program) / PVW Video
The PGM bus buttons are used to select the PGM (background) video.
(The PGM video is displayed in the PGM output on the rear panel.)
The PST bus buttons are used to select the PVW (background) video.
Press a button on the PGM or PST bus to see how the output video changes.
MV
Now, press AUTO in the bottom right of the control panel (with BKGD lit). Or move the fader from end to end.
video
HDMI
The PGM and PVW (AUX1) video images are switched with each other. This is called a "background transition".
4. Perform Background Transitions
Setup
AUX1
video
Select the next video on the PST bus.
Verify that BKGD lights up as shown at right.
If not, press the button to turn on the button light.
PGM
video
To Perform CUT Transitions
Press CUT. The PGM video immediately changes.
To Perform MIX Transitions
Press MIX. Then press AUTO. (Or move the fader from end to end.)
To Perform Pattern Transitions
Quickly press WIPE/EFF twice.
The [BKGD/TRANS] menu will appear on the menu display. Turn F4 to select a pattern.
Press AUTO. (Or move the fader from end to end.)
 See Sec. 2-3. "Video Switching" in the User Manual for details on background transitions.
Precautions
- Operate the unit only at the specified supply voltage.
- Ensure the unit is properly grounded at all times.
- Ensure the power cord and connectors are firmly connected.
- Do not access circuitry with power applied to the unit.
- Unit should not be operated or stored with the cover, panels,
and/or casing removed.
- Unit should not be operated or stored in a humid, dusty, etc.
environment. Doing so could result in fire or electrical shock.
HVS-190I Packing List
HVS-190I
AC Adapter, Power cord
Quick Setup Guide (This guide)
1 2 1
KEYER
2
1 2 3
1 2 1
KEYER
1 2 3
PGM
1 2 3
PST
PGM
1 2 3 4 5 6
PST
PGM
1 2 3 4 5 6
PST
- Do not allow fluids, metal fragments, or any other foreign
objects to enter the unit. If foreign matter does enter the unit,
turn the power off and disconnect the power cord immediately.
Remove the material or contact your authorized service
representative.
- If you notice any strange smells or noises coming from the unit,
turn the power off immediately, disconnect the power cord,
then contact your authorized service representative.
You can download manuals and other documents by registering your email address.
1
4
2
2 3 4 AUX SB1 PGM PVW/KOUT CLN1/2 MV1/2 SHIFT
FLEXaKEY
4 5 6 7 8 9 10 11 12
KEY/AUX
2 1 2 3 4 PGM PR EV CLEAN MV
DSK AUX
4 5 6 7 8 9 10 11 12
KEY/AUX
Select the PGM BKGD video
4 5 6 7 8 9 10 11 12
Select the PVW BKGD video
DIRECTION
NEXT TRANSITION
TRANSITION TYPE
7 8 9 10 11 12
AUTO CUT
DIRECTION
NEXT TRANSITION
TRANSITION TYPE
7 8 9 10 11 12
AUTO CUT
