Summary of Contents for Supera EVC3100

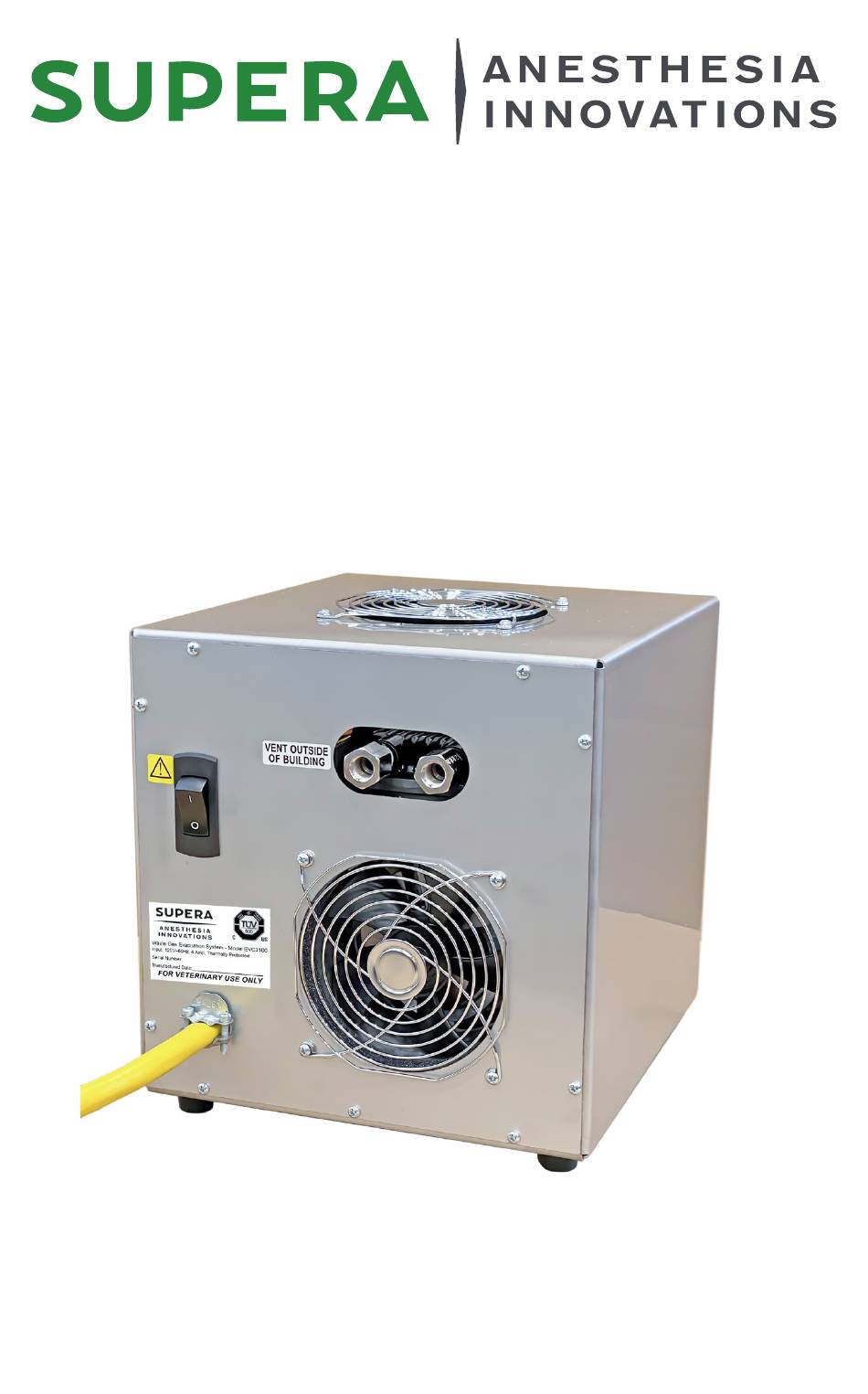

- Page 1 Waste Gas Evacuation System Model EVC3100 For Veterinary Use Only Supera, LLC Copyright 2023...
- Page 3 Examination and Preparation for Use Thank you for ordering an Supera Anesthesia Innovations Product! We are delighted to have you as a Supera Anesthesia Innovations customer and want you to be completely satisfied with your purchase. Please inspect the contents of your order to see if everything is as you expected.
- Page 4 Ducted fans must always be vented to the outdoors. THERE ARE NO USER SERVICEABLE PARTS INSIDE Contact Supera LLC directly for all maintenance and repairs. Technical service phone 877-620-1500 Symbol Chart This document uses the following symbols to indicate potential hazards or alert the user to useful information about the unit.
- Page 5 SUGGESTED MOUNTING INFORMATION The area around the unit must be free of loose dirt and debris The area should be well ventilated with a maximum temperature of 120 deg. F This is a mechanical pump that emits noise (less than 70dB(A)) at a constant rate.
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Remove the panel to reveal the terminal block. 2. Attach the ground. 3. Attach the “L1” and “N” wires to the terminal block. “N” “L1” Earth Ground... - Page 7 EXHAUST - ¼ NPT FEMALE INLET TO BUILDING PLUMBING - ¼ NPT FEMALE ON/OFF SWITCH WITH CIRCUIT BREAKER NOTE: POWER CORD NOT INCLUDED Hold Down Brackets Screw down unit to a solid structure (3 screws per side)
-
Page 8: Recommended Guidelines
RECOMMENDED GUIDELINES LOCATION This is a mechanical pump that emits noise at a constant rate. We recommend the unit be mounted in an area not in constant use by people or animals. POWER SWITCH We recommend controlling the unit through a lighted power switch to indicate the device is powered ON. -
Page 9: General Information
Reset the switch into the “ON” position. 2. The pump is on but not flowing air at the outlets. Check the exhaust pipe for obstructions (animals, debris, etc.) Check the intake pipes for loose joints FOR ALL OTHER ISSUES CALL SUPERA LLC AT 1-877-620-1500... -
Page 11: Sample System Layout
SAMPLE SYSTEM LAYOUT... -
Page 12: Specifications
SPECIFICATIONS Tech Specs Oil less operation All aluminum parts treated for corrosion protection from moisture Rugged motor shell construction Electrical Voltage: 115 Hz: 60 Phase: Single Full Load Amps: 6.6 Agency Compliance: TUV Listed for US and Canada requirements to UL507 Construction 303 stainless steel housing... - Page 13 Supera LLC product. Supera LLC shall not be liable for any damage, injury or loss arising out of the use of the product, whether as a result of a defect in the product or otherwise, if, prior to such damage, injury or loss, the product was (1) damaged, misused, or misapplied;...
-
Page 14: Shipping Policy
CS@superavet.com. 7. Note: unless the following procedures are followed correctly and we are noti- fied within ten (10) days, SUPERA LLC cannot accept any responsibility for the problems that may ensue. DO NOT RETURN ANY DAMAGED GOODS TO SUPERA LLC WITHOUT PRIOR AUTHORIZATION OF SUPERA LLC AND THE CARRIER. - Page 15 DOCUMENTATION Date purchased: Purchased from:...
-
Page 16: Contact Information
Contact Information (503) 723-5068 or (877) 620-1500 toll-free E-Mail: info@superavet.com 1220 NW Noble Drive, Estacada OR 97023 Traning videos available on our website www.SuperaVet.com MADE IN oREGON, uSA since 1993...
