HOGA-JW0389
Corner table

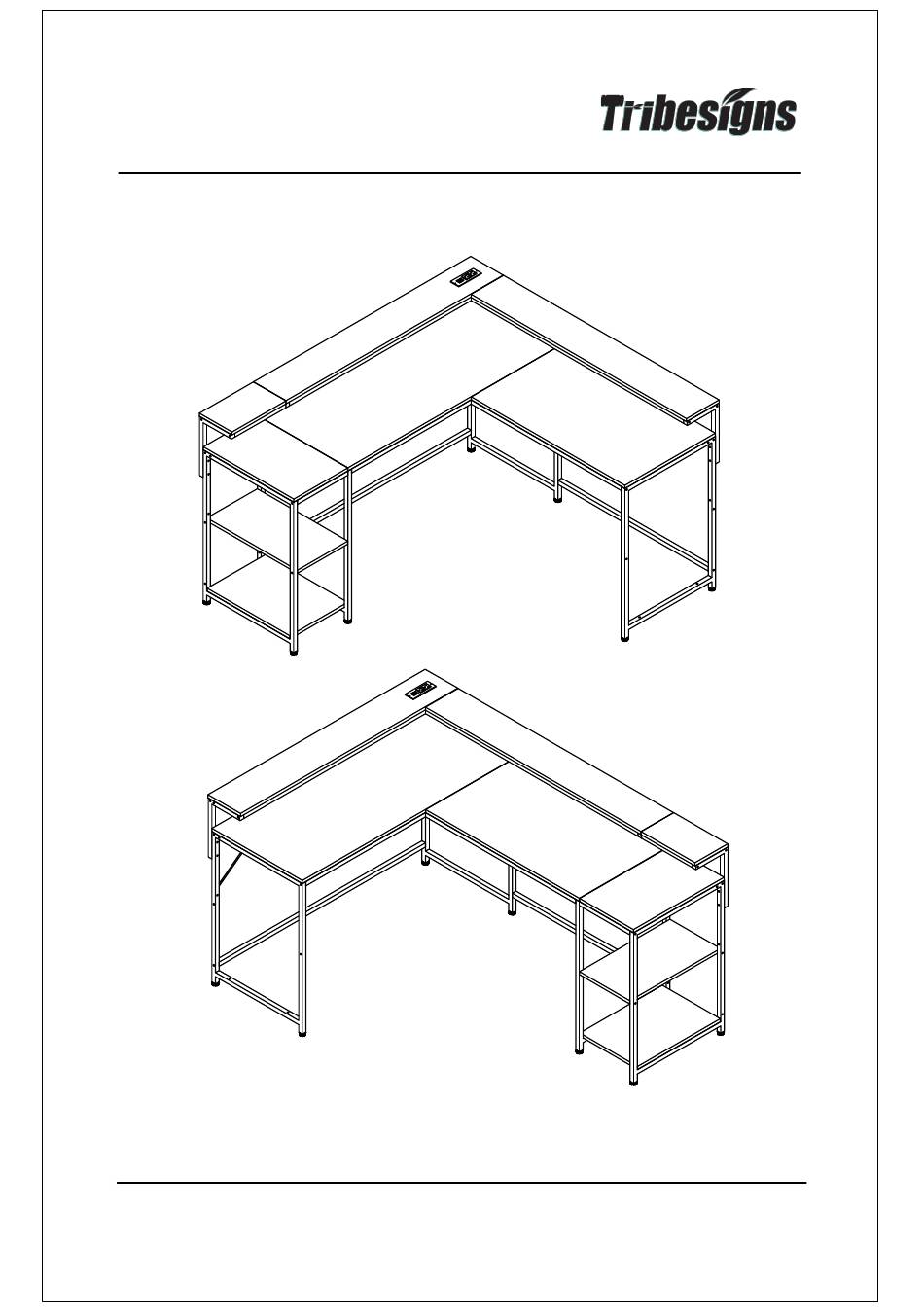

This table can be interchanged from left to right. Please confirm the direction
before installation, and then select the corresponding steps for installation.
Thanks for purchasing one of our products,please read carefully the assembly instructions before the installation(Attention:Do not tighten the screws before all screws are in place).
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Way to origin
P.16-1
