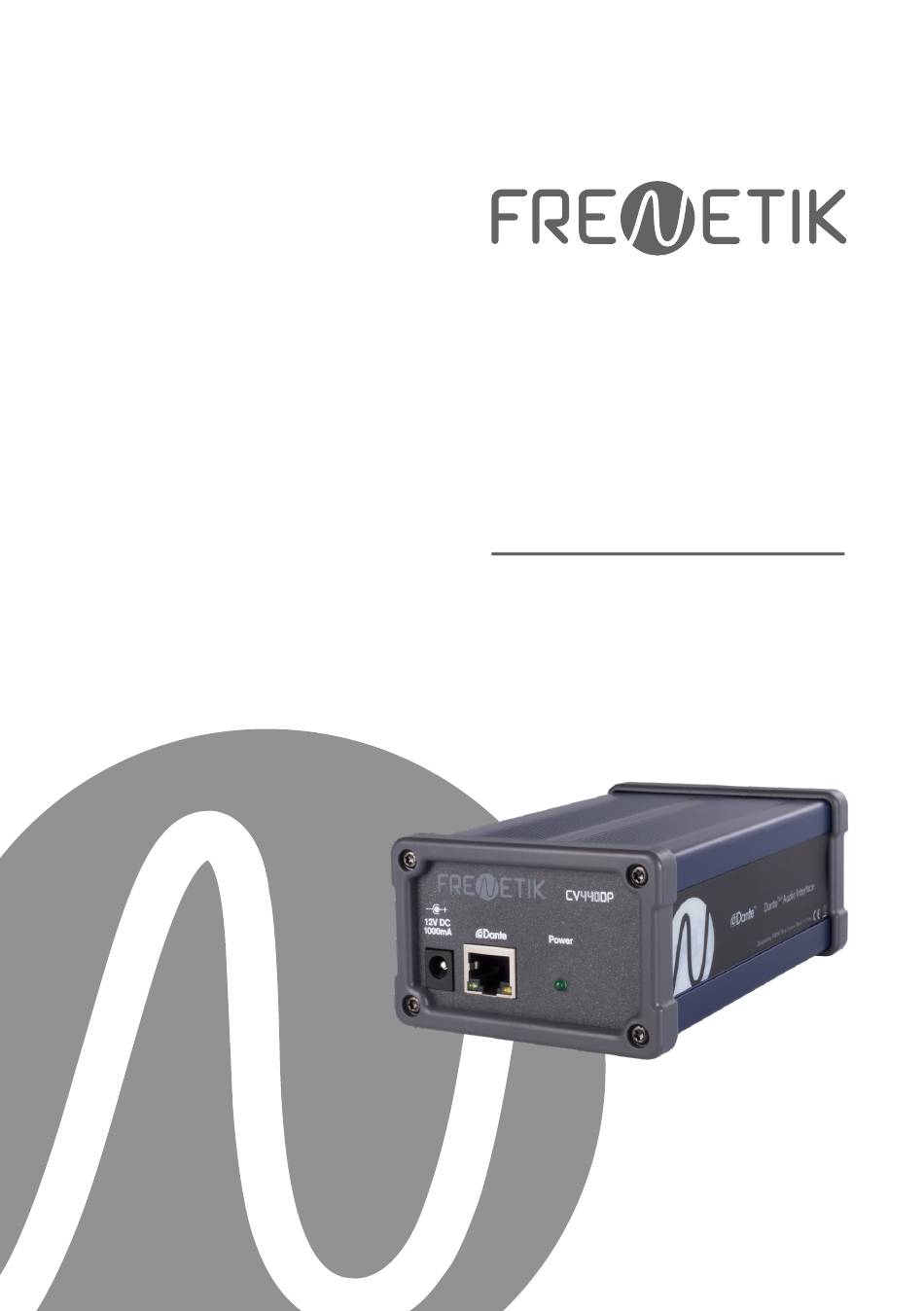

- Page 1 Transfer Dante™ 4x4 Audio Interface User’s manual V1.1 - 03/2020...
- Page 2 User’s manual - Transfer V1.1 03/2020...
- Page 3 TRANSFER - USER MANUAL Page 1. Carton Contents 2. Connection 3. Setting up a Dante network 4. Routing with the Dante controller 5. Technical Specifications 6. Dimensions 7. Optional accessory User’s manual - Transfer V1.1 03/2020...

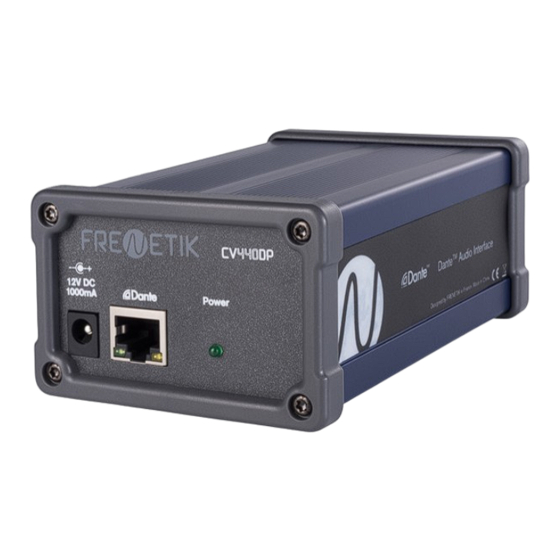

- Page 4 The connection to the Dante™ network is made via the RJ45 connector on the rear panel. The Transfer requires 12 V DC operating voltage. Either an external transformer of at least 1000 mA (not supplied) or a PoE power supply must be used with the PoE splitter supplied.
- Page 5 3) Wait until the field displays a green circle with a white check mark. For other connections, repeat these three steps. You can download a User Guide for the Dante Controller on the Audinate website: https://www.audinate.com/resources/technical-documentation User’s manual - Transfer V1.1 03/2020...
- Page 6 < 0,02% Power supply PoE 802.3 af Power consumption 10 W max 52 x 81 x 121 mm Dimensions (H x L x P) 357 g (excluding accessories) Weight Certification 6. Dimensions 81 mm User’s manual - Transfer V1.1 03/2020...
- Page 7 7. Optional accessory Mounting cage Mounting cage for Transfer: CV440DP/ User’s manual - Transfer V1.1 03/2020...
- Page 8 FRENETIK - 1 Allée d’Effiat - Le Parc de l’Événement - Bât. H 91160 Longjumeau - France +33 (0)1 69 10 50 81 frenetik.fr...
