  • Page 1 Instruction Manual Smart System Tool Cabinet 44971/000 Nº SER.

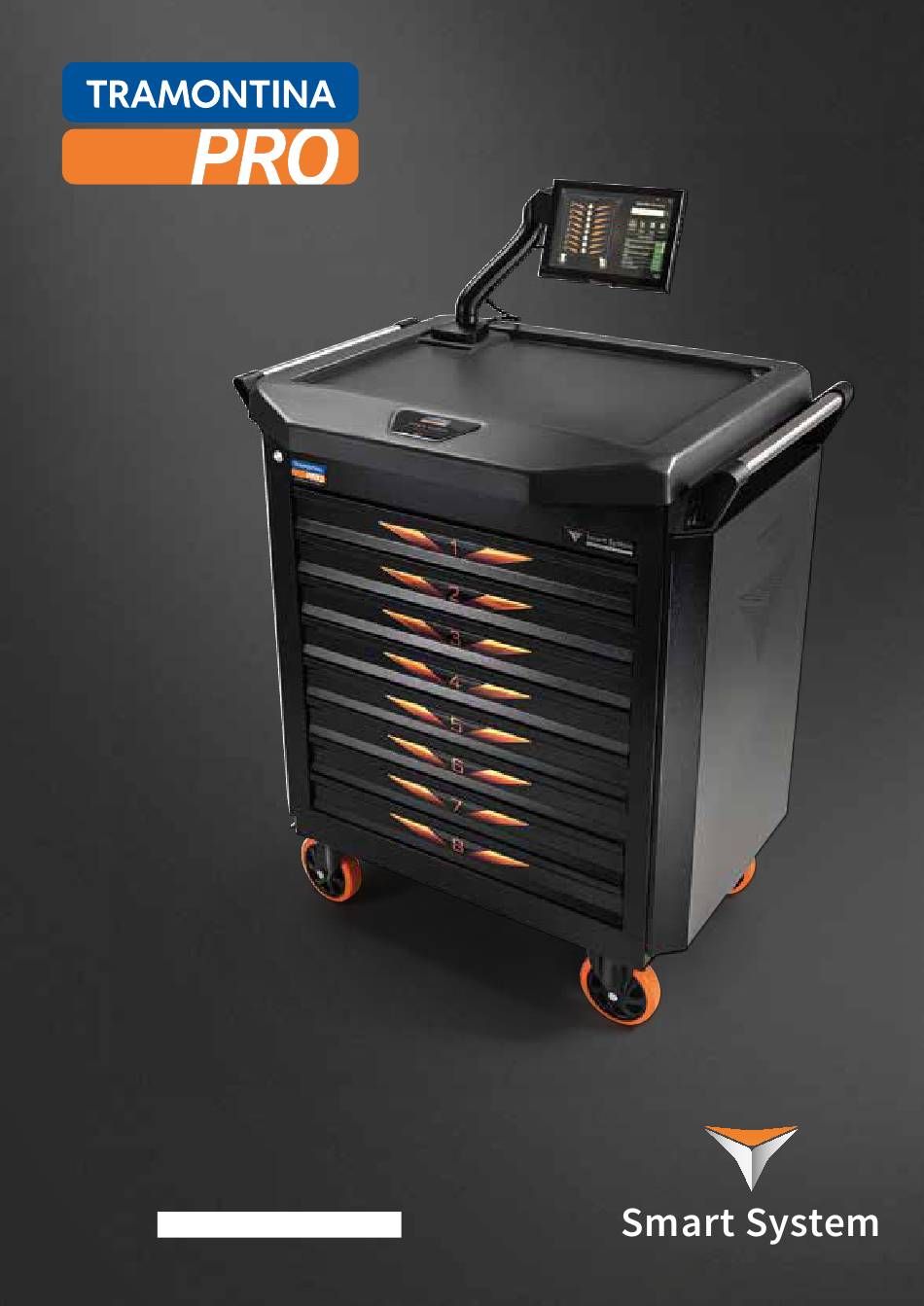

  • Page 2 Instruction Manual Smart System – Tramontina PRO Smart Tool Cabinet Aiming to reduce risks in the aviation assembly and maintenance segment, Tramontina PRO launches its latest concept in tool safety, management and organization: the Smart System Tool Cabinet. TECHNICAL SPECIFICATIONS...
  • Page 3 Instruction Manual Front and Side 1- Display 2- Articulated Display Arm 3- Upper cover with ABS finish Back Side 4- RFID Card Reader 10- On/Off Switch 5- On/Off Button 11- General Fuse Holder 6- Drawers 1-8 12- Engine Fuse Holder 7- Ergonomic Handle 13- LED Light 8- Caster wheel with brake...
  • Page 4 Instruction Manual 4. Do not use electric tools or equipment 1. TIPS FOR PROPER with a damaged power cord, or if the PRODUCT USE equipment has been dropped or damaged, until it has been examined by a qualified For your safety, please read this manual agent.

  • Page 5: Risk Of Electric Shock

    Instruction Manual 13. Use only as described in this manual. Use – If an extension cord is required, a power only manufacturer-recommended accessories. cord with a current rating equal to or greater than that of the equipment should be used. Power cords with rating lower than Make personal protective...
  • Page 6 Instruction Manual – The drawer must be closed before moving organizer, a system with control to ensure tool the Tool Cabinet; return. Both users will log in when they need to use a tool. – Apply the wheel brakes when the Tool Cabinet is stopped;...

  • Page 7: Specifications

    Instruction Manual 3. INSTALLATION DIAGRAM 4. SPECIFICATIONS Before installing the SMART SYSTEM Tool Electric Card, the site inspection should be checked to ensure that the installation is functioning properly. The following inspection points • LITHIUM ION Battery 24 V / 13.2 Ah; should be checked: •...

  • Page 8: System Devices

    Instruction Manual Mechanical Suitable Service Voltage Rated Minimum Maximum Voltage [V] Voltage [V] Voltage [V] • Product dimensions (H x W x D): (1439 x 967 x 718) mm; • Drawer Dimensions (H x W x D): (80 x 652 x 426) mm;...

  • Page 9: How To Use

    Instruction Manual - To charge the equipment, it needs to be 5. HOW TO USE switched off using the on/off button (image 4), then connect the power cable to the device (see image 5) and to a mains outlet. Battery Status - During battery charging, the battery LED will have three (3) usage statuses: •...

  • Page 10: Using The Software

    Instruction Manual Using the Software Loading screen for tools and set-up data from the Smart System Tool Cabinet Iconography Icon Description Home Screen Logout Return to previous page Wi-Fi signal strength Battery level Shut down / Restart / Switch user 8:47 Time in the hh:mm format 44971/000 - Smart System Tool Cabinet...
  • Page 11 Instruction Manual - Administrator User (blue); - Regular user (orange). Enter chosen user password. Initial admin password “0000” If an incorrect password is entered, the user will have 4 more chances to enter the right password. 44971/000 - Smart System Tool Cabinet...
  • Page 12 Instruction Manual If the number of login at- tempts is exceeded, the user will have to wait 100 seconds or bring a pre- viously registered card to the device. Initial access screen for the administrator profile. 1- Home Screen Icon 4 5 6 2- Logout Icon;...
  • Page 13 Instruction Manual 1- Search for parts by Tra- montina PRO description or reference. 1- Finder and button used to search for the desired tool via description and Tramontina reference; 2- Complete list of items identified by searching for “tool”, separated by Re- ference, Tool, Drawer and Status;...
  • Page 14 Instruction Manual 1- Open drawer indication for the item required; 2- Return to previous page. Access cabinet composition. 1- Image showing what each drawer contains; 44971/000 - Smart System Tool Cabinet...
  • Page 15 Instruction Manual 1- Selected drawer indication; 2- Magnified image; 3- Full drawer list; 4- Closed drawer indication. 1- Open drawer indication. 1- Missing parts indication (highlighted in red). 2- The missing parts will be indicated in the drawer with a blinking red rectan- 44971/000 - Smart System Tool Cabinet...
  • Page 16 Instruction Manual 1- Access to the full tool cabinet history. 1- Finder and button used to search for the desired tool via description and Tramontina reference; 2- Full movement history subdivided into: Refe- rence, Tool Description, Drawer, Removal Date, Removal Time, Return Date, Return Time, User,...
  • Page 17 Instruction Manual 1- Access to user manual. 1- Digitized manual with zoom function to make it easier to focus on the point of reading the manual; 2- Return to first page; 3- Return to the previous page; 4- Go to next page; 5- Go to last page.
  • Page 18 Instruction Manual 1- When the button is pressed, the loading sym- bol will appear and there will be three message pos- sibilities: - Sending complete; - Check internet connec- tion; 44971/000 - Smart System Tool Cabinet...
  • Page 19 Instruction Manual - Email addresses not registered. 1- Internet connection. Select the network for Wi-Fi access. With the Refresh button, you can check if more networks are available. 44971/000 - Smart System Tool Cabinet...
  • Page 20 Instruction Manual Wi-Fi access selection. Enter the password for the selected network and press the Connect button. Demonstration of the Wi- -Fi network, the configu- red IP, network security protocol and network fre- quency 44971/000 - Smart System Tool Cabinet...
  • Page 21 Instruction Manual 1- User registration/chan- 1- Button for adding a user. 1- Register the reques- ted information to add the user. The password should contain 4 digits. 44971/000 - Smart System Tool Cabinet...
  • Page 22 Instruction Manual 1- When registering the card code, the registra- tion is as follows: click on the “Card Code” field and a “Move card to reader” message will appear for the user to swipe the card on the tool cabinet reader, which will automatically register the code;...
  • Page 23 Instruction Manual There is already an ac- count registered with this RFID card. 1- Button for editing a user’s registration. 1- Finder and button used to look for the selected user; 2- Editing the registration of existing users; IMPORTANT! There only one administrator.
  • Page 24 Instruction Manual 1- Button for editing the selected user’s informa- tion, as well as access ma- nagement; 2- Button for deleting the selected user. 1- General Tool Cabinet configurations. - Registration of up to three (3) email addresses for sending daily reports*; after entry, click on con- firm.
  • Page 25 Instruction Manual Indicates whether the en- tered email address is in- valid. 1- Date and time configu- ration; after configuration, click on confirm. 1- When deleting history records, there are two possibilities: – Delete record with tools returned: Save the history of tools that are still outsi- de the tool cabinet;...
  • Page 26 Instruction Manual 1- Delete returned tools: When clicking on the Dele- te button, you will be asked to confirm the action. Delete records: when clicking on the de- lete button, you will be asked to confirm or can- cel the action. 1- For this item, the Tool Cabinet must be named to identify it when reports are...
  • Page 27 Instruction Manual 1- The serial number of the Tool Cabinet will be descri- bed on this screen for fac- tory identification, should you need it. XXXXXX -YY -ZZZZZZ X = Manufacturing order XXXXXX - YY - ZZZZZZ Y = Year of manufacture Z = Sequential number Note: this is an important item when there is more...
  • Page 28 Instruction Manual Software updating. 1- If the software version is the latest version, the user will be notified. 1- Options for configu- ring automatic session timeout, with the choice of either a set time or to never close. 44971/000 - Smart System Tool Cabinet...
  • Page 29 Instruction Manual 1- Enable (green) or disa- ble (red) card access by users. 1- Provide remote access for maintenance. 1- Generation of a link for remote access via the Smart Tool Cabinet’s gra- phic interface. 2- Generation of a link for remote access via the Smart Tool Cabinet’s command line.
  • Page 30 Instruction Manual 1- Button for terminating the remote access link connection. Example of link for remote access. Button for terminating the remote access link con- nection. Example of link for remote access. 1- Indication of parts mis- sing in each drawer; by clicking on the icon, the user will be redirected to a screen indicating the re-...
  • Page 31 Instruction Manual 1- Indication of a reading error in the drawer, evalua- te whether there is a part inserted incorrectly or an error. When clicked, a procedure message is shown. 44971/000 - Smart System Tool Cabinet...
  • Page 32 Instruction Manual 1- Open drawer indication. 1- Switch user, Restart or Shut down. 44971/000 - Smart System Tool Cabinet...
  • Page 33 Instruction Manual 1- Initial access screen for the regular user profile. The difference between the initial screens when a regular user is used is that there is no access to the wi-fi, user, software and remote access configura- tions and the Summarized History is included.
  • Page 34 Instruction Manual 1 – User screen; drawers 4 and 5 locked for this user. Permission for access to drawers is granted by the admin in the user registra- tion. 1- User, access to composition. 1- Locked drawers are not displayed to the user. 44971/000 - Smart System Tool Cabinet...
  • Page 35 Instruction Manual Drawer locked 6. ERRORS - Check whether any tool is out of its proper The equipment does not turn on place and is mechanically keeping the drawer from closing; - Check whether the ON/OFF button is off (image 4); - After rearranging the tool, the software runs an opening and closing cycle and checks - Connect the power cord as shown in image 5...

  • Page 36: Warranty

    Instruction Manual WARRANTY User does not access via RFID card • Tramontina PRO products are fully guaranteed - Check whether the user in question has a against manufacturing defects. registered card on the SOFTWARE, using the ADMIN user; • This warranty considers replacement or repair of defective items free of charge.
  • Page 37 Instruction Manual ENVIRONMENTAL RESPONSIBILITY Each Tramontina product you have at home is the result of careful work, designed to transform our entire manufacturing process into action towards making a better world. Learn more at: sustainability.tramontina.com.br Packaging Product The materials in this packaging are recyclable. This product was manufactured with recyclable Before disposing of them, separate the plastic, materials that can be reused and so should not...
  • Page 38 Notes...
  • Page 39 Notes...
  • Page 40 Version 1.0 - 04/2023 TRAMONTINA GARIBALDI S. A. IND. MET. Rua Tramontina, 600 95720-000 - Garibaldi - RS CNPJ: 90.049.792/0001-81 Indefinite validity tramontina.com/pro...
