- Page 1 Colt International Ltd Installation, Operation and Maintenance Manual AXS 140 v1.0 09-2022...
-
Page 2: Table Of Contents
12.1 Cordless screwdriver ..........................19 Connecting the source of energy ..................20 Functional tests ......................... 20 Commissioning ........................21 Operation ........................... 21 Inspection, maintenance and repair ................22 © Colt International Licensing Ltd. 2022 Page 2 of 27 v1.0 09/2022... - Page 3 17.3 Cleaning and maintenance ........................23 17.4 Repairs ................................ 24 Decommissioning, disassembly and disposal ..............25 18.1 Decommissioning ............................25 18.2 Disassembly ............................... 26 18.3 Disposal ..............................27 Service and Guarantee ....................27 © Colt International Licensing Ltd. 2022 Page 3 of 27 v1.0 09/2022...
-
Page 4: About This Manual
This document forms an integral part of the product and needs to be retained for use at a later time. Its contents are important for anyone who uses, operates or maintains an AXS 140 Natural smoke and heat exhaust ventilators (hereafter known as NSHEV) and access hatch - a copy of it needs to be kept near to the control box. -
Page 5: Using A Nshev
Providing an access route from inside the building to the roof. • Allowing the movement of building components, machines or similar objects onto or off from the roof, within size limits. • Daylight entry with polycarbonate lid option. © Colt International Licensing Ltd. 2022 Page 5 of 27 v1.0 09/2022... -
Page 6: Improper Use
A NSHEV is designed for extract ventilation and may not to be used for inlet air unless the ventilator position and operation are considered carefully. Polluted air or exhaust gas can harm people within the building. © Colt International Licensing Ltd. 2022 Page 6 of 27 v1.0 09/2022... - Page 7 ALWAYS CARRY OUT A RISK ASSESSMENT BEFORE STARTING OFFLOADING, INSTALLATION OR MAINTENANCE Please note additional safety warnings within the following chapters of this manual. © Colt International Licensing Ltd. 2022 Page 7 of 27 v1.0 09/2022...
-
Page 8: Safety Notices Attached To The Nshev
This label warns the user not to walk onto the unit, fixed on outside of vent This label warns the person about the possibility of flap opening and closing, fixed on outside of vent. © Colt International Licensing Ltd. 2022 Page 8 of 27... - Page 9 This label advises personnel not to put their hands into the ventilator. Additionally, the label indicates the need for the unit only to be maintained by trained personnel. © Colt International Licensing Ltd. 2022 Page 9 of 27 v1.0 09/2022...
-
Page 10: Delivery
2 working days. Not included in the delivery is: ⚠NOTE • Sealing tape • Screws for fixing the NSHEV to the supporting structure. • Control lines to the panel © Colt International Licensing Ltd. 2022 Page 10 of 27 v1.0 09/2022... -
Page 11: Unit Components

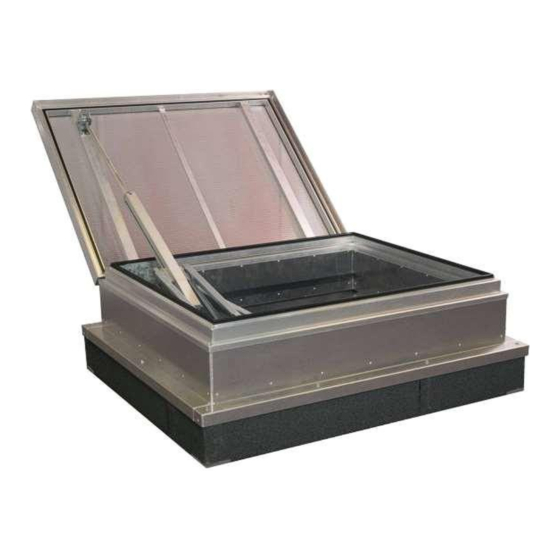

AXS 140 IOM MANUAL 6. Unit components A Colt AXS 140 NSHEV comprises the following parts: Flap variants • Double skin insulated aluminium, 24 mm thick on the smaller unit & 12mm thick on the larger unit. • PC10 Polycarbonate multi-skin sheet, clear, 10 mm thick With EPDM seal. -
Page 12: Technical Data
AXS 140 IOM MANUAL 7. Technical data The AXS 140 NSHEV is supplied with electrical controls only. The type of controls is set out on the PID label. The PID label also shows the electrical supply voltage. 7.1 G26C & G40G – electric control channel Smoke control &... -
Page 13: Sound Emissions
9. PID label A PID label, in accordance with the Construction Products Regulation is affixed to the inside of the ventilator with the following information: See typical image below. © Colt International Licensing Ltd. 2022 Page 13 of 27 v1.0 09/2022... - Page 14 AXS 140 IOM MANUAL For the UK, a UKCA Mark PID will be affixed to the inside of the ventilator as follows: © Colt International Licensing Ltd. 2022 Page 14 of 27 v1.0 09/2022...
-
Page 15: Transport And Storage
There is a PID label on each of the outside of the ventilator. It is recommended that larger units (where the weight is more than 50 kg) are always picked up by at least four people before Installation © Colt International Licensing Ltd. 2022 Page 15 of 27 v1.0... -
Page 16: Installation
If the upstand is of steel construction, fix the ventilator base to the upstand using 5.5 x 25 self drilling/tapping screws with sealing washers at a minimum 200mm centres. If the upstand is of concrete construction then suitable M8 anchors should be used at 500mm centres. © Colt International Licensing Ltd. 2022 Page 16 of 27 v1.0 09/2022... - Page 17 AXS 140 IOM MANUAL © Colt International Licensing Ltd. 2022 Page 17 of 27 v1.0 09/2022...
-
Page 18: Unit Description
The NSHEV is delivered fully assembled. The fixing instructions are provided in detail in the appendix of this document. The designation or unit specification can be found on the PID label. If the PID label (or the coding of the NSHEV) is not available, please contact your Colt office. © Colt International Licensing Ltd. 2022 Page 18 of 27 v1.0... -
Page 19: Recommended/Required Tools
• Battery 2 x 3 Ah capacity: 56 Nm • Torque max.: 20 + 1 Torque level: 0-500 / 1600 1/min • 2 speed: 1.8 kg • Weight: © Colt International Licensing Ltd. 2022 Page 19 of 27 v1.0 09/2022... -
Page 20: Connecting The Source Of Energy
This adjustment is predominantly latch position and tension. A correct functional check does not replace the necessity to carry out a complete commissioning of the system. © Colt International Licensing Ltd. 2022 Page 20 of 27... -
Page 21: Commissioning
The NSHEV is controlled using the control routines designed for the complete system. Such routines are set out on the controls instructions which are provided with the control panel. © Colt International Licensing Ltd. 2022 Page 21 of 27 v1.0 09/2022... -
Page 22: Inspection, Maintenance And Repair
Furthermore, if non-OEM parts are used, then the CE marking is invalid for an NSHEV certified according to EN 12101-2. Necessary repairs may be carried out either by a specialist company authorized by Colt or Colt itself. In special cases it may be necessary to make temporary repairs. -
Page 23: Cleaning And Maintenance
GUETEGEMEINSCHAFT FUER DIE REINIGUNG VON METALLFASSADEN e.V. (GRM), Marientorgraben 13, 90402 Nuernberg • American Architectural Manufacturers Association, USA (AAMA 610-1979 Cleaning Procedures). Prescriptions and notes given by the particular powder producer. E.g. https://www.synthapulvin.co.uk/ © Colt International Licensing Ltd. 2022 Page 23 of 27 v1.0 09/2022... -
Page 24: Repairs
⚠NO TE damaged polycarbonate flaps is not permitted. Please contact your Colt representative if the flap does not open or close properly, or if there is any damage to the NSHEV. © Colt International Licensing Ltd. 2022 Page 24 of 27... -
Page 25: Decommissioning, Disassembly And Disposal
Decommissioning of electrically operated NSHEV: For electrically controlled ventilators, take out the emergency battery, if present. Remove the cabling from the unit. Store the batteries until you can dispose of them correctly. © Colt International Licensing Ltd. 2022 Page 25 of 27 v1.0... -
Page 26: Disassembly
If this is not observed, there can be fatal consequences. • Where units are stored on the roof it is necessary to check whether the roof has sufficient load bearing capability. © Colt International Licensing Ltd. 2022 Page 26 of 27 v1.0 09/2022... -
Page 27: Disposal
• Safety goggles Any sources of energy (e.g. batteries) need to be disposed of in accordance with local regulations. Colt can take care of this for you. Electric actuators and EPDM seals also need to be disposed of in accordance with local regulations.
