MOON ELECTRIC HEIGHT ADJUSTABLE DESK 1600OA
T
h
s i
d
e
s
g i
n
a
n
d
n i
w
w
. w
f o
c i f
e
w
r o
s k
c .
For spare parts or hardware call 1300 OFFICE
STMON160GY
t s
u r
t c
o i
n
b
o
o
l k
t e
s i
o
m
a .
u
s
u
b
e j
t c
o t
c
o
p
r y
g i
1 (
3
0
0
6
1 / 22
h
. t
2 Cartons
3
3
4
2
3
. )
Advertisement
Related Manuals for STILFORD STMON160GY
Summary of Contents for STILFORD STMON160GY

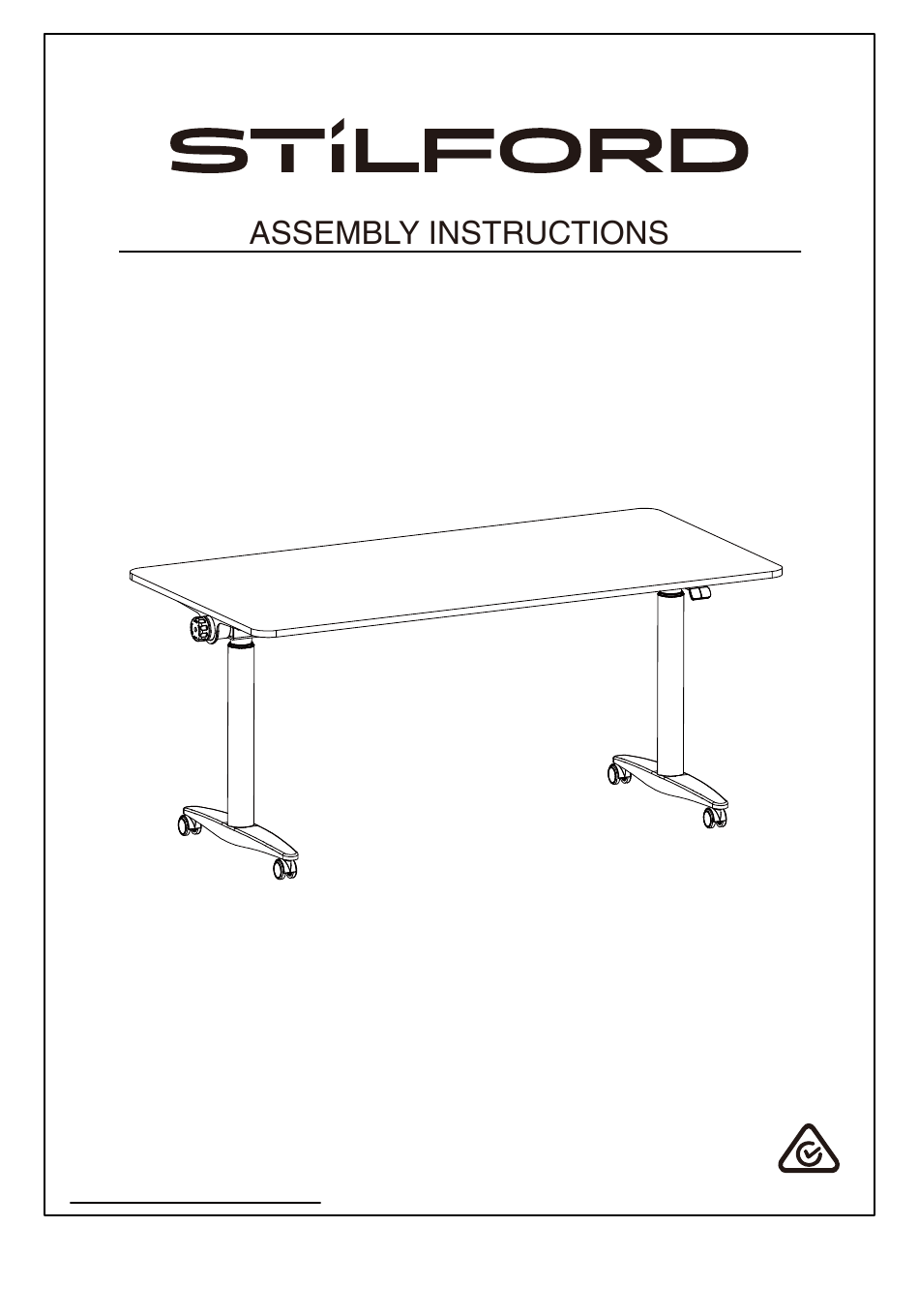

- Page 1 MOON ELECTRIC HEIGHT ADJUSTABLE DESK 1600OA STMON160GY c i f 2 Cartons For spare parts or hardware call 1300 OFFICE 1 / 22...
- Page 2 40 minutes People Required 2 / 22...
- Page 3 Tools Required CAUTION: Do not use tools other than those required, as this can damage your new item NOTE Please check you have all hardware before assembling. If you are missing any hardware, please contact 1300 OFFICE (1300 633 423). Please ensure you have the name of the item, required hardware part and quantity.
-
Page 4: Safety And Warnings
Safety and Warnings •This table complies with the prescribed safety regulations. Inappropriate use may cause damage to persons and table. •Please read the operation manual prior to start using the table. It provides you with important information about safety, use, installation and maintenance of the table, and thus protecting you and your children and avoiding damage on the table. - Page 5 Parts Located in Carton - STMON160G1 5 / 22...
- Page 6 6 / 22...
- Page 7 Parts Located in Carton - STMON160G2 7 / 22...
- Page 8 M6x16 M6x10 M6x14 Bx16 M6x14 M5x16 M5x12 Dx12 Hook Cable tie Wrench 8 / 22...
- Page 9 Spare parts number- Spare parts number- Spare parts number- HWMOOCNTPN HWMOONTFR HWCABSITST 9 / 22...
- Page 10 Step 1 Install castors Use wrench (N) to install the castors⑤ 10 / 22...
- Page 11 Step 2 Install legs Put the column ① on the feet ⑥,use 4 screws(B) to lock,then install the part 3 by 4 screws(A) with allenkey (M) for both 2 legs. 11 / 22...
- Page 12 Step 3 Install the beam Put the beam on the leg,use 8 screws (B) to fix it with leg by allen key (M). 12 / 22...
- Page 13 Step 4 Install the side brackets Put the side brackets 2 on the beam, fixed them by 4 screws (C) with Allen key (M). Please note the arrow direction is the flip direction. 13 / 22...
- Page 14 Step 5 Install the mid brackets Click 2x mid brackets on the beam. ④x2 14 / 22...
- Page 15 Step 6 Install the tabletop Put the frame on the tabletop.Adjust the mid bracket to match the pre-drilled hole,and fixed it by 4 screws (D) via allenkey (M). Please watch out the feet when you install the top 15 / 22...
- Page 16 Step 7 Install the tabletop Fix the side brackets on the tabletop by 8 screws (D) via allenkey (M). Please watch out the feet when you install the top 16 / 22...
- Page 17 Step 8 Install the hook and control box& controller Fix the control box by 2 screws E,fix the hooks G by 4 screws E,fix the controller8 by 2 screws F. Please watch out the feet when you install the top 17 / 22...
- Page 18 Step 9 Connect cables Right column (1) (9)Power cable Handset (8) (1)Left column Use the cable tie (L) to fix the cable at proper position and keep cables organized Tear off Manage Cable 18 / 22...
- Page 19 Step 10 Install the bag Hang on the bag⑦ to the 4 hooks G. Please watch out the feet when you install the top 19 / 22...
- Page 20 Step 11 Finished Maximum weight capacity 120 KG 20 / 22...
- Page 21 21 / 22...
- Page 22 Warranty 10 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 10 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
