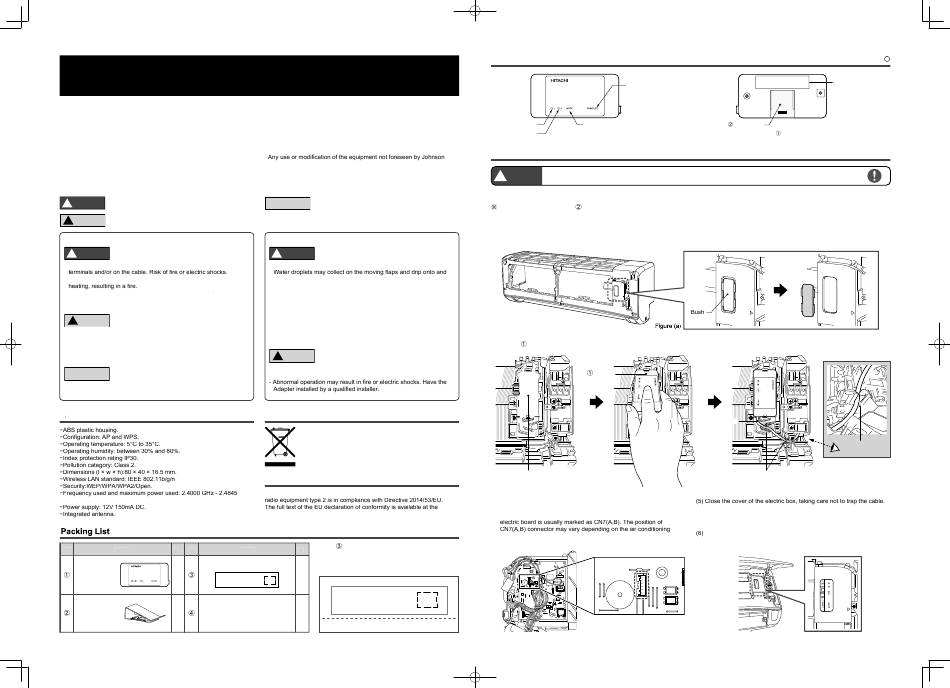

Johnson Controls airCloud Home SPX-WFG03 Operation And Installation Manual

airCloud Home Adapter SPX-WFG03
Operation and Installation Guide
General Information
airCloud Home is an cloud-based solution for remotely controlling your
Hitachi air conditioning system via smart phone. The airCloud Home
Adapter SPX-WFG03 is used to connect your air conditioning system to
Cloud through your Wi-Fi home router. Please read the guide and safety
precautions before installing the Adapter. The installation is required to
be performed by a professional. Please follow all of the instructions
below carefully and keep the guide for the entire life of the Adapter. Any
installation or use not foreseen by Johnson Controls-Hitachi Air
Conditioning will be deemed noncompliant. This would invalidate the
warranty and discharges Johnson Controls-Hitachi Air Conditioning of all
liability, as does any failure to comply with the instructions given herein.
Indicates a hazardous situation that, if not avoided,
WARNING
!
could result in death or serious injury.
Indicates a hazardous situation that, if not avoided,
! CAUTION
could result in minor or moderate injury.
For Installers
WARNING
!
- Make sure there is no dust on connection points such as the power
- Only use the cable supplied. It must not be altered. Risk of cable
- Do not install the Adapter near devices that could be affected by f f
radio waves.
- Do not allow children to touch the Adapter. Risk of injury.
! CAUTION
- Do not install the Adapter in a location where devices using radio
frequencies as a transmission medium are prohibited (refer to the
applicable local standards).
- Do not install the Adapter in a location where there may be people
with heart pacemakers.
NOTICE
- Avoid installing the Adapter in an environment with high humidity
(e.g. bathroom).
T T Technical Specifications
GHz/erp < 100 mW.
No. Name Qty. No. Name
SSID&KEY Label
Adapter with
connecting cord 1
SSID:
(0.4m)
KEY:
Operation and Installation Guide
Fixing clip 1
(this manual)
General Safety Advice
- Do not try to open the housing of the Adapter. Avoid dropping or impac A A
and Never immerse the Adapter in liquid.
- Do not use abrasive products or solvents to clean the housing of the
Adapter. Its surface can be cleaned using a soft dry cloth.
- Do not use the Adapter outdoors. Do not route the connection cable
outdoors.
-
Controls-Hitachi Air Conditioning could endanger users.
Indicates information considered important, but not
NOTICE
hazard-related (for example, messages relating to
property damage).
For Users
WARNING
!
- Do not operate the air conditioner with ambient humidity above 80%.
damage equipment placed under the indoor unit. The damage may
be worse if the problem is not detected during remote operations
from App.
- This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
- Children should be supervised to ensure that they do not play with
the appliance.
! CAUTION
- Make sure that the Air Conditioning unit is active during Wi-Fi
communication operations.
Recycling
Do not dispose of the Adapter with the household waste.
Please take it to a collection point or an approved centre
to ensure it is recycled.
Declaration of Conformity
Hereby, Johnson Controls-Hitachi Air Conditioning declares that the
following internet address: www.airdocumentation.com
Paste SSID&KEY label on the space below as
Qty.
shown in the figure below, and please write down
the installation location (like living room, bed room,
etc.) on the label.
1
SSID&KEY label paste position
SSID:
KEY:
1
Installation location:
- 1 -
Product Component Name
Power LED
Front view
t
Link LED 1 Mode button
Link LED 2
Installation Procedure
!
WARNING Please unplug the air conditioner before installing this Adapter.
For installation inside of the indoor unit
When installed on the inside, Fixing clip is not used.
(1) Remove the front cover of the air conditioning unit and the cover of the electric box. Refer to the air conditioner installation manual for instructions
on removing the front cover and to open the electric box.
(2) The bush in the front cover need to be cut. With the front cover off, use a knife to cut openings as shown in figure (a). Then smoothen the edges of
openings with a file.
(3) Set the Adapter on the indoor unit and wire the cord as shown in figure (b).
Adapter
Adapter
attachment part
(4) The connecting cord supplied with the Adapter must be connected to
the electronic board inside the electric box. Connect the connecting
cord to the electric box as shown on figure (c). The connector on the
model. Refer to the air conditioning system installation manual to
confirm the connector number.
Figure (c)
Model label
(
Model name,
Manufacturing No.,
Rear view
SSID, KEY
Fixing clip
Elements for fixing Adapter
Figure (b)
Adapter Cord Adapter Cord d d r
Enter the
electrical box
Push the cord in between
the ribs for routing.
Close the front cover of the air conditioning unit. Refer to the air
conditioner installation manual for instructions on closing the electric
box and closing the front cover.
With the panel open, please confirm that you can see the mode
button and indicator on the Wi-Fi adapter shown figure (d).
Figure (d)
- 2 -
EN
