YARDMAX YUS850 Operator's Manual

34" Log Table
Operator's Manual
Model #
Length
Width
Weight

LOG TABLE ASSEMBLY

Refer to Figures 10 and 11 to install the work table. Remove
the bolts, flat washers, and nuts from the inside holes. Move
the log cradle from the incline position to the horizontal
position. Align the holes on the log cradle with the outside
holes on the beam mount. Reinstall the bolts, flat washers,
and nuts.

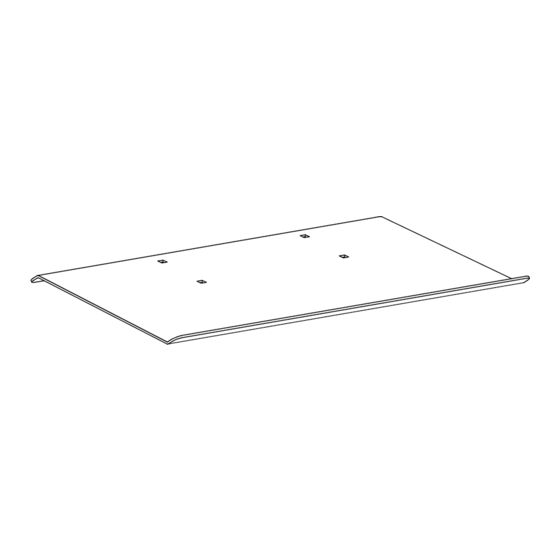

Place the work table over the holes in the log cradle and align
the 4 holes from the work table plate and log cradle. Insert
and tighten the M10x25 bolts, spring washers, flat washers,
and nuts.
For use on all Full Beam Yardmax Log Splitters
YUS850
34"
12.5"
14.5 lbs
Save This Manual for Future Reference
30
mm
19
mm
18
mm
16
mm
13
mm
Inside Holes
Outside Holes
32
mm
Log Cradle (Right)
Figure 11
M10 X 25
Tame the Great Outdoors
M10x25
(x4)
Work Table
8
X 4
®
