Summary of Contents for Urbanworx UX1080WLC

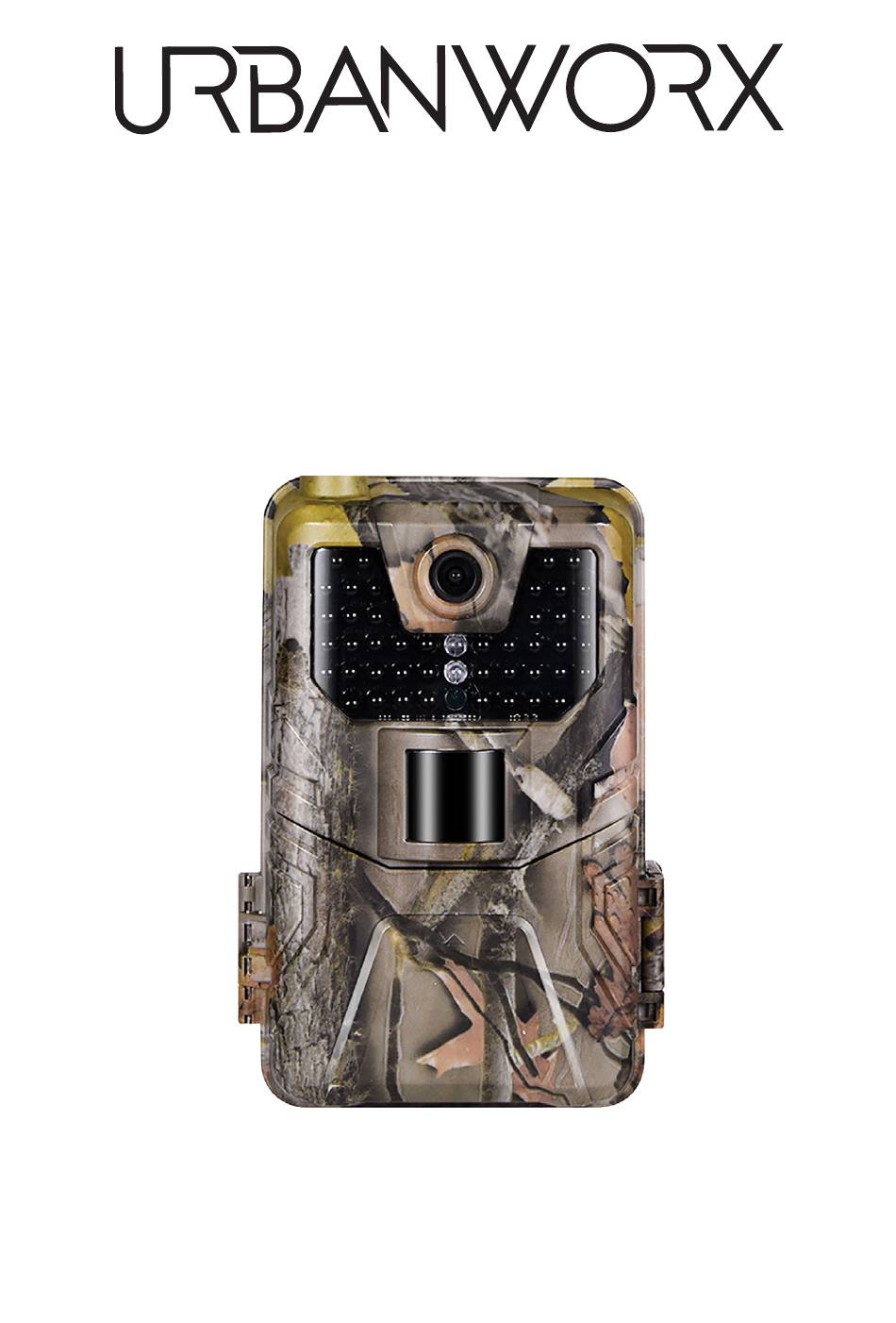

- Page 1 DIGITAL TRAIL CAMERA WITH SENSOR UX1080WLC INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety The Basics Installing Batteries Memory card How to use Under Test Mode Under Power Mode Specifications Support Last Page... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the Action Camera. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. -
Page 5: The Basics
THE BASICS... -
Page 6: Installing Batteries
INSTALLING BATTERIES IF USING AA ALKALINE BATTERIES Press EJECT for the battery compartment to come out. Insert the AA batteries accordingly as indicated by the positive and negative battery icons. Slide battery compartment back into the bottom of the unit until it clicks into place. - Page 7 MEMORY CARD INSTALL INSTALLING MICRO SD CARD Insert the Micro SD Card (max 64GB) with the contacts facing away. The Micro SD card should slide in freely with little resistance. Continue pressing the card inward until you hear a click. This means the Micro SD card is lcoked in place and ready for use.
- Page 8 HOW TO USE POWER ON TEST MODE Slide power Switch from OFF to TEST, LED Screen will power on. DO NOT slide it directly to ON. UNDER TEST MODE (for reviewing and checking files) Press the MENU button to launch the system menu or exit. Press SHUTTER to manually trigger the shutter.
- Page 9 HOW TO USE POWER ON MODE Slide power Switch from OFF to ON, LED Screen will power on. This mode the screen will power OFF and the camera will work automatically. This will capture if any motions are detected by PIR Sensor. UNDER ON MODE (For automatically capturing video/photos of motions) Go back to test mode once you are ready to review captured files.
-
Page 10: Memory Card
SPECIFICATIONS Photo Resolution Up to 36 Megapixels Video Resolutions VGA / 480p / 720p / 1080p / 1520p Detection Angle Up to 120° Detection Distance Up to 25 Metres Fill Light LED 940nm (no glow) Wavelength Fill Light LED 44pcs Quantity Trigger Time 0.3 seconds... - Page 12 CUSTOMER HELPLINE: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
Need help?
Do you have a question about the UX1080WLC and is the answer not in the manual?
Questions and answers

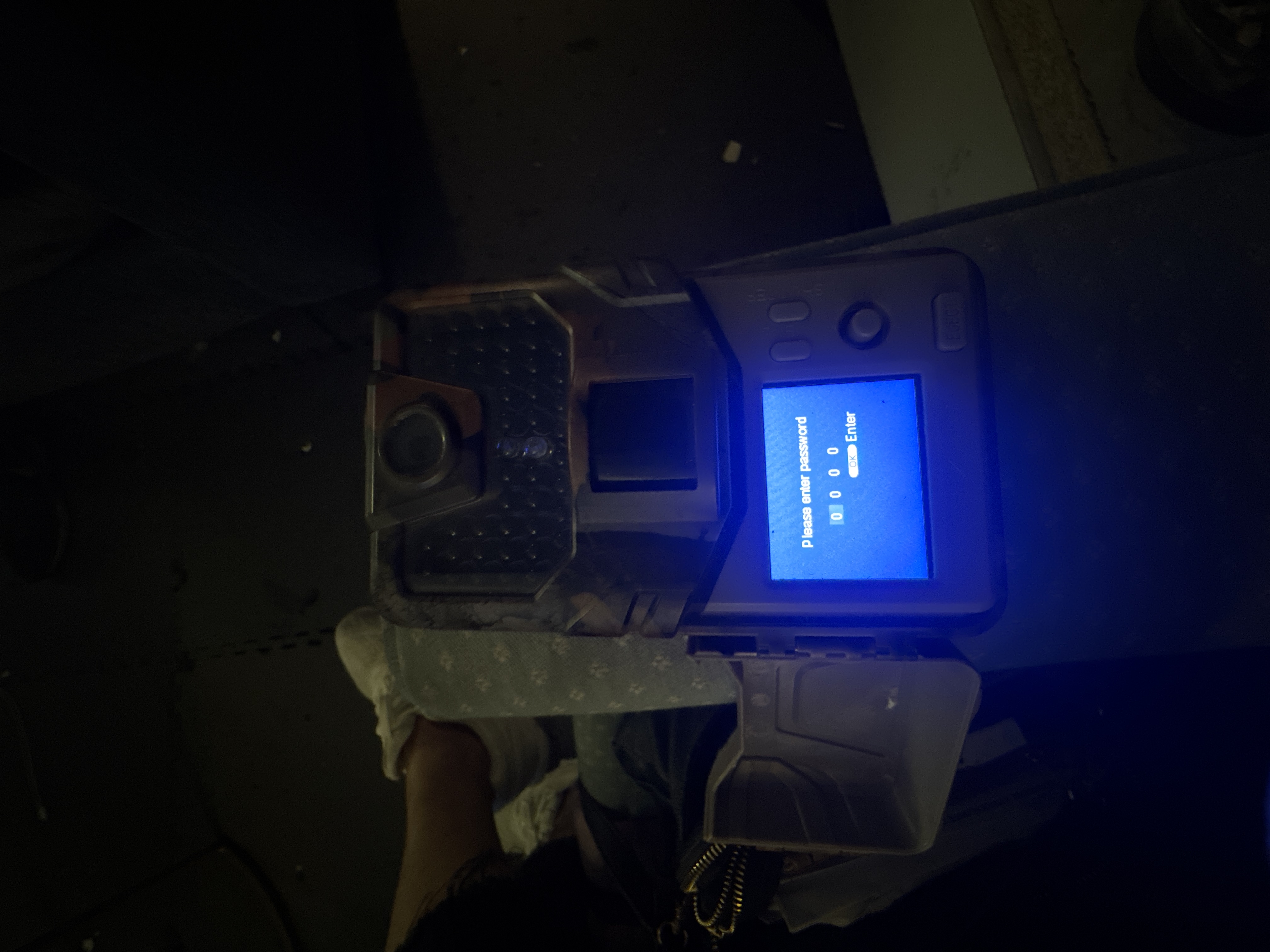

Don’t know my password how do I reset it
