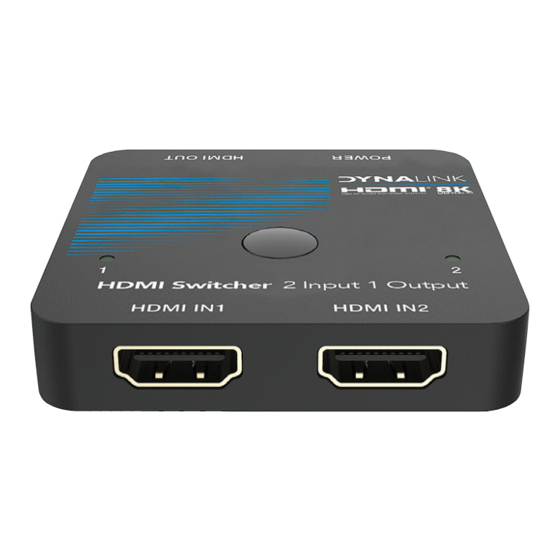

HDMI V2.1 8K 2 Input Switcher
Operating Instructions
Features
•
HDMI 2.1 and HDCP 2.3 compliant
•
48Gbps video bandwidth
•
Supports resolutions up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0
12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
•
Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
•
VRR, FVA, ALLM supported
•
Supports HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-
HD Master Audio (see specifications for more information).
•
2x1 switch output, auto switch supported
•
Built-in Equalizer and Driver
•
Auto EDID management
•
Compact design for easy and flexible installation
A 3104
Manual revision date: 15/8/23
Advertisement
Table of Contents
Related Manuals for Dynalink A 3104
Summary of Contents for Dynalink A 3104
- Page 1 A 3104 HDMI V2.1 8K 2 Input Switcher Operating Instructions Features • HDMI 2.1 and HDCP 2.3 compliant • 48Gbps video bandwidth • Supports resolutions up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit •...
- Page 2 A 3104 48Gbps 2 Input HDMI Switcher Overview This switcher can switch any of 2 HDMI sources to 1 HDMI display. It sup- ports video resolution up to 8K@60Hz 4:4:4, 48Gbps video bandwidth. It is suitable for outdoor display, video conference, security monitoring, home theater and other applications.
- Page 3 A 3104 48Gbps 2 Input HDMI Switcher Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps Video Resolution Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD,...
- Page 4 A 3104 48Gbps 2 Input HDMI Switcher Operation Controls and Functions Name Function Description Switch button/Power Short pressing the switch button will allow the device to switch any of the two HDMI input signals to the HDMI display; long press this button to enter the auto switching mode.
- Page 5 A 3104 48Gbps 2 Input HDMI Switcher Application Diagram...
- Page 6 A 3104 48Gbps 2 Input HDMI Switcher...
- Page 7 A 3104 48Gbps 2 Input HDMI Switcher...
- Page 8 A 3104 48Gbps 2 Input HDMI Switcher Dynalink Distributors warrants this product for one year from date of purchase from Dynalink or its resellers to the consumer. If this item is part of an installation or another product, please contact the installer or supplier for your warranty.
