Summary of Contents for Skov DA 150B-S

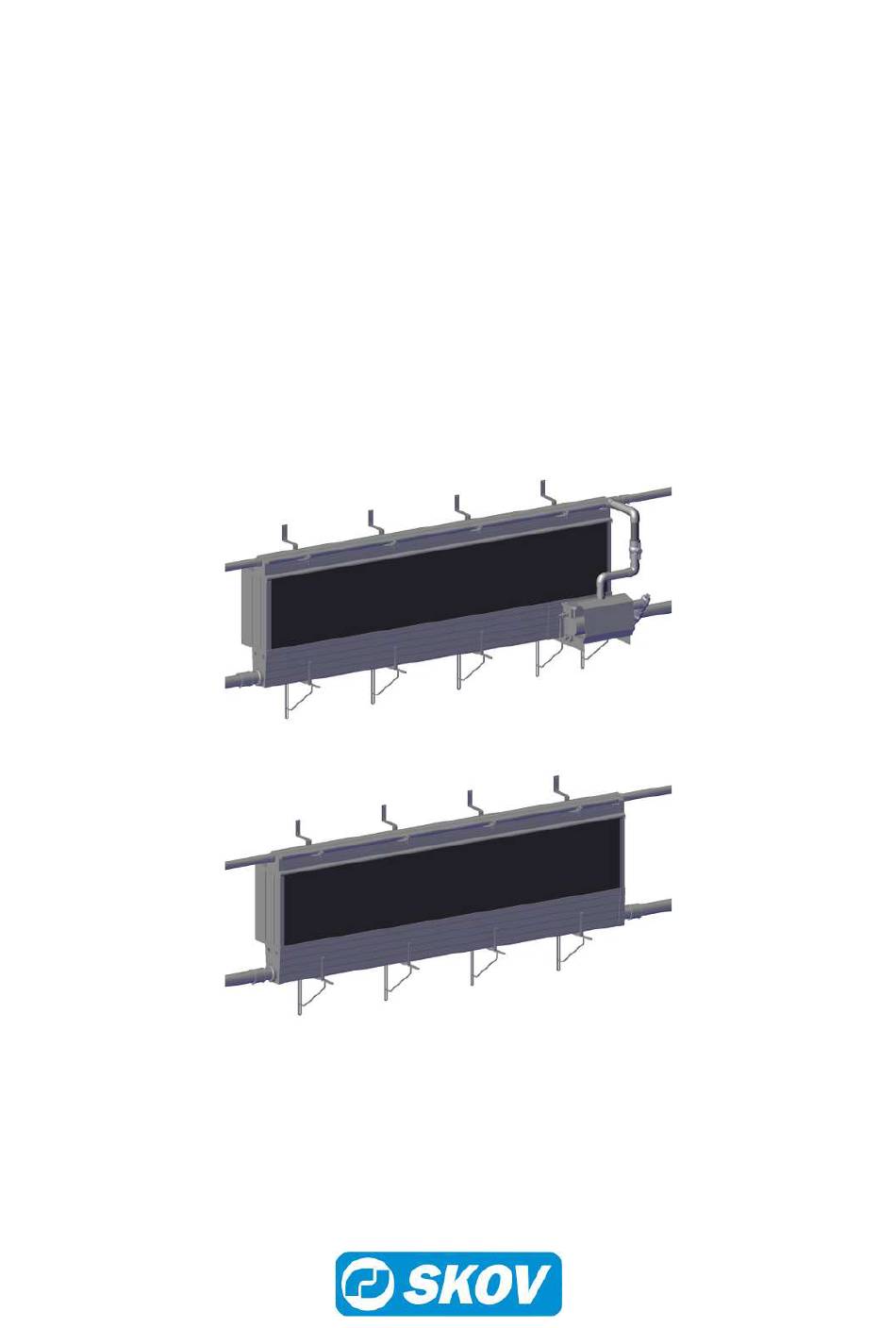

- Page 1 DA 150B-S Pad Cooling Technical User Guide 604535 • 2023-11-22...
- Page 3 The date of change appears from the front and back pages. Note • All rights belong to SKOV A/S. No part of this manual may be reproduced in any manner whatsoever without the expressed written permission of SKOV A/S in each case.
-
Page 4: Table Of Contents
DA 150B-S Pad Cooling 1 Product description ............................ 5 2 Product survey ............................... 6 3 Mounting guide............................. 10 Recommended tools........................ 10 Mounting of sandwich screws.................... 11 Positioning of the pad cooling modules................ 12 Wall preparation........................ 12 3.4.1 Free space for the pump-fitted pad cooling module .............. 12 3.4.2... -
Page 5: Product Description
Pad cooling for wall inlets is available in modules that fit one or more wall inlets in blocks. The plastic pad is very robust, UV resistant and easy to clean. Hence, no special water quality requirements are required. DA 150B-S pad cooling is used when a high cooling capacity is required and wet housing equipment surfaces are not acceptable. -
Page 6: Product Survey
437061 437060 437060 437060 437050 DA 150B-S pad cool basic 3m 1X230V 50Hz Pad cool basic 3m is a complete 3-meter pad cooling module. Pad cool basic must be placed in the middle of the pad cooling system. Includes: Supply unit including pump... - Page 7 DA 150B-S Pad Cooling 437052 DA 150B-S pad cool module 1.2 m The 1.2-meter pad cooling module is used in the pad cooling system with pad cool basic if modules of 1.2 m are requested. Can also be used to extend a 3-meter pad cooling module.
- Page 8 DA 150B-S Pad Cooling 437057 DA 150B-S pad cool pipe kit extension 2.5 m Pipe kit extension 2.5 m is used between the pad cooling modules at dis- tances of 2.0 - 4.0 m. The distance between the pad cooling modules must be a maximum of 4 m.
- Page 9 DA 150B-S Pad Cooling 437584 DA 150B glue kit - max. 12 m Contains cleaning fluid, glue, and brushes for bonding the gutter system up to 12 meters. 140246 DOL 10 temperature sensor Is used as pad cooling sensor. Must be placed between the cooling pad and the wall inlet.
-
Page 10: Mounting Guide
DA 150B-S Pad Cooling 3 Mounting guide Check that the ordered parts are present and undamaged before starting assembly. Please read through the entire guide before starting assembly and fitting. If the pad cooling is installed in areas with risk of load of snow or ice/snow slide, precau- tions must be made to avoid damage to the pad cooling modules. -
Page 11: Mounting Of Sandwich Screws
DA 150B-S Pad Cooling Topic Description Tape measure Chalk line Hammer Screwdriver set Water pump pliers Wise grip Utility knife Combination spanner Adjustable spanner Strapping tool Hole saw 76 mm Marker pen 3.2 Mounting of sandwich screws To ensure that the screw makes the right thickening and the best possible thread on the back, the correct hole must be drilled first and the screwing must be done with the correct momentum depending on the thickness of the metal in the sandwich panel. -
Page 12: Positioning Of The Pad Cooling Modules
3.3 Positioning of the pad cooling modules The positioning of the pad cooling modules depends on the building layout and the position of the wall inlets. The positioning may therefore only be made according to directions communicated by SKOV A/S or representa- tives of the company. -
Page 13: Free Space For Pad Cooling Modules Without Pump
DA 150B-S Pad Cooling 3.4.2 Free space for pad cooling modules without pump Dimensions in mm. (A) 150 (A) Distance from the wall to the pad cooling module and distance to the spacing frame. (B) Outer dimension of the spacing frame. -
Page 14: Spacing Frame Dimensions
DA 150B-S Pad Cooling 3.4.4 Spacing frame dimensions Spacing frame in water-resistant material is not supplied by SKOV A/S. Dimensions in mm. Linear measure to the 3-meter pad cooling module frame: (A) Inner dimension 2930 mm. (A) Min. 2930 (B) Outer dimension 2990 mm. -
Page 15: Mounting The Spacing Bracket On The Wall
DA 150B-S Pad Cooling 3.6 Mounting the spacing bracket on the wall Dimensions in mm. Pad cooling module 3 m 2.5 m pipe Pad cooling module 3m with 2.5 m pipe Pad cooling module pump 1.2 m 1000 1000 1000... -
Page 16: Mounting The Gutter System
DA 150B-S Pad Cooling 3.7 Mounting the gutter system 3.7.1 Mounting the gutter bracket Measure out 150 mm on the spacing bracket and posi- tion the gutter bracket. 150 mm Mount the gutter bracket on the spacing gutter bracket using 2 6x30 screws, 4 washers, and 2 flange nuts. -
Page 17: Mounting The Gutter
DA 150B-S Pad Cooling 3.7.2 Mounting the gutter Measure and install the gutter. If necessary, cut the gutter to the correct length using a jigsaw or circular saw. Mount the supply unit, see section Mounting brackets for supply unit [} 18]. -
Page 18: Mounting Brackets For Supply Unit
DA 150B-S Pad Cooling 3.7.3 Mounting brackets for supply unit Lift out the supply unit from the suspension. Mount the 4 mounting fittings on the supply unit sus- pension and on the spacing gutter bracket using 4 6x20 screws, washers, and flange nuts. -
Page 19: Installation Of The Water Distribution Pipe
DA 150B-S Pad Cooling 3.8.2 Installation of the water distribution pipe Fit the T-fitting to the water distribution pipe. 30° The hole in the water distribution pipe must be in- stalled in accordance with air direction in an angle of 30°. -
Page 20: Mounting The Inner Pad Rail
DA 150B-S Pad Cooling 3.8.4 Mounting the inner pad rail Mount the inner pad rail on the inside of the water distri- bution pipe by snapping it into the top bracket. Use a pad rail coupler if you have to assemble several pad rails, see the sectioin Mounting end plates and pad rails [} 24]. -
Page 21: Non-Return Valve
Use elbow coupling (C) and T-coupling (D) and connect the pipe to the water distribution pipe. 3.10 Gluing Many items in this product are designed to be glued. Observe the manufacturer's instructions to ensure opti- mal joints. SKOV recommends Tangit glue for glued joints. Technical User Guide... -
Page 22: Gluing Instructions
DA 150B-S Pad Cooling 3.10.1 Gluing instructions See safety data sheet for Tangit glue. Cut the pipe in a right angle and deburr the pipe. The areas to be glued must be clean and dry. Clean the ends of the pipe on the outside and the assembly parts on the inside with cleaning fluid included in the glue kit. Al- ways use a new cloth. - Page 23 DA 150B-S Pad Cooling Clean all surfaces to be glued thoroughly with cleaning fluid. Fill the joints (on both sides) and the end piece com- pletely with Tangit glue. Refer to the general instructions for handling Tangit glue. Observe the curing time, for example, 4 min. at 20°C.
-
Page 24: Mounting End Plates And Pad Rails
DA 150B-S Pad Cooling 3.11 Mounting end plates and pad rails Saw 40 mm off the pad rail at both ends. Remove dirt and filth from the gutter system. Mount pad rail on the gutter system. Remove 20 mm of the protrusion at the bottom of the end plate. - Page 25 DA 150B-S Pad Cooling Mount the deflector end plate. Glue the transition piece to the pipes on the end mod- ules, see section Gluing [} 21]. Screw the sealing caps onto the transition pieces of the end modules. Technical User Guide...
-
Page 26: Mounting Pads
DA 150B-S Pad Cooling 3.12 Mounting pads Be careful to turn the pads correctly. The white mark- ing must always be at the bottom right of the outside of the system. First, mount the 2 pads against the end plates. -
Page 27: Pointing
DA 150B-S Pad Cooling 3.13 Pointing Apply a joint edge between the pad cooling module Joint edge and the spacing frame. Make sure that the air intake must go all the way through the pads. Joint edge Use an angle bracket if there are too many irregulari-... -
Page 28: Placement Of Dol 10
DA 150B-S Pad Cooling 3.14 Placement of DOL 10 DOL 10 temperature sensor Place the DOL 10 temperature sensor in the spacing frame at the pad cooling module with pump. Horizontal - centered in the inlet for the wall inlet. -
Page 29: Installation Guide
DA 150B-S Pad Cooling 4 Installation guide 4.1 Electrical connection Installation, servicing and troubleshooting of all electrical equipment must be carried out by quali- fied personnel in compliance with the applicable national and international standard EN 60204-1 and any other EU standards that are applicable in Europe. -
Page 30: Cable Plan And Circuit Diagram
DA 150B-S Pad Cooling 4.3 Cable plan and circuit diagram 4.3.1 Cable plan Wiring box Controller DOL 10 temperature sensor 1 DOL 10 per house Pad cooling module with pump 4.3.2 Circuit diagram Example of terminal number For correct connection... -
Page 31: Start-Up Test
DA 150B-S Pad Cooling 5 Start-up test Make sure all locks are secured before use. Adjust float valve to the desired water level by turning adjusting screw. The maximum water level must not exceed 20 cm when measured from the bottom of the gutter. -
Page 32: Maintenance Instructions
DA 150B-S Pad Cooling 6 Maintenance instructions During cold periods when pad cooling is not used, the pump, piping, and gutter system must be emptied to prevent frost damage. You can add antifreeze if the pump cannot be completely drained. -
Page 33: Recommended Routines
DA 150B-S Pad Cooling 6.1 Recommended routines Clean the pump filter at least once a week, more often, if you want to prevent the ingress of foreign bodies into the water system. After each batch, check for dry areas on the pads when the system is in operation and clean the distributor pipe if necessary. -
Page 34: Recycling/Disposal
DA 150B-S Pad Cooling Flushing with clean water: Hose 1. Close the drain plug valve. Cover 2. Remove the cover of the ¾" connection. 3. Connect a ¾" hose to this connection. Ball plug valve Clean the gutter after each batch of dirt and sediment. -
Page 35: Technical Data
DA 150B-S Pad Cooling 7 Technical data 437371 DA 100B/150B pump 1x230V 50Hz Electrical V AC 1x230 ± 10% Rated voltage V AC 220-240 Operating voltage Frequency Power input P1 Power input P2 Max. power consumption μF Capacitor Mechanical Suction/discharge Environment °C... - Page 36 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • www.skov.com • E-mail: skov@skov.dk...
