QUIC-RELEASE
M
QR-CL-H
odEL
P
A
I
ARtS
nd
nStRUCtIon

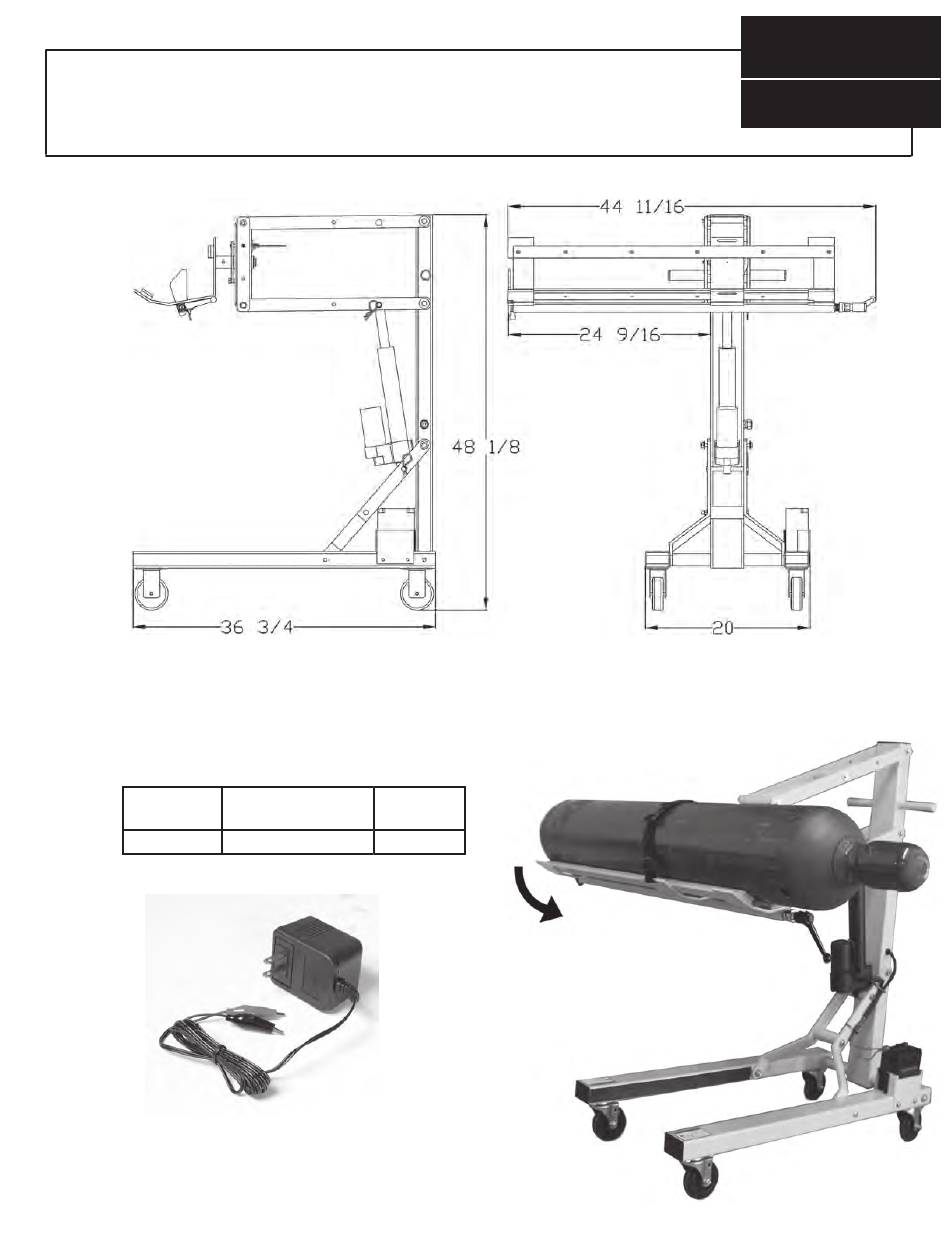

MODEL
DESCRIPTION
QR-CL-H
Complete System
The unit operates off of a supplied 12v battery.
A charger is provided with the unit.
H
®
oRIzontAL
M
AnUAL
The Zico Horizontal Cylinder Lift raises and lowers "M" through
"J" cylinders. Unit has a maximum lifting capacity of 200 lbs.,
and a maximum lift height of 47".
WT./@
IN LBS.
165.0
C
L
yLIndER
Ift
®
ZICO
3030PM19
Rev. 9-9-15
Advertisement
Table of Contents
Related Manuals for Zico QUIC-RELEASE QR-CL-H
Summary of Contents for Zico QUIC-RELEASE QR-CL-H
- Page 1 3030PM19 odEL ARtS nStRUCtIon AnUAL Rev. 9-9-15 The Zico Horizontal Cylinder Lift raises and lowers "M" through "J" cylinders. Unit has a maximum lifting capacity of 200 lbs., and a maximum lift height of 47". WT./@ MODEL DESCRIPTION IN LBS.
- Page 2 Page 2...
- Page 3 ITEM ITEM PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. 3030-250-101 Leg, Left 9015-172500 Nut, 1/4-20 Nylon Lock 3030-250-102 Leg, Right 3030-255-111 Horizontal Cart Main Shaft 3030-250-103 Main Upright 9014-202500 Lockwasher, 1/4ø Split Tie Rod Horizontal Cart Bearing 3030-250-105 3030-255-121 3030-250-107 Forward Brace 3097-105-145...
- Page 4 WARNING: When moving the QR-CL-H with a cylinder, move the unit slowly with the cylinder in a vertical position. Have the bottom of the cylinder as close to the floor as possible to avoid tipping over. WARNING: QR-CL-H should always be stored with the Rack Assembly (9) in the upright/vertical position and the Footplate (10) firmly against the floor.
- Page 5 3. Pull the Lock Handle (19A) and manually rotate Rack Assembly until it locks into the horizontal position. 4. Move QR-CL-H into position next to the vehicle. Raise Rack Assembly to the proper height to align with cylinder compartment. Activate wheel locks. 5.
- Page 6 Loading a cylinder onto the QR-CL-H 1. Position Rack Assembly (9) and Footplate (10) at the end of cylinder to be loaded. Angle cylinder enough to slide Footplate underneath. 2. Activate wheel locks, then buckle cylinder in place. Tighten straps to secure. 3.
- Page 7 TOLL FREE: 800-711-3473 10 West College Avenue, P.O. Box 337, Yardley, PA 19067-0587 • (215) 493-3618 • FAX: (215) 493-1401 *ZICO is a registered trademark for fire, safety and marine products made by Ziamatic Corp. Copyright Ziamatic Corp. 9-15 Page 7...
