Even Embers HTR3046AS Owner's Manual

Pellet chiminea
Hide thumbs

Advertisement

Quick Links

WARNING: FOR OUTDOOR USE ONLY
ASSEMBLY AND OPERATING IN STRUC TIONS
NOTICE TO
INSTALLER:
LEAVE THESE
INSTRUCTIONS
WITH THE
CHIMINEA OWNER
FOR FUTURE
REFERENCE .
PELLET CHIMINEA
OWNER'S MANUAL
Model HTR3046AS
PLEASE READ THIS ENTIRE MANUAL BEFORE
INSTALLATION AND USE OF THIS PELLET FUEL-
BURNING APPLIANCE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY
DAMAGE, BODILY INJURY OR EVEN DEATH. CONTACT
LOCAL BUILDING OR FIRE OFFICIALS ABOUT
RESTRICTIONS AND INSTALLATION INSPECTION
REQUIREMENTS IN YOUR AREA. SAVE THESE
SAVE THIS MANUAL FOR FUTURE REFERENCE
WARNING
INSTRUCTIONS.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HTR3046AS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Even Embers HTR3046AS

  • Page 1 PELLET CHIMINEA OWNER’S MANUAL WARNING: FOR OUTDOOR USE ONLY SAVE THIS MANUAL FOR FUTURE REFERENCE ASSEMBLY AND OPERATING IN STRUC TIONS Model HTR3046AS WARNING PLEASE READ THIS ENTIRE MANUAL BEFORE NOTICE TO INSTALLATION AND USE OF THIS PELLET FUEL- INSTALLER: BURNING APPLIANCE.
  • Page 2 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR CHIMINEA AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR CHIMINEA. WHEN YOU SEE THE SAFETY ALERT SYMBOL, PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR CHIMINEA.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS: General Warnings ..........3-4 Operating the Chiminea .

  • Page 4: General Warnings

    GENERAL WARNINGS: WARNING When using, basic safety precautions should always be followed including the following: • Always place chiminea on a level non-combustible surface. • Operate only per manufacturers instructions. • Keep all combustible materials at least 36 inches (91 cm) away from the chiminea at all times. Do not use this chiminea under any overhang or near any combustible structures.

  • Page 5: Operating The Chiminea

    Follow these guidelines to prevent this colorless,odorless gas from poisoning you, your family or others. • Know the symptoms of carbon monoxide poisoning; headache, dizziness, weakness, nausea, vomiting, sleepiness and confusion. Carbon monoxide reduces the blood’s ability to carry oxygen. Low blood oxygen levels can result in loss of consciousness and death. •...
  • Page 6 LIGHTING THE CHIMINEA: Initial Lighting Instructions (To be used on initial fi ring) Push shut-off lever (inside the hopper) down, turn heat adjustment lever to low before fi lling hopper with pellets. Fill the hopper around ½ full. This one-time initial fi ring needs to be done to cure the paint on the unit.

  • Page 7: Proper Care And Maintenance

    PROPER CARE & MAINTENANCE: • Remove wood pellets from hopper if chiminea will not be used for a long period of time. Wood pellets can become soggy due to moisture/humidity and clog up the fi repot and pellet chute. • Disposal of ashes –...

  • Page 8: Assembly Instructions

    PARTS CARD CONTAINS: (34) M6 x 12 mm Bolts M4 x 10 mm Bolts M6 Nuts HTR3046AS Component Card M6 x 12 mm Bolts - 34 pcs M4 x 10 mm Bolts - 4 pcs M6 Nuts - 2 pcs...
  • Page 9 ® PELLET CHIMINEA. FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 855-735-9922. (Proof of purchase will be required.) The following tools are required to assemble your Even Embers ® Pellet Chiminea: • Phillips Screwdriver • 10 mm Wrench PARTS LIST:...
  • Page 11 Lay down cardboard to protect the fi nish of the chiminea. With chiminea body assembly upside down, attach legs to body using eight M6 x Legs 12 mm bolts. Attach rear, front and side panels to legs using sixteen M6 x 12 mm bolts.
  • Page 12 Ash Tray Rails Attach ash tray rails to front and rear panels using four M4 x 10 mm bolts. Chimney Install chimney onto chimney collar and secure with four M6 x 12 mm bolts.
  • Page 13 Install chimney cap Chimney Cap using four M6 x 12 mm bolts Attach hopper lid handle to hopper lid using two M6 x 12 Lid Handle mm bolts and M6 nuts.
  • Page 14 Firepot Install fi repot into base of chiminea body. Install heat baffle over fi repot, make sure tabs on heat baffle align with holes in chiminea base. Heat Baffle Attach heat adjustment coil spring handle. Install ash clean-out Heat Adjuster Coil lever.

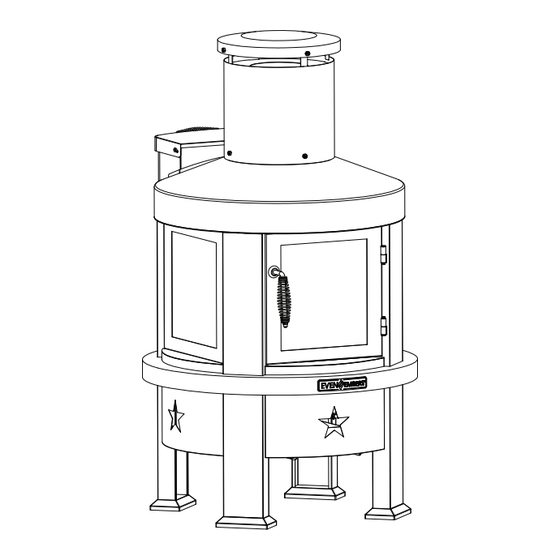

  • Page 15 Even Embers Pellet Chiminea - Assembled...
  • Page 16 WARRANTY ® The Boltz Group warrants to the original purchaser that the Even Embers Pellet Fuel Chiminea is free from defects due to workmanship or materials for One-year. The Boltz Group obligations under this warranty are limited to the following guidelines: •...
