Summary of Contents for Roam Huwa-San FOGGER

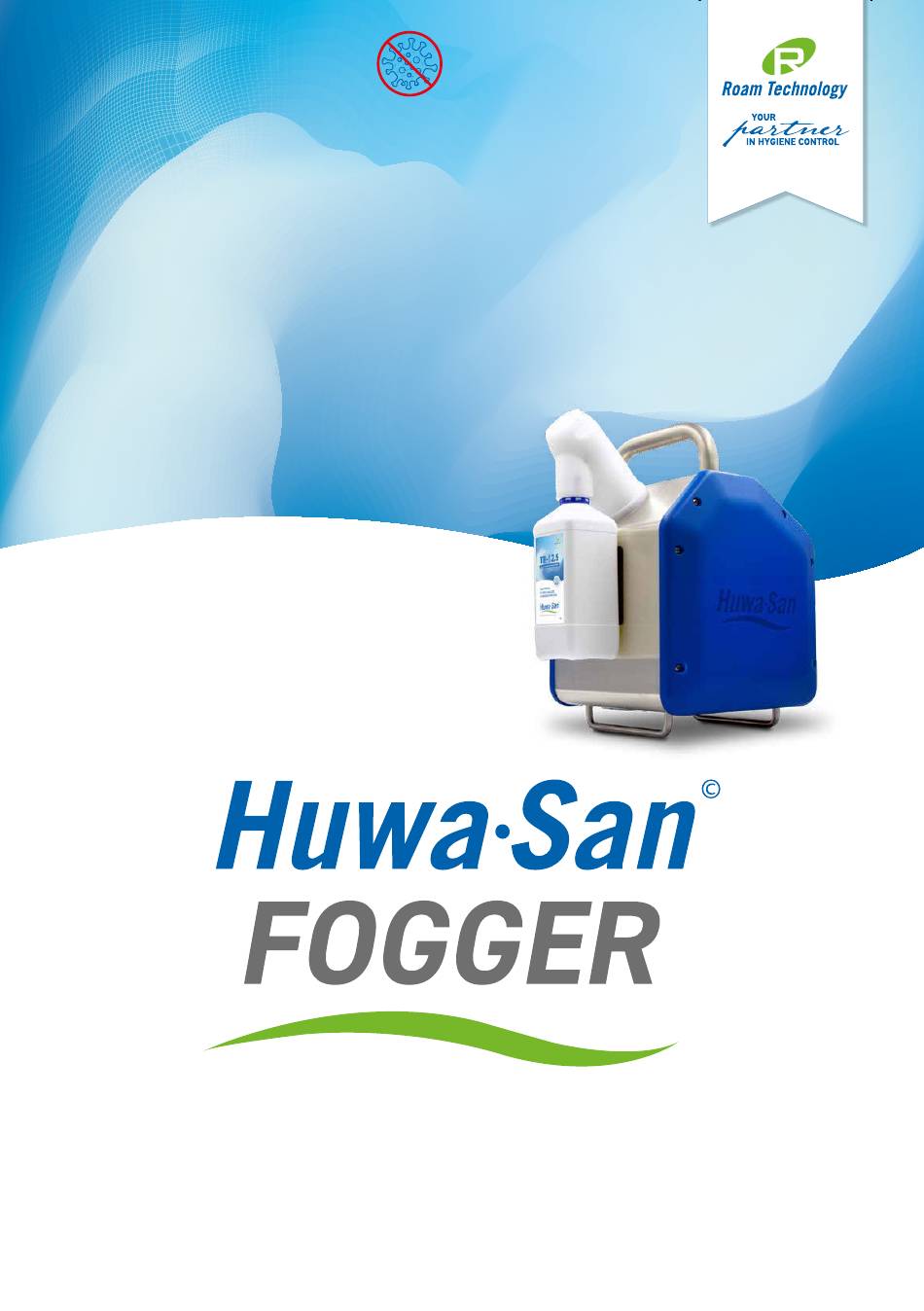

- Page 1 COVID-19 prevention MANUAL...
- Page 2 ! IMPORTANT NOTICE ! ALWAYS PAY ATTENTION TO THE FACT THAT YOU ARE WORKING IN VAPOUR PHASE ENVIRONMENT. DISINFECTION IN VAPOUR PHASE CAN ONLY BE EXCECUTED BY OPERATORS TRAINED BY THE SUPPLIER OR HIS OFFICIAL APPOINTED REPRESENTATIVES. ALWAYS WEAR APPROPRIATE PERSONAL PROTECTION EQUIPMENT (EG. GLOVES AND ADEQUATE EYE PROTECTION) WHEN HANDLING THE PRODUCT.
-
Page 3: Table Of Contents
Manual • HUWA-SAN © FOGGER MANUAL Huwa-San Fogger © 1. The Huwa-San Fogger manual ......................5 © 2. Disclaimer ............................. 6 3. Safety Guidelines ..........................7 4. The Huwa-San Fogger ........................9 © 4.1 General ................................9 4.2 Intended use ..............................9 4.3 Benefits ................................ -
Page 5: The Huwa-San Fogger Manual
The first sections of this manual include the safety guidelines and a functional description of the Huwa-San Fogger. Make sure to read these sections with care to familiarize yourself with the precautions and the function and location of various parts of the Huwa-San Fogger. -
Page 6: Disclaimer
5. Attach the door hanger with 6. Only enter when H P337+P313 - If eye irritation persists: Get medical advice/attention. Remove and store Huwa-San Fogger and Huwa-San TR-12.5 safely. with tape. “No entry” sign to indicate the concentration is < 2 ppm P501 - Dispose of contents/container to local and/or national regulations room cannot be entered. -
Page 7: Safety Guidelines
Fogger when not in use in a dry, high, or locked-up place, out of the © reach of children. By preference between 10°C and 35°C. Use the power cord supplied with the Huwa-San Fogger for safe operation. • Manual Huwa-San Fogger • 7... - Page 8 Never carry the Huwa-San Fogger by the power cord and never pull the power cord to © disconnect it. Keep the power cord away from heat, oil and sharp edges. Do not put items or liquid in the openings of the Huwa-San Fogger (nozzle, opening for ©...
-
Page 9: The Huwa-San Fogger
THE HUWA-SAN FOGGER © General Huwa-San Fogger is a solid, reliable and easy to use whole room disinfection device. It © enables users to disinfect surfaces in private, public, industrial areas and other spaces in a quick and efficient fashion. Huwa-San Fogger uses Huwa-San TR-12,5 (12.5% H... -
Page 10: Package Content
Package content • 1 Huwa-San Fogger © • 1 nozzle head • 1 power cord • 1 user manual user manual power cord nozzle head Huwa-San Fogger © Main components nozzle head latch ON/OFF switch device socket identification plate ventilation grid 10 •... -
Page 11: Accessories
To check efficient dispersion of Huwa-San TR-12,5 throughout © the room, locate Roam Technology test strips in corners or on closets. These test strips cannot be used to measure the concentration, only to demonstrate the distribution of the product in difficult to reach areas. -
Page 12: Working With The Huwa-San Fogger
5. WORKING WITH THE HUWA-SAN FOGGER © Always wear gloves and adequate eye protection when handling a hydrogen peroxide solution. Always wear a gas mask and cover-all when entering a room where >2 ppm hydrogen peroxide vapour is still present. The room can only be released after disinfection when the measured hydrogen peroxide concentration is <... -
Page 13: Preparing The Huwa-San Fogger For Disinfection
• Effectively seal doors and gaps with tape. In rooms that by definition have overpressure, the supply of fresh air must be switched off. • Thoroughly clean surfaces, equipment, material and pipes first, rinse any cleaning agent with clean water. Remove all excess water. Make sure visible dirt and wet spots are cleaned and dried before fogging the room. -
Page 14: Disinfection Procedure
© the center of the room. 5. Windows Start-logo is shown. 6. Roam Technology splash screen is shown. 7. The start menu will appear. The start menu shows the data of the last disinfection, the system date and time. To start a disinfection procedure that does not need to be saved in the documentation list, see 6.2 Disinfection without documentation. -
Page 15: Disinfection Without Documentation
Disinfection without documentation 8. Press “New disinfection”. 9. Subsequently press “No” for undocumented disinfection. For documented disinfection see 6.3 Disinfection with documentation. 10. The screen for entering the room size 11. The device reads the bottle ID. appears with the last value of room size. Enter the room size using the display keyboard. - Page 16 14. If the device cannot read the bottle ID, an 15. The countdown time appears. error appears. If this screen appears see 7.2 Trouble shooting. 16. Adjust the countdown time to the time 17. Press “Start disinfection”, the countdown required for the operator to leave the room starts and the device will produce a using the slider (e.g.
-
Page 17: Disinfection With Documentation
Disinfection with documentation 19. When choosing for disinfection with 20. Choose “Manage users” or “Manage rooms”. documentation, it is recommended to manage the presets. Manage presets by pressing “Managing presets” in start menu. 21. Press “Manage users”, the user list opens. 22. - Page 18 25. Choose “Manage rooms” and the room list 26. When editing the name you can change the is shown. Press “ + Add new room” keyboard layout with the bottom left key. After filling in both fields, press enter. 27. Press “+ Add new room”, the room is added 28.
- Page 19 31. Press “Cancel” to return to presets menu. 32. Use the left arrow to return to the start menu. A documented disinfection can now start, press “New disinfection”. 33. Press “Yes” for a documented disinfection. 34. Now choose a user from the users list and a room from the room list or add a new user and/or room by respectively pressing “+ Add user”...
-
Page 20: After Disinfection
37. Adjust the countdown time with the slider 38. Press “Start disinfection”, the countdown to the time required for the operator to starts (identical procedure non- leave the room. documented disinfection). 39. After countdown time, product nebulization starts. After disinfection 40. - Page 21 45. Set the ON/OFF switch to OFF to power off 47. Safely store Huwa-San TR-12,5 and the © the unit. Huwa-San Fogger. 46. Remove the Huwa-San TR-12,5 bottle from © the Huwa-San Fogger for transportation. ©...
-
Page 22: Managing Settings
PIN code. 50. To edit the internal time and date of the 53. To adjust the language, press “Set Huwa-San Fogger, press “Set time”. language”. 51. Choose the date by rolling through the calendar and pressing the check mark. - Page 23 56. When pressing “Service options” in the 57. When pressing “Network settings”, you can settings screen, a service code is requested. activate a separate WLAN-Network for the This screen is only for manufacturing and fogger with the DHCP-Server controlled service (e.g. resetting to factory defaults). by the fogger.
-
Page 24: Emergency Stop And Restart
62. When the PIN verification is no longer 63. Next, press the blue “Save” button. wanted, delete the PIN code by pressing the arrow on the numeric keypad. 64. Confirm your wish to delete the PIN code by pressing “Yes”. Emergency stop and restart 1. -
Page 25: Maintaining The Huwa-San Fogger
The RFID-tag was not recognized. Make sure to only use Huwa-San TR-12,5 specifically © developed for the Huwa-San Fogger in combination with the device. Additionally check if the RFID-tag is aligned with the RFID-reader. • Press the Start/Stop key during 3 seconds to clear the error message. -
Page 26: Technical Data
8. TECHNICAL DATA Technical characteristics Huwa-San Fogger © GENERAL Tank Capacity Model/Type reference Huwa-San Fogger © Liquid Huwa-San TR-12,5 Mixed materials: plastic case and Housing Bottle identification Yes – RFID tag metal sheets (IP20) 5 Inch Resistive Touch Screen Nozzle type Venturi Display (800x480) -
Page 27: Compliance
Compliance... - Page 28 Roam Technology NV Geleenlaan 24 • 3600 Genk • Belgium T: +32(0)89 44 00 42 • info@roamtechnology.com • www.roamtechnology.com...
