CSH-801

COMPACT DISC PLAYER

User Manual

Table of Contents

Need help?

Do you have a question about the CSH-801 and is the answer not in the manual?

Questions and answers

Summary of Contents for UNITRA CSH-801

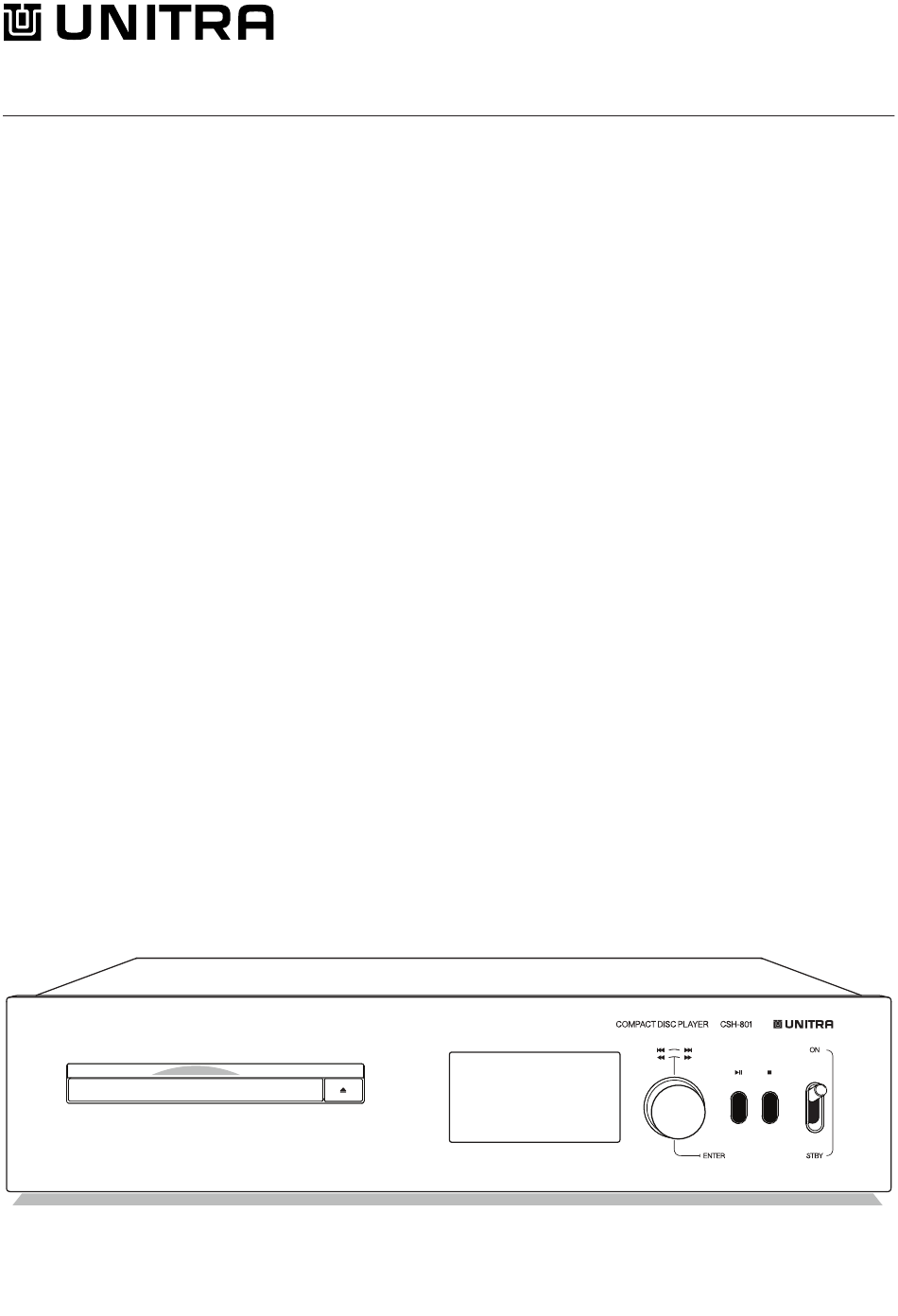

Page 1 CSH-801 COMPACT DISC PLAYER User Manual...
Page 3: Table Of Contents
Contents Manufacturer Manufacturer Unitra sp. z o.o. Przejazdowa 2b, About this document 02-496 Warsaw, Poland Symbols used in this manual ......4 website: www.unitra.com...
Page 4: About This Document
About this document Thank you for purchasing this Unitra product. To ensure proper operation, read this manual carefully and operate the device in accordance with the instructions contained in it. Please keep this manual for future reference after reading it.
Page 5: Acronyms, Abbreviations, And Technical Terms
Description Content of the package Make sure that the following elements are included in the package: • Device (CSH-801 Compact Disc Player) • Power cord • Other cables (if specified in your order) • Remote control (battery type CR2032 included) •...
Page 6: Front Panel Overview
Front panel overview Disc tray To load a disc. p. 16. Disc visor To display the disc loaded in the disc tray. The disc presence is indicated by the backlight. NOTE The disc backlight can be turned off in settings. p.
Page 7 Display To display the playback info and menu. NOTE The Device uses E Ink display. p. 12. Control knob To control the playback ( p. 18.) and navigate menu on the Device ( p. 20.). Rotate the knob right. Skip forward Rotate the knob left.
Page 8: Rear Panel Overview
Rear panel overview ANALOG jacks To connect to an amplifier with an analog input. p. 14. DIGITAL COAXIAL jack To connect to an amplifier with a digital input or to an external DAC. p. 14. DIGITAL OPTICAL jack To connect to an amplifier with a digital input or to an external DAC. p.
Page 9: Remote Control Overview
22. NOTE You can use the DIMM key on the remote control to adjust the brightness of other Unitra devices. To synchronize the brightness of all Unitra devices, press and hold the DIMM key on the remote control. The brightness of all the devices is automatically set to 0.
Page 10 VOLUME −/+ keys To adjust the volume level of Unitra amplifiers. SOURCE keys To select the input source on Unitra amplifier. Each push selects the previous or the next input source in line. Infrared signal transmitter To send the signal to the infrared signal receiver on the front panel.
Page 11: Installation Of Batteries
Installation of batteries in the remote control Step Insert a pin (e. g. a paper clip) into the hole on the back surface to remove the plate with the battery holder. Step Insert one battery (CR2032) according to the polarity markings (+ and −) on the battery holder. Step Install the plate with the battery holder on the remote control.
Page 12: Operation Of The Remote Control
Operation of the remote control Operate the remote control in the range shown in the illustration by pointing it toward the remote control signal receiver on the front panel of the Device. ° ° Display The Device uses electronic paper display technology, known for its reflective properties, ensuring clear visibility even in bright sunlight.
Page 13: Recommendations For Use
Recommendations for use NOTICE • If you plan not to use the Device for a long period of time, make sure that the Device is disconnected from the AC power source Be aware that when the Device is in standby mode the electric current is still flowing through the unit •...
Page 14: Connections
Connections CAUTION Do the input connections before connecting the Device to the AC power source p 15 Connecting an amplifier or a DAC Amplifier Amplifier/DAC Amplifier/DAC ANALOG DIGITAL DIGITAL OPTICAL COAXIAL Use analog output if your amplifier do not have built-in DAC or you want to use the DAC built in the Device .
Page 15: Connecting The Ac Power Cable
Connecting the AC power cable CAUTION Install the Device in accordance with the Safety Brochure (section Installation) enclosed to this product After all connections are ready, you can connect the Device to the AC power source. Step Connect the power cord to the AC IN terminal. Step Connect the power cord to the AC power source.
Page 16: Operation
Operation Before operating the device, make sure that all the connections are ready and the Device is turned on. p. 7. Loading and unloading a disc Step Press the (Open/Close) button. The disc tray will open. Step When the disc tray is fully open, remove the remaining disc (if there is one). Step Place a disc carefully in the tray with the label side facing up.
Page 17: Disc Playback
Disc playback Playback screen Album info / stop screen This screen appears when the disc is loaded correctly or the playback is stopped. Track's title Artist's name Track's number Elapsed time Track's total time Artist's name Progress bar Album's title Playback mode indicators Album play time Number of tracks...
Page 18 Skip tracks To skip tracks rotate the control knob or use the remote control when on the playback screen. • Rotate the knob one step right Skip to the next track • or press key on the remote control. • Rotate the knob one step left Skip to the previous track •...
Page 19 Shuffle/repeat playback mode To activate or deactivate shuffle or Repeat playback mode, enter the menu p. 20.), select the desirable mode and press ENTER. To playback tracks in a random order. Shuffle To repeat the album playback as long as the Repeat all mode is on.
Page 20: Navigating The Menu
Navigating the menu Navigating the menu Menu screen To enter the menu from playback screen and album info / stop screen • press the control knob (ENTER) • or press the ENTER key on the remote control. To go up the menu •...
Page 21: Track List
Track list Track list is an album overview. It allows for easy and fast track selection from the list. Enter the menu and select Track list (Menu/Track list) from the list or rotate the control knob on the album info / stop screen. The currently played track will appear in bold text.
Page 22: Settings
You can use the DIMM key on the remote control 30 min The Device will automatically to adjust the brightness of other Unitra devices. 60 min switch to the STANDBY To synchronize the brightness of all the Unitra 90 min...
Page 23: Standby Clock
Language Standby clock To select the Device interface language. Current time can by displayed on the screen when the Device is in the STANDBY mode. Enter the menu and select Language (Menu/ Settings/Language) from the list. Select the Enter the menu and select Clock (Menu/Settings/ language from the list and press ENTER.
Page 24: Firmware Update
ENTER to proceed the Download to your computer the newest firmware file Step 3 update on the Device ( (.uf2) from www.unitra.com. • If the update did not finish succesfully after Step 2 minutes, unplug the AC cable and plug it again.
Page 25: Troubleshooting
Troubleshooting Most difficulties in audio systems are the result of incorrect connections, or improper control settings. If you encounter problems, isolate the area of the difficulty, check the control settings, determine the cause of the fault and make the necessary changes. If you are unable to get sound from the Device, refer to the suggestions for the following conditions: Problem...
Page 26 Problem Cause Remedy The remote control There is a problem with Make sure that the battery is installed with the correct doesn’t work properly. the battery. polarity (+/–). Replace the battery with a new one. p. 11. The distance between •...
Page 27: Technical Specifications
Technical specifications Drive TEAC CD5020B-AT Supported Media CD / CD-R / CD-RW CD-DA (CD-Audio) Supported Audio Formats WAVE, MP3 (after future software update) Display E Ink (3,69", 480×280 px, monochromatic) Texas Instruments PCM5102A Frequency Response 7 Hz – 20 kHz Total Harmonic Distortion plus Noise 0.004% Dynamic Range...
Page 28: Disposal
Disposal This Device is labeled in accordance with the European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). The Device or used and fully discharged batteries should not be disposed of with household waste. Since the transposition of Directive 2002/96/EC into the national law electric and electronic equipment must not be disposed of together with household waste and the user is obliged to dispose of a broken or redundant electrical or electronic device at a dedicated collection point, put it in a special...
Page 29: Appendix
Appendix Licensing Font used in the Device interface: Public Sans. Copyright 2015 The Public Sans Project Authors (https://github.com/uswds/public- sans) This Font Software is licensed under the SIL Open Font License, Version 1. 1 . This license is copied below, and is also available with a FAQ at: http://scripts.sil.org/OFL SIL OPEN FONT LICENSE Version 1.
Page 30 person who contributed to the Font Software. PERMISSION & CONDITIONS Permission is hereby granted, free of charge, to any person obtaining a copy of the Font Software, to use, study, copy, merge, embed, modify, redistribute, and sell modified and unmodified copies of the Font Software, subject to the following conditions: 1) Neither the Font Software nor any of its individual components, in Original or Modified Versions, may be sold by itself.
Page 32 Copyright: Unitra sp. z o.o. Revision 2 (2023-11-10) For more information go to: https://unitra.com or scan QR code below.
