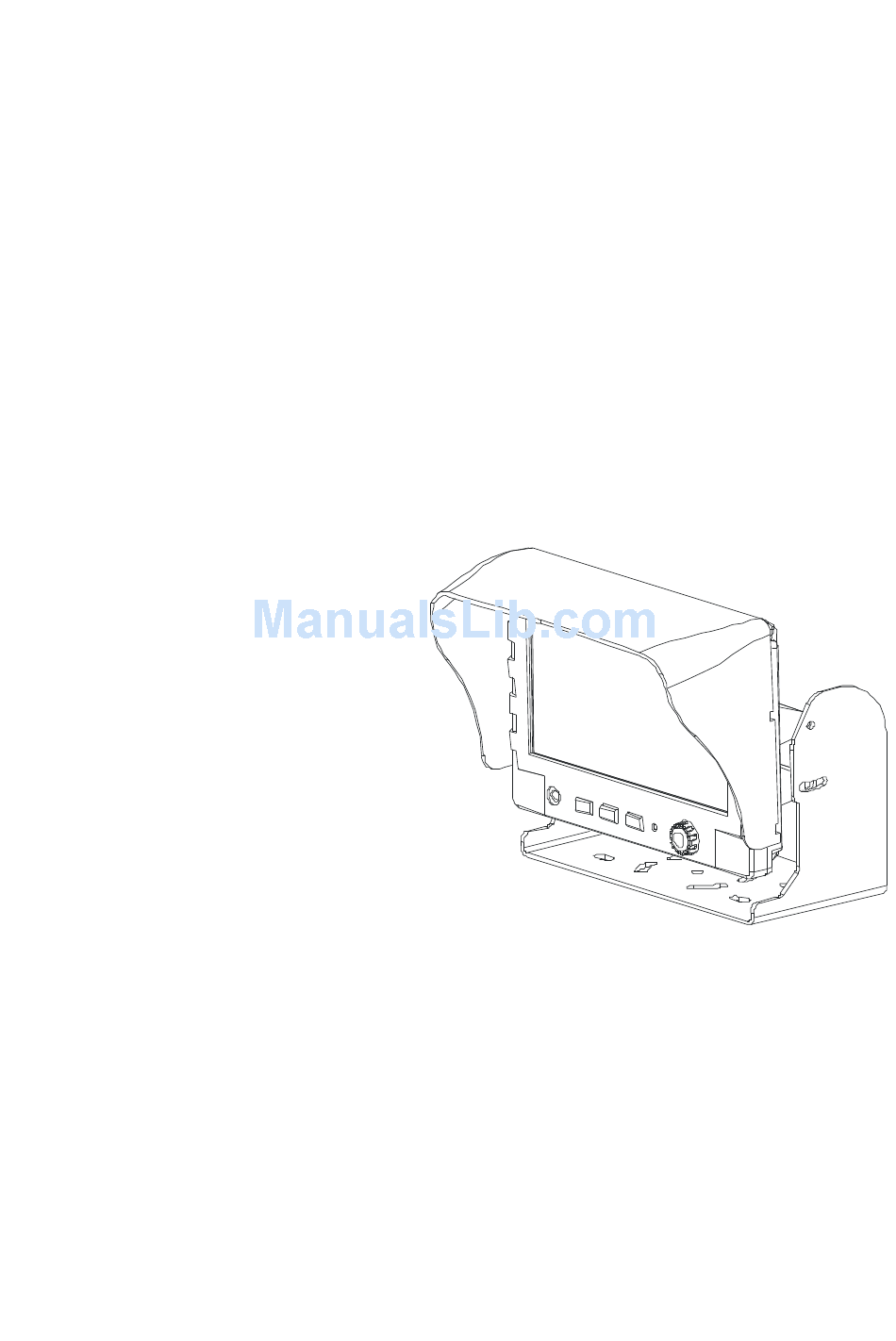

- Page 1 Thank you for purchasing our product. Please read this user Manual before using the product. Change without Notice 7” TOUCH PANEL LCD MONITOR USER MANUAL...
-
Page 2: Safety Precaution
SAFETY PRECAUTIONS Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Table Of Contents
TABLE OF CONTENT Safety Precaution.………………………...…………………………………………...2 Table of Content.….………………………………………………………………………3 Features….………………………………………………………………………………...4 Package Contents…….………………………………………………………………..5 TFT Installation……………………………………………….…………………………6 Signal Cable Description……..………………………………….…………………..7 Control Cable Description……..…………………………………….……………….9 Front Panel Control.……………………………………………………..………… 10 Main OSD Menu………...……………………………………………….………11 Screen Menu.…………………………………………………………………………...13 Display Menu…….…………………………………………………………….…15 Camera Menu...……………………………….…………...16 Factory Setting Menu.……………………………………………………………..18 Vehicle Installation ……………………………………….……………………..19 Spec ific ation…..………………………………………..……………………….20 Attachment…..……………………………………………….……………………21... -
Page 4: Features
FEATURE Professional Mobile Touch Panel Solution Advanced OSD Menu for easy use Support up to 4 CCD Camera inputs (Mini din connector) Extra RCA input for multimedia while parking (VCD, DVD, Game device) Provide 2 Video / 1 Audio Signal Output (Live Out) Support Single / Dual / Triple / Quad Screen (Cam Out) Signal Trigger for Side / Rear View Auto Day &... -
Page 5: Package Contents
1. Package Contents Item 1. 7” LCD Monitor 2. Sun-Hood 3. Mounting Bracket 4. Accessories 5. Control Cable 6. User Manual Qty. -
Page 6: Tft Installation
2. TFT Installation Step 1 Check the package and make sure all parts are included. Step 2 Clip the sun-hood on to the monitor. Step 3 Make sure it is installed properly. Step 4 Install the monitor on to the bracket. Step 5 Adjust the monitor to an appropriate / comfortable viewing angle before tightening the screws. -
Page 7: Signal Cable Description
3. Signal Cable Description CAM R (Mini din) (NTSC/PAL system presume by this car rear CCD) For 1 camera connection CAM A (Mini din) For 2 camera connection CAM B (Mini din) For 3 camera connection CAM C (Mini din) For 4 camera connection LIVE VIDEO OUT (White Color RCA Jack) - Page 8 Mini Din Pin Assignment Function of the Audio Cam A Cam B Cam C Cam R Cam A + Cam B Cam C+ Cam R Cam A+ Cam R Cam R+ Cam B Cam A + Cam C Cam C+ Cam B Cam R / Cam AB Quad ※...
-
Page 9: Control Cable Description
4. Control cable Description WIRE COLOR FUNCTION ACC POWER BLACK WHITE Parking Control BLUE Reverse Control ORANGE Right Turn Control YELLOW Left Turn Control 1. The control cable sequence : Reverse > Right / Left > Park (AV) 2. With car power is on, the monitor power is off, when making a reverse / right / left turn, the monitor will display default screen. -
Page 10: Front Panel Control
5. Front Panel Control POWER Press the power button to activate the monitor or to keep the monitor under stand by mode (In Red Led). SOURCE With power on, press this button to select image sequence CAM A+B→CAM C+R→CAM A+RàCAM R+Bà CAM A+Cà CAM C+B àCAM R+A+B→CAM A→CAM B→CAM C→... -
Page 11: Main Osd Menu
3. Volume Value: Exit the OSD menu, user can turn this switch left or right to adjust the volume value. *When pull the hand break, user need to press SOURCE button again to display AV IN picture. OSD MENU 1. Press the MENU button to enter to the OSD Menu 2. - Page 12 Up and Down Direction buttons Up and down arrow of the touch panel LCD are working as direction button. Users are able to use them to move up and down between each menu by click on them. Enter button It is working as enter functioning button of this touch Panel.
-
Page 13: Screen Menu
SCREEN Menu The Screen menu set up contains different setting for the TFT: BRIGHTNESS Provide adjustment for the overall picture shade and brightness of TFT display. Setting value from 0 ~ 100. CONTRAST Provide adjustment for the contrast level of the TFT display between the light and dark areas. - Page 14 DIR IMAGE The screen image setting of this touch panel during left / right turn: TRIPLE: When you are making a right turn or left turn, the screen of touch panel will display triple images for left hand side, right hand side and rear view when you are making a right turn or left turn.
-
Page 15: Display Menu
DISPLAY MENU The DISPLAY MENU set up contains the on screen identification and the activation of the distance gauge. DISPLAY Set “ON” to show the source of video input on screen or “OFF” to keep it invisible. DISTANCE GAUGE Set the distance gauge “ON” to show the distance gauge on screen while reserving or “OFF”... -
Page 16: Camera Menu
CAMERA MENU MIRROR Select “ON” to activate the mirror function for different cameras or “OFF” for a normal image. JUMP By pressing this button, the driver will be able to obtaine the image selected under this setting. QUAD Obtain image from all camera input in quad picture while pressing the JUMP button and press source key to returning back to the last screen. - Page 17 CAM R+B CAM A+C CAM C+B CAM R+A+B Obtain image from camera R+A+B in triple picture CAM A CAM B CAM C CAM R CAM OUT Composite video loop out to recorder, monitor or other device QUAD CAM A CAM B CAM C CAM R RETURN...
-
Page 18: Factory Setting Menu
Factory Setting Menu RECALL: Use this feature to recall the factory default settings. Time Out: When splite screen under Jump mode setting, the time back to splite screen after touched for desired camera screen Setting value from 0 ~ 100. EXIT: Use this feature to exit OSD menu. -
Page 19: Vehicle Installation
6. Vehicle Installation C a m era (This “ DISTANCE GAUGE” is for user’s reference only) Install Camera R (for rear view) Use a measuring tool to mark out the distance behind the vehicle. Adjust the viewing angle of the camera so that the distance gauge shown from the TFT match to the distance marks behind the vehicle. -
Page 20: Specification
7. Specification Screen size Active area Pixel configuration Resolution Viewing angle Power source: Contrast ratio Brightness Composite Video In Connector Input Signal Impedance Camera MINI DIN In Connector Input video signal level Impedance Input audio signal level Power output for camera AV AUDIO IN Connector Input video signal level... -
Page 21: Attachment
8. ATTACHMENT Attachment 1: Dimension Chart... - Page 22 ATTACHMENT 2: Installation Chart Notice: Please proceed with suggested installation instruction according to above picture to avoid any malfunction of the product. Insulation spacer (Rubber Pad)
