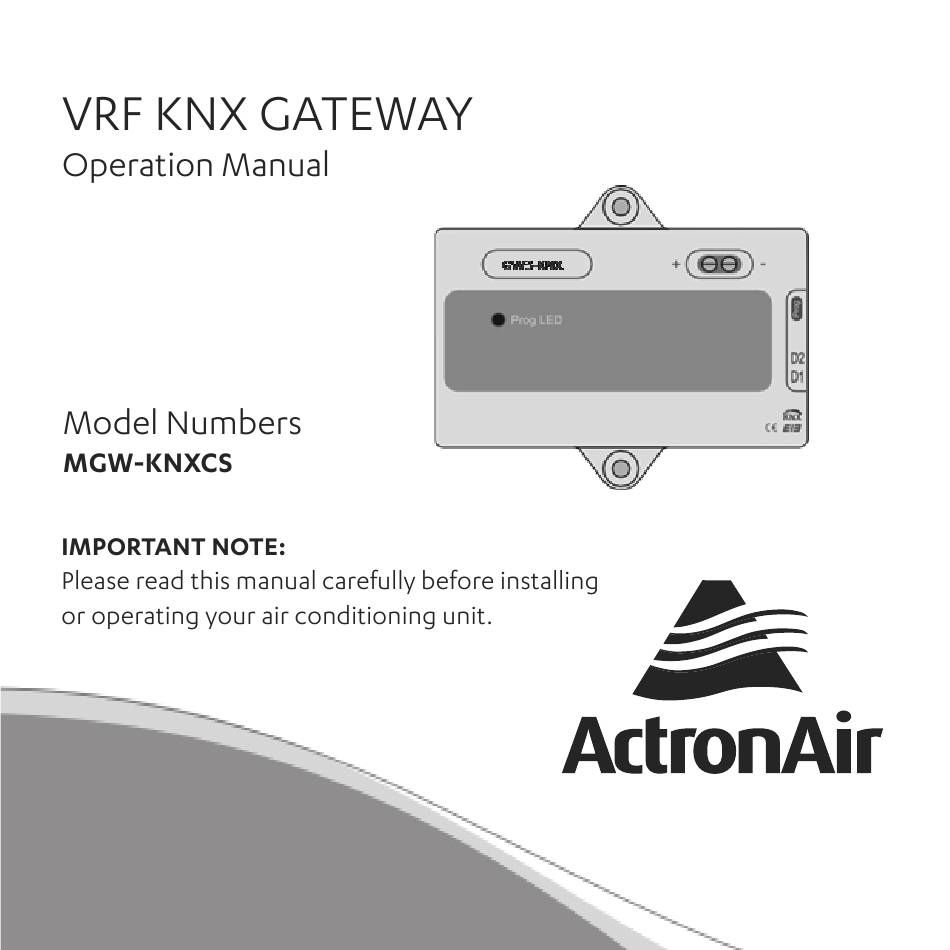

ActronAir MGW-KNXCS Operation Manual
ActronAir MGW-KNXCS Operation Manual

ActronAir MGW-KNXCS Operation Manual

Vrf knx gateway

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the MGW-KNXCS and is the answer not in the manual?

Questions and answers

Summary of Contents for ActronAir MGW-KNXCS

  • Page 3 ● This manual gives detailed description of the precautions that should be brought to your attention during operation. ● In order to ensure correct service of MGW-KNXCS, please read this manual carefully before using the unit. ● For convenience of future reference, keep this manual...
  • Page 4 Table of Contents I. Safety precautions..................1 II. Other precautions ..................3 III. Installation procedure................. 5 IV. ETS database group objects introduction ..........8...
  • Page 5: Safety Precautions

    I. Safety precautions The following contents are stated on the product and the operation manual, including usage, precautions against personal harm and property loss, and the methods of using the product correctly and safely. After fully understanding the following contents (identifiers and icons), read the text body and observe the following rules.
  • Page 6 WARNING Please entrust the distributor or professionals to install the unit. Installation by other persons may lead to imperfect installation, electric shock or fire. Strictly follow this manual. Imporper installation may lead to electric shock or fire. Reinstallation must be performed by professionals. improper installation may lead to electric shock or fire.
  • Page 7: Other Precautions

    GB950-86 M4X20 (For Mounting on the Wall) mounting screw Cross round head M4X25 GB823-88 mounting screw (For Mounting on the Electrical Switch Box) Installation Manual For Mounting on the Wall Plastic expansion pipe For connecting the indoor unit and MGW-KNXCS 2-core shielded cable...
  • Page 8 1. One KNX module can only connect with one indoor unit;The KNX module should connect to indoor D1D2E ports. 2. Circuit of MGW-KNXCS is low voltage circuit. Never connect it with a standard 220V/380V circuit or put it into a same Wiring Tube with the circuit.
  • Page 9: Installation Procedure

    III. Installation procedure 1.The product parameters Remarks Name Dimensions 85*51*16mm Power supply 29VDC 10mA,Supplied through KNX bus KNX programming LED indicator KNX programming button Push button Configuration with ETS software. Configuration 2.The product parameters ① MGW-KNXCS ② ③ ④...
  • Page 10 For detailed information of ETS software, please contact knx association: www.knx.org. ● ETS database (*.vd*)of MGW-KNXCS please consult ActronAir representative. 3. Wiring installation instruction The Wiring diagram follows,the MGW-KNXCS connect to the indoor Unit and KNX Power. KNX TP-1 (EIB)bus MAX 500m...
  • Page 11 The Introduction MGW-KNXCS ● MGW-KNXCS allows monitoring and control, fully bi-directionally, of all the functioning parameters of Air Conditioners from KNX installations. ● Simple installation. Can be installed inside the own indoor unit, it connects directly in one side to the electronic circuit of the indoor unit (cable supplied) and in the other side to the KNX TP-1 (EIB) bus.
  • Page 12: Ets Database Group Objects Introduction

    IV.ETS database group objects introduction Index Internal Name Function Text Object Size Flags Datapoint Type Control_Mode 0-OF;1-Fan;2-Co;3-He;4-Au;5-Dr 1 Byte RWC--- [20.102] DPT_HVACMode Control_Setpoint Temperature of Non-Auto Mode °C 2 Bytes [9.1] DPT_Value_Temp RWC--- Control_Setpoint Temperature of Auto Mode(Heat) °C 2 Bytes RWC--- [9.1] DPT_Value_Temp Control_Setpoint Temperature of Auto Mode(Cool)
  • Page 13 The instruction as follow: 1: Set Mode; database type: DPT_20.102 HVAC Mode; Set value:0-OFF; 1-Fan only; 2-Cool; 3-Heat ; 4-Auto; 5-Dry 2: Set Temperature of Non Auto Mode; database type: DPT_9.001 temperature(°C). The indoor unit temperature value corresponding to ETS temperature value: Temp.value(℃) ETS value Temp.value(℃)
  • Page 14 8: Set Right-Left swing; database type: [5.4] DPT_Percent_U8. set value:0- OFF; 1- Angle1; 2- Angle2; 3- Angle3 ; 4- Angle4; 5- Angle5;6- Auto 9: Mode status read; data type: DPT_20.102 HVAC mode. Read value: 0-OFF.1-Fan ; 2-Cool ; 3-Heat ; 4-Auto;5-Dry. 10: Indoor unit ambient temperature read;...
  • Page 15 22: set Cool mode; data type: DPT_1.001 switch Set value: 1-set as Cool mode 23: Set Heat mode; data type: DPT_1.001 switch Set value: 1-set as Heat mode 24: Set Dry mode; data type: DPT_1.001 switch Set value: 1-set as Dry mode 25: Set Fan mode;...
