AJ 128691 Assembly Instructions

Patent pending.
VESA
kg
75 x 75
100 x 100
Max 6kg
This product is intended to be mounted hanging on a table screen.
Please read the entire manual before you start assembly.

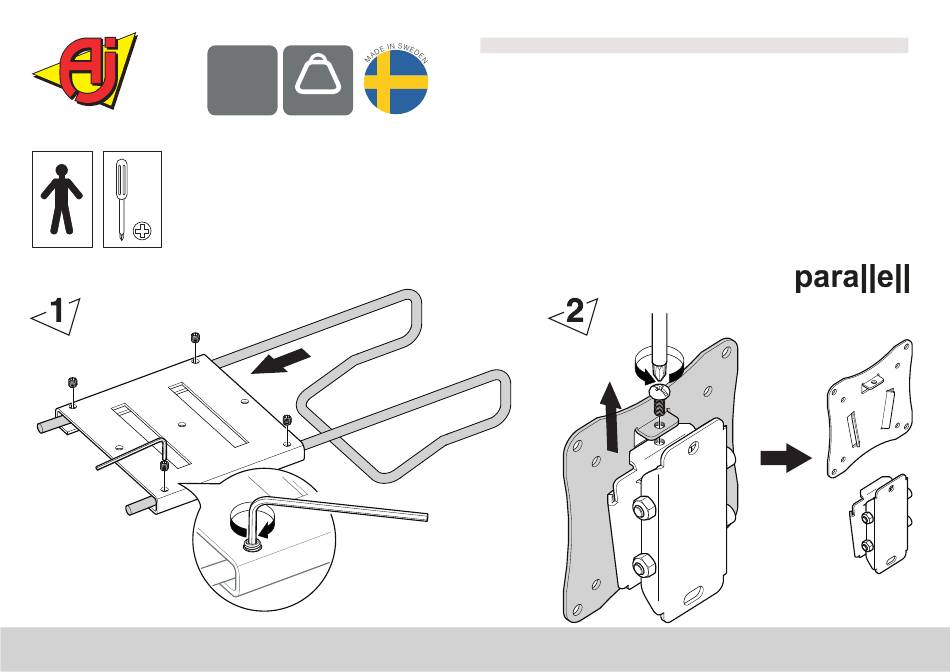

1. Insert the hanger into the sliding plate. Secure the sliding plate with the included set screws (4pcs) and
the hex key.
2. Unscrew the pre-assembled screw in the upper part of the monitor bracket, separate the two parts.
3. Mount the rear part of the bracket in the sliding plate with the two larger screws.
4. Install the VESA mounting plate on your monitor (must be VESA 100x100 or 75x75 compatible).
Size M5 and M4 screws are included, use the appropriate ones for your monitor.
5. Hang the monitor bracket on a table screen. Carefully slide the monitor with VESA plate into the monitor
bracket.
If you need to adjust the height, remove the monitor, and loosen the 4x set screws on the sliding plate and
change position.
Tighten the screws again before adding the monitor.
Secure the monitor by tighten the screw you removed in step 2.
