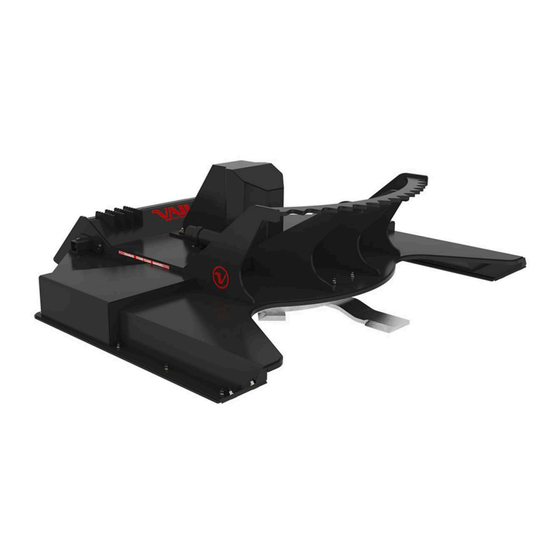

VAIL PRODUCTS PXBC2-8515/20 Owner's Manual
  1. Manuals
  2. Brands
  3. VAIL PRODUCTS Manuals
  4. Cutter
  5. PXBC2-8515/20
  6. Owner's manual

VAIL PRODUCTS PXBC2-8515/20 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

XBC2-8515/20
XBC2-7715/20
OWNER'S MANUAL
MADE IN THE U.S.A.
Rev. 11-9-2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXBC2-8515/20 and is the answer not in the manual?

Questions and answers

Related Manuals for VAIL PRODUCTS PXBC2-8515/20

Summary of Contents for VAIL PRODUCTS PXBC2-8515/20

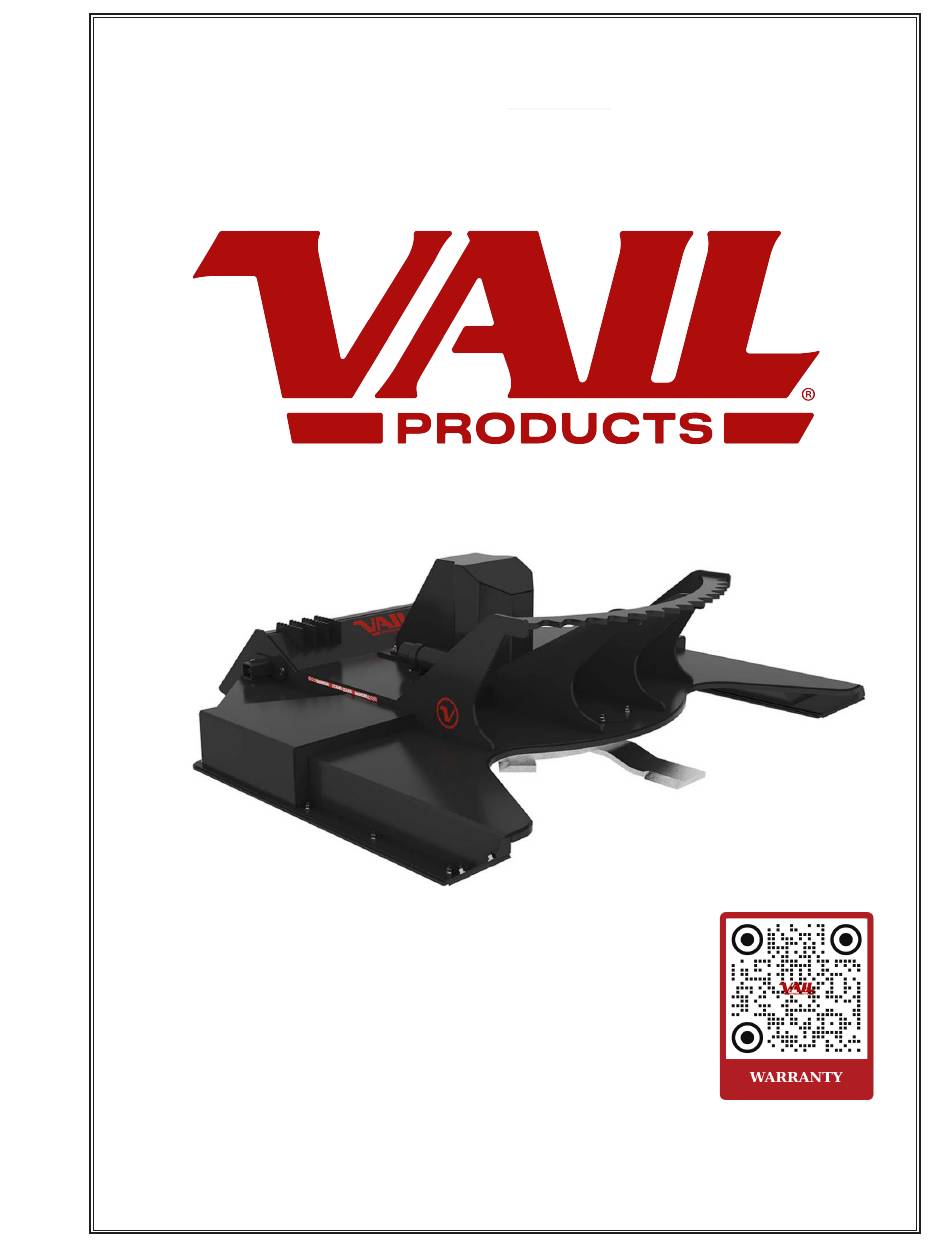

  • Page 1 XBC2-8515/20 XBC2-7715/20 OWNER’S MANUAL MADE IN THE U.S.A. Rev. 11-9-2022...
  • Page 2 SPECIFICATIONS AND DESIGN ARE SUBJECT TO CHANGE WITHOUT NOTICE AND WITHOUT LIABILITY.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction ............................5 Safety ..............................7 Decals ..............................12 Pre-Operation ..........................14 Installation Instructions ........................15 Operating Instructions ........................16 Troubleshooting ..........................19 Lubrication ............................21 Maintenance ............................22 Bolt Torque Specifications ......................29 Specifications ..........................30 Parts Section ............................31 Limited Warranty ..........................41...
  • Page 4 READ ENTIRE MANUAL BEFORE OPERATING EQUIPMENT! If you do not understand any section of this manual and/or function of this product please contact your local authorized dealer immediately. SPECIFICATIONS AND DESIGN ARE SUBJECT TO CHANGE WITHOUT NOTICE AND WITHOUT LIABILITY.

  • Page 5: Introduction

    ® specifications. Record the model & serial numbers of your unit in this manual. The parts department needs this information to ensure that you receive the correct parts. Never let anyone operate a Vail Products unit without reading ® the “Safety Precautions” and “Operating Instructions” sections of this manual.
  • Page 6 SPECIFICATIONS AND DESIGN ARE SUBJECT TO CHANGE WITHOUT NOTICE AND WITHOUT LIABILITY.

  • Page 7: Safety

    Safety SAFETY PRECAUTIONS READ MANUAL PRIOR TO INSTALLATION Improper installation, operation, or maintenance of this equipment could result in serious injury or death. Operator and maintenance personnel should read this manual, as well as all manuals related to this equipment and the prime mover thoroughly before beginning installation, operation, or maintenance.
  • Page 8 Safety SAFETY PRECAUTIONS LOWER OR SUPPORT RAISED EQUIPMENT Do not work under raised booms without supporting them. Do not use support material made of concrete blocks, logs, buckets, barrels or any other material that could suddenly collapse or shift positions. Make sure support material is solid , not decayed, warped, twisted or tapered.
  • Page 9 Safety SAFETY PRECAUTIONS DO NOT MODIFY MACHINE OR ATTACHMENTS Modifications may weaken the integrity of the attachment and may impair the function, safety, life and performance of the attachment. When making repairs, use only the manufacturer’s genuine parts, following authorized instructions.
  • Page 10 Safety EQUIPMENT SAFETY PRECAUTIONS KNOW WHERE UTILITIES ARE Observe overhead electrical and other utility lines. Be sure equipment will clear them. When digging, call your local utilities for location of buried utility lines, gas, water and sewer, as well as any other hazard you may encounter. EXPOSURE TO RESPIRABLE CRYSTALLINE SILICA DUST ALONG WITH OTHER HAZARDOUS DUSTS MAY CAUSE SERIOUS OR FATAL RESPIRATOR DISEASE.
  • Page 11 Serious damage or personal injury could result. • Worn, damaged, or illegible safety decals must be replaced. New safety decals can be ordered from Vail Products ® • Never make hydraulic repairs while the system is under pressure. Serious personal injury or death could result.

  • Page 12: Decals

    STAY BACK PART #RDL3125 DANGER! DO NOT OPERATE DANGER! ROTATING BLADES WARNING! CRUSH HAZARD DANGER DANGER! DO NOT EXIT STAY CLEAR 300 FEET 10/28/13 51-10026 DANGER! STAY CLEAR 300 FEET SERIAL PLATE VAIL PRODUCTS LOGO VAIL "V" LOGO ® NO STEP...
  • Page 13 DANGER 1/2" VAIL "V" LOGO SHATTERPROOF CAB DOOR VAIL PRODUCTS LOGO DANGER STAND CLEAR SERIAL PLATE IMPORTANT: Keep all safety signs clean and legible. Replace all missing, illegible, or damaged safety signs. When replacing parts with safety signs attached, the safety signs must also be replaced.

  • Page 14: Pre-Operation

    Pre-Operation GENERAL INFORMATION Your attachment is operated by the prime mover’s auxiliary hydraulics and mounts to the prime mover’s toolbar mechanism for easy operator hook-up. Your prime mover/loader must have an auxiliary hydraulic system and an IMPACT- RESISTANT, SHATTERPROOF 1/2" THICK POLYCARBONATE FRONT CAB DOOR to operate the rotary cutter.

  • Page 15: Installation Instructions

    Installation Instructions GENERAL INFORMATION The following instructions will help you to mount your rotary cutter onto your prime mover/loader. The rotary cutter is designed for ease of installation. Therefore, if you know how to attach your loader bucket, attaching the rotary cutter should prove no problem. Remember to read all safety warnings, decals and operating instructions before operating the attachment.

  • Page 16: Operating Instructions

    Operating Instructions GENERAL INFORMATION The rotary cutter attaches to the toolbar (or quick-attach) mechanism of your prime mover/loader. Due to this arrangement, thorough knowledge of the prime mover’s controls is necessary for safe machine operation. Read and understand your prime mover operator’s manual for information regarding prime mover operation before attempting to use the rotary cutter.
  • Page 17 Operating Instructions GENERAL INFORMATION Raise the back of the unit off of the ground approximately 4” to allow the material to clear from under the cutting deck as you travel forward. Place the front skids 2-6” off the ground. This is the preferred position for cutting grass and heavy vegetation.
  • Page 18 Operating Instructions AVOID STALLING ROTARY CUTTER: Continuous rotation is required to prevent overheating of the hydraulic system. Overheating of the hydraulic system is caused if hydraulic oil is repeatedly forced over the relief valve setting on either the prime mover or rotary cutter (whichever is less).

  • Page 19: Troubleshooting

    Operating Instructions TROUBLESHOOTING OPERATING CONDITIONS Below are listed a few operating conditions that may cause repeated stalling of your rotary cutter, and suggestions on how to correct them. GRASS TOO LONG OR THICK: If cutting heavy vegetation, you may need to slow travel speed or make smaller passes (less than full cut) to prevent overloading and stalling the unit.
  • Page 20 Operating Instructions STORAGE The following storage procedure will help you to keep your rotary cutter in top condition. It will also help you get off to a good start the next time your cutter is needed. We therefore strongly recommend that you take the extra time to follow these procedures whenever your unit will not be used for an extended period of time.

  • Page 21: Lubrication

    Lubrication GENERAL INFORMATION Economical and efficient operation of any machine is dependent upon regular and proper lubrication of all moving parts with a quality lubricant. Neglect leads to reduced efficiency, wear, breakdown, and needless replacement of parts. WEEKLY CHECK The oil level in the drive bearing housing should be checked once a week. Fill as necessary with a mild extreme pressure lubricant API-GL-5, No.

  • Page 22: Maintenance

    Maintenance GENERAL INFORMATION Regular maintenance is the key to long equipment life and safe operation. Maintenance requirements have been reduced to an absolute minimum. However, it is very important that these maintenance functions be performed as described. To avoid serious injury. Lower the rotary cutter to the ground, set the parking brake, stop the prime mover engine, and remove the key.
  • Page 23 Maintenance To avoid serious injury. Lower the rotary cutter to the ground, set the parking brake, stop the prime mover engine, and remove the key. Disconnect the hydraulic couplers. If unit must be left raised for maintenance, block the unit securely to prevent accidental release of the lifting mechanism.
  • Page 24 Maintenance Continued from page 23. Replace or sharpen blade and then loosely bolt blade into position on the carrier. (Install blade bolts from the bottom up, with the washer & lock nut towards the access opening.) NOTE: With one hand under the blade carrier, holding the blade and blade bolt, loosely install the washer and lock nut.
  • Page 25 Maintenance Continued from page 24. Remove the capscrews holding the motor to the drive bearing housing, and remove the motor. Check motor seal (O-ring) for damage and replace if required. Install the new motor with O-ring onto the drive bearing housing using the existing hardware. Torque to specifications.
  • Page 26 Maintenance REPLACING DRIVE BEARING HOUSING Continued from page 25. Remove the capscrews holding the motor to the drive bearing housing, and remove the motor, setting it into a clean container to help prevent any contaminants from entering the hydraulic system. Check motor O-ring for damage and replace if required. Remove the hex nuts securing the drive bearing housing to the cutter deck and install new housing using the existing hardware.
  • Page 27 Maintenance CHANGING OIL IN DRIVE BEARING HOUSING When changing the oil in the drive bearing housing the unit should be setting firmly on the ground with the hydraulic couplers disconnected. We recommend removing the existing oil with a fluid removal pump.
  • Page 28 Troubleshooting PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY Blades bent. (Blades can become stuck to Replace bent blades. (Blades EXCESSIVE the blade carrier and cause an imbalance.) positioned directly opposite of VIBRATION each other will need to be replaced at the same time.) Blades damaged or worn.

  • Page 29: Bolt Torque Specifications

    Bolt Torque Specifications GENERAL TORQUE SPECIFICATION TABLES Use the following charts when determining bolt torque specifications when special torques are not given. Always use grade 5 or better when replacing bolts. SAE BOLT TORQUE SPECIFICATIONS NOTE: The following torque values are for use with extreme pressure lubricants, plating or hard washer applications.

  • Page 30: Specifications

    Specifications WIDTH LENGTH HEIGHT SPECIFICATION 77” Unit 85” Unit Overall Height............26.5 26.5” Overall Width............79.5” 88” Overall Length............79” 84” Cutting Width............67” 75.5” Minimum Cutting Height.......... 0.625” 0.625” Cutting Capacity (Max Tree Diameter)....10” Deck Thickness............3/16” High Strength 1/4”...

  • Page 31: Parts Section

    Parts Section 77” & 85” Deck 16,17 10, 21, 22...
  • Page 32 Parts Section 77” & 85” Deck ITEM PART # DESCRIPTION 51010001 Cutter Deck Weldment 85” 51010501 Cutter Deck Weldment 77” 51030001 Motor Shield 51040000 Retainer Plate 51050001 Access Cover 85” 51050011 Access Cover 77” 51090400 3/8”NC x 1-1/4” Hex Cap Screw Gr.5 51090500 3/8”...
  • Page 33 Parts Section 77” x 85” Drive...
  • Page 34 Parts Section 77” & 85” Drive ITEM PART # DESCRIPTION The following items ( 1 thru 6 ) are included in the Motor Kit 51991000 (Specify High Flow or Low Flow Motor) 51060000 Hydraulic Motor (High Flow) 51060040 Hydraulic Motor (Low Flow) 25 GPM Max 51060200 Hydraulic Valve Body 51060500...
  • Page 35 Parts Section 77” & 85” Drive - continued... 21 - 26...
  • Page 36 Parts Section 77” & 85” Drive - continued... ITEM PART # DESCRIPTION 51061010 Bracket, Case Drain Relief Valve 51060721 Hydraulic Fitting, Bulkhead, -06 ORFS X -06 MORB 51060731 Hydraulic Fitting, Nut, -06 51060741 Hydraulic Fitting, Tee, -06 FORB 51060710 Hydraulic Fitting, -06 ORFS X -06 MORB 51060751 Hydraulic Fitting, Relief Valve, -06 MORB 51060811...
  • Page 37 Parts Section 77” & 85” Mulching Blade Carrier INSTALLING / REPLACING BLADES See “Maintenance Section pages 23 and 24” for replacing the Swinging blades. This section describes the installation / replacement of the Mulching blades. Plow bolts must be properly positioned and bottomed out in the countersunk square holes in the mulching blade.
  • Page 38 Parts Section 77” & 85” Mulching Blade Carrier ITEM PART # DESCRIPTION 51020051 Mulch Blade Carrier, 85” - 4 Blade 51020551 Mulch Blade Carrier, 77” - 3 Blade 51060301 Blade Bolt, Square 3/4* 51060411 Blade, 3/4” Thick, NO Emboss 3/4* 51091151 1-1/8”...
  • Page 39 Parts Section 77” & 85” Blades Blade Kit Bolt Kit Mulch Blade Kit...
  • Page 40 Parts Section 77” & 85” Blades ITEM PART # DESCRIPTION 51992001 Bolt Kit (includes one (1) each of item 1, 3, 4) 51994001 Blade Kit (includes one (1) each of item 1, 2, 3, 4) Mulch Blade Kit 51994500 (includes one (1) of item 5, and four (4) each of item 6, 7) 51060301 Blade Bolt, Square 51060411...

  • Page 41: Limited Warranty

    No goods shall be returned except by written permission of seller, and returns under any other conditions will not be accepted. VAIL PRODUCTS will not be responsible for any import taxes or duties imposed by other governments or governmental agencies. SAID WARRANTY...
