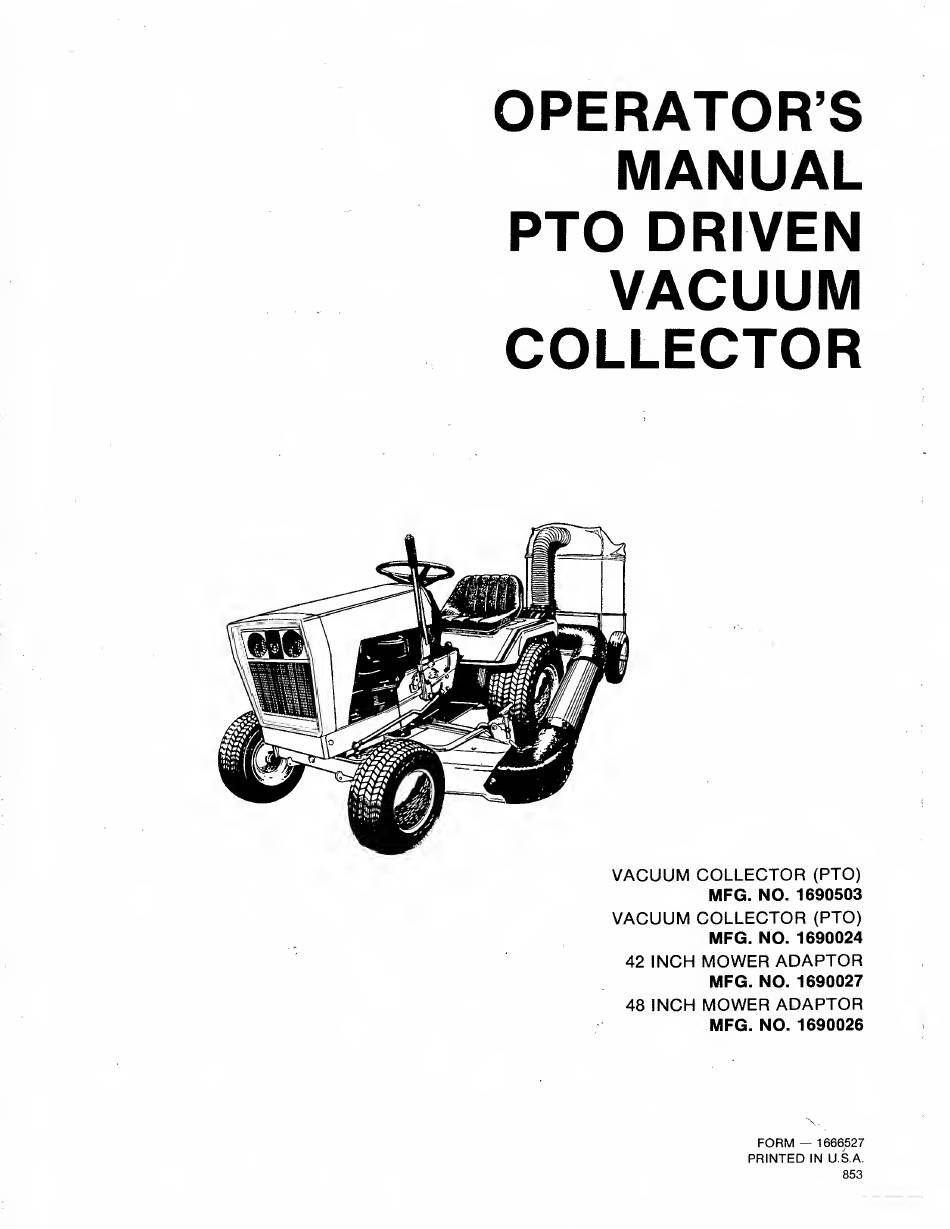

OPERATOR'S
MANUAL
PTO DRIVEN
VACUUM
COLLECTOR
VACUUM COLLECTOR (PTO)
MFG. NO. 1690503
VACUUM COLLECTOR (PTO)
MFG. NO. 1690024
42 INCH MOWER ADAPTOR
MFG. NO. 1690027
48 INCH MOWER ADAPTOR
MFG. NO. 1690026
FORM — 1666527
PRINTED IN U.aA.
853
