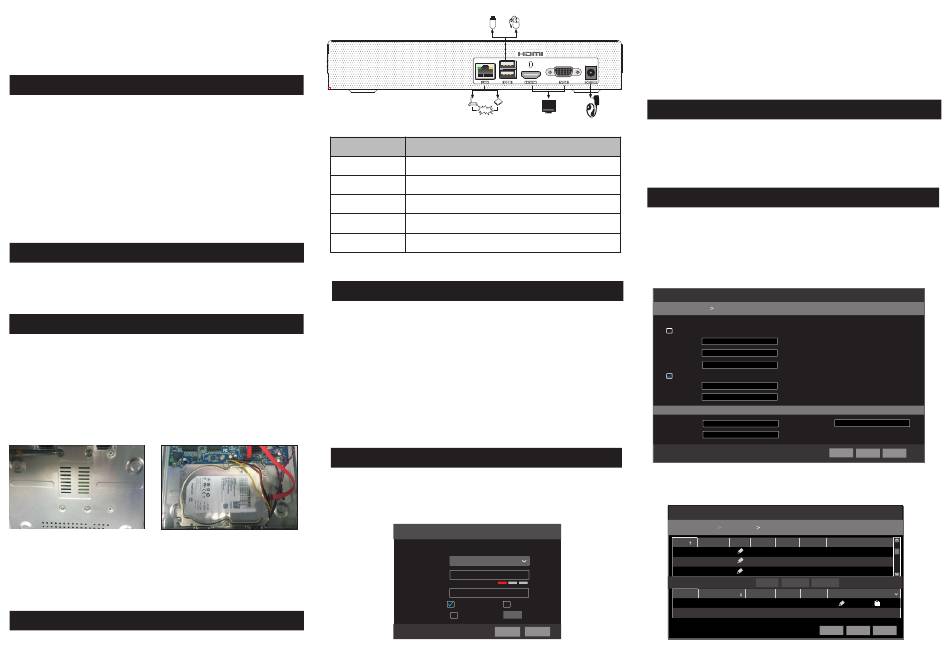

Network Video Recorder
Quick Start Guide
1. Notes
● Please read this instruction carefully for correct use of the product and
preserve it for reference purposes.
● All the examples and pictures used here are for reference only.
● There may be several technically incorrect places or printing errors in
this manual. The updates will be added into the new version of this manual.
The contents of this manual are subject to change without notice.
● This device should be operated only from the type of power source indicated
on the marking label. The voltage of the power must be verified before using
the same.
2. Packing Check
Please check the device and the accessories after getting the device. If there
are any damages, shortages or defects, please contact your dealer immediately.
3. HDD Installation
This series of the product supports 1 SATA hard drive. Please make sure that the
device is powered off before the installation. The pictures of the installation are only
for reference, please take the real object as the standard.
① Loosen the screws to open the cover.
② Put the HDD on the bottom of the device.
③ Turn over the machine and secure the HDD with the screws.
④ Connect the power and data cables.
⑤ Install back the cover and secure it with the screws.
Tips: Please check the inside structure of the device and make sure the cables
connected well before installing the cover back. Please format the HDD before
using.
4. Rear Panel Instruction
The interfaces of the rear panel are for reference only.
Internet
Rear Panel for 4/8CH
Name
Description
Network port
LAN
Connect to USB storage device or USB mouse
USB
HDMI
Connect to high definition display device
Connect to monitor
VGA
Power input
DC12V
5 Startup & Shutdown
.
►Startup
① Connect the monitor and the power.
② The device will boot. Please wait for a while.
③ A wizard window will pop up.
►Shutdown
Click "Start" and then select "Shutdown" icon. This will bring up a shutdown
window. The device will shut down after entering the username and password.
Then follow the direction to disconnect the power.
6. System Login
You must configure the wizard if you start the NVR for the first time. Choose
the language and read the privacy statement. Then set the data, time and zone
as needed. After that, set the login password.
Wizard
Admin Password Setup
Username
admin
New Password
xxxxxx
Confirm Password
xxxxxx
Display Password
Pattern Lock
Edit
Enable
Previous
The default username is admin. Set your own password when you use the
wizard for the first time. Enable pattern lock and click "Edit" to set the pattern
lock. Then set security questions and answers. It is important for you to
remember these answers, or you will not be able to reset your password. Click
"Next" to continue.
7. Disk Settings
You can view the disk number, disk capacity of the NVR and serial number,
Read/Write status of the disk. Click "Format" to format the disk. Click
"Next" to continue.
8. Network Configuration & Add IP Camera
① Enter IP address, subnet mask, gateway, etc. If using DHCP, please enable
DHCP in both the NVR and the router.
② Enter HTTP port (the default value is 80) and server port (the default port is
6036).
Network Settings
Ethernet Port 1 ( Online )
Obtain an IP address automatically
Address
Subnet Mask
Gateway
Obtain DNS automatically
Preferred DNS
Alternate DNS
Port
HTTP Port
Sever Port
Add Camera.
Network Settings
No.
1
2
3
Remain Bandwidth: 64 / 64 Mb
No.
1
Log In Automatically
Next
Wizard
192 . 168 .
1 .
2
255
.
255
.
255
.
0
192 . 168 .
1 .
1
.
.
.
.
.
.
80
HTTPS Port
443
6036
Previous
Next
Click "Next" to go to the following interface.
Wizard
Add Camera
Address
Edit
Port
Protocol
Model
Version
Add
80
192.168.1.20
XXX
XXX
3.4.2
80
XXX
XXX
192.168.1.38
3.4.2
192.168.2.45
80
XXX
XXX
4.0.0.1.beta1
Refresh
Add All
Delete All
Delete
IP Camera Name
Address
Protocol
Status
Edit
IPC
192.168.1.20
XXX
Online
Previous
Cancel
Next
Cancel
_ _ _
+
+
+
