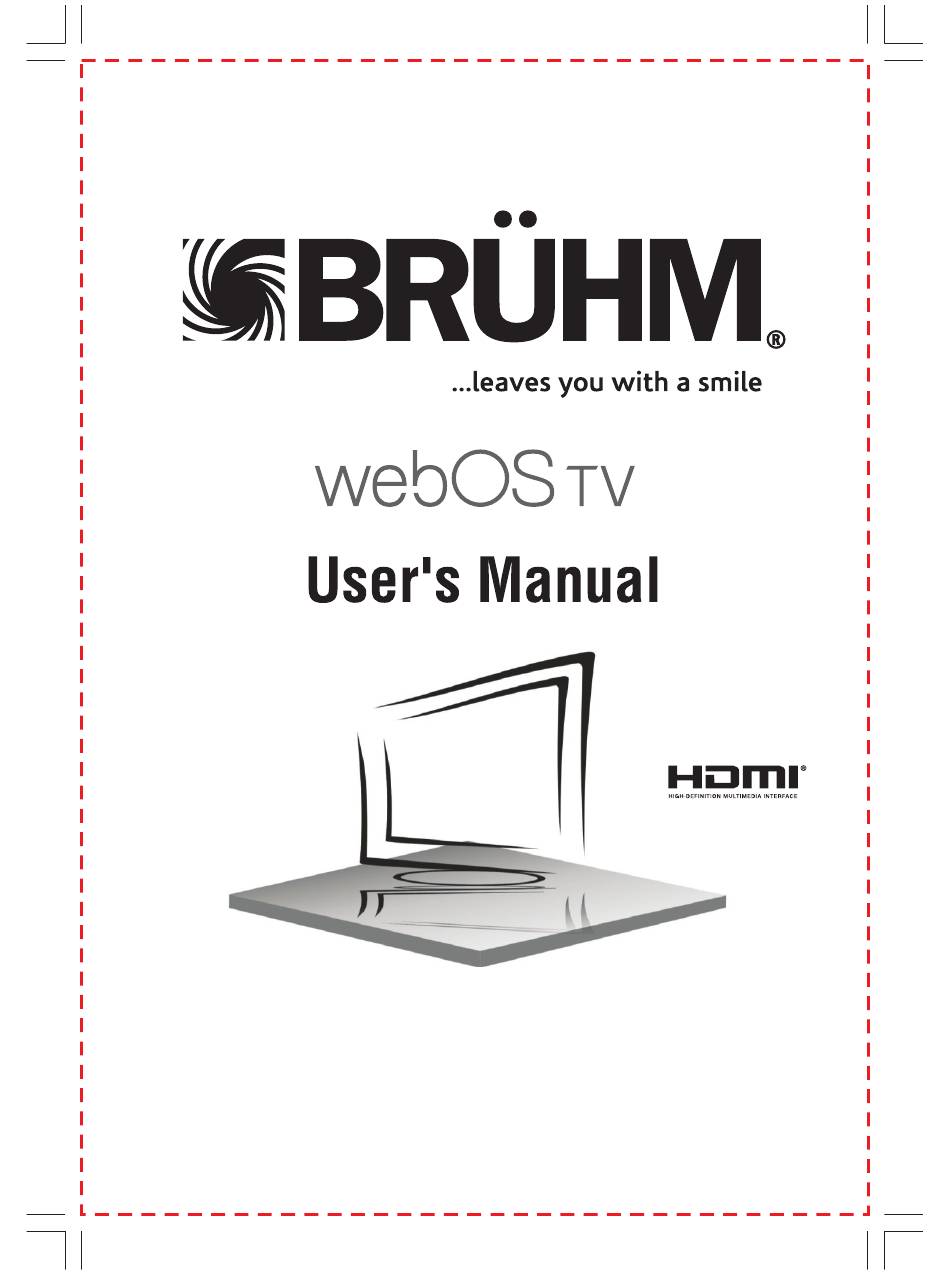

- Page 1 BTF-55SW BTF-58SW BTF-65SW BTF-75SW HK.T.RT2874(PAL T2/S2)英文 说 明 书通用 封面， 用70g双胶纸 ，单 黑印刷 ； 成 品 尺 寸 ：143x210mm， 整本 说明书 共40P...
- Page 3 CONTENTS SPECIFICATIONS SAFETY INSTRUCTIONS DESCRIPTION OF CONTROL KEYS & CONNECTORS OPERATION OF FUNCTION MENU 7-36 TROUBLE SHOOTING GUIDE SPECIFICATIONS Aspect Ratio 16 : 9 PAL/SEC AM BG/DK/I, DVB-T/C+T2, DVB-S/S2(Optional) System Base impedance (Unbalance) Receiving TV Band All Channels Receiveable AC Supply Voltage 100-240V~ 50/60Hz Note: Part of the design and the specification may be changed without prior notice.
- Page 4 SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
- Page 5 SAFETY INSTRUCTIONS 1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered 4.
- Page 6 SAFETY INSTRUCTIONS Warning High voltages are used in the operating of this product. Do not remove the back cover of the cabinet. Refer servicing to qualified service personnel. Warning To prevent fire or electrical shock hazard, do not expose the main unit to rain or moisture.
- Page 7 DESCRIPTION OF CONTROL KEYS & CONNECTORS CONTROL KEYS: BUTTON ICON TYPE BUTTON NAME BUTTON INSTRUCTION To display source menu. SOURCE BUTTON SOURCE INPUT To select menu. MENU BUTTON MENU MENU VOLUME UP BUTTON To increase the sound volume level VOL+ VOL+ To decrease the sound volume level VOLUME DOWN BUTTON...
- Page 8 DESCRIPTION OF CONTROL KEYS & CONNECTORS CONNECTORS: PORT NAME PORTS ICON TYPE PORT INSTRUCTION VIDEO OUT Video output port VIDEO OUT OPTICAL Optical output port OPTICAL OUT COAXIAL Coaxial output port COAXIAL OUT AUDIO OUT Audio output port AUDIO OUT LINE OUT Audio output port LINE OUT...
- Page 9 OPERATION OF FUNCTION MENU 1. HOW TO OPERATE TV 1.1 Pairing the Magic Remote LEARN MORE ABOUT MAGIC REMOTE You can select the functions you want easily and conveniently by moving and clicking the cursor on the TV screen, just as you would use a mouse on a computer screen. You can purchase the Magic Remote separately if it is not provided.
- Page 10 OPERATION OF FUNCTION MENU USING THE MAGIC REMOTE 1. If you shake the Magic Remote left and right or turn its wheel while pointing it at the TV, a pointer will appear on the TV screen. If you move the remote control to the direction you want, the pointer follows the movement. 2.
- Page 11 OPERATION OF FUNCTION MENU 1. Move the Magic Remote pointer in the text box to ENGLISH open the virtual keyboard. Enter 2. Press the button on the virtual keyboard. 3. After the voice recognition information window Clear all opens as shown below, speak into the microphone on “Please speak to enter text.
- Page 12 OPERATION OF FUNCTION MENU Using Live Menu You can use the relevant features with ease when watching TV broadcasts. Press the LIST button on the remote control. Or press the Wheel (OK) button on the remote control and select Programmes. Programmes : View a list of broadcast content that ① is currently being broadcast.
- Page 13 OPERATION OF FUNCTION MENU ① Move to the Programmes. To see the details, click the Enjoy Live TV Making the Most of Live Menu in User Guide. ② It displays the information about the programme you are watching. Select a programme banner to enter the detailed information pop-up to see the detailed programme information or run additional Oooooo Oooo...
- Page 14 OPERATION OF FUNCTION MENU 2.5 Recording Using the Recording Functions 1. Connect a USB HDD or USB stick to a USB port. It is recommended that you record to a USB HDD. 2. During watch the Live broadcast, press the Wheel (OK) button. 3.
- Page 15 OPERATION OF FUNCTION MENU If you want to record a live broadcast, click the Record or Watch button. In case of an upcoming programme, click the Scheduled Recording or Reminder button. Scheduled recording does not guarantee exact recording time of the programme because the programme will be record as the information of broadcaster.
- Page 16 OPERATION OF FUNCTION MENU 2.8 Watching Internet Channel You can watch real-time broadcasts through this service over the Internet. You can see information on new Internet Channels or manage the channels you like in Channels. Some models may not be supported. Some Internet channels may not support this service.
- Page 17 OPERATION OF FUNCTION MENU Enjoy a wide variety of content from HbbTV enabled services. Service features may be limited when the TV is not connected to the internet. The functionality and quality of the HbbTV service may vary depending on the quality of your broadband connection.
- Page 18 OPERATION OF FUNCTION MENU ① You can easily control your device by presetting the desired operations. ② You can log in/out to and from the ThinQ account you created on mobile. ③ Edit List : You can rename, Show/Hide or change the order of the devices connected to Home IoT Devices. Notification : If you turn it On, you can receive notifications about the status of the Home IoT Devices.
- Page 19 OPERATION OF FUNCTION MENU If you use a USB extension cable, the USB storage device may not be recognised or may not work properly. Please use only USB storage devices formatted with the FAT32 or NTFS file system provided by Windows OS. It is recommended that you use an external USB HDD with a rated voltage of 5 V or less and a rated current of 500 mA or less.
- Page 20 OPERATION OF FUNCTION MENU Supported Photo Files File Format File Format Format Resolution jpeg, jpg, jpg JPEG Minimum:64x64 Maximum NormalType:15360(W)x8640(H) ProgressiveType:1920(W)x1440(H) Using Video Player Minimum:64x64 Selecting a video in the Photo & Video app runs the Maximum:5760(W)x5760(H) video player. You can view your saved videos. ① Returns to the entire content list.
- Page 21 OPERATION OF FUNCTION MENU Dolby AC-4 : Some models may not be supported. Video MPEG-1, MPEG-2 mpeg Cautions for Video Playback Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3) Some user-created subtitles may not work properly. Video MPEG-1, MPEG-2 A video file and its subtitle file must be in the same folder.
- Page 22 OPERATION OF FUNCTION MENU ⑤ You can minimize the music player. ⑥ This feature closes the music player. ⑦ Lyrics are available for music files that provide them. In some music files, you can choose a lyric section and move the playback position.
- Page 23 OPERATION OF FUNCTION MENU Browse and watch the content stored on the PC using the TV (Windows 10) 1. Connect your TV and PC to the same network. 2. Open the “Start” menu on your PC screen, search for “media streaming options” and then select the result that appears.
- Page 24 OPERATION OF FUNCTION MENU 1. Press the button on the remote control. 2. Run the Web Browser application. 4 5 6 7 Recommended Sites 4.2 Live Plus Live Plus provides an enhanced viewing experience related to the content you're watching including Most Visited Sites looking at additional information, participating in events, interacting with advertisements, etc.
- Page 25 OPERATION OF FUNCTION MENU Game Suitable picture for gameplay. Depending on the input signal, the available picture modes may be different. When watching online service content, the Picture Mode may be changed to match the content being shown. Picture Mode change may modify Energy Saving settings and it can affect energy consumption. You can adjust their settings manually in the Energy Saving menu.
- Page 26 OPERATION OF FUNCTION MENU High2/BT.1886 expresses the gradation in ITU-R BT.1886, which is an international standard. Depending on the input signal or the selected picture mode, the available options may differ. 5.2.4 Pictru Options Picture Picture Mode Settings Picture Options Noise Reduction Removes small dots that stand out so as to make the image clean.
- Page 27 OPERATION OF FUNCTION MENU Picture Aspect Ratio Settings Just Scan If you turn this feature On, you can view the content in the aspect ratio that is in the broadcast signal or content source. If the edge of the screen is not clean, please turn it Off. If set to Auto, the feature switches between On or Off status depending on the information contained in the video signal.
- Page 28 OPERATION OF FUNCTION MENU Set the HDMI ULTRA HD Deep Colour feature to On for the HDMI terminal connected to the gaming device to enable Instant Game Response. → → Sound → Sound Out is Internal TV Speaker/Audio Out (Line Out)/Wired It works only when the Headphones/Wired Headphones + Internal TV Speaker.
- Page 29 OPERATION OF FUNCTION MENU Press to view the connected devices or the devices that can be connected to connect any one of them. LG Sound Sync devices will automatically try to connect to the recently used devices when you turn the TV on. We recommend that you connect an LG audio device that supports LG Sound Sync, using LG TV mode or LG Sound Sync mode on device.
- Page 30 OPERATION OF FUNCTION MENU Wall-mounted Select this if the TV is installed in wall-mounted type. This setting is only available for Internal TV Speaker. 5.3.4 Volume Mode → → Sound → Additional Settings → Volume Mode Auto Volume Click On to adjust the volume automatically for different broadcasting companies so you can always listen to programmes at the desired volume, even after switching the programmes.
- Page 31 OPERATION OF FUNCTION MENU Dolby Atmos : Some models may not be supported. 5.4 Programmes 5.4.1 Auto Tuning Automatically Setting Up Programme → → Programmes → Programme Tuning → Auto Tuning Automatically tunes the programmes. 1. Select Country where the TV is used. Programme settings change depending on the country you choose. 2.
- Page 32 OPERATION OF FUNCTION MENU 5.4.5 Multi Feed → → Programmes → Multi Feed You can watch the desired angle on the TV through the broadcast that filmed from various angles. Some models may not be supported. 5.5 Connection 5.5.1 TV Name →...
- Page 33 OPERATION OF FUNCTION MENU To connect for the first time, make sure the device to be used is ready to connect. Some models may not be supported. Screen Share You can delete the connection history of the device that was connected to the TV through Screen Share. 5.6 Ceneral 5.6.1 AI Service Setting the AI Service...
- Page 34 OPERATION OF FUNCTION MENU Service Area Postcode This function is used to set the broadcast location of the TV by entering your postcode. Services Country If you don't set the Set Automatically, you can select the country manually. You must set the country manually when you are not connected to the network. The configurable items differ depending on model.
- Page 35 OPERATION OF FUNCTION MENU 3. Set Safety to On. 4. Select TV Rating Locks. Supported only in the digital mode. Some models may not be supported. The initial password is set as “0000”. 5.6.6 Enabling Programme Locks Blocks the programmes that contain inappropriate contents for children. The programmes can be selected but the screen is blank and the audio is muted.
- Page 36 OPERATION OF FUNCTION MENU 5.6.10 Account Management Managing Your Account In Account Management, you can use your email address to create a new account. For more information, see Getting Started with webOS TV Account Management in User Guide. 5.6.11 Home Settings Home Settings General Home Settings...
- Page 37 OPERATION OF FUNCTION MENU Some models may not be supported. Turning this option on may increase energy consumption. 5.6.18 Standby Light General Additional Settings Standby Light You can turn the standby light on or off. Some models may not be supported. 5.6.19 Advertisement General Additional Settings...
- Page 38 OPERATION OF FUNCTION MENU 5.7.5 Grayscale Accessibility Grayscale Change the colour of the menu on the screen to black and white tone to make its ambiguity very clear. Set to On. 5.7.6 Invert Colours Accessibility Invert Colours To enhance the visibility of the menus on the screen, you can invert and calibrate certain colours in some menus. Set to On.
- Page 39 TROUBLE SHOOTING GUIDE Many apparent malfunctions are caused slight misadjustments of the regular controls of your unit or equally simple causes. If any difficulty arises through normal use of your unit, check the list of common problems in the list below. If the problem persists, unplug your unit and contact your dealer.
- Page 40 33AS-2874-E0DKBRU0...
Need help?
Do you have a question about the BTF-55SW and is the answer not in the manual?
Questions and answers
To unlock key pad
To unlock the keypad (Inputs) on the BRUHM BTF-55SW:
1. Press the button on the remote control.
2. Go to → General → Safety.
3. Set Safety to On.
4. Select Input Locks.
5. Deselect the locked Inputs to unlock them.
Note: The default password is “0000”. If the country is set to France or Norway, the password is “1234”.
