Technochas ELECTRONICS 100 User Manual

Translated from Russian to English - www.onlinedoctranslator.com
Thank you for purchasing this watch. They represent our creative
reinterpretation of the legendary Elektronika-1 model (caliber 2651) from the
era of the emergence of electronic watches. The new watch, on the one hand,
accurately reproduces the dimensions of its historical prototype, and on the
other, has the best consumer qualities and functionality thanks to the use of
modern materials and technologies.
The watch has 2 operating modes: "retro mode", which maximally
replicates the "Electronics-1" watch with its segment indicator, and an
extended mode, in which information is displayed in a larger and more
readable graphic font, as well as a settings mode for controlling the
operation of the watch and information mode.

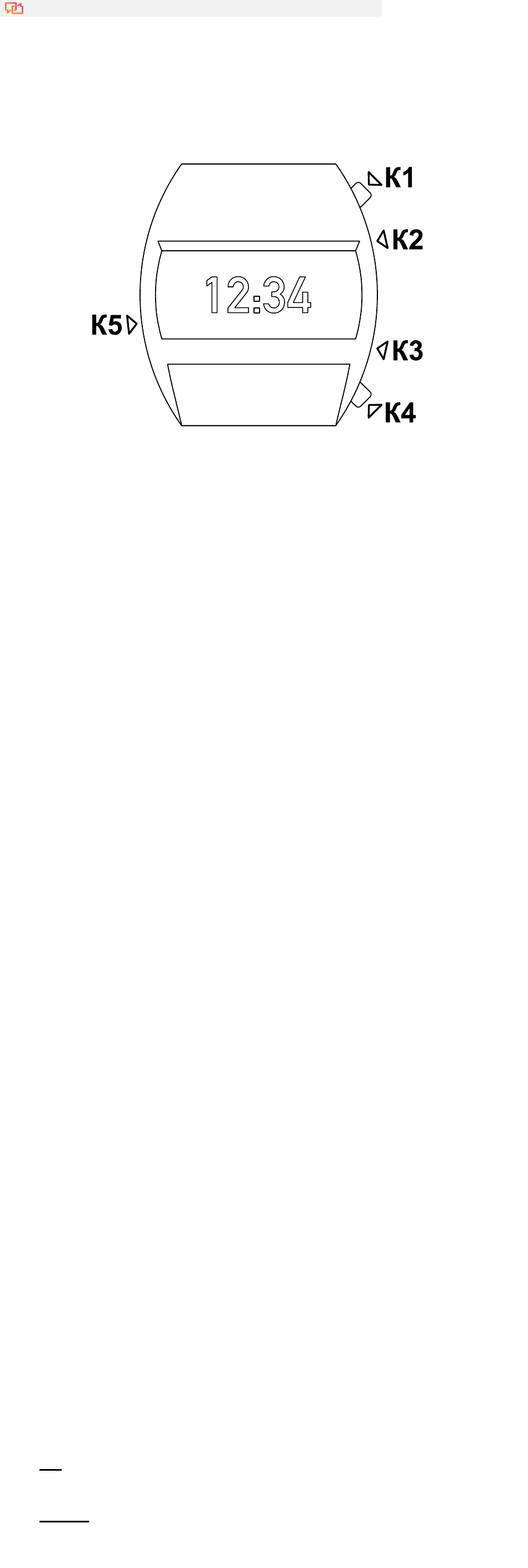

The watch is controlled using 5 buttons (including K2, K3, K5 - secret) and a
built-in rotation sensor. Information is displayed on the display by pressing a
button or by turning the clock in order to save energy (for more details, see
the "Technical Specifications" section).
To enter the settings mode, press K1 (time display), and without
releasing - K4. The settings menu opened by the last used menu item will
appear on the display, for example:
By pressing K1, K4 the desired setting is selected, then by pressing K2 or
K3 the desired setting value is selected:
Retro Mode– will the watch emulate the Electronics watch? 1" or
work in extended mode.
TURN ON– whether the rotation sensor is used to display time. If this
setting is activated, then in order to see the current time, you need to turn
the watch 45±5° away from you and hold it there for at least 1 second. The
display will turn off automatically after 2 seconds. Please note that when the
sensor is turned on, the watch's standby time is approximately halved (for
more details, see "Specifications").
SECONDS– will they be displayed in "extended mode"? seconds
simultaneously with minutes and hours, or separately as in "retro mode".
DELAY– delay value for turning off the display after button release in
seconds.
CORRECTION– the amount of correction of the daily clock rate from -
12.7 to +12.7 seconds, which can be entered if the clock is systematically fast
or slow. For example, you set the exact time signal to 21:00:00. After 10 days,
the clock readings at the same moment were 21:00:07. Dividing the difference
in readings by the number of days of observation, we obtain the correction
value.
(21:00:07 – 21:00:00) / 10 = 0.7
Add (if the clock is slow) or subtract (if the clock is fast) the calculated
correction value to the current value. For example, the clock has already been
adjusted to 0.5. The clock has moved forward, which means the correction
value must be subtracted:
0.5 – 0.7 = –0.2
Press K2 and K3 to enter the desired value.
ENGLISH– will messages be displayed in English? language.
Exit from the settings mode occurs automatically after 2 s (the interval can
be increased by the "DELAY" setting) or by pressing K5.
Settings and are applied immediately after entering and are saved
even in the absence of a battery.
Electronic wristwatch
"ELECTRONICS 100"
User manual
(software version 0.02, ed. 1)

General information

Settings

SETTINGS
RETRO MODE
1/6
+
