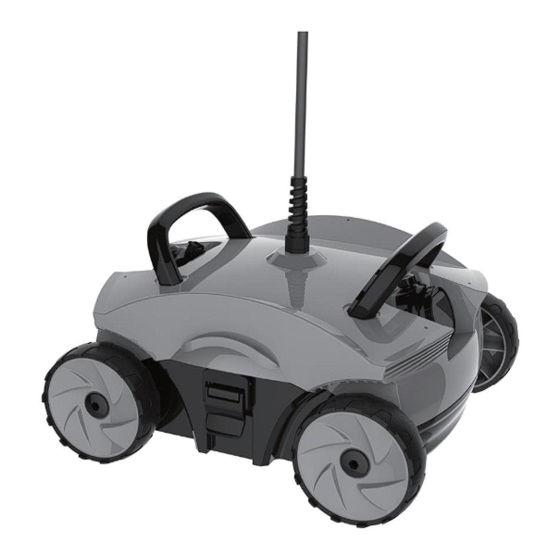

- Page 1 Original User Manual – A S Robotic Pool Cleaner REBO Robotic Pool Cleaner AR-HE-BSR Please follow all security measures in this user´s manual to ensure a secure use. Thank you for trusting in AREBOS.
-
Page 2: Table Of Contents
Original User Manual – A S Robotic Pool Cleaner REBO Table of Contents 1 Introduction and safety instructions ..3 2 Scope of delivery ......... 7 3 Operating the Robotic Pool Cleaner ..8 4 Maintenance and storage....11 5 Troubleshooting ........ 13 6 Technical Data ........ -
Page 3: Introduction And Safety Instructions
Original User Manual – A S Robotic Pool Cleaner REBO Thank you for purchasing our product. Please read the operating instructions carefully before using the product for the first time. If you give the product to a third party, this manual must be handed over with it. - Page 4 Original User Manual – A S Robotic Pool Cleaner REBO Dear Owner: Thank you for choosing robotic pool cleaner. In order to achieve optimal performance, please read and follow these steps: 1. Cleaner filter bags should be thoroughly cleaned after each use or as often as needed to ensure cleaner’s optimal performance.
- Page 5 Original User Manual – A S Robotic Pool Cleaner REBO Important safety precautions • Your safety is of the most importance to us. Please make sure that you read this instruction booklet before attempting to install and use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Retailer where you purchased your unit.
- Page 6 Original User Manual – A S Robotic Pool Cleaner REBO Important safety instructions IMPORTANT SAFETY INSTRUCTIONS The CLEANER automatic swimming pool vacuum cleaner has been manufactured with the highest degree of care and concern for safety. We suggest the following safety precautions become part of your pool safety regulations: SAVE THESE INSTRUCTIONS 1.
-
Page 7: Scope Of Delivery
Original User Manual – A S Robotic Pool Cleaner REBO 2 Scope of delivery 1. Floating Power Cord 11. Wheel Axle Assembly 2. Power Cord Fixing Joint 12 Main Body Base 3. Handle Assembly 13. Roller 4. Universal Drain Assembly 14. -
Page 8: Operating The Robotic Pool Cleaner
Original User Manual – A S Robotic Pool Cleaner REBO 3 Operating the Robotic Pool Cleaner Your cleaner should not be used while people are swimming in the pool. WARNING! The electric supply connection shall be made by a qualified electrician and WARNING! comply with IEC 60364-1. - Page 9 Original User Manual – A S Robotic Pool Cleaner REBO 1. Select the nearest 230V~ voltage AC outlet protected by RCD. 2. The control box must be fixed at a minimum distance of 3.5m from the edge of the swimming pool and minimum 2.5 meters overtop of top edge of pool (outside Zone 1 defined in IEC 60364-7-702).
- Page 10 Original User Manual – A S Robotic Pool Cleaner REBO 8. After the pool has been cleaned, switch OFF the power supply before removing the CLEANER from the pool. 9. Remove the CLEANER from the water at the shallow end of the pool by pulling the cable until the CLEANER reaches the surface.
-
Page 11: Maintenance And Storage
Original User Manual – A S Robotic Pool Cleaner REBO Directional Angle adjustment The cleaner has two outlets and the direction angle of each outlet is adjustable during running. If the angle is not satisfying, stop the cleaner, unscrewed the screw as shown in the figure, manually adjust to a proper position (angle dimension: 0 <... - Page 12 Original User Manual – A S Robotic Pool Cleaner REBO Filter cleaning solution can be used to remove excessive dirt and/or sand. Remember: The cleaner your filter is, the more efficient the CLEANER will perform. Periodic Cleaning of Moving Parts WARNING! Disconnect the power supply from electrical outlet before cleaning moving parts.
-
Page 13: Troubleshooting
Original User Manual – A S Robotic Pool Cleaner REBO Important Tips • Cleaning the filter bags after every use maximizes the unit’s performance. • Replace worn brushes. • In a pool with usually high calcium content, more frequent cleaning of the filter is recommended. -
Page 14: Technical Data
Original User Manual – A S Robotic Pool Cleaner REBO 6 Technical Data Product Model AR-HE-BSR Article Number 4260627428533 Current Consumption 0.7 amps Weight 7.1kg Interconnection cable Length 13 meters Materials High Impact ABS- Metal Parts of Stainless Steel The depth of the pool 3m ≥... -
Page 15: Environmentally Friendly Disposal
You can obtain the addresses from your city or local government. You can find out about other return options created by us on our website www.arebos.de. The separate collection of Waste electrical or electronic equipment is intended... -
Page 16: Eu Declaration Of Conformity
97074 Würzburg Germany declare in sole responsibility that the following product: Brand Product Name Robotic Pool Cleaner Product Model AR-HE-BSR Article Number 4260627428533 has been developed, constructed 2014/35/EU and manufactured in compliance 2011/65/EU / 2015/863/EU with the requirements of the...
