Summary of Contents for Cobalt Digital Inc WAVE 64

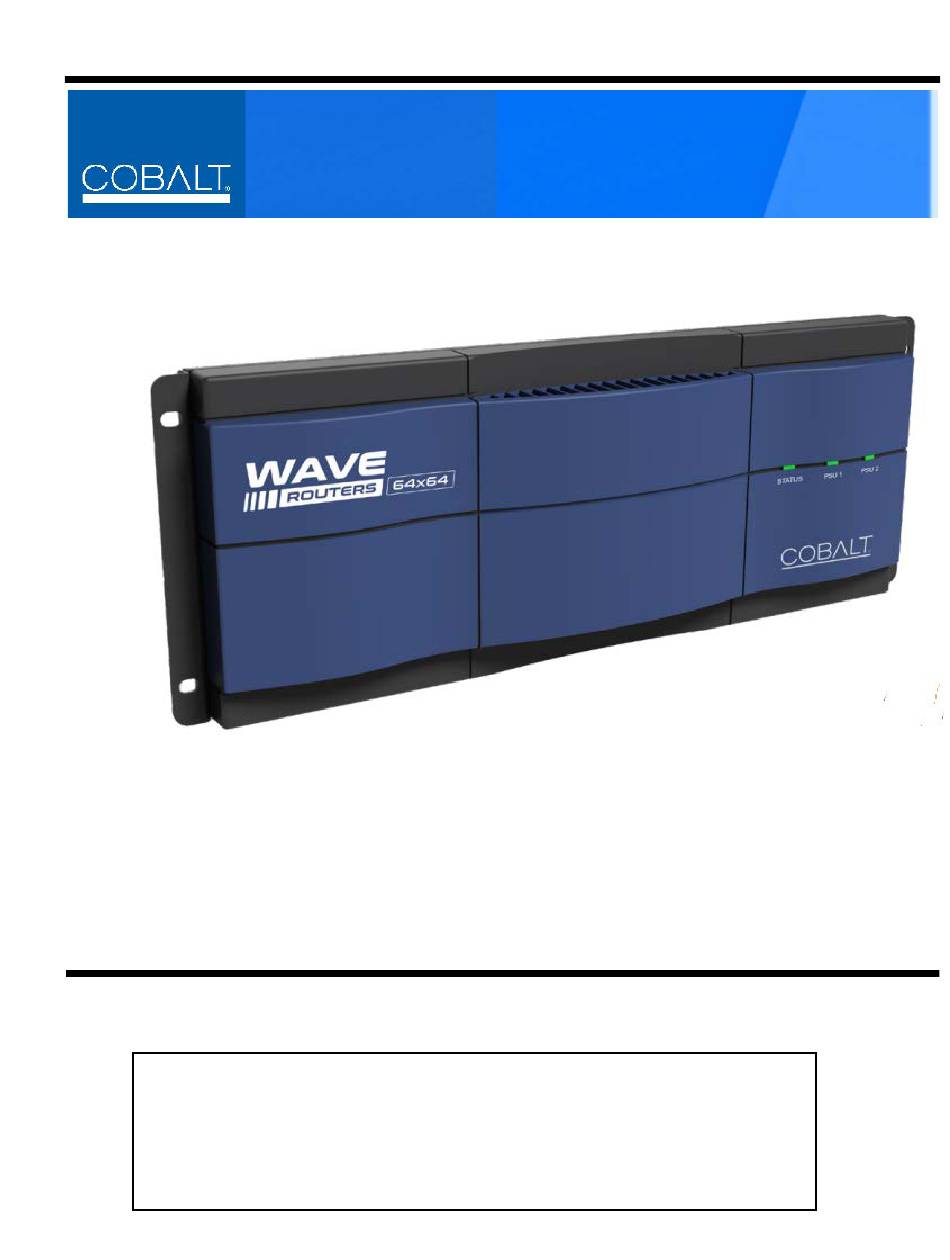

- Page 1 WAVE 64 WAVE 64 WAVE RTR-64x64 Router Product Manual Cobalt Digital Inc. 2506 Galen Drive Champaign, IL 61821 Voice 217.344.1243 • Fax 217.344.1245 www.cobaltdigital.com...
- Page 2 Furthermore, Cobalt Digital Inc. reserves the right to make changes to any products herein to improve readability, function, or design. Cobalt Digital Inc. does not assume any liability arising out of the application or use of any product or circuit described herein.
-
Page 3: Table Of Contents
Cobalt Digital Inc. Limited Warranty........ - Page 4 WAVE Routers User Interface ......... . . 3-2 Cobalt®...
-
Page 5: Chapter 1 Introduction
WAVE RTR-64x64 Functional Description (p. 1-5) • Technical Specifications (p. 1-9) • Warranty and Service Information (p. 1-10) • Contact Cobalt Digital Inc. (p. 1-11) • Cobalt Reference Guides From the Cobalt web home page, go to ® Support>Reference Documents easy to use guides covering network remote control, card firmware updates, example card processing UI setups and other topics. -
Page 6: Warnings, Cautions, And Notes
Cobalt Reference Guides Warnings, Cautions, and Notes Certain items in this manual are highlighted by special messages. The definitions are provided below. Warnings Warning messages indicate a possible hazard which, if not avoided, could result in personal injury or death. Cautions Caution messages indicate a problem or incorrect practice which, if not avoided, could result in improper operation or damage to the product. -
Page 7: Safety And Regulatory Summary
Introduction Safety and Regulatory Summary Safety and Regulatory Summary Warnings To reduce risk of electric shock do not remove line voltage service barrier cover on frame ! WARNING ! equipment containing an AC power supply. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. -
Page 8: Wave 64 Overview
WAVE 64 Overview WAVE 64 Overview The WAVE RTR-64x64 router is a midsize 64x64 Crosspoint solution contained within a compact 4U (7 inch) tall frame. The frame is a thin 3.75 inch deep chassis. The router provides a high density solution that offers unprecedented flexibility, ease of use &... -
Page 9: Wave Rtr-64X64 Functional Description
Introduction WAVE RTR-64x64 Functional Description WAVE RTR-64x64 Functional Description This section describes the front and real panels of the router. Front Panel The WAVE RTR-64x64 front panel contains three LED indicators as described in Table 1-1. The front panel bezel is also removable to access the DIP switches used to set the IP address and install an optional second fan. -
Page 10: Wave Rtr-64X64 Rear Panel Components
WAVE RTR-64x64 Functional Description WAVE RTR-64x64 Rear Panel Components The WAVE RTR-64x64 router rear panel consists of full size BNC - SDI 12G video inputs 1-64 (top rows) and BNC - SDI 12G video outputs 1-64 (bottom rows). Two redundant power supply connectors are located on the lower left of the router. -
Page 11: Functional Diagram
Introduction WAVE RTR-64x64 Functional Description Functional Diagram Figure 1-1 shows a functional block diagram of the WAVE RTR-64x64. Figure 1-3 WAVE RTR-64x64 Functional Block Diagram WAVE RTR-64x64-OM (V1.1) WAVE 64X64-RTR ROUTER PRODUCT MANUAL... -
Page 12: User Control Interfaces
WAVE RTR-64x64 Functional Description User Control Interfaces The WAVE RTR-64x64 can be controlled by the following interfaces. These user control interfaces are cross-compatible and can operate together as desired. Where applicable, any controller setting change made using a particular user interface is reflected on any other connected interface. WAVE Routers User Interface –... -
Page 13: Technical Specifications
Introduction Technical Specifications Technical Specifications lists the technical specifications for the WAVE RTR-64x64 card. Table 1-2 Technical Specifications Item Characteristic Part number, nomenclature WAVE RTR-64x64 Installation Density 19 inches wide rack mount. 7 inches tall (4RU) 3.75” deep - including front bezel & rear connectors. Weight: < 11 lb Frame communication 10/100/1000 Mbps Ethernet Source Inputs... -
Page 14: Warranty And Service Information
(1) year. Cobalt Digital Inc.'s (“Cobalt”) sole obligation under this warranty shall be limited to, at its option, (i) the repair or (ii) replacement of the product, and the determination of whether a defect is covered under this limited warranty shall be made at the sole discretion of Cobalt. -
Page 15: Contact Cobalt Digital Inc
Introduction Contact Cobalt Digital Inc. Contact Cobalt Digital Inc. Feel free to contact our thorough and professional support representatives for any of the following: Name and address of your local dealer • Product information and pricing • Technical support •... - Page 16 Chapter 1 This page intentionally blank 1-12 WAVE 64X64-RTR ROUTER PRODUCT MANUAL WAVE RTR-64x64-OM (V1.1)
-
Page 17: Chapter 2 Installation And Setup
Chapter 2 Installation and Setup Chapter 2 Overview This chapter contains the following information: Installing and Setting Up the WAVE RTR-64x64 • Setting up the Initial Configuration • Installing the optional Fan Kit • Installing and Setting Up the WAVE RTR-64x64 To install and set up the WAVE RTR-64x64: Note: If installing the optional fan kit, see “Installing the Optional Fan Kit”... -
Page 18: Initial Wave Rtr-64X64 Configuration
Initial WAVE RTR-64x64 Configuration Initial WAVE RTR-64x64 Configuration To set the IP address for the first time must set the dip switches located on the front of the router. To configure the router: Gently remove the plastic bezel from the router to view the label. The label above is a sample label. - Page 19 Installation and Setup Initial WAVE RTR-64x64 Configuration Click the Settings tab and then expand the IP Settings section to display the factory IP address you selected with the DIP switches. If desired, obtain a static address from your System Administrator and change the dip switch settings to IP User Selectable.
-
Page 20: Installing The Optional Fan Kit
Installing the Optional Fan Kit Installing the Optional Fan Kit The Fan Kit consists of one Fan and Bracket Assembly and four (4) M3 x 6mm screws. To install the optional fan kit: Note: It is recommended that the power is turned off on the router before installing the fan. - Page 21 Installation and Setup Installing the Optional Fan Kit Grasp the bezel and pull upward to remove. With the cover removed you will see a large heat sink located in the middle of the panel; this is where the Fan Kit will be installed. Note the location of the four (4) mounting holes and the fan connector.
- Page 22 Installing the Optional Fan Kit Place the Fan and Bracket Assembly over the large heat sink. Notice that the bracket ledge is towards the smaller heat sink. Attach the Fan and Bracket Assembly to the router with the four (4) supplied M3 screws. Connect the fan power wires to the fan connector, the connector is keyed so it can only go on one way.
-
Page 23: Chapter 3 Operating Instructions
Chapter 3 Operating Instructions Cha pter 3 Overview This chapter contains the following information: Control and Display Descriptions (p. 3-1) • WAVE Routers User Interface interface (p. 3-2) • Cobalt® Remote Control Panel User Interfaces (p. 3-3) • Accessing the WAVE RTR-64x64 User Interface (p. 3-4) •... -
Page 24: Wave Routers User Interface
Control and Display Descriptions WAVE Routers User Interface The WAVE Router user interface is an internal web-based interface to control and view various settings. The router function menus are organized in the WAVE Router interface using tabs. When a tab is selected, the options associated with the tab are displayed. -
Page 25: Cobalt Remote Control Panel User Interfaces
Operating Instructions Control and Display Descriptions Cobalt Remote Control Panel User Interfaces ® In addition to the web-based user interface, the WAVE RTR-64x64 can be controlled via two remote control panels: The Cobalt WAVE Remote Control Panel CP-84L • The Cobalt WAVE Remote Control Panel CP-78 •... -
Page 26: Accessing The Wave Rtr-64X64 User Interface
Control and Display Descriptions Accessing the WAVE RTR-64x64 User Interface To access the WAVE router user interface, open a web browser and type in the IP address that was previously configured. The WAVE Routers interface opens displaying the currently loaded Salvos. WAVE RTR-64x64 Tab Functions The WAVE Router interface consists of the following tabs: Table 3-1... -
Page 27: Router Table Tab
Operating Instructions Control and Display Descriptions Router Table Tab The Router Table tab provides a visual representation of the currently loaded salvo. The source inputs are located on the right of the table and the destination outputs are located at the top. From the router table you can: View each connected route. - Page 28 Control and Display Descriptions Set the input mode to automatically detect all video modes except • MADI or to force the input to detect MADI. When MADI is elected, other video modes are not detected; the Input Status will only display MADI or LOS.
-
Page 29: Salvos Tab
Operating Instructions Control and Display Descriptions Salvos Tab The Salvos tab provides options to create a new salvo. Salvos can be created either manually or using the most recently existing salvo. To create a new salvo, perform on of the following: New Blank Route Click New Salvo. - Page 30 Control and Display Descriptions New Salvo from Route Use this option to create a salvo based on the currently loaded salvo. Click New Salvo > New from Router table. A new salvo is added to the end of the list with a label of “UNNAMED” in the Name field. Click the Expand/Collapse button to view the currently configured routes.
-
Page 31: Status Tab
Operating Instructions Control and Display Descriptions Status Tab The Status tab provides information on the current status as well as the ability to display or hide specific types of messages. Status Settings By default, users are notified whenever an event occurs. User can view the status message associated with the event. - Page 32 Control and Display Descriptions Current Status By default, the Current Status field displays the current status. Clicking anywhere within the Current Status field expands the field to display the status. Outstanding issues with the unit, if any, are displayed. If no issues exist, the following message is displayed.
- Page 33 Operating Instructions Control and Display Descriptions Reference Input (Ext Ref Loop) Error/Alarm Condition The reference input forces the router to comply with RP-168 during a switch if present. If there is no reference present or the reference is incompatible, the router will display a service-affecting error (RED).
- Page 34 Control and Display Descriptions Table 3-2 Compatible RP-168 Video Signals - continued Reference Format Video Format Video Rate 1080p25 / 2160p25 HD / 6G 625i50 1080p50 / 2160p50 3G / 12G 625i50 625i50 720p50 1080i50 720p50 1080p25 / 2160p25 HD / 6G 720p50 1080p50 / 2160p50 3G / 12G...
- Page 35 Control and Display Descriptions Table 3-2 Compatible RP-168 Video Signals - continued Reference Format Video Format Video Rate 1080psf24 1080psf24 1080p24 / 2160p24 HD / 6G 1080psf24 625i50 1080psf25 1080psf25 1080psf25 1080p25 / 2160p25 HD / 6G 1080psf25 1080p23.98 / 2160p23.98 HD / 6G 1080p23.98 1080p24 / 2160p24...
-
Page 36: Protocols Tab
Control and Display Descriptions Protocols Tab The Protocols Tab provides options to define PESA settings and SW-P-08 settings. Pesa Settings To add a new panel: Use the Pesa Settings section to create, modify, and delete panels. To create a new panel: Expand the Pesa Settings. - Page 37 Operating Instructions Control and Display Descriptions The Panel is added to the list. SW-P-08 Settings Use the SW-P-08 Settings to specify the TCP/IP port. To specify the port, expand the SW-P-08 Settings field and type in the desired port number and click Apply.
-
Page 38: Settings Tab
Control and Display Descriptions Settings Tab The Settings tab provides options to view and configure various settings. Specifically, it includes an information section, options to configure IP settings, and a section that provides administration options. About The About section contain the following information: Product Name Company Name Software Revision (Platform) - Page 39 Operating Instructions Control and Display Descriptions IP Settings This section provides you the option to assign DHCP or Static address. Static IP Address Under IP Assignment select Static from the pull-down menu. Under Static IP Address, provide the appropriate information in the following fields: Address •...
- Page 40 Control and Display Descriptions DHCP Assignment Under IP Assignment select DHCP from the pull-down menu. Under Current IP Address, provide the appropriate information in the following fields: Address • Netmask address • Gateway Address • Click Set IP Setting. 3-18 WAVE 64X64-RTR ROUTER PRODUCT MANUAL WAVE RTR-64x64-OM (V1.1)
- Page 41 Operating Instructions Control and Display Descriptions Administration This tab provides options to upload files, enable SSH, reboot the router, download logs, enable remote sys logging, and to restore the router to factory default. File Upload Uploads binary files such as firmware updates and licenses to the router. Click Chose File and locate the desired file.
- Page 42 Control and Display Descriptions Download Logs Downloads the system logs to your local machine. System logs contain the events and messages that are generated. The logs that can be can be used by support in the event of any issues that may occur. Logs are contained in a GZ file and contain information such as a connection being accepted or dropped or when a message was sent.
- Page 43 Operating Instructions Control and Display Descriptions Factory Default Resets the configuration to factory default. To reset, click Factory Reset. 3-21 WAVE RTR-64x64-OM (V1.1) WAVE 64X64-RTR ROUTER PRODUCT MANUAL...
-
Page 44: Troubleshooting
Troubleshooting Troubleshooting This section provides general troubleshooting information and specific symptom/corrective action for the WAVE RTR-64x64 router and its remote control interface. The WAVE RTR-64x64 router requires no periodic maintenance in its normal operation; if any error indication (as described in this section) occurs, use this section to correct the condition. -
Page 45: Basic Troubleshooting Checks
The Cobalt Digital Inc. Technical Support Department will continue to provide advice on any product manufactured by Cobalt Digital Inc., beyond the warranty period without charge, for the life of the product. See Contact Cobalt Digital Inc. (p. 1-11) in Chapter 1, “Introduction“ for contact information. 3-23 WAVE RTR-64x64-OM (V1.1) - Page 46 Chapter 3 This page intentionally blank 3-24 WAVE 64X64-RTR ROUTER PRODUCT MANUAL WAVE RTR-64x64-OM (V1.1)
- Page 48 Cobalt Digital Inc. 2506 Galen Drive Champaign, IL 61821 Voice 217.344.1243 • Fax 217.344.1245 www.cobaltdigital.com WAVE RTR-64x64-OM (V1.1) Printed in USA...
